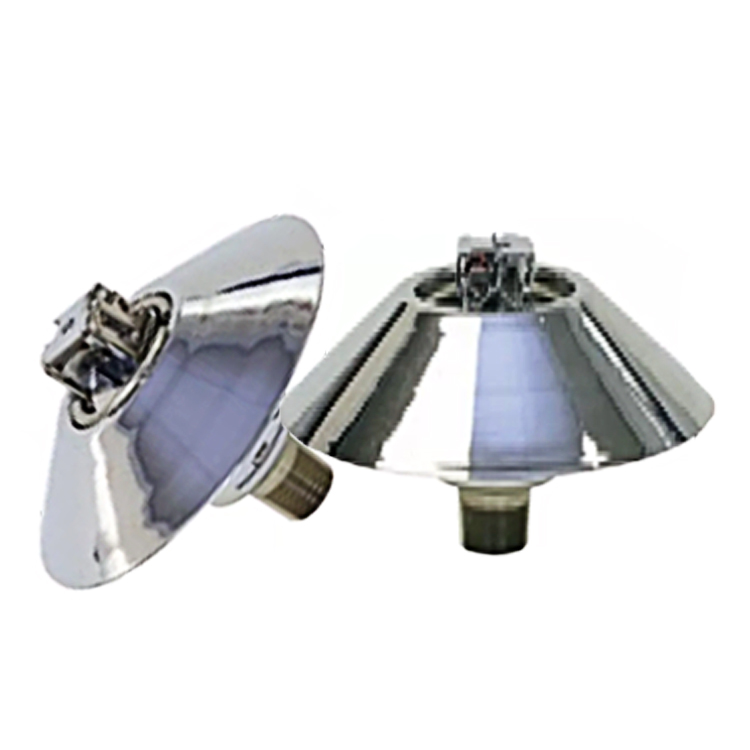

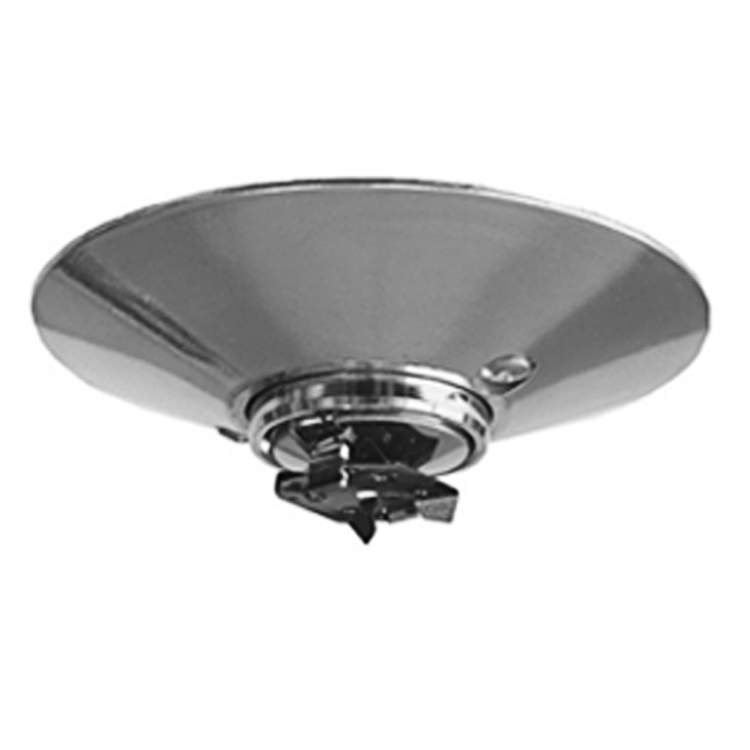

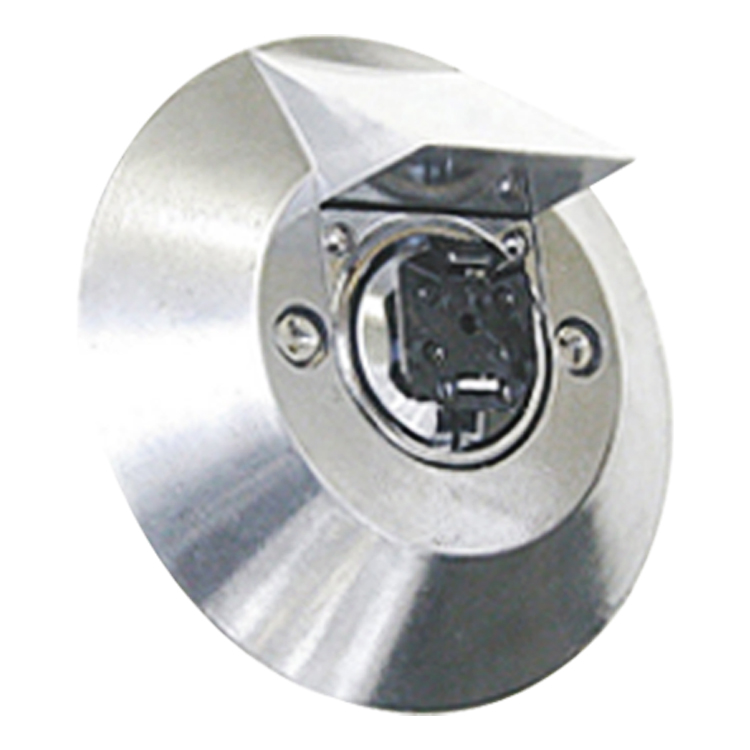

1/2 Inch Chrome Plated Institutional Pendent Sprinkler

The institutional pendent sprinkler is a type of fire sprinkler that is designed for use in institutional facilities such as hospitals, schools, and nursing homes.  These sprinklers are typically installed in the ceiling and are designed to provide rapid and effective fire protection in the event of a fire.  The pendant design allows for a sleek and unobtrusive installation, and the sprinkler head is designed to automatically activate when exposed to high temperatures, releasing water to suppress the fire.It is typically recessed or concealed, providing a clean and unobtrusive appearance when not activated.

 These sprinkler heads operate in the same way as other fire sprinkler heads.   When the surrounding temperature reaches a certain level due to a fire, a heat-sensitive element, typically a glass bulb or a fusible link, will rupture or melt, allowing water to flow out and suppress the fire.

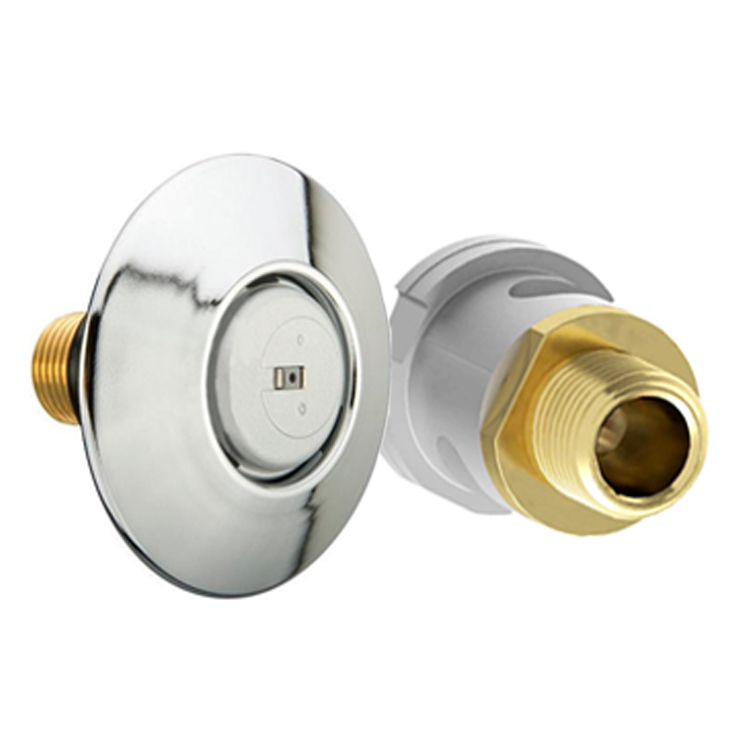

  Flush sprinkler heads are available in different finishes, including brass, chrome, white, and other colors, to match the surrounding decor.   They are an effective and visually appealing option for fire protection in various settings.

Features

• Sensitive Component: Glass Bulb
• Main Material: Brass
• Sealing Material: NBR
• Surface Treatment: Chrome Plating

Product Parameters

Model Number	Connection	K Factor	Temperature	Response	Glass Bulb	RTI(m·s)0.5
K-ZSTDQ 80-57℃ Q3	3/4" (DN20) BSP	K5.6@US (80@Metric)	57℃	Quick	Ø5mm, Orange	≤50
K-ZSTDQ 80-68℃ Q3			68℃		Ø5mm, Red
K-ZSTDQ 80-79℃ Q3			79℃		Ø5mm, Yellow
K-ZSTDQ 80-93℃ Q3			93℃		Ø5mm, Green
K-ZSTDQ 80-141℃ Q3			141℃		Ø5mm, Blue

FAQ

Q:Is the sample provided for free?

A:A few small products like sprinklers decorative covers can be provided for free, but buyers pay for freight. Other products need to be confirmed.

---

Q:What is the production time of the sample?

A:Generally speaking, it isn't a large-scale purchase, and the lead time about 15 working days.Of course, having an urgent order, please reconfirm with us.

---

Q:How to mail the samples?

A:Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
