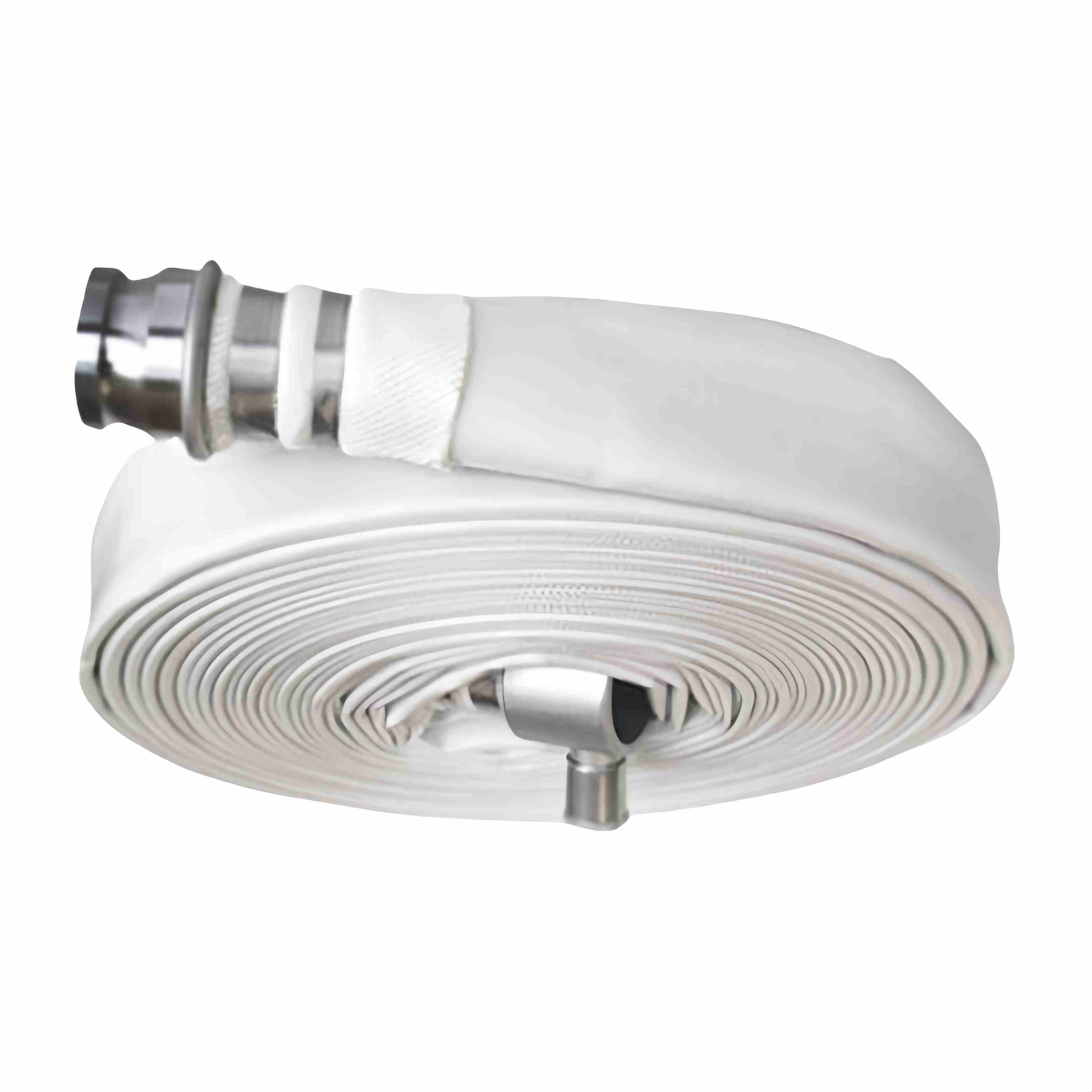

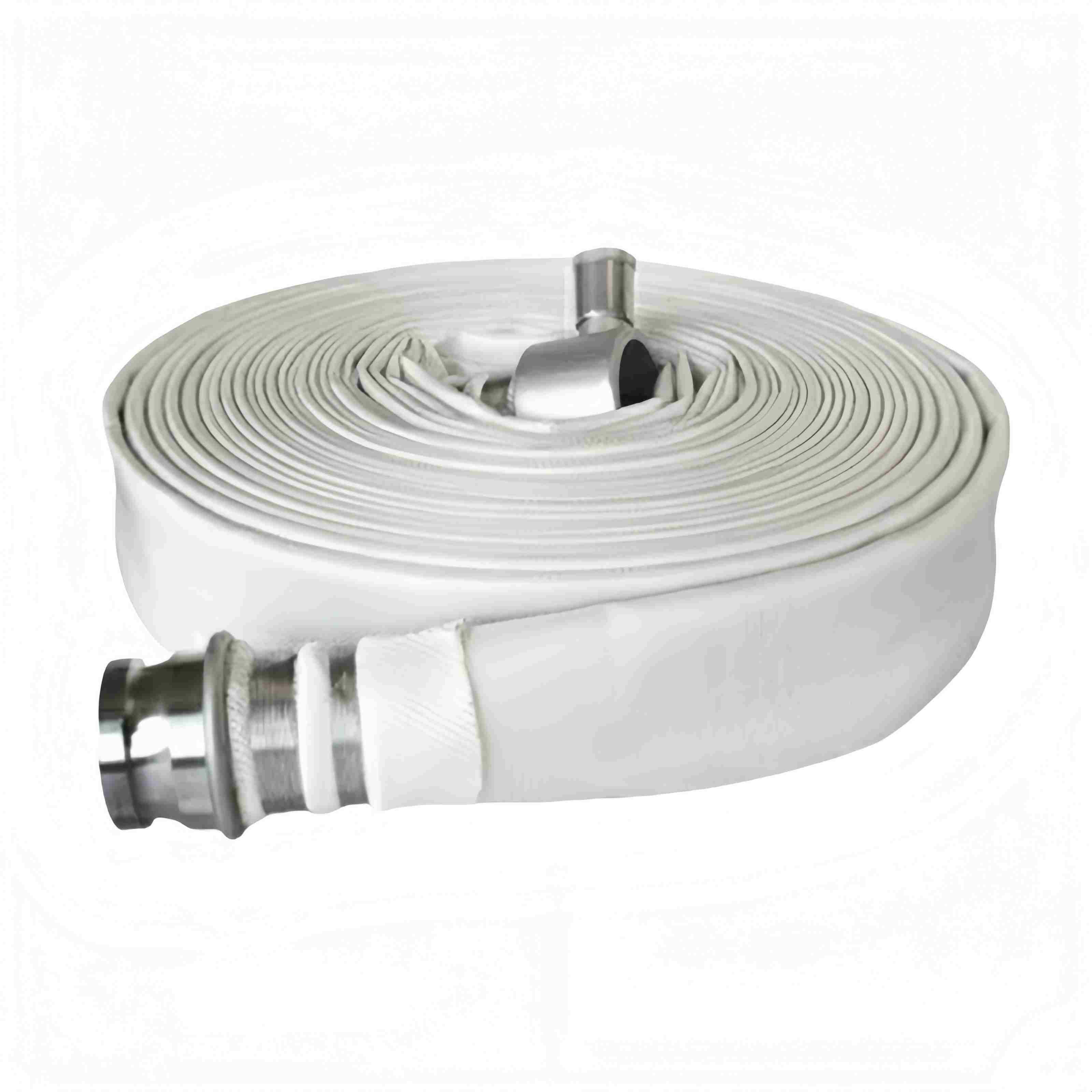

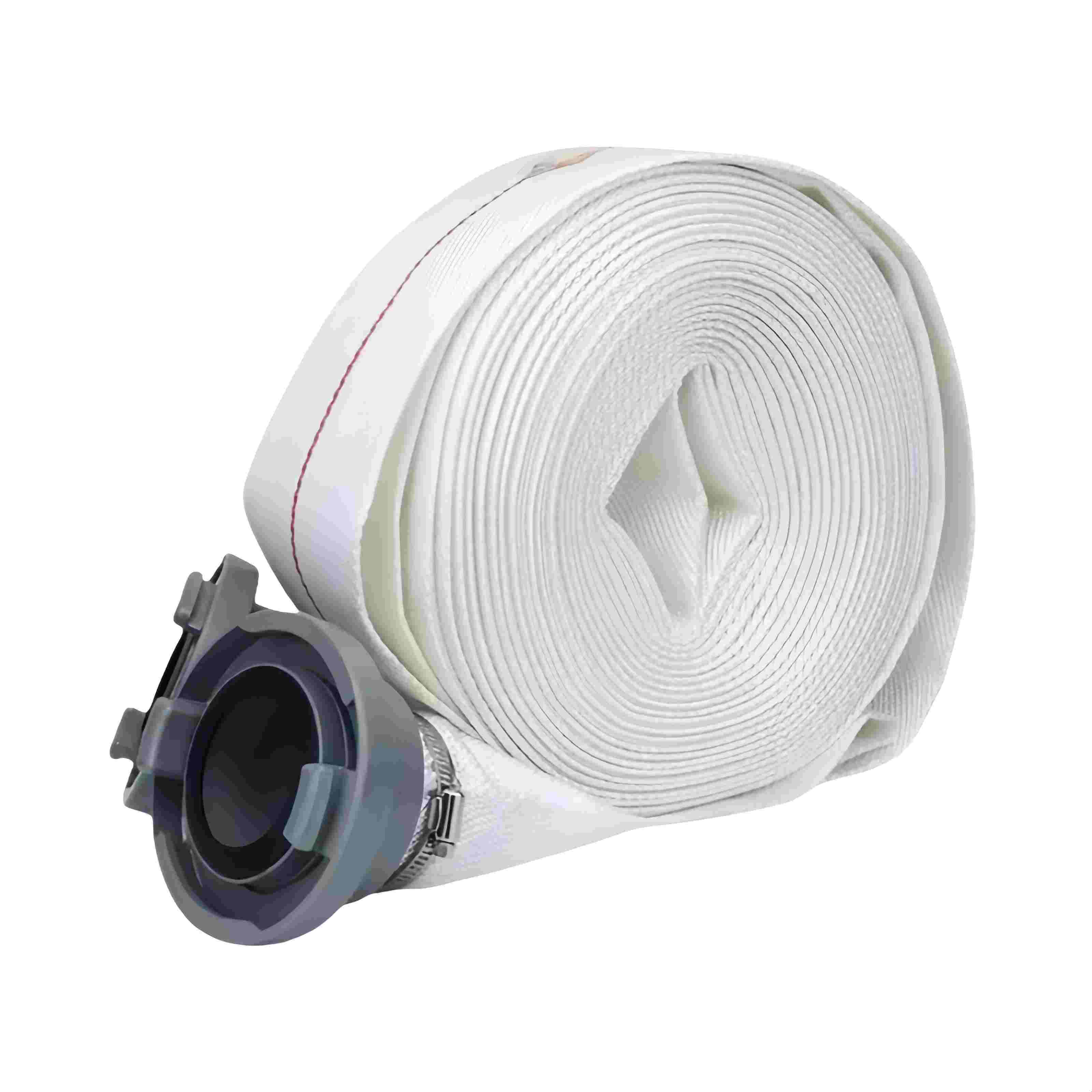

PVC Layflat Fire Hose is a type of collapsible fire hose made from polyvinyl chloride (PVC) material.
Hose Material :
PVCWorking Pressure :
8Bar to 16BarTesting Pressure :
24Bar to 48BarType :
PVC Layflat Fire HoseDiameter :
1inch to 8inchMeters :
10m~50mColor :
White,RedApplication :
Fire Fighting/Agricultural Irrigation/Emergency Drainage/Industrial water drainageMOQ :
300 RollsDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Company Project
It is designed for easy storage, rapid deployment, and efficient water transfer in firefighting operations. The hose remains flat when not under pressure, making it ideal for emergency response, irrigation, and industrial applications. Its lightweight and flexible nature allows for quick setup and minimal storage space.
When not pressurized, the hose is in a flat state. After being filled with water, it rapidly expands into a cylindrical shape relying on the internal water pressure, forming a smooth water delivery channel.
Features
• High Flexibility：Lies flat when depressurized, occupying minimal storage space. Easily coiled or folded.
• Durability：Resists abrasion, mildew, and most chemicals
• Ultimate lightness and portability
• The liner process produces an amazingly thin but smooth inner waterway
• Alu. and Brass couplings and others available on request
Products Parameter
| Normal Size | Working Pressure | Burst Pressure | |||||||
| Inch | mm | Psi | Bar | Psi | Bar | ||||
|
19 | 115 | 8 | 350 | 24 | ||||
|
25 | 115 | 8 | 350 | 24 | ||||
|
38 |
|
|
|
24,30,39,48 | ||||
|
52 |
|
|
|
24,30,39,48 | ||||
|
65 |
|
|
|
24,30,39,48 | ||||
|
76 |
|
|
|
24,30,39,48 | ||||
|
102 |
|
|
|
24,30,39,48 | ||||
|
125 | 115 | 8 | 350 | 24 | ||||
|
152 | 115 | 8 | 350 | 24 | ||||
|
178 | 115 | 8 | 350 | 24 | ||||
|
203 | 115 | 8 | 350 | 24 | ||||
FAQ
Q：What’s the MOQ for your fire hose?
A：300 Rolls.
Q：Can you accept sample order?
A：Yes，we accept samples with little and reasonable charge.But need customer pay sample fees and transport fees firest.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc.
Q：How can I get my oeder？
A：We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder，all with tracking number.
Q：Why choose us？
A；With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
