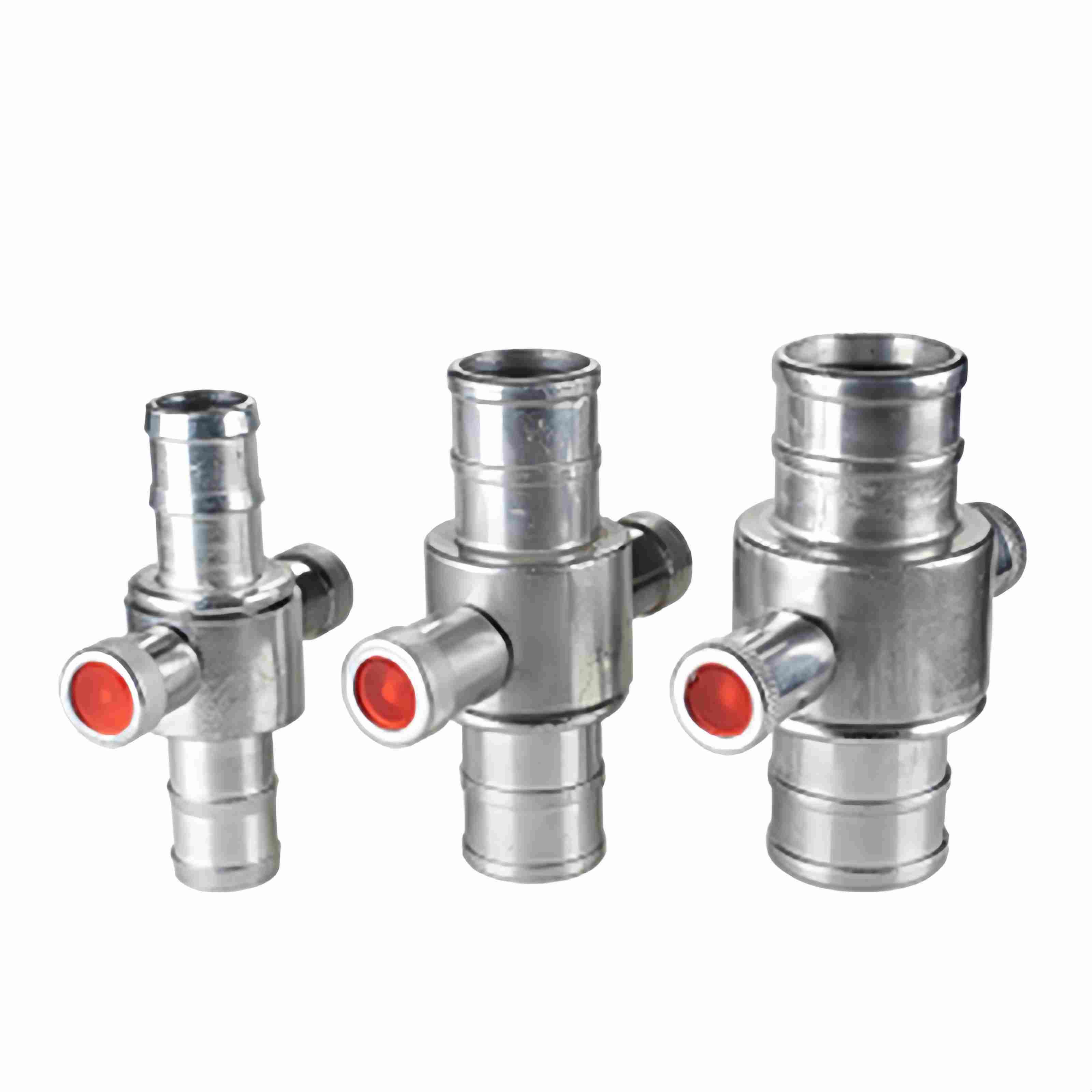

British Coupling is not a specific brand or model of coupling, but refers to the threaded quick couplings used in British standard fire hydrants, fire hoses and fire truck pump systems.
Material :
Brass/AluminumWorking Pressure :
1.6 MpaType :
BtirishDiameter :
1inch 1.5inch 2inch 2.5inchApplication :
Fire hose,Fire hydrant etc.MOQ :
500 piecesDelivery Time :
15~45 DaysEmail : jony@jyfire.com.cn
Product Description
The threads of British connectors are straight and parallel, and their sealing does not rely on the threads themselves. Since the threads are parallel, the sealing function is undertaken by a Washer installed inside the Female. When the male head and the female head are tightened, the end face of the male head will squeeze the rubber ring inside the female head, thus forming a water-tight seal. This rubber ring is the key to sealing the entire joint and must be inspected and replaced regularly.
The joint is designed with two or three protruding "ears" or flat areas. This is designed to work in conjunction with a dedicated Spanner wrench, enabling firefighters to quickly and forcefully tighten or remove joints, even when wearing gloves or in low light conditions.
Although it needs to be rotated, due to the presence of lugs and a special wrench, its connection speed is very fast, and thus it is also regarded as a quick connector.
Features
• Standardization: It has extremely high universality in applicable regions.
• Reliability: Simple and sturdy structure, durable.
• Quick connection: When used with a wrench, the connection speed is faster than that of ordinary threads.
• Simple maintenance: The seal relies on replaceable rubber rings rather than precise threads.
• Regional: It is not widely used in most areas outside the UK and is incompatible with international standards such as Storz
• Gasket dependency: If the rubber gasket is lost, aged or damaged, the joint will leak seriously.
Product Parameter
| Coupling Model | Diameter Size | Brass Material | |
| British Coupling（Jorn Morris Coupling） | Jorn Morris Coupling Short Tail | 1 Inch, 1.5 Inch, 2 Inch, 2.5 Inch | Stainless Steel, Aluminum |
| Jorn Morris Coupling LongTail | 1 Inch, 1.5 Inch, 2 Inch, 2.5 Inch | ||

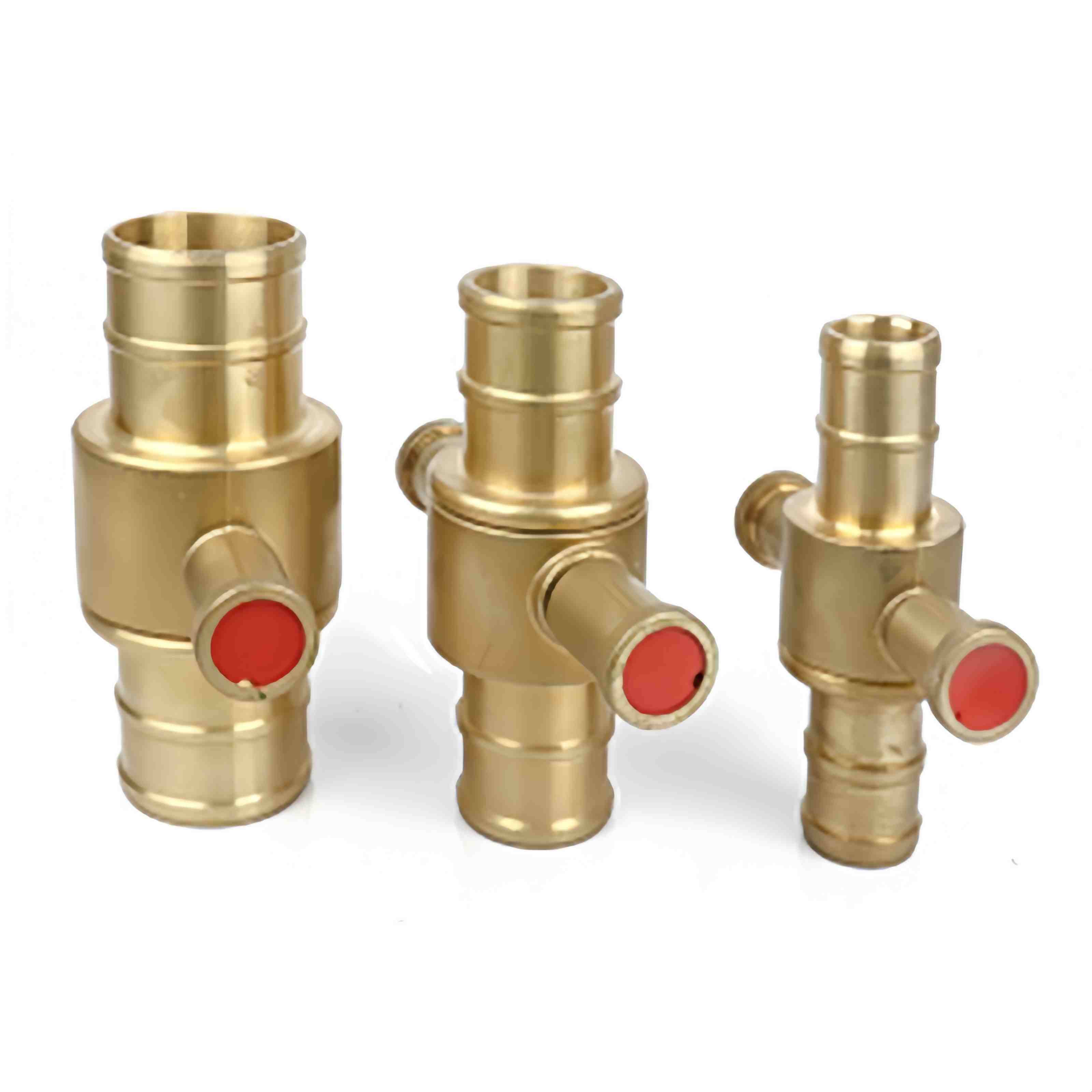

| Brass Jorn Morris Coupling Long Tail | 1 Inch, 1.5 Inch, 2 Inch, 2.5 Inch | Brass | |
Company Project
Q：What’s the MOQ for fire hose coupling?
A：For standard sizes, our MOQ is usually 500 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
