Versatile Adjustable Fog Nozzle For Class A And B Fires

Adjustable Fog Nozzle For Firefighting With Multiple Spray Modes

Brass Adjustable Fog Nozzle For Standpipe System Fire Suppression

Adjustable Fog Nozzle

The Adjustable Fog Nozzle is a versatile firefighting tool, ideal for standpipe systems, enabling flexible water discharge patterns from fog to straight stream for effective fire suppression.

Inlet :
1-1/2" or 2-1/2" NH
Working Pressure :
7bar
Flow Rate :
110/280GPM
MOQ :
100Pieces
Delivery Time :
15-30Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

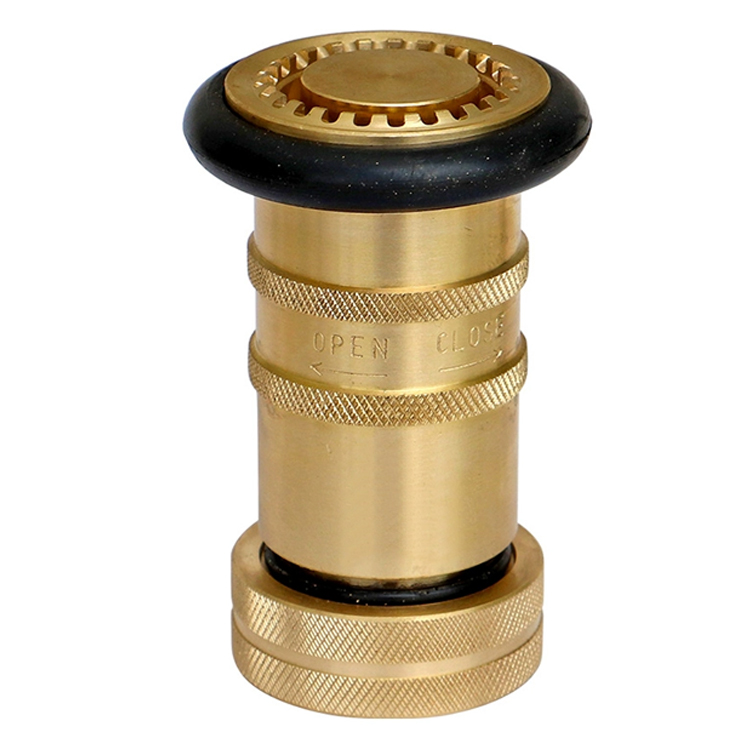

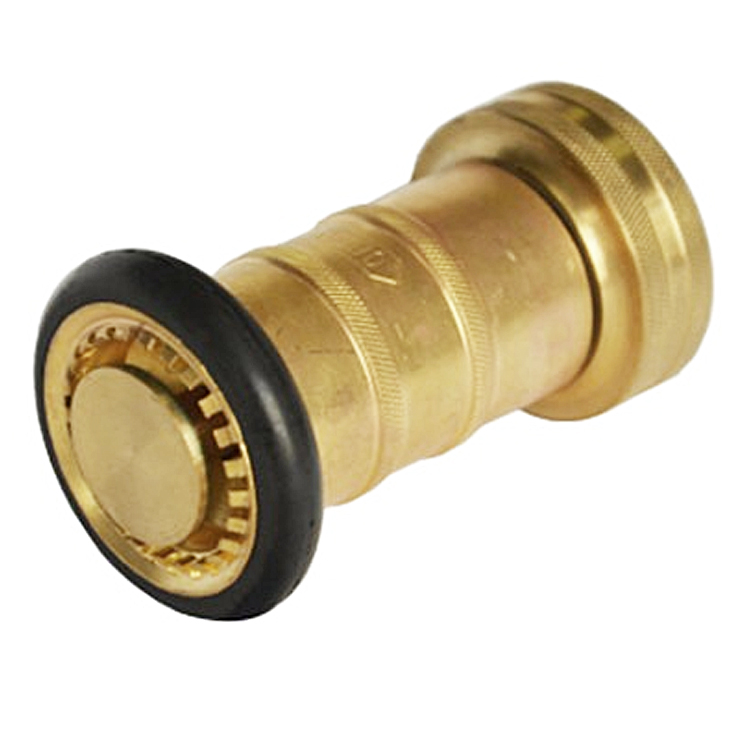

The Adjustable Fog Nozzle is a key component for standpipe systems, typically used as a rack nozzle with a fire hose. It offers convenient rotational control, allowing adjustment between wide fog, narrow fog, straight stream, and shut - off modes. Crafted from brass, this nozzle is not only durable but also easy to operate, making it a reliable choice for firefighting scenarios involving Class A and B fires. Whether it's for creating a wide fog pattern to cool and suppress fire spread or a straight stream to penetrate flames, this nozzle adapts to various firefighting needs.

Feature

Material: Constructed from brass for durability, with an NBR bumper for protection.

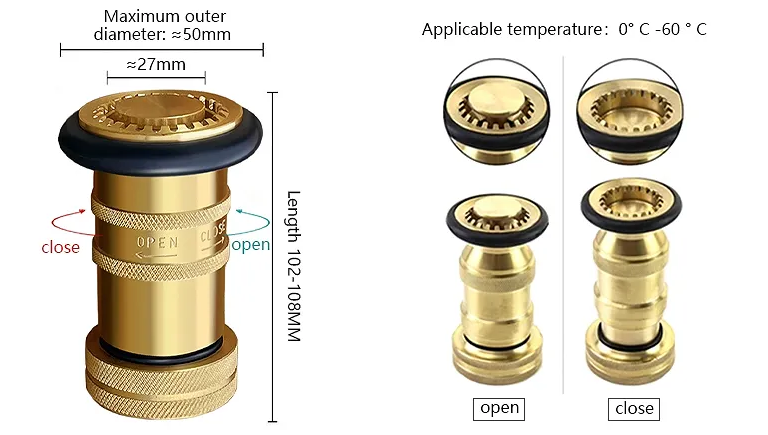

Adjustable Modes: Rotational control enables switching between wide fog, narrow fog, straight stream, and shut - off.
Fire Suitability: Effective for Class A and B fires.
Surface Options: Available in rough, polished, or chrome - plated finishes.
Versatile Couplings: Supports NH, BSP, INST, GOST, STORZ, and other coupling standards.

Product Parameter

Model	Material	Rated Flow	Inlet	Working Pressure
JY-FN1	Brass	110GPM	1-1/2''NH	7bar
JY-FN2	Brass	280GPM	2-1/2''''NH	7bar

Q: Can the adjustable fog nozzle be set to straight stream?

A: Yes, it is adjustable by rotational control from wide fog, narrow fog, straight stream, to shut - off.

Q: What is the max. pressure of the adjustable fog nozzle?

A: The adjustable fog nozzle max. pressure could be 14 bar.

Q: What is the main material of the adjustable fog nozzle?

A: The adjustable fog nozzle body is made of brass with an NBR bumper.

Q: Do you have any other coupling options?

A: Yes, besides the NH standard, BSP, INST, GOST, STORZ and other standards are all available.

Q: What is your payment terms?

A: Payment supports T/T, L/C, etc.
