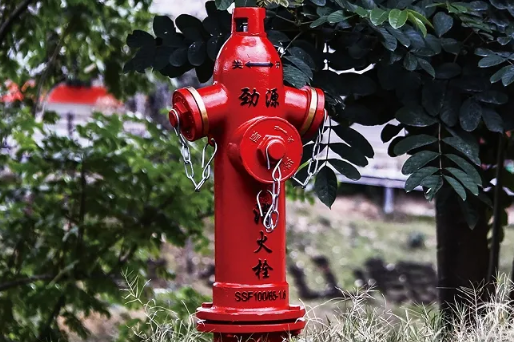

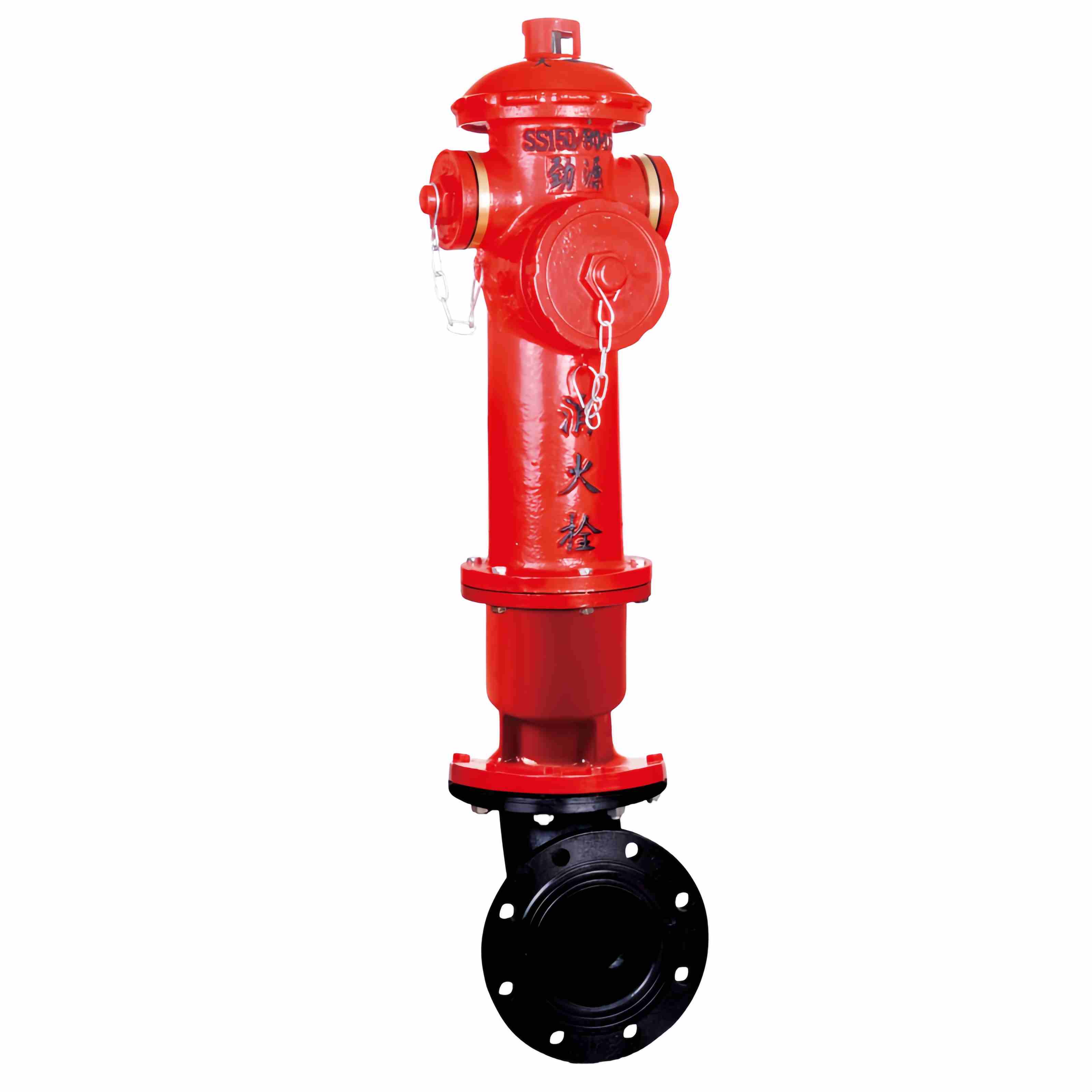

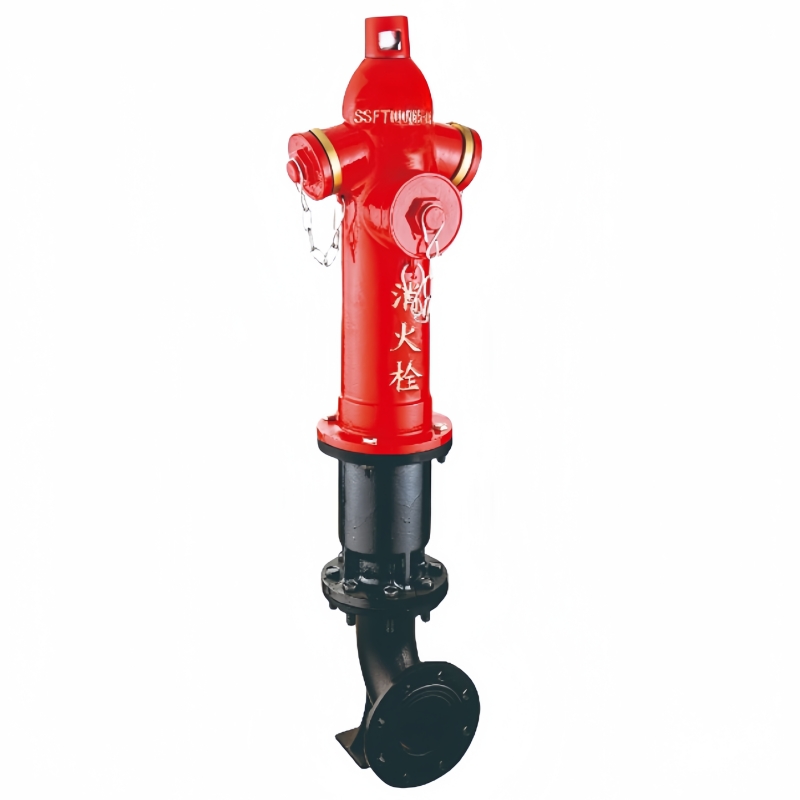

Outdoor Ground Fire Hydrant

Outdoor fire hydrants are key fire-fighting water supply devices set up outside buildings to provide water sources for fire brigades to extinguish fires.

Material :
Ductile Cast Iron/Cast Iron
Outlet :
65mmx2/80mmx2
Inlet :
100mm/150mm
Working Pressure :
16 Bar
Type :
Ground Fire Hydrant
MOQ :
20 Pieces
Delivery Time :
15~30 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Parameter

An outdoor fire hydrant is a special water intake valve device installed on the outdoor fire water supply network. Its core function is to provide a large and stable supply of fire-fighting water when a fire occurs, and it can also be directly connected to hoses and nozzles for fire suppression.

Outdoor hydrants are sealed by tight contact between the gasket mounted on the disc and the seat.

Rotate the valve stem to make the disc parts move up and down, so that the valve parts and the valve seat open and close to play the role of water intake and water sealing. When the stem is rotated counterclockwise and the valve disc rises to the fully open state, the drainage valve is closed, and the water in the supply pipe enters the hydrant, and the water is drawn or directly put out the fire through the hose gun.

Features

• The target is obvious and easy to discover and identify

• The operation is simple and convenient, and the connection is quick

• Convenient for maintenance

• It is not easily submerged by snow

• It is vulnerable to damage from external force impacts

• There is a risk of freezing and cracking in cold regions

Products Parameter

Model	Nominal Pressure（MPa）	Water Inlet			Water Outlet
		Model	Quantity	Bore（mm）	Model	Quanity	Bore
SS100/65-1.6	1.6	Socket Flange	1	100	Deducted Type	2	KWS 65
					External Thread	1	M125*6
SS150/65-1.6	1.6	Socket Flange	1	100	Deducted Type	2	KWS 65
					External Thread	1	M170*6
SS150/80-1.6	1.6	Socket Flange	1	100	Deducted Type	2	KWS 80
					External Thread	1	M170*6

Q: What are the differences between above-ground and underground fire hydrants?

A: Above-ground type: Part of the valve body is exposed above the ground, red in color, very eye-catching. Underground type: All installed in the underground well room under the manhole cover.

Q：What’s the MOQ for your outdoor ground fire hydrant?

A：20 pieces

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：How can I get my oeder？

A：We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder，all with tracking number.

Q：Why choose us？

A；With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!

Act now—stop fire risks at the source!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

Tel.：86-18159244550 Mobil:18159244550

EMAIL:Jony@jyfire.com.cn

ADD:CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY
