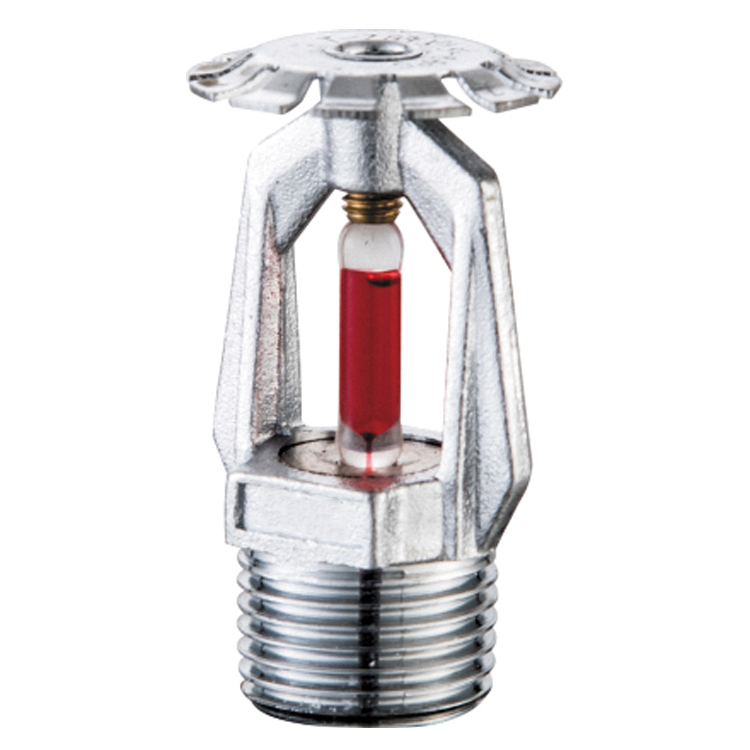

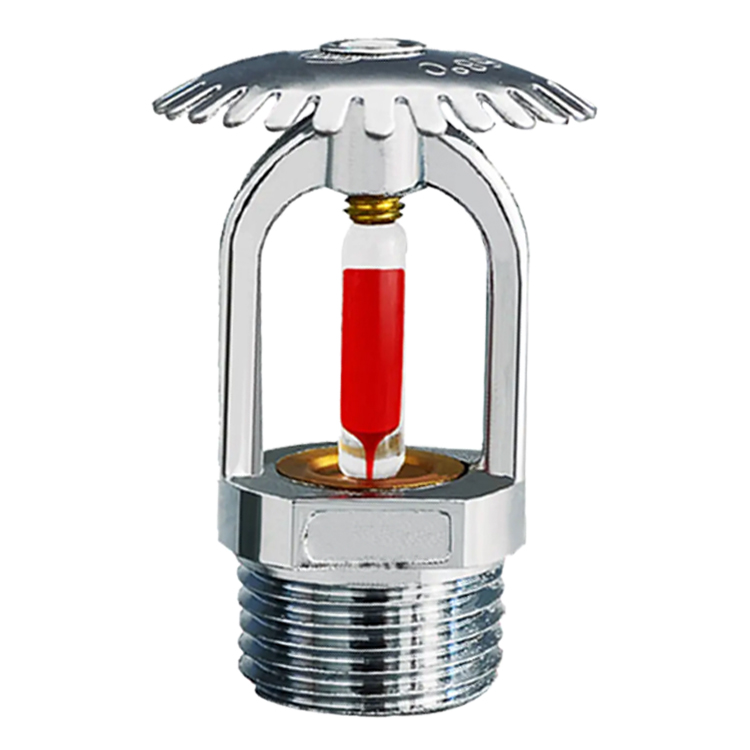

Standard Response Sprinkler

Standard response sprinkler automatically activates at a preset temperature, releasing an even water spray to quickly cover the fire zone for efficient suppression.

  • Sprinkler Material :

    Brass or Stainless Steel
  • Sprinkler Installation :

    Pendent
  • Thread Size :

    R1/2
  • Temperature :

    68 degree
  • Glass Bulb Color :

    Red
  • Surface Finishing :

    Chrome (Natural Brass Optional)
  • MOQ :

    1000pieces
  • Delivery Time :

    15days~30days

Products Description


Jinyuan Standard spray fire sprinkler is a type of automatic water spray extinguishing device specifically designed for fire suppression and control in various settings. It operates by distributing water in a spray pattern over a designated area, effectively extinguishing or controlling fires upon activation.

The "standard spray" refers to the pattern and distribution of the water spray, which is engineered to cover a wide area efficiently and uniformly. This ensures that the fire is suppressed quickly and effectively, minimizing damage and risk to personnel and property.

These sprinklers are typically installed in buildings, facilities, and other structures where fire protection is crucial. They are connected to a water supply system and are designed to activate automatically when the temperature in the area reaches a certain threshold, triggering the release of water to douse the flame

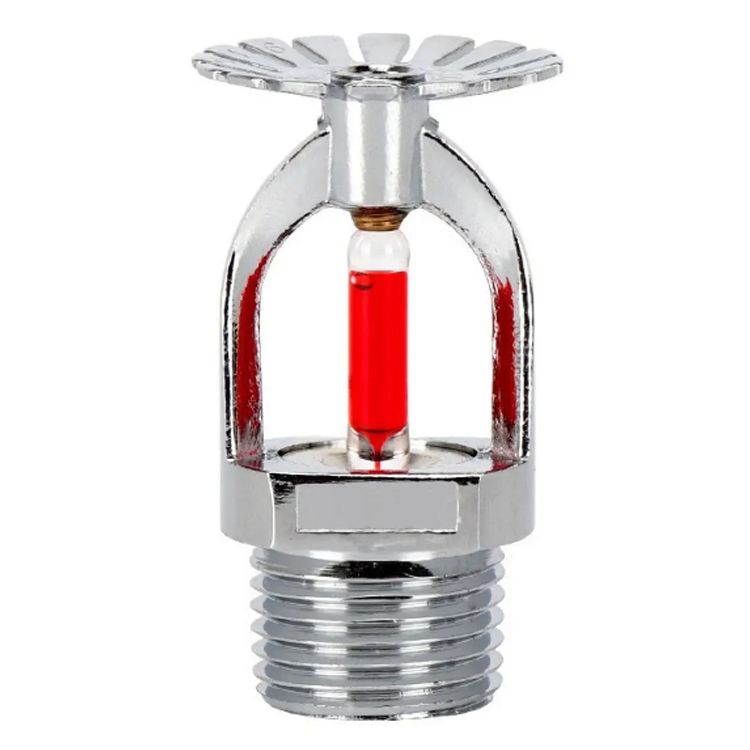

Standard Response Sprinkler

Jinyuan fire sprinklers are key components in fire protection systems. When a fire occurs and the ambient temperature reaches the designed response temperature (68℃ here), the thermal - sensitive element (the red liquid - filled part) ruptures, and the sprinkler discharges water to suppress and extinguish the fire, playing a crucial role in initial fire fighting and protecting property and life safety.

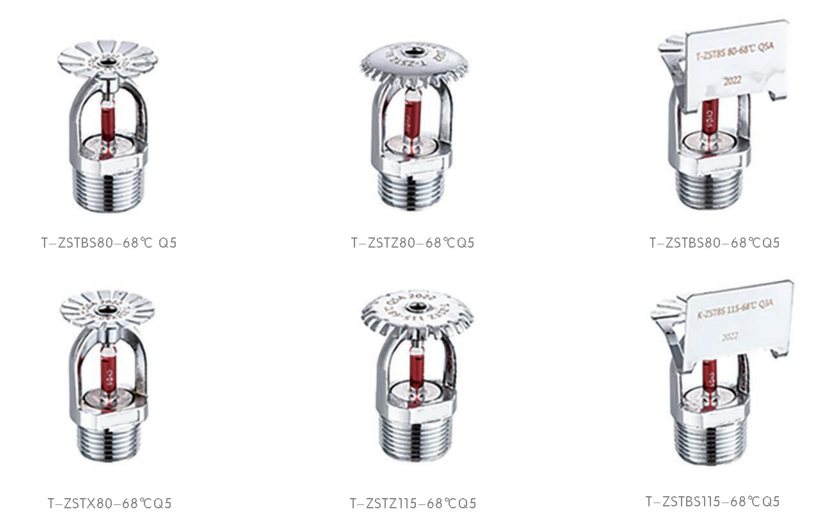

Products Parameters



Model Diameter of thread Flow coefficient Operating temperature Minimum and maximum order length
T - ZSTGX80 - 68℃ Q5 Standard order: 1” NPT(DN25) 80±6 68℃ 76.5mm - 1422.8mm
T - ZSTGX115 - 68℃ Q5 Standard order: 1” NPT(DN25) 115±9 68℃ 76.5mm - 1422.8mm
K - ZSTGX80 - 68℃ Q3 Standard order: 1” NPT(DN25) 80±6 68℃ 76.5mm - 1422.8mm
K - ZSTGX115 - 68℃ Q3 Standard order: 1” NPT(DN25) 115±9 68℃ 76.5mm - 1422.8mm
Main Parts of the Product Materials Available Size Specifications and Models
Sprinkler Body (Including nozzle, shell, etc.) Alloy, Metal T - ZSTGX80 - 68℃ Q5、T - ZSTGX115 - 68℃ Q5、K - ZSTGX80 - 68℃ Q3、K - ZSTGX115 - 68℃ Q3
Glass Bubble Thermal - Sensitive Element Glass with heat - sensitive liquid inside T - ZSTGX80 - 68℃ Q5、T - ZSTGX115 - 68℃ Q5、K - ZSTGX80 - 68℃ Q3、K - ZSTGX115 - 68℃ Q3
Spring - Pipe Plug Assembly Metal spring, Sealing material T - ZSTGX80 - 68℃ Q5、T - ZSTGX115 - 68℃ Q5、K - ZSTGX80 - 68℃ Q3、K - ZSTGX115 - 68℃ Q3
FAQ

1:What’s the MOQ for your Jinyuan Standard sprinklers?

The regular MOQ is 500 sets. For special purchase quantities, it can be negotiated and adjusted. We support flexible adaptation for small - batch trial orders and large - scale purchases.

2: What’s the production lead time? Can urgent orders be expedited?

The standard production lead time is 15 days. For urgent orders, if communicated in advance and the order quantity is reasonable, we can coordinate the production line for expediting to meet the delivery demand as much as possible.

 3:Can you provide free samples for testing? How about sample fees if charged?

Free samples are available within 2 sets for function and quality inspection. For quantities exceeding or special - customized samples, fees are charged at cost, which can be deducted from the payment after order placement.

4:How to handle quality issues of sprinklers during cooperation?

If quality issues are indeed caused by our production, we will provide unconditional return and replacement. Assist in replenishment and rectification throughout to ensure your project progress, and bear corresponding logistics and loss costs.

5:What payment and delivery terms do you support?

Payment supports T/T, L/C, etc. Delivery can be based on international trade terms like FOB, CIF, or domestic logistics distribution (such as express, dedicated line logistics), flexibly adapting to cooperation needs.



Feature

Sensitive Element:  Glass Bulb
Main Material:  Brass
Seal Material:  NBR
Surface Finishing:  Chrome
Length of Pipe:  80~1500mm customized.



Why Choose US
Choose us for faster, steadier, and more economical fire protection—15-second activation, 10-year warranty, and 50 % lower lifetime costs

  • Conventional Response Sprinkler Precise temperature control second-level response
     68 °C glass bulb with ±1 °C tolerance activates within 15 seconds of ignition, outclassing peers in speed
  • Standard Response Fire Sprinkler Full-coverage water mist zero blind spots
    zero blind spots: patented deflector delivers 30 % more uniform distribution, protecting up to 12 m² per sprinkler with no gaps
  • Wholesale Fire Sprinkler Supplier Long-lasting maintenance-free
    The solutions for product application can be customized according to the special requirements of the industry for graphite.The solutions for product application can be customized according to the special requirements of the industry for graphite
