Zinc Chromed Water Fog Fire Sprinkler (PTW-50) – brass + stainless steel net, 50LPM flow, for low-expansion foam fire suppression.

Dual-Purpose Foam/Water Nozzle – zinc chromed brass, 40±5 K factor, supports BSP/NPT threads for pendent installation.

Low-Expansion Zinc Chromed Fire Sprinkler (0.3-0.7Mpa) – ≥120s liquid drain time, ideal for protected hazardous area fire control.

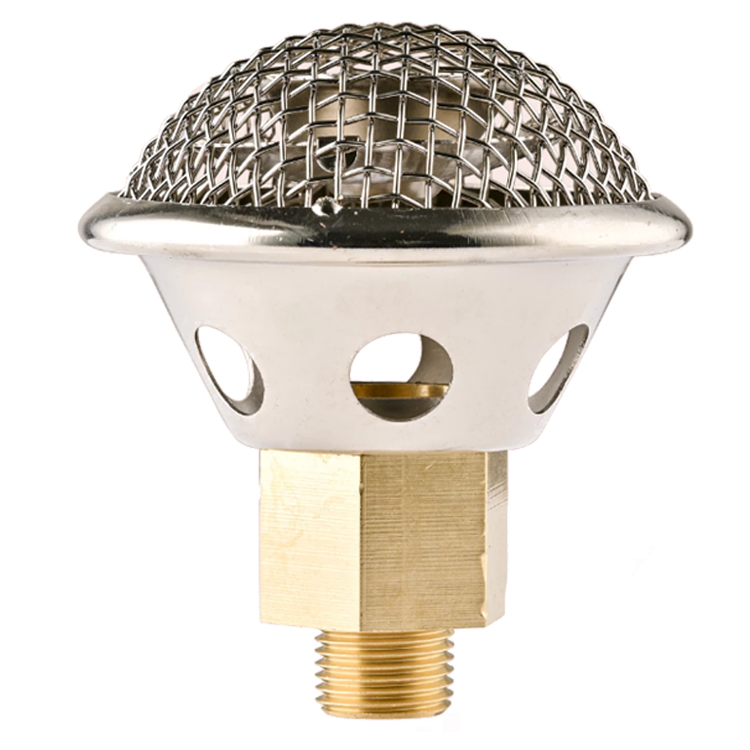

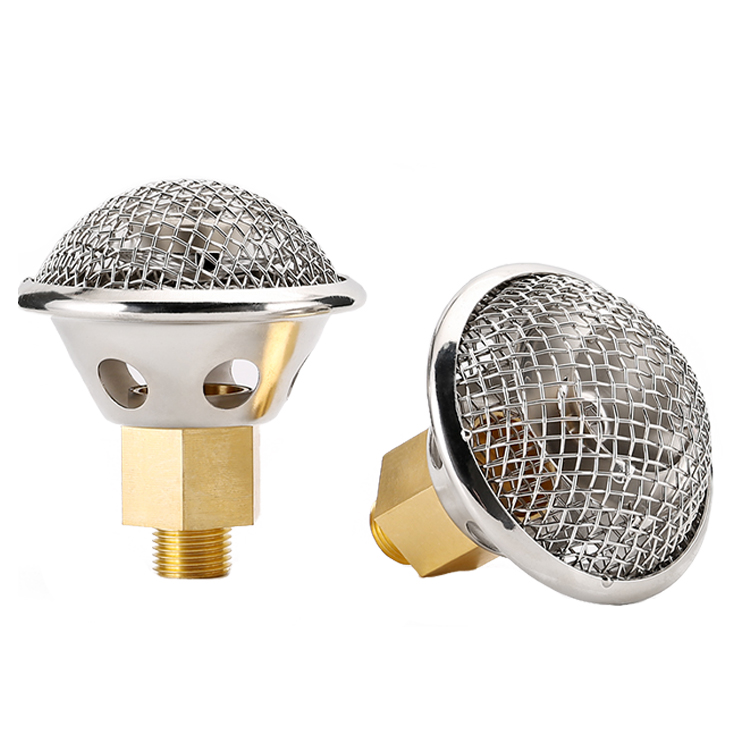

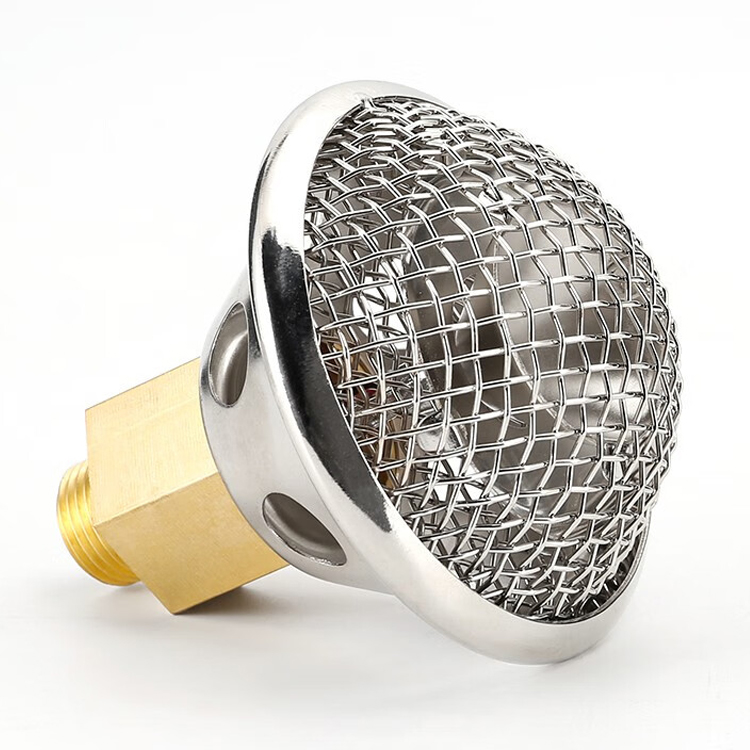

Zinc Chromed Water Fog Fire Sprinkler

The Zinc Chromed Water Fog Fire Sprinkler (including PTW Foam Nozzles and PTT/S Dual-Purpose Foam/Water Nozzles) is a specialized fire-extinguishing component for low-expansion foam spray systems. It generates and sprays air foam by sucking in air during foam mixed liquid flow, effectively suppressing fires in protected hazardous areas.

Working Pressure :
0.3-0.7Mpa
Sprinkler Material :
Zinc Chromed
Sprinkler Installation :
Pendent
Expansion :
Low expansion,≥ 5 Times
25% Liquid Drain Time :
≥ 120 s
Connecting Size :
BSP,NPT Optional
MOQ :
1000Pieces
Delivery Time :
15-30 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

As a core part of low-expansion foam spray systems, the Zinc Chromed Water Fog Fire Sprinkler consists of two main types: PTW Foam Nozzles and PTT/S Dual-Purpose Foam/Water Nozzles. When foam mixed liquid with a certain pressure flows through the nozzle’s inner cavity, the throttling effect increases its flow velocity while reducing pressure—creating negative pressure that sucks in air. This air and foam mixed liquid then undergo a blowing-up process inside the nozzle to form air foam with a low expansion ratio (≥5 times).

The sprinkler is installed in a pendent manner, and the generated air foam is sprayed into the protected danger zone to cut off the fire’s oxygen supply and cool the fire site, achieving efficient fire extinguishing. Crafted with key materials like brass (and brass + stainless steel net for PTW models) and finished with zinc chrome plating, it boasts stable quality, corrosion resistance, and low maintenance needs. It supports optional BSP or NPT connecting threads, making it compatible with various pipeline systems in different application scenarios.

Feature

Efficient Foam Generation: Creates low-expansion air foam (≥5 times) via negative pressure air suction, ensuring strong fire-suppression ability.
Dual-Type Adaptability: Includes PTW foam nozzles and PTT/S dual-purpose foam/water nozzles to meet diverse fire-extinguishing needs.
Stable & Durable: Made of brass (or brass + stainless steel net) with zinc chrome plating, offering corrosion resistance and long service life.
Flexible Compatibility: Optional BSP/NPT connecting threads, suitable for different pipeline standards.
Low Maintenance: Simple structure and stable performance reduce daily maintenance workload.
Reliable Performance: 25% liquid drain time ≥120s, ensuring sustained foam coverage during fire suppression.

Product Parameter

Model Number	Description	Flow Rate	Connection Size	K Factor
PTW-50	Water Foam Sprinkler	50LPM	1/2''	25
PTW-70	Water Foam Sprinkler	70LPM	3/4''	35
PTW-90	Water Foam Sprinkler	90LPM	1''	45

Q: Is this sprinkler only used for foam fire extinguishing?
A: No. The PTT/S series is a dual-purpose nozzle that can be used for both foam and water spray, while the PTW series is mainly for foam. You can choose the appropriate type based on your specific fire-extinguishing scenario.

Q: Can you accept sample order?
A: Yes, we accept samples with a little and reasonable charge. But customers need to pay sample fees and transport fees first.

Q: What is your payment terms?
A: Payment supports T/T, L/C, etc. We can also adjust the terms according to the order volume and long-term cooperation needs.

Q: How can I get my order?
A: We will ship the goods via UPS, DHL, Fedex, Oversea Shipment or other forwarders (as per your request), and all shipments will be provided with a tracking number for you to check the logistics status.

Q: Why choose us?
A: With years of experience in the fire protection industry, we have professional R&D and production teams, and our products (including this zinc chromed water fog fire sprinkler) undergo strict quality testing to ensure stable performance. We offer competitive prices, flexible customization (e.g., thread type), and timely after-sales service, with many well-known partners in the domestic and international markets.

Act now—stop fire risks at the source!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

TEL：86-18159244550

EMAIL:Jony@jyfire.com.cn

ADD:CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY
