3 Way Dividing breeching – 24 Bar test pressure, 2.5

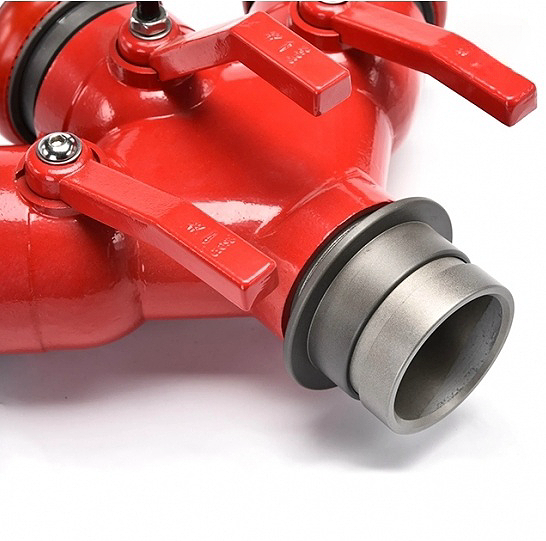

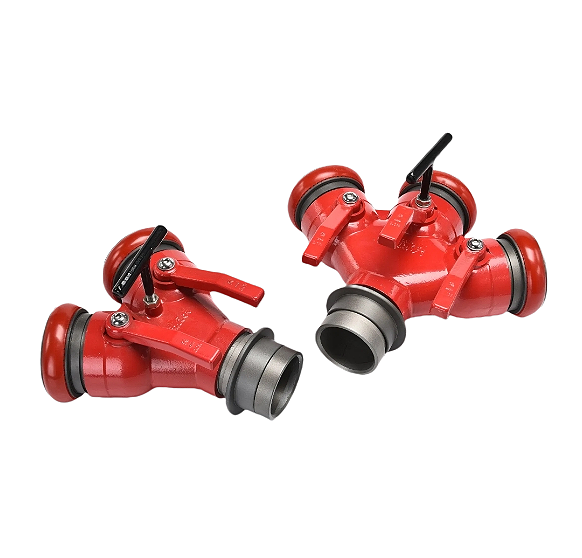

3 Way Dividing Breeching

The 3 Way Dividing breeching is a key fire-fighting device that connects the main fire water supply line to multiple branch lines. It enables simultaneous or independent use of branch hoses, optimizing water flow control and improving fire suppression efficiency.

Material :
Aluminum Alloy
Inlet :
2.5'', 3'' ,4''，5'',6'', 12''
Testing Pressure :
24Bar
Hand Wheel :
Aluminum Alloy
MOQ :
50Pieces
Delivery Time :
15-30Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

As an essential component in fire water supply systems, the 3 Way Dividing breeching is specifically designed to split a single main water supply into three branch lines—making it ideal for scenarios where multiple fire hoses need to be deployed simultaneously (such as large-area fires or multi-point fire suppression). Installed on the main fire hose line, it features one water inlet and three water outlets, with each outlet equipped with a dedicated valve device. This valve design allows firefighters to open or close individual branches at any time: they can use all three branches together for large-scale fire control, or shut down unused branches to concentrate water pressure on key areas. Additionally, the valve-controlled outlets facilitate easy replacement or addition of branch hoses without interrupting the entire water supply, saving valuable time during emergency operations. By reducing the need for extra hoses and manpower, the device effectively shortens water discharge preparation time and enhances the overall responsiveness of fire-fighting teams.

Feature

Multi-Branch Water Distribution: 1 inlet + 3 outlets design, supports simultaneous or independent use of branch lines to meet multi-point fire suppression needs.
Individual Valve Control: Each outlet is equipped with a valve, enabling flexible on/off and water flow adjustment for each branch without affecting the main supply.
High Pressure Resistance: Test pressure (T.Pressure) of 24 Bar, ensuring stable performance under high-pressure fire water supply conditions.
Diverse Size Options: Inlet sizes (2.5", 3", 4", 5", 6", 12") and matching outlet combinations available, compatible with different fire hose specifications.
Efficient Operation: Simplifies branch hose replacement/addition, saves manpower and hose usage, and shortens fire-fighting preparation time.
Wide Applicability: Suitable for laying fire hoses in various scenarios, including industrial sites, commercial buildings, and large public spaces.

Product Parameter

Model	T.Pressure	Inlet	Outlet
3BI-001	24bar	2.5''	3*2.5‘’
3BI-001	24bar	3''	32.5‘’/33‘’
3BI-001	24bar	4''	32.5‘’/33‘’
3BI-001	24bar	5''	32.5‘’/33‘’
3BI-001	24bar	6''	32.5‘’/33‘’
3BI-001	24bar	12''	6‘’*3‘’

Q: What is the purpose of a 3 Way Dividing breeching?

A: Its main purpose is to split the main water supply into multiple branches, allowing multi-point fire suppression. It also facilitates hose replacement, saves manpower/hoses, and shortens the time needed to get water flowing to the fire site.

Q: Where is the 3 Way Dividing breeching used?
A: It is widely used in fire hose laying scenarios, such as industrial facilities, warehouses, high-rise buildings, shopping malls, and other places that require multi-point or large-area fire protection.

Q: How to use the 3 Way Dividing breeching?
A: 1. Connect the device’s inlet to the main fire water supply line; 2. Connect the three outlets to branch fire hoses respectively; 3. Open the main supply valve and adjust each outlet’s valve to control water flow for each branch—use all branches together or shut down unused ones as needed.
