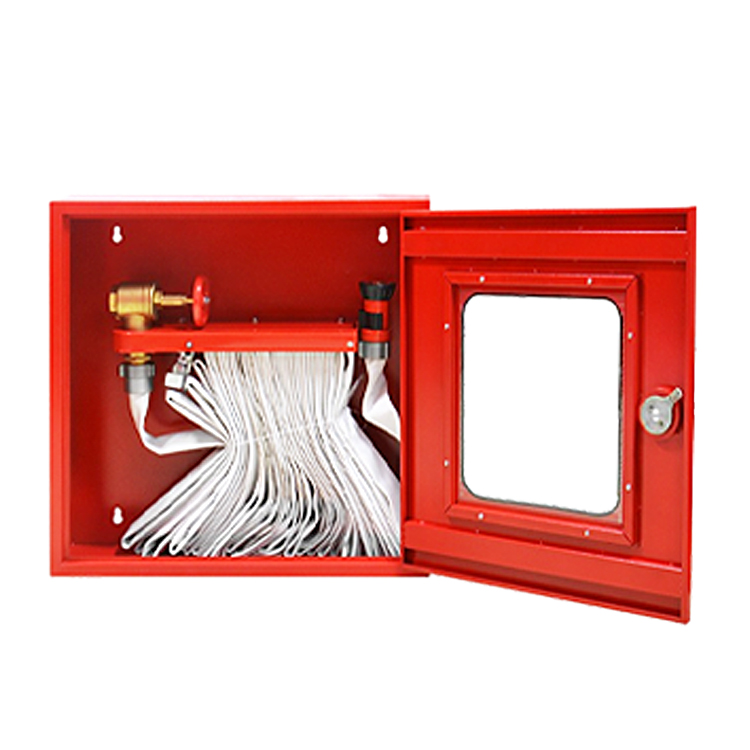

Combined Hose Rack and Landing Valve Cabinet

As a professional integrated fire protection solution, the Combined Hose Rack and Landing Valve Cabinet is designed to solve the problem of centralized storage and quick deployment of fire hoses and landing valves. It integrates two core fire-fighting components—hose rack assembly and landing valve—into one cabinet, avoiding scattered placement of equipment and ensuring that firefighters can quickly obtain and use tools during emergencies.

The cabinet has both American and British standard features: the oblique landing valve is LPCB approved, fully meeting the quality and safety requirements of global mainstream fire protection standards . It supports two mounting methods—wall surface and recessed—to adapt to different installation environments (such as commercial buildings, industrial plants, and public facilities). The surface finish offers two options: red powder coating (with high visibility and corrosion resistance, easy to identify in emergencies) and bright stainless steel (SS, with strong durability, suitable for humid or harsh environments).​

With a variety of size configurations (such as top-bottom or left-right placement of landing valves, customized dimensions), it can meet the fire protection needs of different spaces. For recessed mounting, the cabinet is equipped with a 38mm-wide projection trim on the external face, ensuring installation stability and aesthetic consistency with the wall.

Feature

• Dual-Standard Compatibility: Integrates UL listed/FM approved hose rack assembly and LPCB approved landing valve.​

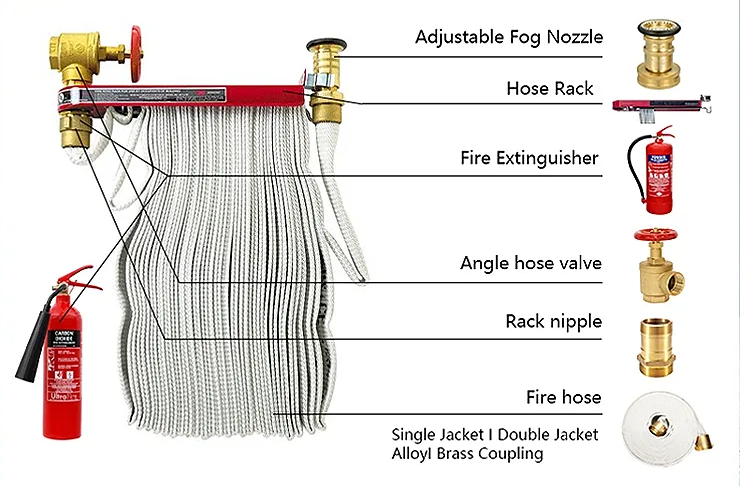

• Integrated Storage Design: Combines hose rack and landing valve in one cabinet, realizing centralized storage and quick access to equipment.​
• Flexible Mounting Options: Supports wall surface and recessed mounting; recessed type has 38mm-wide external projection trim for stable installation.​
• Durable Surface Finishes: Red powder coating (high visibility, corrosion-resistant) or bright stainless steel (strong durability, suitable for harsh environments).​
• Diverse Configurations: Multiple size and layout options (top-bottom/left-right landing valve placement, customized dimensions) to adapt to different space needs.​
• ISO Certified Quality: Holds ISO certification, ensuring reliable performance and compliance with global fire safety requirements.

Product Parameter

Content	Configuration	Capacity	Dimension W*H*D(mm)
Rack assembly	/	1.5''*30m	700*800*200
Rack assembly + threaded oblique landing valve	Top + bottom	1.5''*30 + DN65	700*1200*250
Rack assembly + threaded oblique landing valve	Right + left	1.5''*30m + DN65	900*800*250
Rack assembly + threaded flanged oblique landing valve	Top + bottom	1.5''*30m + DN65	700*1200*280
Rack assembly + threaded flanged oblique landing valve	Right + left	1.5''*30m + DN65	900*800*280
Rack assembly, 30''*30''*6''	/	As customized	762*762*152
Rack assembly, 30''*30''*8''	/	As customized	762*760*203
Rack assembly + threaded oblique landing valve	/	As customized	750*950*220



FAQ

Q: Can the cabinet’s configuration (such as hose length or landing valve type) be customized?​

A: Yes, we support customization of capacity (e.g., hose length, landing valve specification) and dimensions. Please provide your specific requirements (such as application scenario, equipment parameters) to our sales team, and we will provide a tailored solution.

---

Q: What is the difference between threaded and flanged oblique landing valves in the cabinet?​

A: Threaded landing valves are connected via threaded interfaces, suitable for small to medium pressure systems and easy to install; flanged landing valves use flange connections, with higher sealing performance and pressure resistance, suitable for high-pressure or large-flow fire protection systems. You can choose according to the actual pressure and flow needs of your fire system.

---

Q: How to maintain this cabinet and its internal equipment?​

A: 1. Regularly check the cabinet door for smooth opening/closing and intact seals; 2. Inspect the hose rack assembly for loose parts and the hose for cracks or aging; 3. Check the landing valve for leakage and ensure the valve core operates flexibly; 4. Clean the cabinet surface (avoid using corrosive cleaners) to maintain visibility and durability.
