Mobile Fire Water Monitor (PSY80UH1) – 60 - 80 LPS, 75m reach, hard anodized aluminum for fire suppression.

Portable Fire Monitor – 360° horizontal rotation, +30°~+90° vertical elevation, suitable for remote fire sites.

Versatile Fire - fighting Monitor – supports multiple inlet couplings, 10 Bar working pressure, ideal for solid and oil fires.

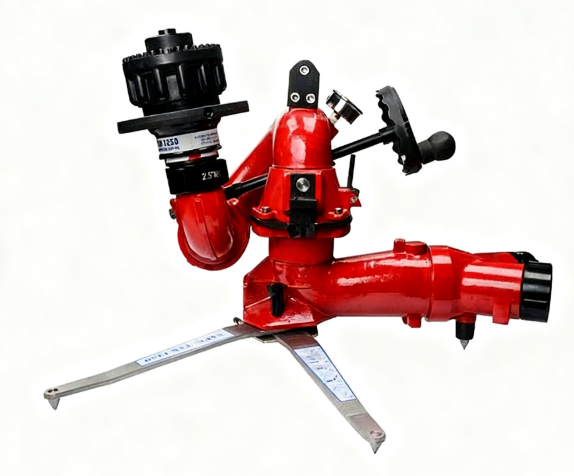

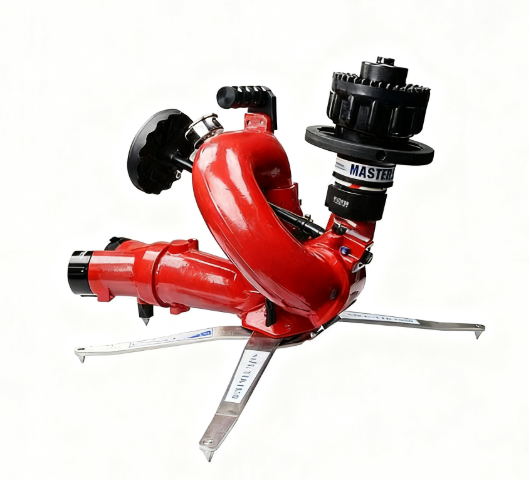

Mobile Fire Water Monitor

The Mobile Fire Water Monitor is a versatile portable fire - fighting device, ideal for scenarios where the fire site is far from the water source or fire trucks can't access. It efficiently extinguishes general solid material fires and oil fires, and also cools oil tanks.

Material :
Hard Anodized Aluminum Alloy
Outlet :
2.5" NH
Inlet :
2.5'' , NH, STORZ, GOST, Instantaneous couplings, etc.
Working Pressure :
10 Bar
Type :
PSY80UH1
MOQ :
50Pieces
Delivery Time :
15-30Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

The Mobile Fire Water Monitor is a highly adaptable fire - fighting tool, suitable for various complex fire - fighting scenarios. Whether the fire field is far from the water source or fire trucks are unable to enter, this monitor can be deployed to quickly start fire suppression. It is effective in extinguishing general solid material fires and oil fires, and can also be used to cool and cool oil tanks, providing multiple fire - fighting solutions.

Designed for both apparatus - mounted and portable use, it features a quick "long handle" swivel detachment mechanism, allowing easy removal from the apparatus and mounting on a portable base. Equipped with two "slip in" stabilizing legs with no - skid neoprene pads, it ensures stable placement during operation. Made of hard anodized aluminum alloy, the body is lightweight yet durable, capable of withstanding the rigors of fire - fighting environments. With a flow rate range of 60 - 80 LPS (automatic nozzle), a reach range of 75 m at 80 LPS, and a working pressure of 10 Bar, it delivers powerful water flow for effective fire suppression. The monitor offers flexible movement with 360° horizontal rotation and +30° to +90° vertical elevation, enabling comprehensive coverage of the fire site. It supports various inlet couplings (2.5'' NH, STORZ, GOST, Instantaneous couplings, etc.) and has a 2.5" NH outlet, ensuring compatibility with different fire - fighting water supply systems.

Feature

Portable and Versatile: Suitable for scenarios where fire trucks can't enter or the fire site is far from the water source, and can be used for apparatus - mounted or portable operations.
Quick Detachment and Stable Placement: Quick "long handle" swivel detachment for easy portable base mounting, and two stabilizing legs with no - skid neoprene pads for stable operation.
Durable Material: Body made of hard anodized aluminum alloy, lightweight and durable.
Powerful Fire Suppression: Flow rate 60 - 80 LPS (automatic nozzle), reach range 75 m @ 80 LPS, working pressure 10 Bar, providing strong water flow.
Flexible Movement: 360° horizontal rotation and +30° to +90° vertical elevation for comprehensive fire site coverage.
Wide Compatibility: Supports various inlet couplings (2.5'' NH, STORZ, GOST, Instantaneous couplings, etc.) and has a 2.5" NH outlet.

Product Parameter

Model	PSY80UH1
Flow Rate	60 - 80 LPS (Automatic Nozzle)
Reach Range	75 m @ 80 LPS
Body Material	Hard Anodized Aluminum Alloy
Working Pressure	10 Bar
Max. Fog angle	120°
Overall Angle	360°rotation horizontally,+30°~ +90°Elevate vertically
Inlet	2.5'' ,NH, STORZ, GOST, Instantaneous couplings,etc.
Outlet	2.5" NH

Q: How important is water pressure?

A: Water pressure controls how far and how fast water moves as well as how deeply water penetrates burning materials. For firefighting, more flow rate of water available means more extinguishing agent to cool the fire's fuel. Each nozzle has an expected, or rated, gallonage at a rated pressure. For example, a nozzle may deliver 60 LPM at 6 Bar, and 475LPM at 7 Bar.

Q: Why choose us？
A: With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well - known partners in the domestic market. We offer favorable prices and guarantee quality—each Mobile Fire Water Monitor undergoes strict performance testing, ensuring reliable operation in fire - fighting situations.
