Remote-Controlled Motorized Fire Monitor – 10 Bar pressure, dual straight stream/fog patterns, waterproof design for fire trucks.

Truck Mounted Water Mist Cannon (PSKD10/80W-A) – 4800LPM automatic flow, 85m range, SS304 body for fire suppression.

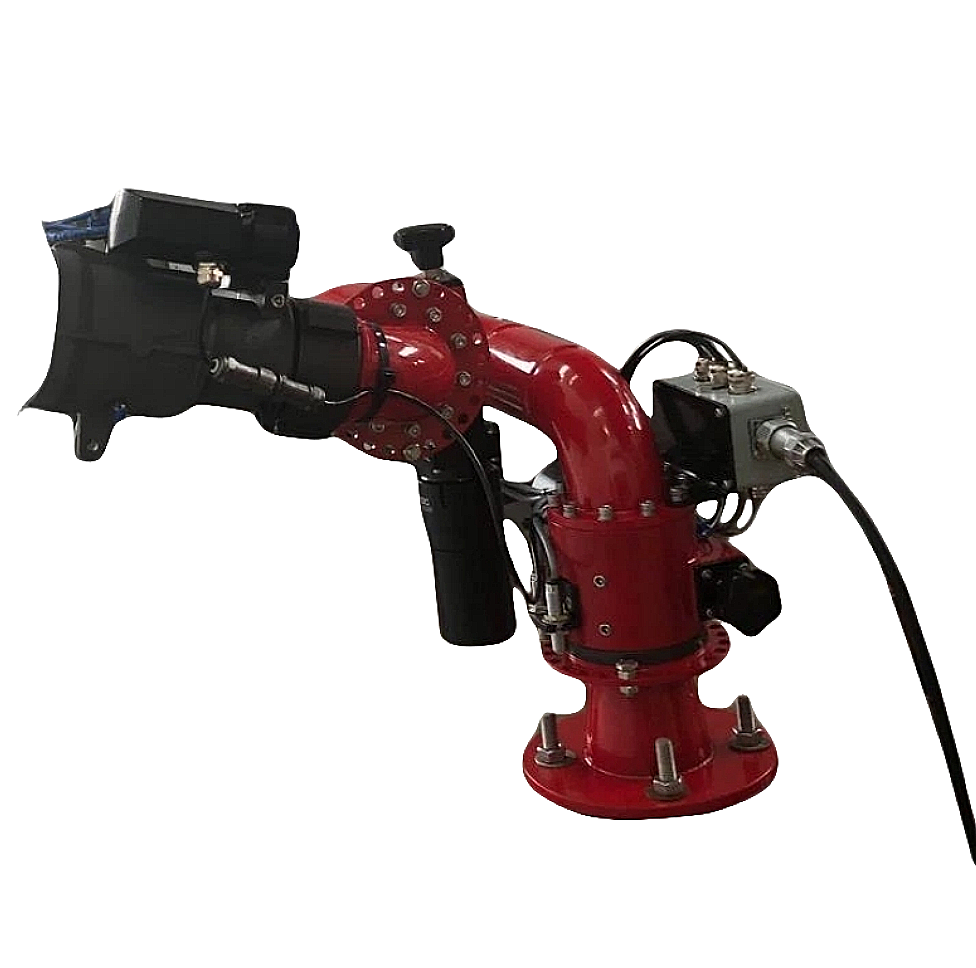

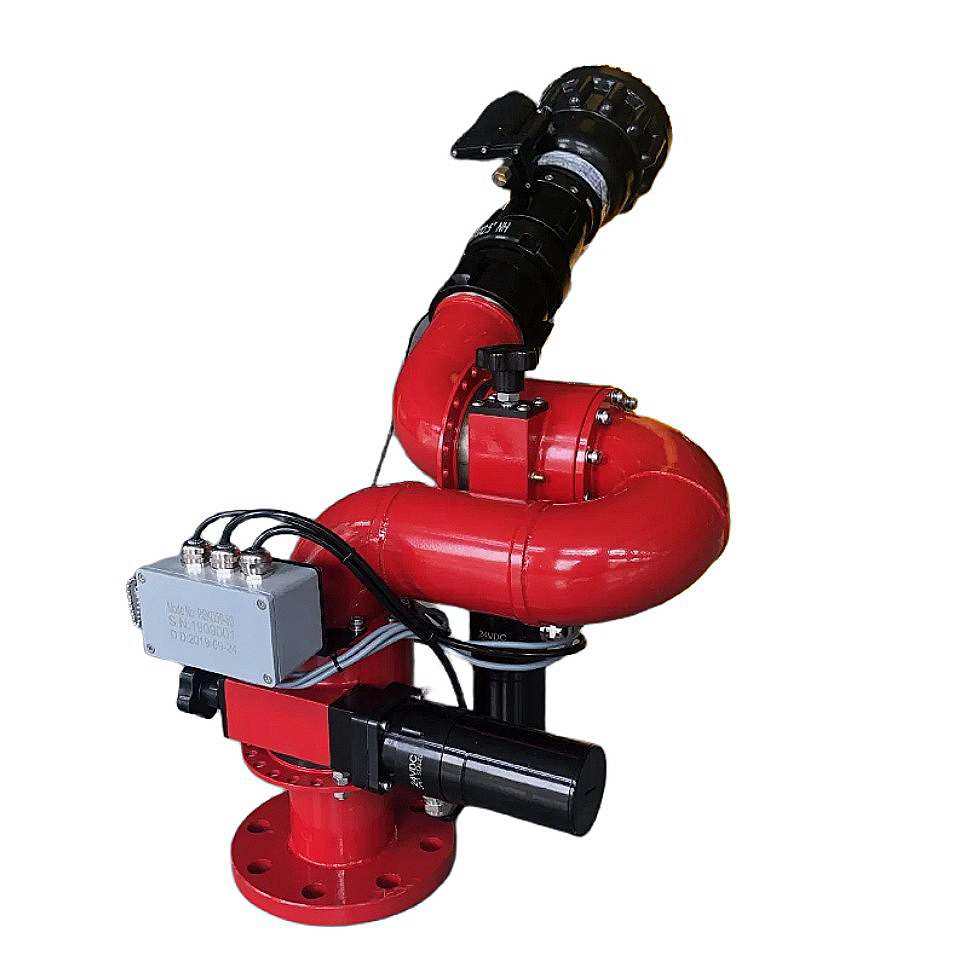

Truck Mounted Water Mist Cannon

The Truck Mounted Water Mist Cannon (Motorized Fire Monitor) is a high-efficiency remote-controlled fire-fighting device, designed for rapid fire suppression and flame spread prevention. It features long jet range, stable performance, and flexible operation, making it ideal for intense fire scenarios.

Working Pressure :
1.0MPa
Remote Control :
Electric
Flow Rate :
80LPS
MOQ :
50Pieces
Delivery Time :
15-30Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

As a core component of mobile fire-fighting equipment, the Truck Mounted Water Mist Cannon (also called Motorized Fire Monitor) is mainly installed on fire trucks to provide long-range, large-flow water mist spray for fire suppression. It supports remote control operation, allowing firefighters to adjust parameters from a safe distance—greatly reducing the risk of injury during high-intensity fire-fighting.

Crafted with high-quality materials, the monitor body is made of SS304 stainless steel (SS316 optional) for excellent corrosion resistance and durability, while the nozzle adopts hard-coated anodized aluminum alloy to withstand high-pressure impact. It offers two jetting patterns (straight stream for long-range fire targeting, fog for wide-area cooling and smoke suppression) and flexible movement: vertical travel from -90° to +90° (180° total) and 340° horizontal rotation, ensuring comprehensive coverage of the fire site. With flow rates ranging from 3000 LPM to 4800 LPM and jet ranges up to 85 m, it can quickly suppress large-scale or long-distance fires. Additionally, the electric driver and control unit box are waterproof, adapting to harsh fire-fighting environments, and the power supply supports 12V/24V DC (24V DC standard) or 100-230V AC (optional) to match different vehicle configurations.

Feature

Remote Safe Operation: Remotely controlled to adjust parameters from a safe distance, reducing firefighter injury risks.
Durable Material: Monitor body (SS304 stainless steel, SS316 optional) and nozzle (hard-coated anodized aluminum alloy) for corrosion resistance and high-pressure resistance.
Dual Jet Patterns: Electrically controlled straight stream (long-range targeting) and fog (wide-area coverage) to meet diverse fire needs.
Flexible Movement: Vertical travel (-90° to +90°, 180° total) and 340° horizontal rotation for comprehensive fire site coverage.
Waterproof Design: Electric driver and control unit box are waterproof, adapting to harsh fire-fighting environments.
Adjustable Flow & Power: Supports constant or automatic flow rates; power supply options (12V/24V DC, 100-230V AC) for different vehicle configurations.

Product Parameter

Model	PSKD10/50W-A	PSKD10/60W-A	PSKD10/80W-A
Flow Rate	3000LPM Constant Flow	3600LPM Constant Flow	4800LPM Constant Flow
Working Pressure	10Bar
Jetting Range	70m	75m	85m
Max. Fog Angle	120°
Max Range of Motion	-90° to +90° Vertically, 340° Rotation,other degree available
Power Supply	DC 24V is standard
Power Consumption	≤200W
Water Way Size	3"(80 mm)
Monitor Inlet	Flange 4" ANSI 150# is standard,other size and standard available
Outlet	2.5" (65mm) NH
Material	Monitor - SS304 stainless steel is standard,SS316 is available Nozzle - Hard coated anodized aluminium alloy

Q: How long does it take to produce the product?
A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to be confirmed based on the exact product model and order quantity.

Q: What about the lead time?
A: Lead time includes production time and shipping time. For conventional models with small quantities, production takes 15 days, and shipping time depends on the destination (e.g., 3-5 days for international express, 20-30 days for sea freight). We will provide a detailed lead time quote based on your order details.

Q: What is your payment terms？
A: Payment supports T/T, L/C, etc.

Q: How can I get my order？
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder，all with tracking number. For large-quantity orders, we can also arrange bulk shipping to match your logistics needs.

Q: Why choose us？
A: With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality—each Truck Mounted Water Mist Cannon undergoes strict pressure testing, waterproof testing, and performance testing, having passed multiple certifications to meet industry standards.
