The pipe support and hanger system is the general term for metal components used to support, fix, guide and protect the weight of pipes and the medium inside them.
Material :
Cast ironApplication :
Non-insulated stationary pipelineSurface :
Pre-galvanized / Electro-galvanizedsize :
DN15 to DN300MOQ :
200 PiecesDelivery Time :
15~45 DaysEmail : jony@jyfire.com.cn
Product Description

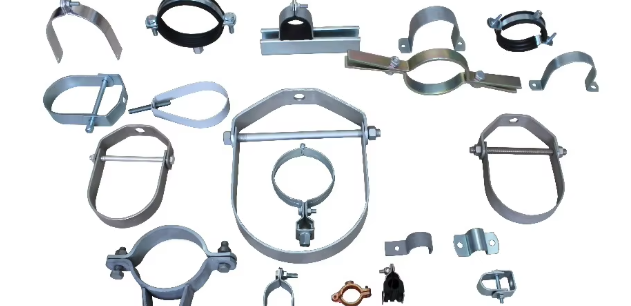

Pipe hangers and accessories are components of a pipe support system designed to carry the weight of the pipe and its contents (fluid, gas), control movement, and manage stress in a piping system. They are critical for the safety, longevity, and proper operation of any piping installation.
How to choose the appropriate type of support and hanger for my piping system?
• Rigid support: It is used for general fixed support of pipes without vertical or horizontal displacement (such as water supply risers).
• Spring support: It is used for pipes with vertical thermal displacement (such as steam pipes and hot water pipes) to prevent stress caused by thermal expansion and contraction from damaging equipment interfaces.
• Seismic supports: They are used for all fire protection pipelines and key mechanical and electrical pipelines, and are a mandatory requirement in building seismic design. They are used to prevent the collapse of pipeline systems during earthquakes.
Features
• Load-bearing capacity: It supports the weight of the pipe itself, the medium inside the pipe (water, chemicals, gases), the insulation layer, and the valve.
• Prevent displacement: Restrict the movement of pipelines caused by thermal expansion and contraction (thermal displacement), pressure or external forces (such as earthquakes, wind loads), and guide them in a safe direction.
• Vibration control: Absorb and isolate vibrations generated by equipment such as pumps and compressors to prevent vibration from being transmitted to the building structure and reduce noise.
• Prevent sagging: Ensure that the pipes maintain the correct slope to avoid water accumulation or air blockage at low points. This is particularly crucial for drainage systems and steam systems.
• Protect the pipeline: Prevent wear and tear between the pipeline and the supporting structure, and provide appropriate insulation intervals.
Product Parameter
| Pipe Size | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 |
| Hanger Rod Size | 3/8" / M10 | 1/2“ / M12 | ||||||||||
| Max recommend load | 2220 | 4440 | 8450 | |||||||||
FAQ
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
