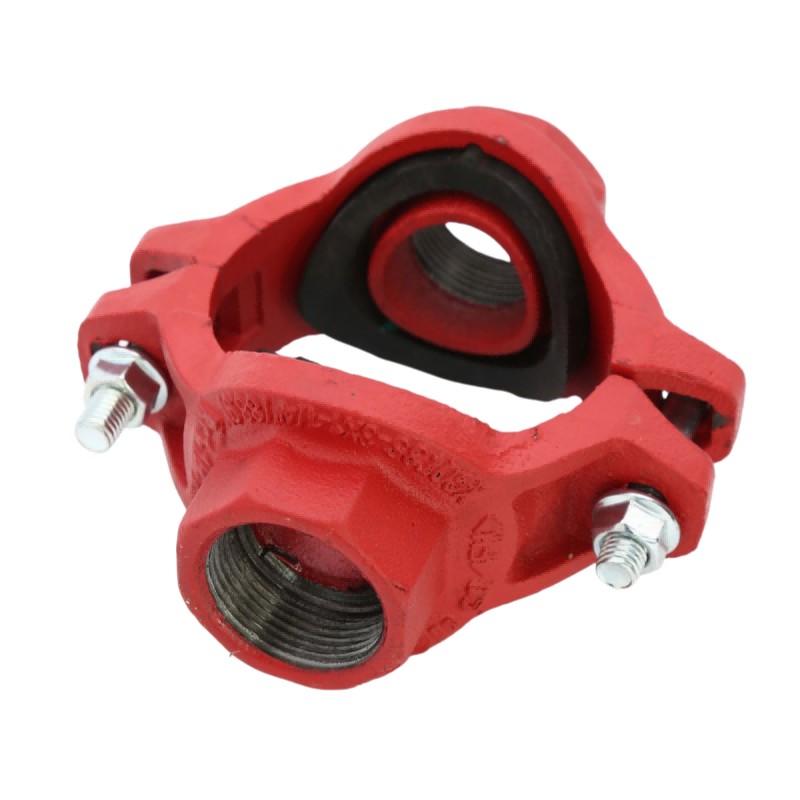

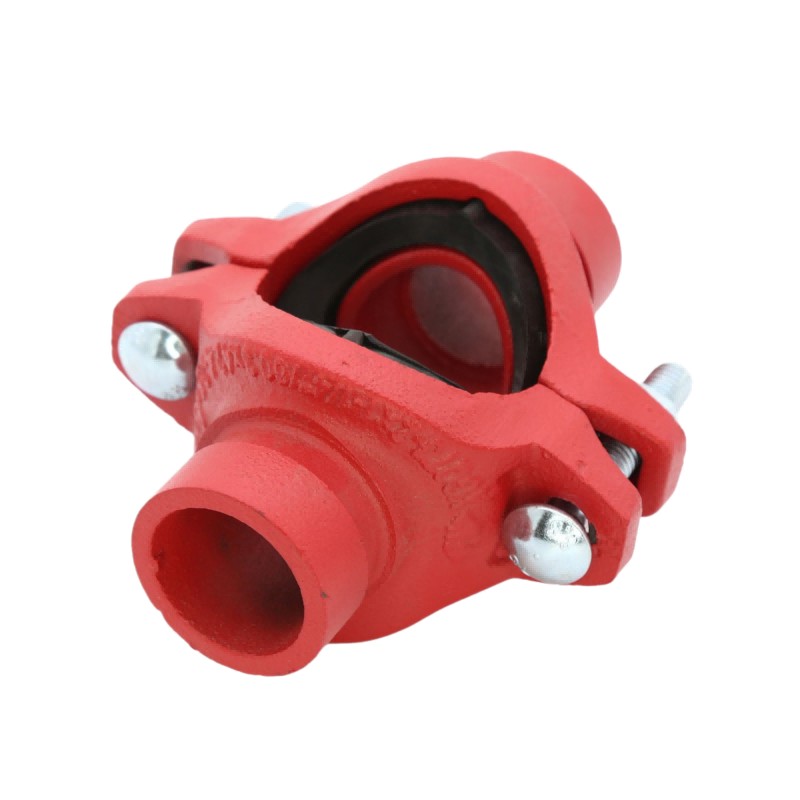

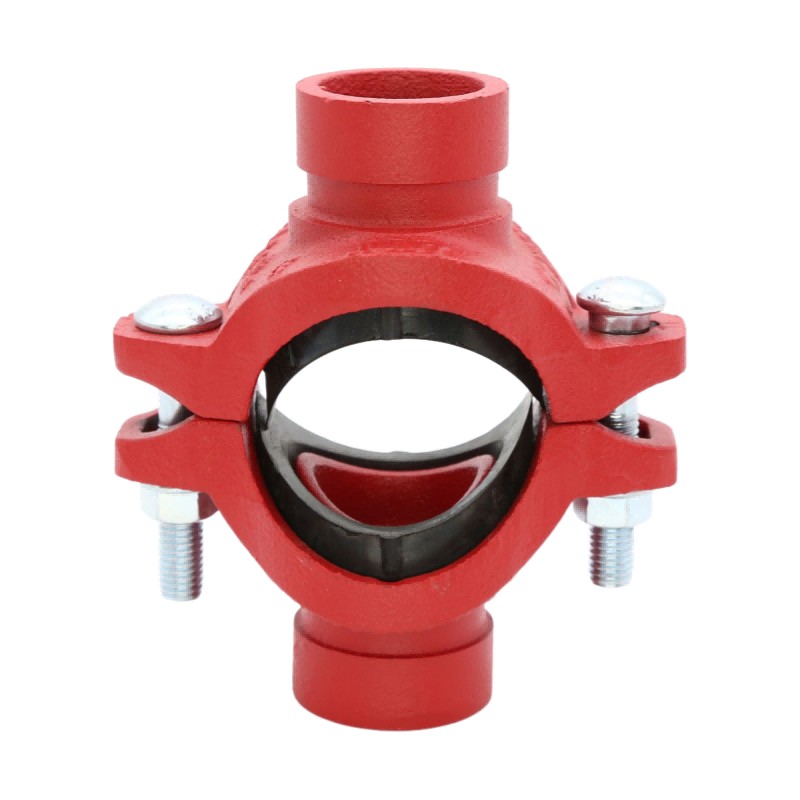

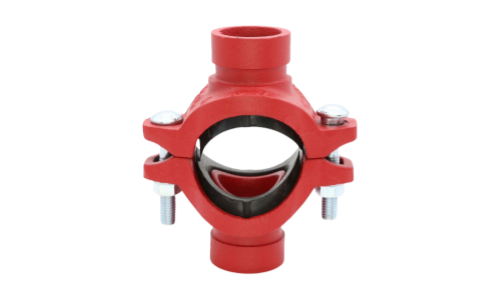

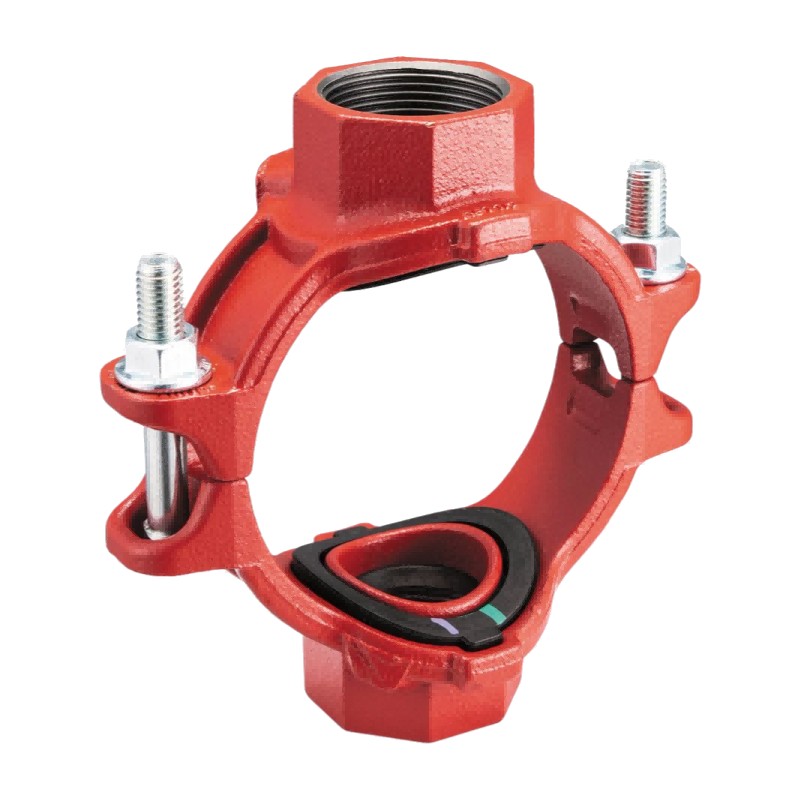

Mechanical Tee and Cross

Mechanical Tee and Mechanical Cross both belong to grooved Outlet Fittings. They do not need to be welded or drilled on the main pipeline, but instead branch out one or two vertical branches directly from the existing main pipeline through mechanical means (such as U-bolts and gaskets).

Material :
Ductile
Normal Diameter :
DN50 to DN200
Connection :
Grooved
Shape :
Equal
Working Pressure :
300-500 psi
Certificate :
UL FM
Application :
Fire Protection System etc.
MOQ :
200 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

Determine the location of the branch points on the main pipeline. Open the piece and wrap it around the main pipe. The core component is a Saddle with an internal sealing ring, which covers the position of the main pipeline where holes are to be drilled. Firmly fasten the saddle to the main pipe with U-bolts and nuts. A standard circular hole is drilled on the main pipeline using the matching drilling machine through the reserved drilling guide hole on the saddle. Connect the branch pipe (with grooves already pressed) to the outlet on the saddle with a standard grooved clamp.

Features

• Efficiently create symmetrical branches: Complete the connection of two symmetrical branch pipes at one time, and the installation efficiency is much higher than installing two independent mechanical tees.

• Space-saving: Compact structure, it occupies less space than the solution of using two three-way connectors plus short-circuiting.

• Maintain system consistency: Ensure that the two branch pipes are on the same axis, making the system more aesthetically pleasing and the fluid performance better.

• Inheriting all the advantages of mechanical pipe fittings: no need to stop production, quick installation, safe and spark-free, flexible and adjustable.

Product Parameter

Size（Inch / DN）	Material	Rated Pressure
2"x1"/ 50x25	Ductile iron	300~500 psi
2″x 1-1/4″/ 50 x 32
2″x 1-1/2″/ 50 x 40
2-1/2"x 3/4" / 65 x 20
2-1/2″ x 1″ / 65 x 25
2-1/2″ x 1-1/4″ / 65 x 32
2-1/2″ x 1-1/2″ / 65 x 40
2-1/2″ x 1/2″ / 65 x 15
2-1/2″ x 3/4″ / 65 x 20
2-1/2″ x 1″ / 65 x 25
2-1/2″ x 1-1/4″ / 65 x 32
2-1/2″ x 1-1/2″ / 65 x 40
3″ x 1/2″ / 80 x 15
3″ x 3/4″ / 80 x 20
3″ x 1″ / 80 x 25

Q：What’s the MOQ for grooved cross tee?

A：For standard sizes, our MOQ is usually 200 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：Can OEM services be provided? For example, putting on our brand Logo?

A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.

Q：Why choose us？

A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
