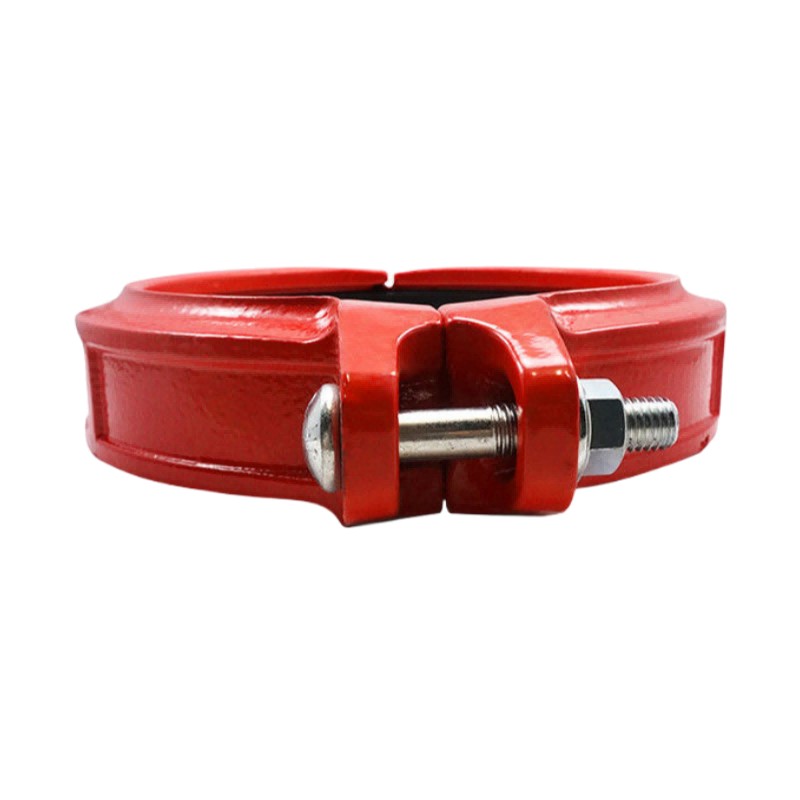

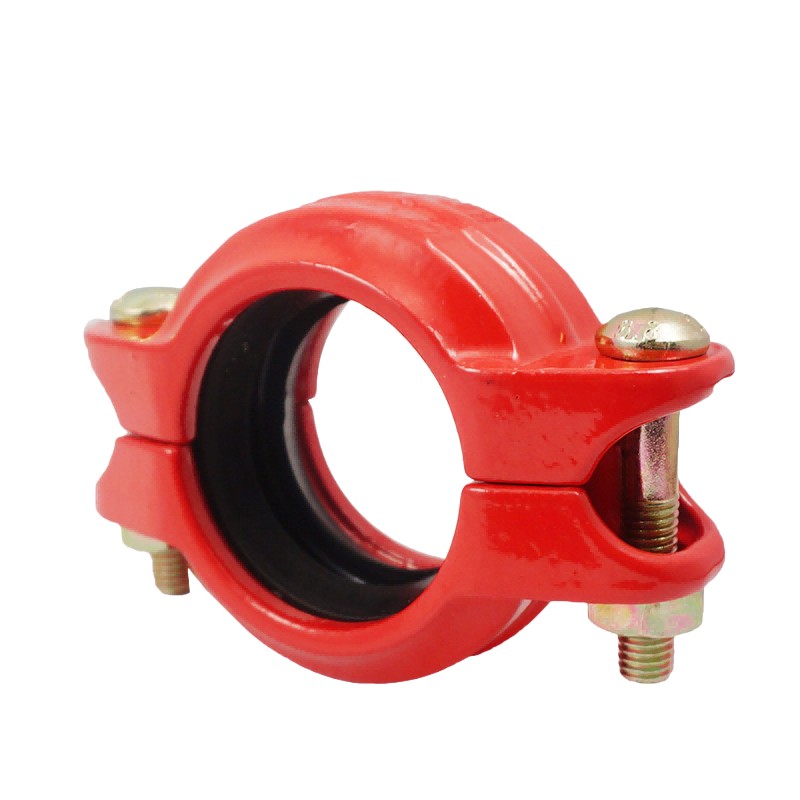

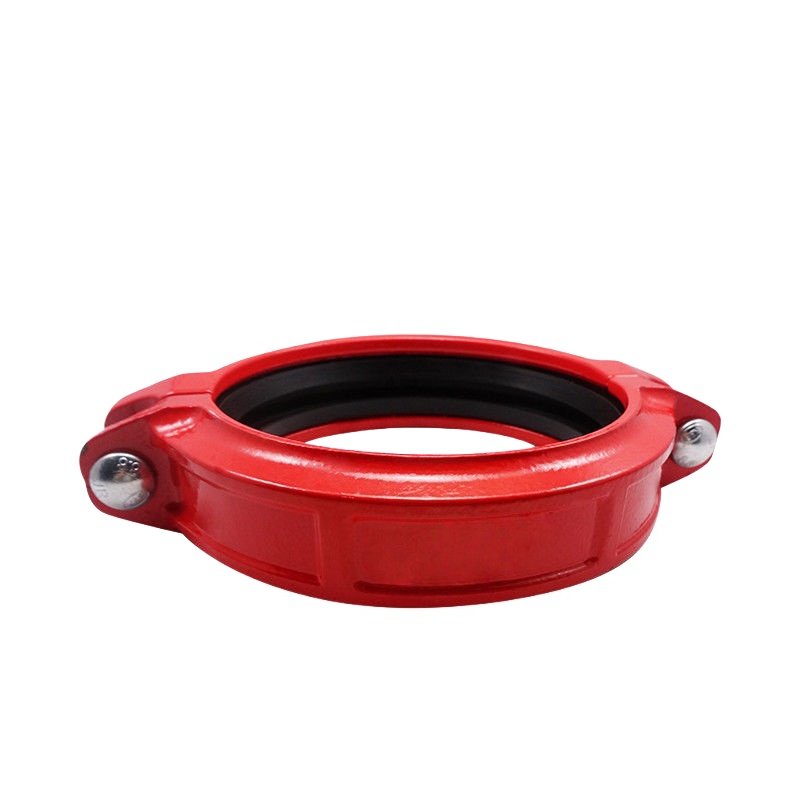

UL FM Grooved Coupling

Grooved pipe fittings are mechanical pipe connection components used to quickly connect two sections of pipes by pressing gaskets and rings onto the grooves machined on the outside of the pipes.

Material :
Ductile iron
Normal Diameter :
2 inch to 24 inch
Connection :
Grooved End
Shape :
Equal
Working Pressure :
300 PSI - 500 PSI
Certificate :
UL,FM
Application :
Industrial Process,Fire Protection etc.
MOQ :
200 Pieces
Delivery Time :
15~ 30 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

Sealing gasket: Usually made of elastic materials (such as EPDM, NBR), it is used to provide sealing performance for the system and prevent fluid leakage.

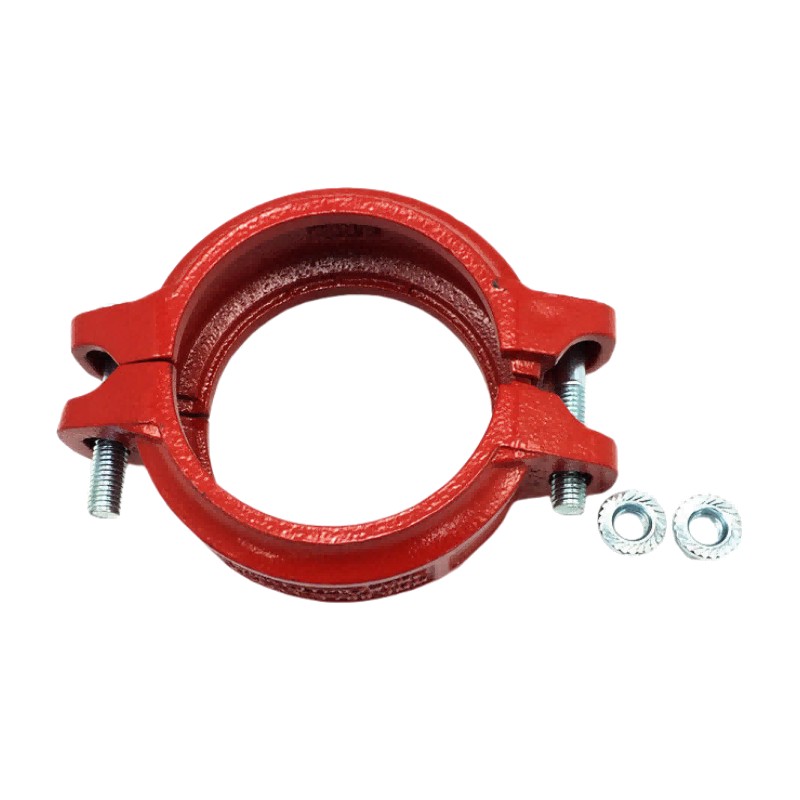

Housing/Coupling: A metal casing composed of two or more pieces (commonly carbon steel, galvanized steel, or stainless steel), it is the main pressure-bearing and structural component.

Bolts and Nuts: They are used to secure the clamps in place, generate mechanical force to press the washers, and ensure a firm connection.

The core working principle is that the gasket is responsible for sealing, while the clamp is responsible for withstanding pressure and providing structural integrity, achieving the optimal combination of sealing and strength.

Features

• Fast Installation：Compared with welding or flange connection, the installation speed is extremely fast.

• Flame-Free / No Hot Work：The installation process does not require welding or thermal operation, greatly enhancing the safety of operations in hazardous environments (such as oil and gas plants, chemical plants, and mines) or areas with restricted hot work.

• Easy Maintenance and Modification：The system is modular. If it is necessary to modify, add branch lines or replace part of the pipeline, it can be easily disassembled and reassembled.

• Safe and Reliable：After rigorous testing, it can withstand high pressure, vibration and shock.

• Reduced Total Cost：The installation speed is fast, the required labor skills are relatively low, and no large-scale equipment is needed. The overall project cost is usually lower.

Product Parameter

Material	Ductile iron
Size	DN25 to DN600
Physical Property	Tensile Strength
Working Pressure	300 PSI to 500 PSI
Application	Fire Fighting System or Other Fields

Q：Do your grooved pipe fittings comply with international fire protection certifications (such as UL or FM)? This is the requirement of our project.

A：Yes, the grooved pipe fittings we produce are fully compliant and have passed UL and FM certifications.

Q：Compared with traditional welding and flange connections, how much cost and labor time can we save by using your grooved system?

A：Grooved systems can typically save up to 50% of installation time and 30% of the overall cost.

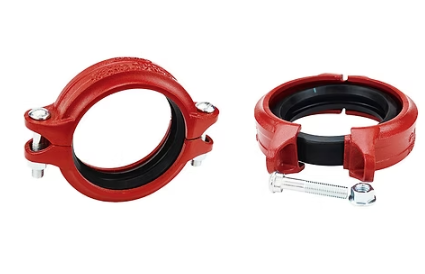

Q：Should I choose a Rigid joint or a Flexible joint? What are the differences between them?

A：Rigid grooved joints are fixed in all directions, similar to welded or flange connections. It is used in areas where rigid support is required and pipe movement is not allowed, such as long straight pipe sections. Flexible grooved joints allow pipes to have limited axial expansion and angular deflection. It is used to absorb thermal expansion and contraction, reduce vibration transmission (essential when connecting water pumps and chillers), and compensate for minor installation errors.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order

Act now—stop fire risks at the source!
