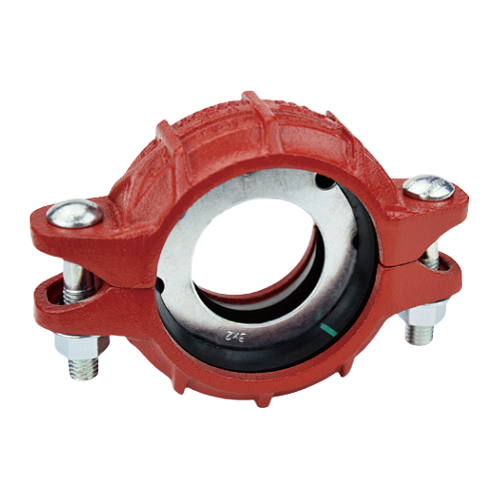

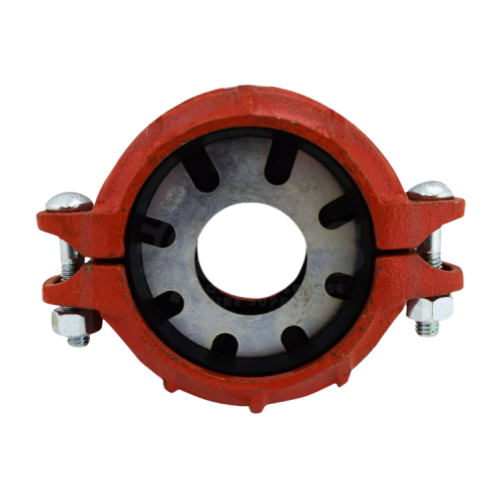

UL FM Grooved Flexible Reducing Coupling

The reducing coupling offers a fast, reliable connection solution that does not require welding or flange reduction, greatly simplifying the design and installation of pipeline systems.

Material :
Ductile Iron
Normal Diameter :
2 Inch to 8 Inch
Working Pressure :
300 PSI
Certificate :
UL FM
Application :
Fire Production etc
MOQ :
200 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

Grooved Reducing Coupling is a mechanical pipe joint used to connect two pipes of different diameters but with the same grooved end. It is mainly used to achieve the diameter change transition of pipelines without changing the connection method and is an indispensable component in the grooved pipeline system.

Its core functions are "parallel connection" and "connection". It acts like a bridge, smoothly connecting the large pipe and the small pipe to ensure the continuity of the flow channel. Similar to standard grooved pipe clamps, it achieves its function through mechanical interlocking and compression sealing.

Product Features

• Efficient installation, saving labor and time: Just roll a groove at each end of two pipes of different diameters, insert a gasket, fasten the reducing coupling, and tighten the bolts.

• Flexible design and neat system: It occupies less space and can easily achieve variable diameter connection in any direction (horizontal, vertical, inclined), with a uniform and neat appearance.

• Reliable performance and convenient maintenance.

Product Parameter

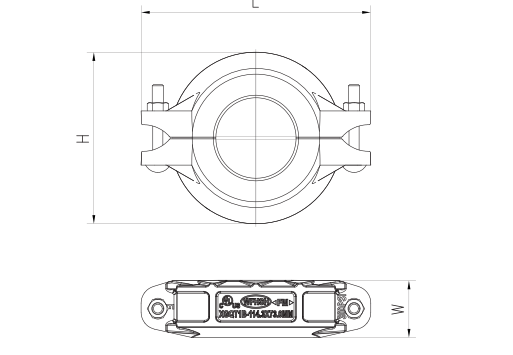

Norminal Size ( mm)	Pipe O.D（mm）	Working Pressure（ PSI / Mpa）	Dimensions （mm）			Bolt Size
Norminal Size ( mm)	Pipe O.D（mm）	Working Pressure（ PSI / Mpa）	L	H	W	mm
65x50	73 x 60	300/2.07	143	102	45	M10 X 65
65x50	76 x 60		143	102	45	M10 X 65
80x50	89 x 60		163	118	47	M12 X 70
80x65	89 x 73		163	118	47	M12 X 70
100x50	114 x 60		200	150	50	M12 X 70
100x65	114 x 73		200	150	50	M12 X 70
100x65	114 x 76		200	150	50	M12 X 70
100x80	114 x 89		200	150	50	M12 X 70
150x100	165 x 114		270	200	51	M16 X 85
150x80	168 x 89		270	200	51	M16 X 85
150x100	168 x 114		270	200	51	M16 X 85
200x150	219 x 165		335	260	63	M20 X 110
200x150	219 x 168		335	260	63	M20 X 110

Q：What are the main differences from ordinary grooved pipe couplings?

A：A common grooved couplings connects two equal-diameter pipes, while one end of a reducing coupling is designed to be larger (or smaller) in size for diameter transition.

Q：What’s the MOQ for grooved reducing coupling?

A：For standard sizes, our MOQ is usually 200 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.

One Stop Solution for fire hoses,sprinklers,nozzles,valves and pipe fittings!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

Tel.：86-18159244550 Mobil:18159244550

EMAIL:Jony@jyfire.com.cn

ADD：CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY

Hot Tags :

leave a message

categories

Featured products

Related Products

UL FM Malleable Iron Pipe Fittings

Malleable iron pipe fittings are components used to connect, terminate, control, and change the direction of pipes in a pressurized gas or liquid piping system. They are designed for use with threaded pipe, most commonly black iron pipe or galvanized iron pipe.
UL FM Grooved Coupling

Grooved pipe fittings are mechanical pipe connection components used to quickly connect two sections of pipes by pressing gaskets and rings onto the grooves machined on the outside of the pipes.
UL FM Grooved Fittings

Grooved pipe fittings are a general term, referring to all pipe assemblies that use grooved mechanical connection systems. This system achieves rapid and reliable connection between pipes and pipe fittings, valves or equipment by pressing grooves at the pipe ends and combining them with dedicated couplings and gaskets.
Mechanical Tee and Cross

Mechanical Tee and Mechanical Cross both belong to grooved Outlet Fittings. They do not need to be welded or drilled on the main pipeline, but instead branch out one or two vertical branches directly from the existing main pipeline through mechanical means (such as U-bolts and gaskets).
UL FM Grooved Flange

Grooved flanges are a type of hybrid pipe fitting, with one end being a standard flange surface and the other end being a groove.
UL FM Grooved Rigid Couplings

The grooved rigid pipe coupling is an efficient and reliable solution for connecting large-diameter pipes in modern fire protection engineering. Its core value lies in providing stable and firm structural support.

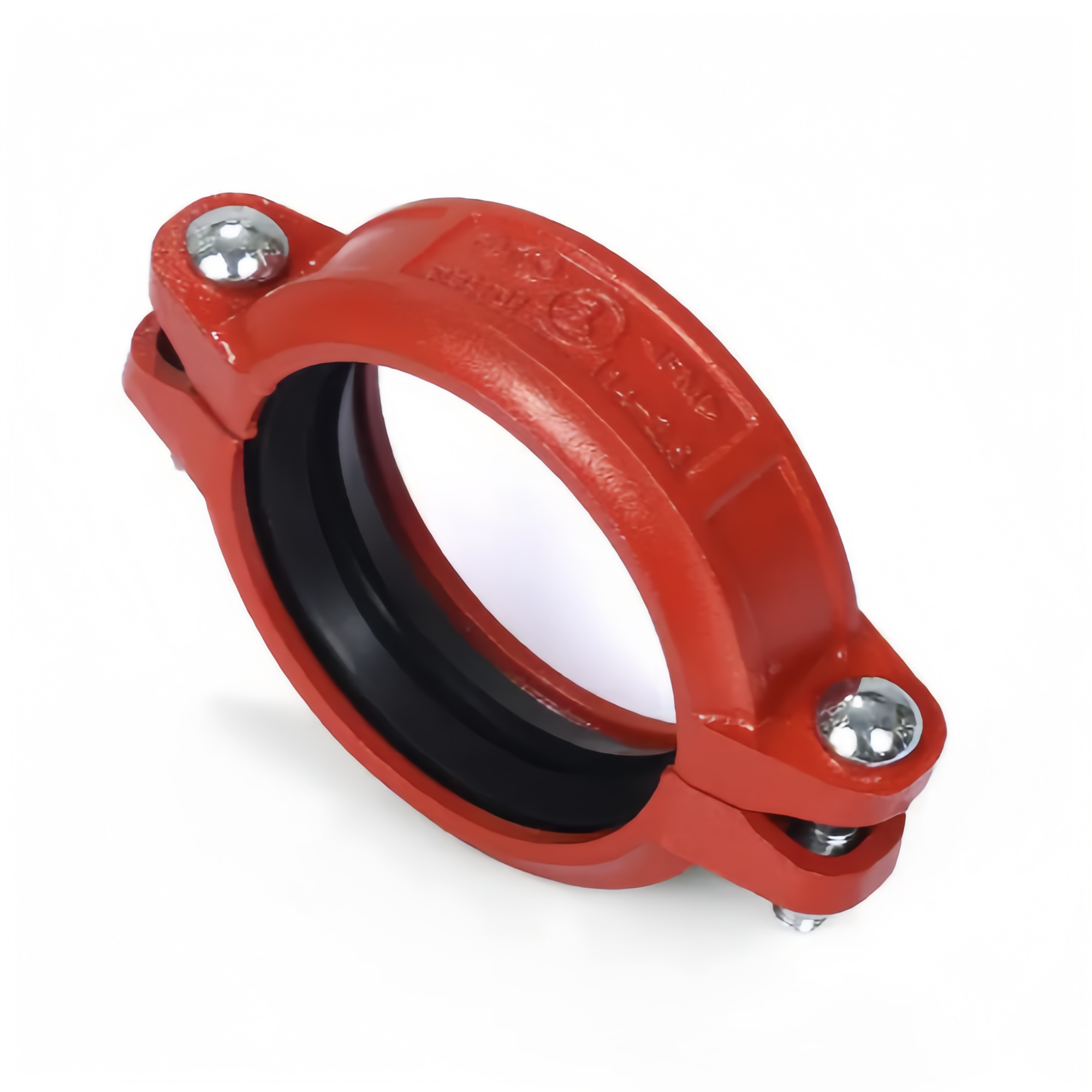

UL FM Grooved Flexible Couplings
