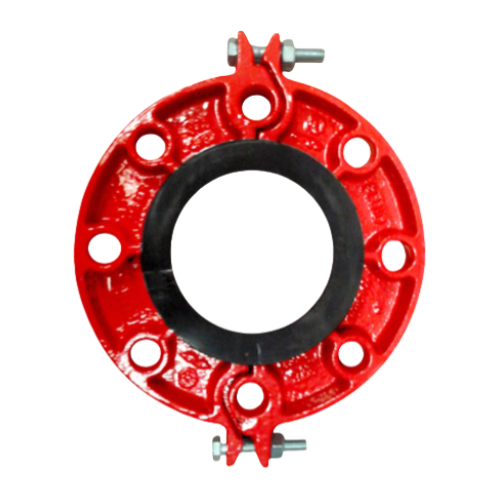

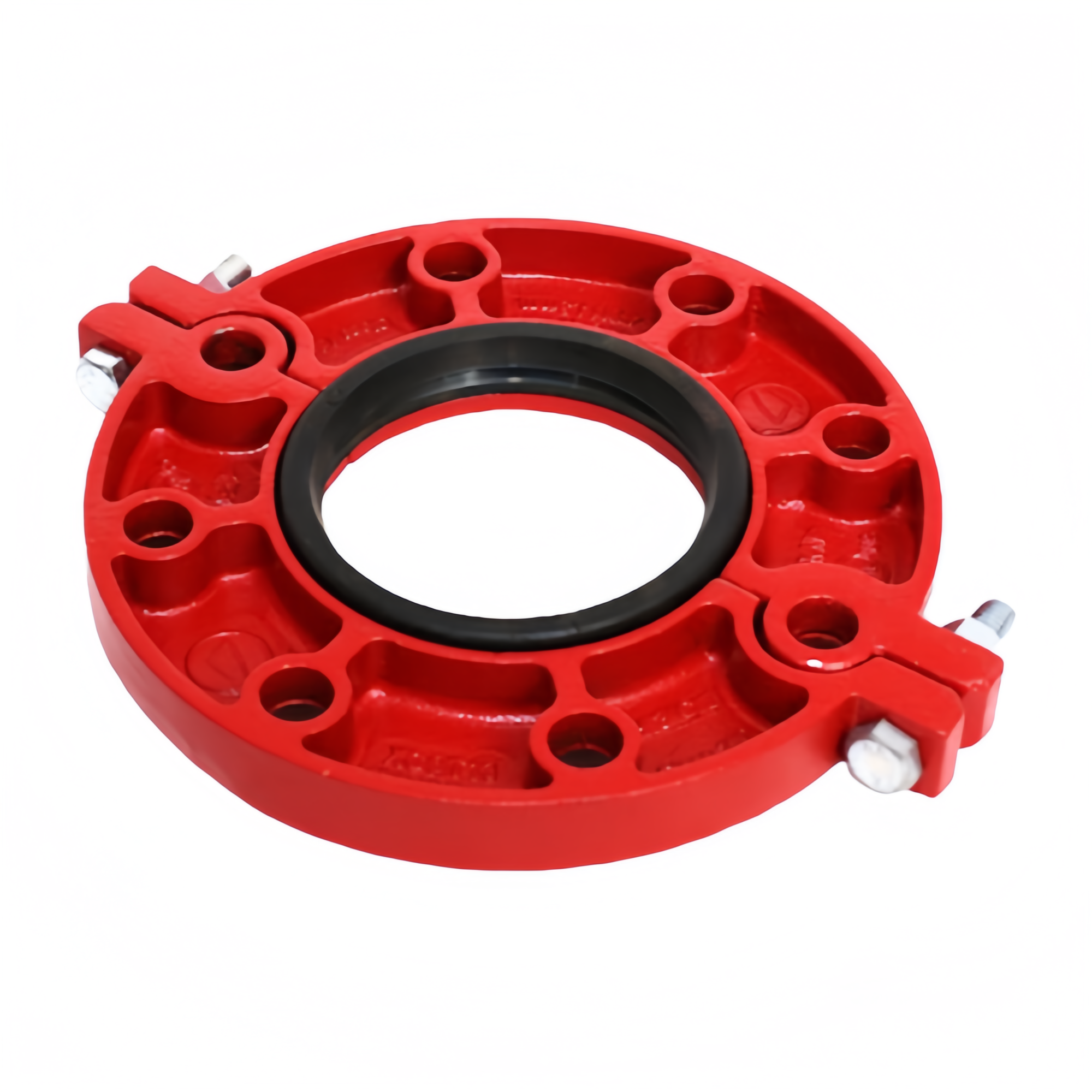

UL FM Grooved Split Flange

Grooved Split Flange is a key component for achieving system modularization, rapid installation and maintenance in modern pipeline installation. It perfectly combines the installation efficiency of the grooved system with the universality of the flange interface.

Material :
Ductile Iron
Normal Diameter :
DN50-DN65-DN80-DN100-DN125-DN150-DN200-DN-250-DN300
Working Pressure :
300 PSI
Certificate :
UL,FM,CE etc.
Application :
Connect fire pumps, valves and other equipment
MOQ :
200 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Company Project

Groove end connection: Wrap the two halves of the split flange around the end of the pipe with the processed annular groove. The convex key on the inner side will be inserted into the bottom of the pipe groove to achieve axial locking and prevent the pipe from coming apart.

Flange end connection: Align the outer flange plate of the split flange with the standard flange plate of the opposite equipment (such as a valve), place a gasket in the middle, and then pass bolts and nuts through the corresponding holes of both and tighten them to form a tight end face seal.

Grooved Split Flange is a pipe fitting used to achieve the conversion connection between grooved pipes and flanged end equipment. It is like a "bridge", capable of quickly and without welding connecting grooved pipes to interfaces with traditional flanges such as valves, water pumps or equipment.

Product Features

• Quick installation (no need for welding or threading)

• Easy to disassemble and maintain

• Save installation space

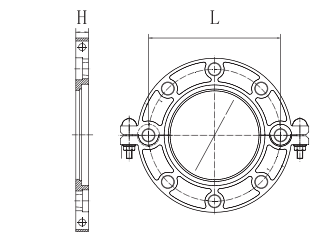

Product Parameter

Norminal Size	DN50-DN65-DN80-DN100-DN125-DN150-DN200-DN-250-DN300
Working Pressure	300 PSI
Material	Ductile Iron
Surface	Red Painting

Q：What’s the MOQ for grooved split flange?

A：For standard sizes, our MOQ is usually 200 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
