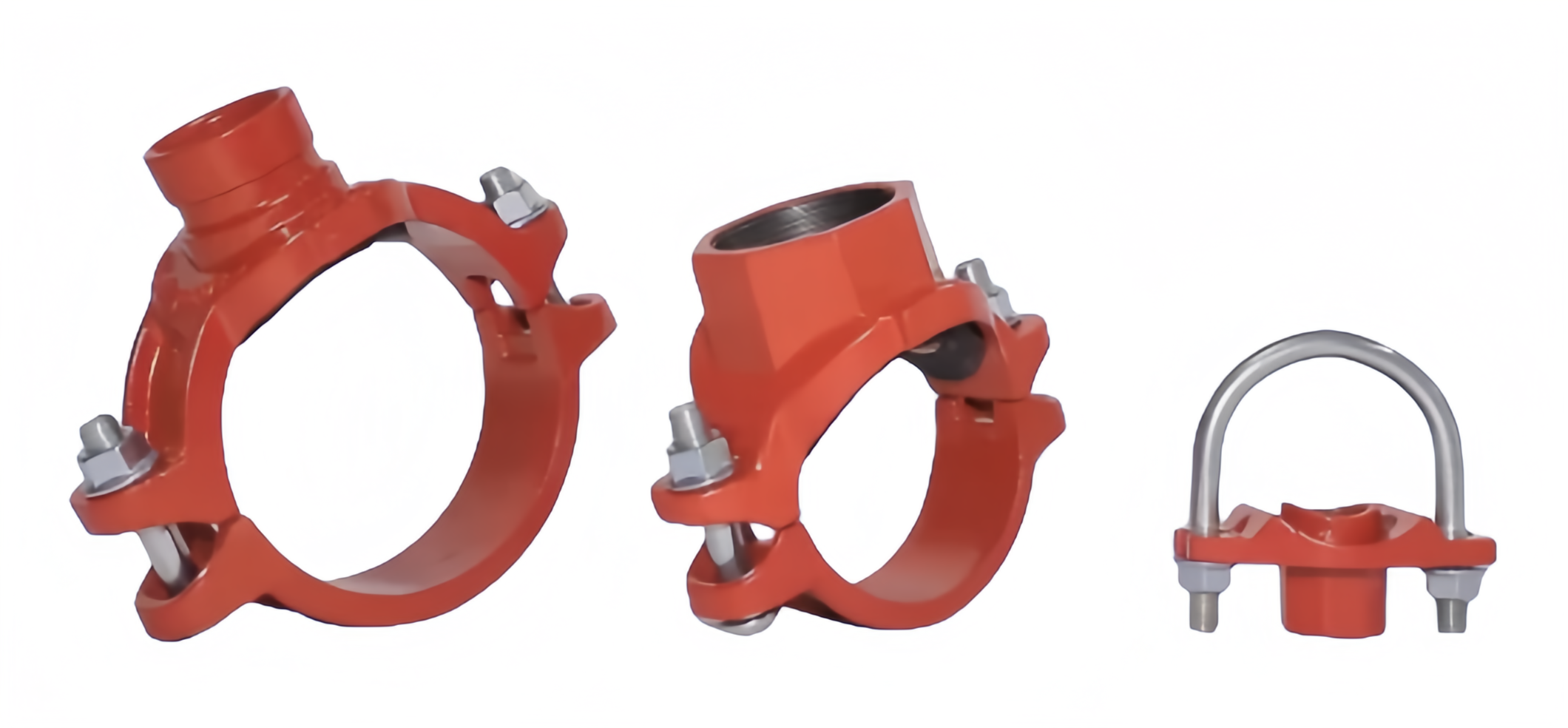

UL FM Grooved Mechanical Tee

Grooved Mechanical Tee is a special pipe fitting used for opening branches in existing pipes. Its core feature is that branch connections can be completed without cutting the main pipe.

Material :
Ductile
Normal Diameter :
1 Inch to 10 Inch
Working Pressure :
300 PSI
Certificate :
UL,FM
Application :
Fire protection system, process pipeline etc.
MOQ :
200 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

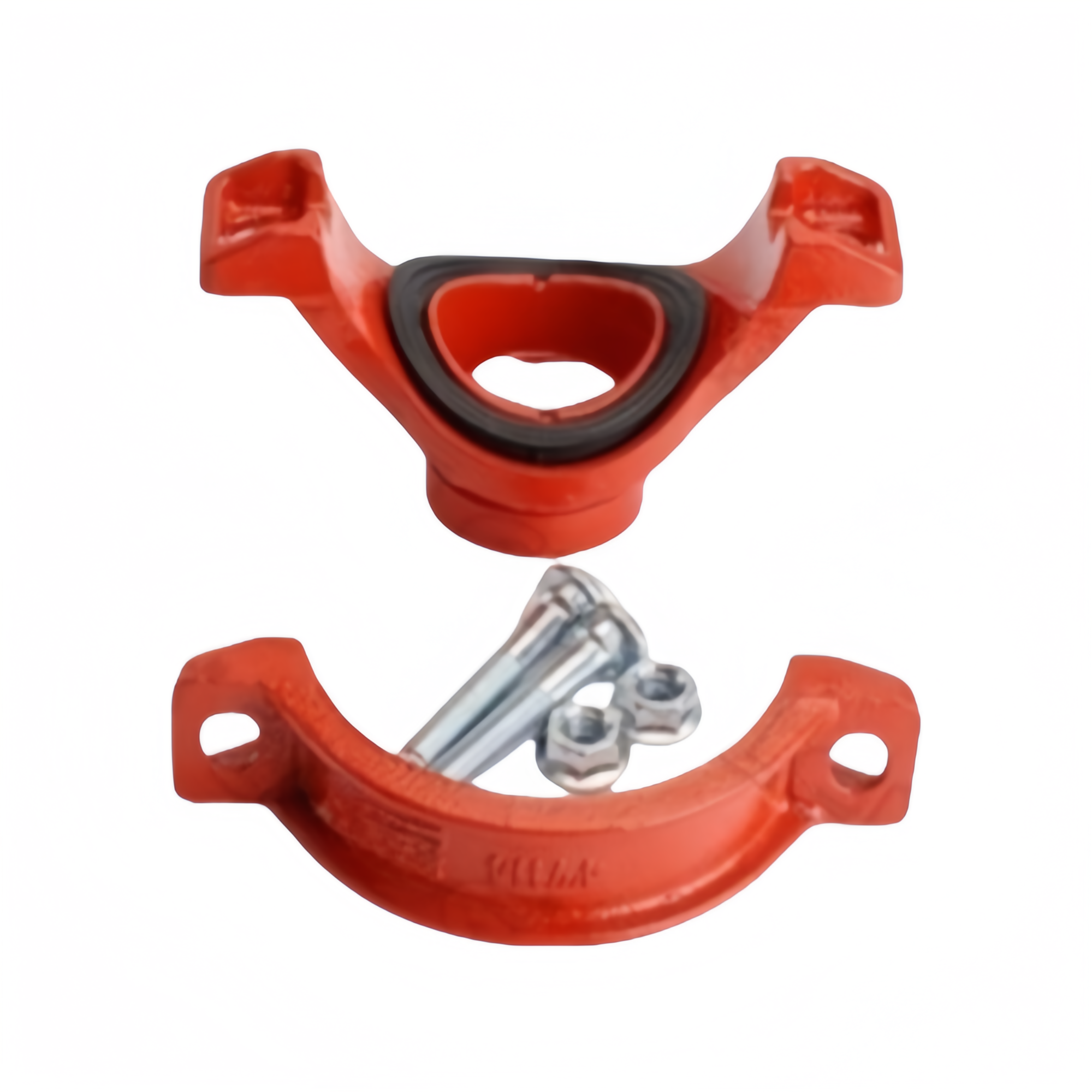

At the position where the main pipeline needs to branch, make a hole with a precisely calculated size. Wrap the mechanical tee (the main body and the clamp), which is divided into two halves, around the main pipeline to align the outlet with the opening.

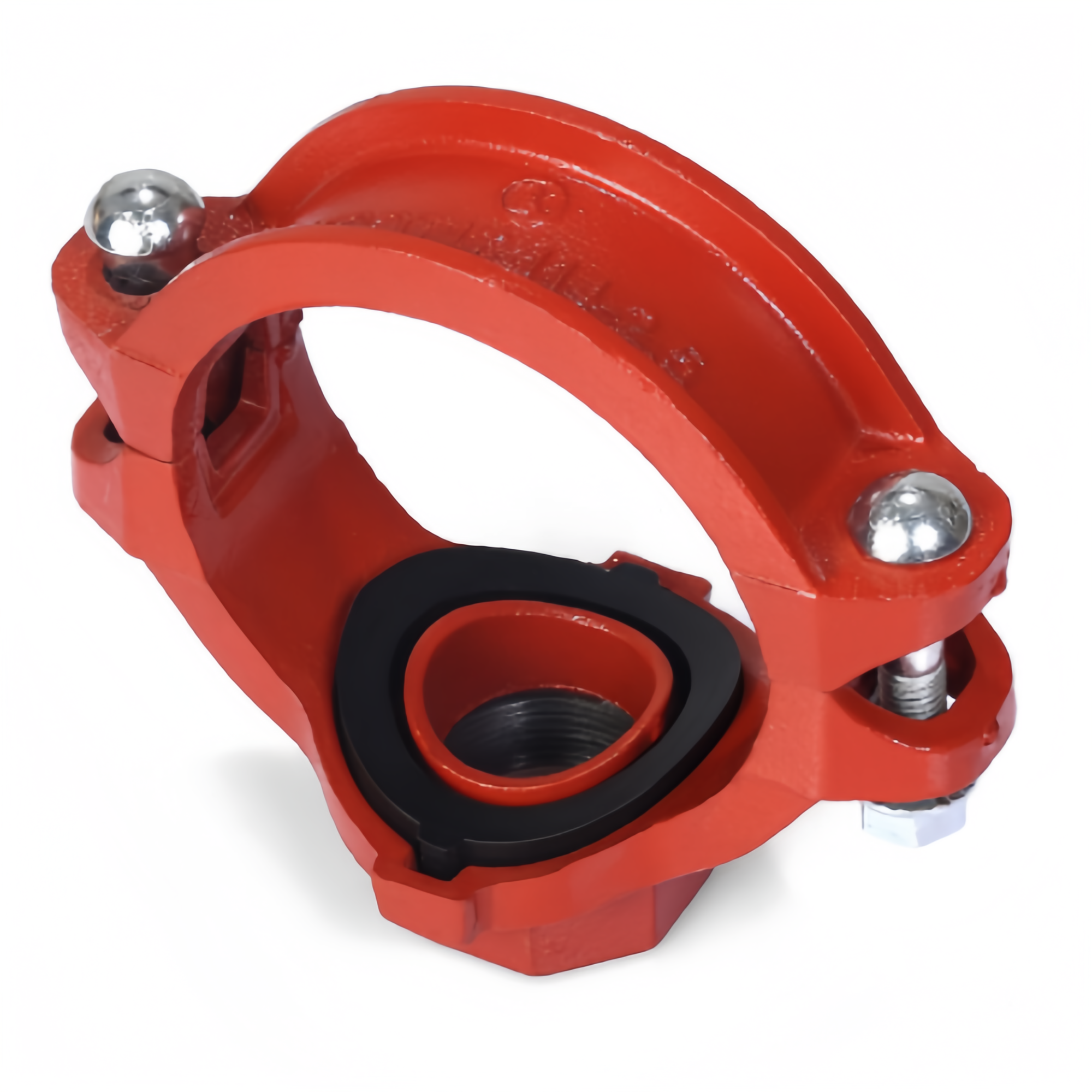

There is a specially designed sealing gasket inside to ensure the sealing at the opening. Fasten the two halves of the component with bolts and firmly fix them on the main pipeline by mechanical force. Finally, connect the branch pipe to the outlet of the mechanical tee, which is usually in the form of threads or grooves.

Product Features

• System renovation and supplementation: Without changing the main pipes, adding new sprinkler heads or equipment connection points to the existing fire protection and water supply systems is its greatest advantage.

• Cost and time savings: Compared with welding or cutting, installation is faster and safer (no open flame required), significantly reducing the need for on-site operation and system downtime.

• Flexible response to complex situations: In areas with limited space or dense pipelines, the construction flexibility is extremely high.

Product Parameter

Norminal Size	Pipe O.D(mm)	Working Pressure	Bolt Size	Hole Dia
2" x 1-1/4"	60.3 x 42.4	300 PSI / 2.07 Mpa	M10 X 55	51mm / 2inch
2" x 1-1/2"	60.3 x 48.3		M10 X 55
2-1/2" x 1-1/4"	73.0 x 42.4		M10 X 60
2-1/2" x 1-1/2"	73.0 x 48.3		M10 X 60
3" x 1-1/4"	88.9 x 42.4		M12 X 65
3" x 1-1/2"	88.9 x 48.3		M12 X 65
3" x 2"	88.9 x 60.3		M12 X 65	64mm / 2.5inch
4" x 1"	114.3 x 33.7		M12 X 75	38mm / 1.5inch
4" x 1-1/4"	114.3 x 42.4		M12 X 75	51mm / 2inch
4" x 1-1/2"	114.3 x 48.3		M12 X 75	51mm / 2inch
4" x 2"	114.3 x 60.3		M12 X 75	64mm / 2.5inch
4" x 2-1/2"	114.3 x 73		M12 X 75	70mm / 2.75inch
4" x 3"	114.3 x 88.9		M12 X 75	89mm / 3.5inch
5" x 1-1/4"	141.3 x 42.4		M16 X 80	51mm / 2inch
5" x 1-1/2"	141.3 x 48.3		M16 X 80	51mm / 2inch
5" x 2"	141.3 x 60.3		M16 X 80	64mm / 2.5inch
6" x 1-1/4"	168.3 x 42.4		M16 X 90	51mm / 2inch
6" x 1-1/2"	168.3 x 48.3		M16 X 90	51mm / 2inch
6" x 2"	168.3 x 60.3		M16 X 90	64mm / 2.5inch
6" x 2-1/2"	168.3 x 73		M16 X 90	70mm / 2.75inch
6" x 3"	168.3 x 88.9		M16 X 90	89mm / 3.5inch
6" x 4"	168.3 x 114.3		M16 X 90	114mm / 4.5inch
8" x 2"	219.1 x 60.3		M16 X 100	64mm / 2.5inch
8" x 3"	219.1 x 88.9		M16 X 100	89mm / 3.5inch
8" x 4"	219.1 x 114.3		M16 X 100	114mm / 4.5inch

Q：What’s the MOQ for grooved mechanical tee?

A：For standard sizes, our MOQ is usually 200 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
