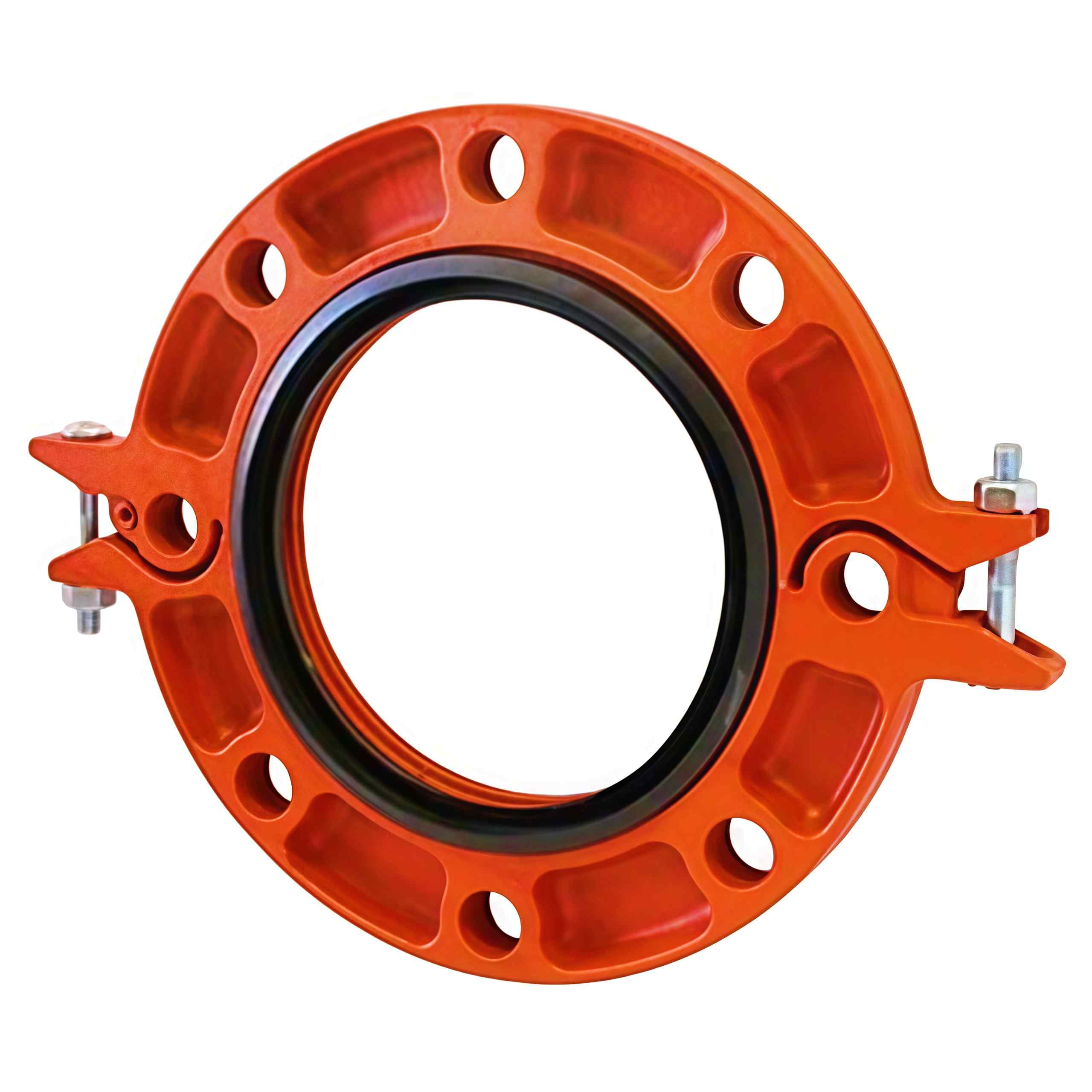

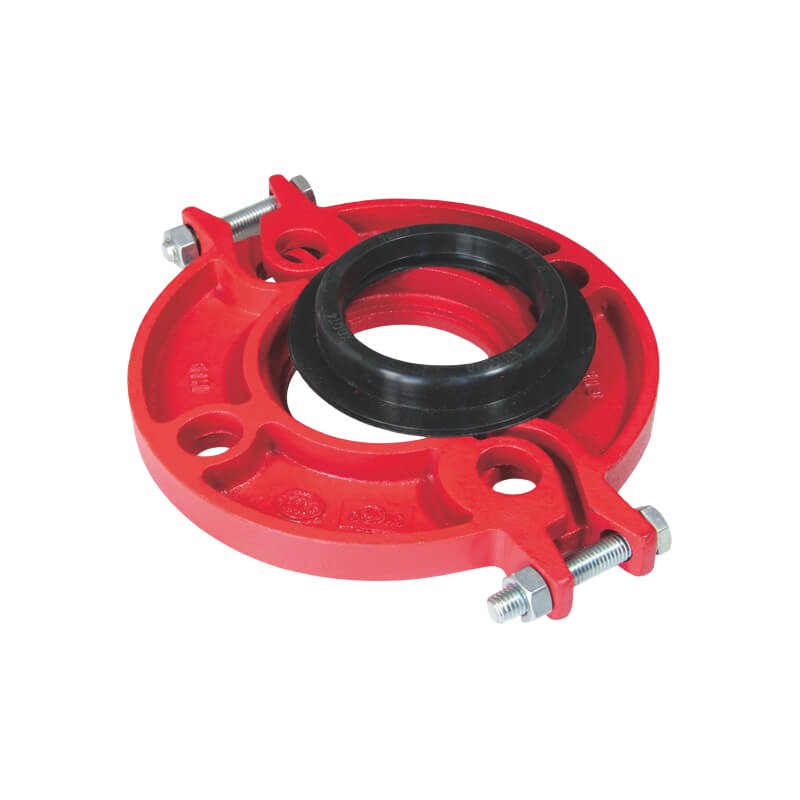

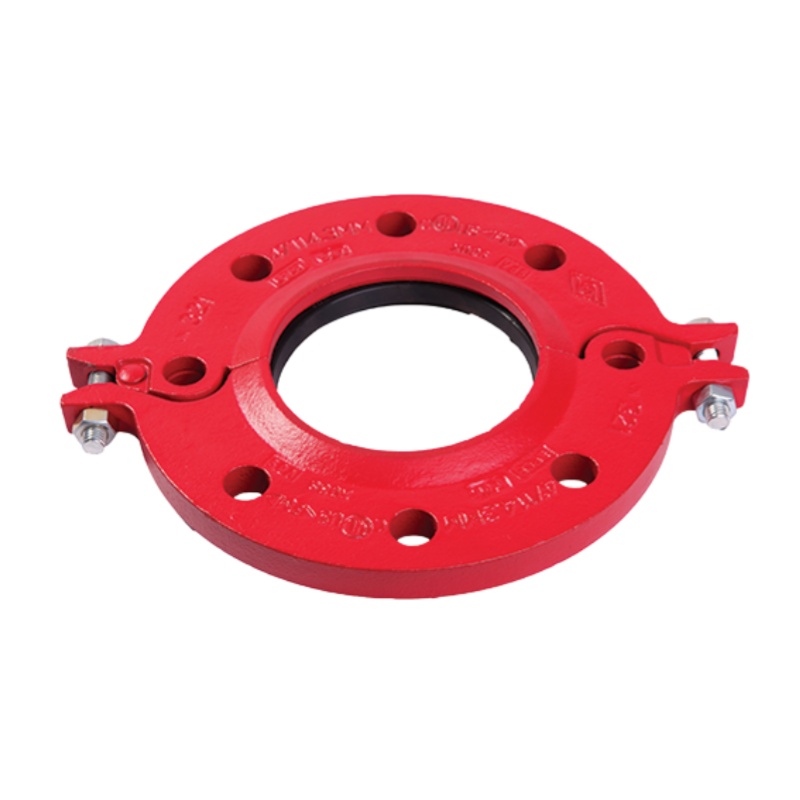

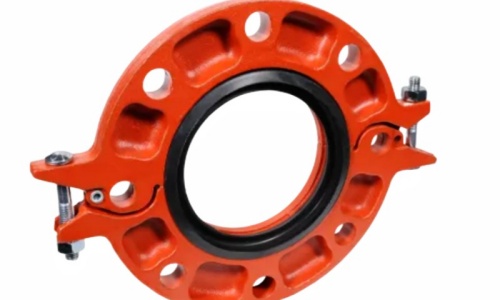

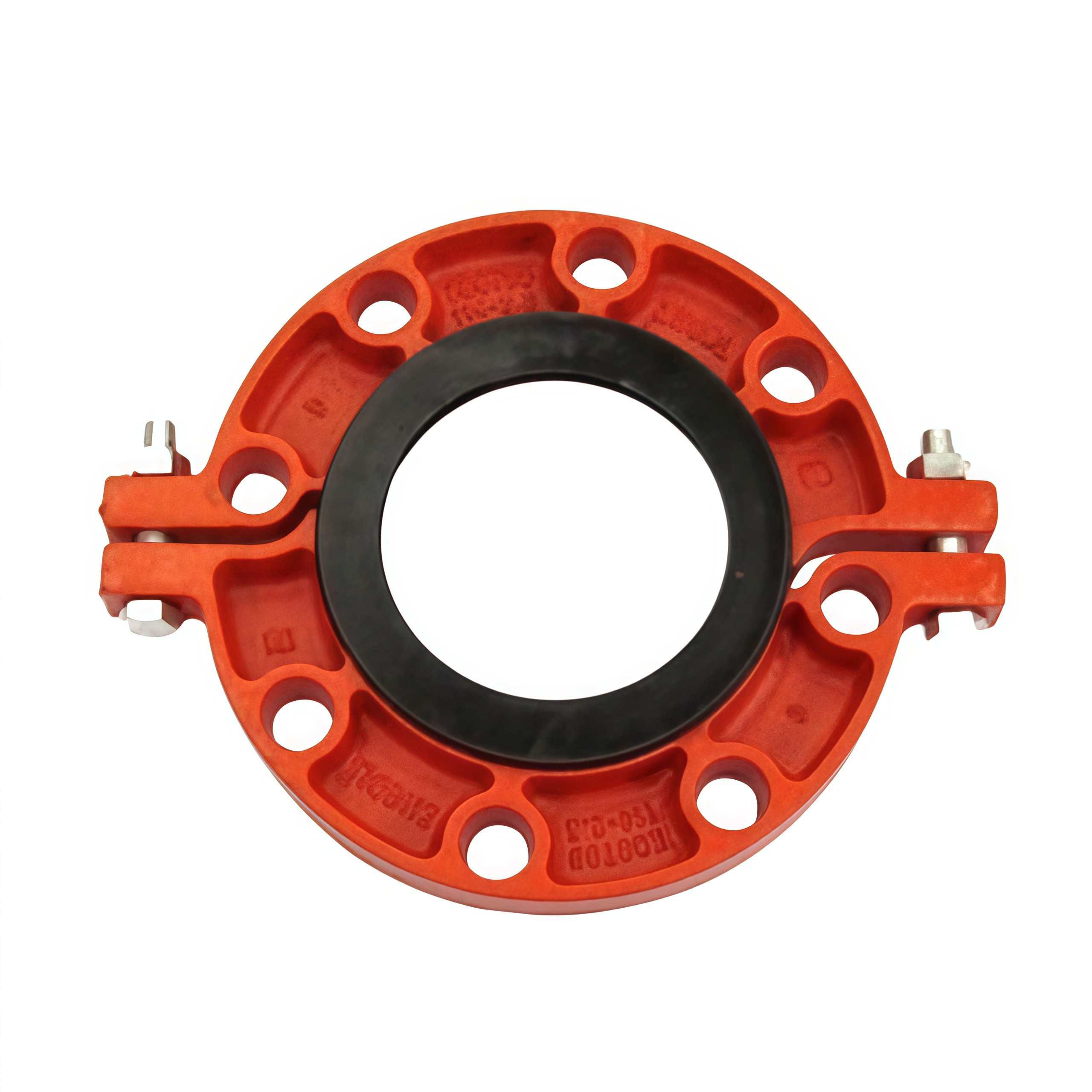

Grooved flanges are a type of hybrid pipe fitting, with one end being a standard flange surface and the other end being a groove.
Material :
Ductile cast ironNormal Diameter :
3 inch to 36 inchConnection :
Grooved&FlangeWorking Pressure :
up to 350psiCertificate :
UL FMApplication :
Pump room connection etc.MOQ :
200 piecesDelivery Time :
15~45 DaysEmail : jony@jyfire.com.cn
Product Description
The grooved end is connected to the grooved pipe through a grooved clamp, just like a common grooved pipe fitting. The flange end is connected to the other flange (equipment flange) in a standard flange type through bolts, nuts and gaskets
The core function of the grooved flange is to act as a "bridge", quickly and reliably connecting the grooved pipeline system with any equipment or valve with flange interfaces (such as water pumps, valves, water tanks, filters, etc.).
Features
• Welded-free connection: No welding is required near the equipment, protecting it from thermal damage and welding slag, making installation safer.
• Simplified calibration: The flexibility at the groove end allows for a certain degree of deflection, making the alignment of flange bolt holes very easy and eliminating the need for a cumbersome calibration process.
• Stress absorption: It can be used as a small flexible joint to absorb the stress caused by the vibration and thermal expansion and contraction of equipment (such as water pumps), protecting the equipment interface.
• Easy to maintain: When it is necessary to repair or replace the equipment, simply loosen the flange bolts and groove clamps, and the entire pipe section can be moved away, which is very convenient.
• Strong compatibility: It is the only standard solution for connecting modern grooved systems with traditional flanged equipment.
Product Parameter
| Grooved Pipe Fittings Ductile cast iron Flange Adapter | |
| Material | Ductile cast iron |
| Size | DN80-DN900 |
| Rated Pressure | up to 350psi |
| Application | Pump room connection, equipment interface etc. |
| Certificate | UL Listed / FM Approved |
FAQ
Q：Is the gasket at the flange end included in the product? What material of gasket should I choose?
A：To offer maximum flexibility, gaskets are usually provided as optional accessories separately.
Q：How much time can I save by using grooved flanges compared with traditional welded flanges?
A：It can usually save more than 75% of the installation time. Traditional welding requires multiple processes such as grinding, centering, welding, cooling and painting. The installation of grooved flanges only takes a few minutes, without the need for a hot work permit or waiting for cooling. Pressure tests can be conducted immediately, significantly shortening the project duration.
Q：If I have requirements for non-standard sizes or special materials (such as stainless steel), can you customize them?
A：Sure. As a factory, our strong production capacity supports customized services.
