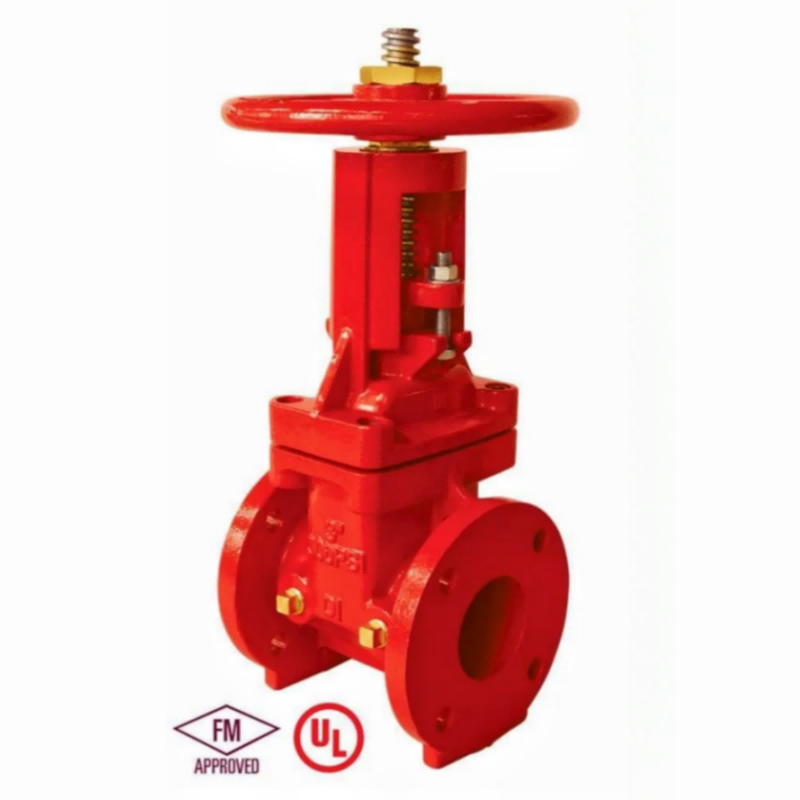

UL FM Fire Gate Valve

The gate valves are specially designed gate valves for fire protection pipeline systems, and their core function is to reliably connect or cut off water flow.

Material :
Ductile iron
Normal Diameter :
2inch to 12 inch
Connection :
Flange
Working Pressure :
300 PSI
Type :
UL FM Gate Valve
Application :
Firefighting system etc.
MOQ :
20 Pieces
Delivery Time :
15~30 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Company Project

A UL/FM Fire Gate Valve is a type of valve designed specifically for use in water-based fire protection systems, such as sprinkler, standpipe, and fire pump systems. Its primary function is to manually isolate sections of the piping system for maintenance, repair, or replacement without draining the entire system.

The "Gate" refers to the internal mechanism: a solid wedge or parallel disc that moves up and down perpendicular to the flow to start or stop it. The "Fire" designation means it is built and tested to much stricter standards than a standard plumbing gate valve.

UL (Underwriters Laboratories) and FM Approvals certify these valves to ensure they are reliable, durable, and will operate when needed in a fire emergency.

UL FM Fire Gate Valve is not just a valve; it is a safety-critical, code-required supervisory device. Its OS&Y design provides a vital visual confirmation that water is available to the fire protection system. Its UL and FM certifications guarantee it has been tested to perform reliably under extreme conditions, ensuring it will operate correctly to isolate system sections for maintenance and, most importantly, remain open to allow water to flow during a fire emergency.

Features

• Status visibility: The operator can directly determine whether the valve is fully open or fully closed by the height of the valve stem's rise and fall. This is a mandatory requirement for the safety management of the fire protection system to prevent misoperation.

• Full bore and low flow resistance: When the gate valve is opened, the flow path is completely unobstructed, with minimal resistance to the fluid, which can ensure the flow and pressure of the fire-fighting water to the greatest extent.

• Signal feedback device: Remote monitoring, safety early warning

Product Parameter

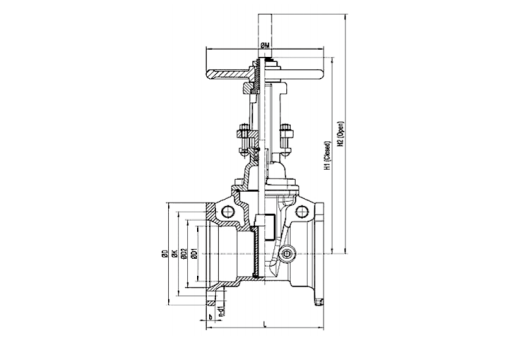

UL/FM Fire Gate Valve Main Parts Material & Parameter
Material	Body	Ductile Iron
	Wedge	Ductile Iron+EPDM
	Stem nut	Bronze
	Bonnet	Ductile iron
	Sealing Ring	EPDM
	Yoke	Ductile iron
	Silding disc	Bronze
	Handwheel	Ductile iron
Diameter Size	DN50-DN65-DN80-DN100-DN125-DN150-DN200-DN250-DN300
Working Pressure	300 psi
Temperature Range	0℃~80℃

Q：What’s the MOQ for ul fm gate valve?

A：For standard sizes, our MOQ is usually 20 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：Can OEM services be provided? For example, putting on our brand Logo?

A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.

Q：Why choose us？

A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!

Act now—stop fire risks at the source!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

Tel.：86-18159244550 Mobil:18159244550

EMAIL:Jony@jyfire.com.cn

ADD:CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY

Hot Tags :

leave a message

categories

Featured products

Related Products

UL FM Fire Water Flow Detector

It is not a direct fire detection device, but a dedicated device for real-time monitoring of the water level status of fire water sources (such as fire water tanks, water tanks, and Wells). Its core mission is to ensure that the fire water supply system has sufficient water available for use in the event of a fire.
UL FM Fire Alarm Check Valve

UL FM Fire Alarm Check Valve is a critical supervisory device installed on a fire sprinkler system. It's not one single object, but rather a system component with a specific purpose and certification.
UL FM Fire Sprinkler Head

UL FM fire sprinkler heads refer to those that have been certified by Underwriters Laboratories (UL) and Factory Mutual Research (FM) in the United States. They feature high quality and safety and are widely used in various fire protection systems.
UL FM Fire Gate Valve

The gate valves are specially designed gate valves for fire protection pipeline systems, and their core function is to reliably connect or cut off water flow.

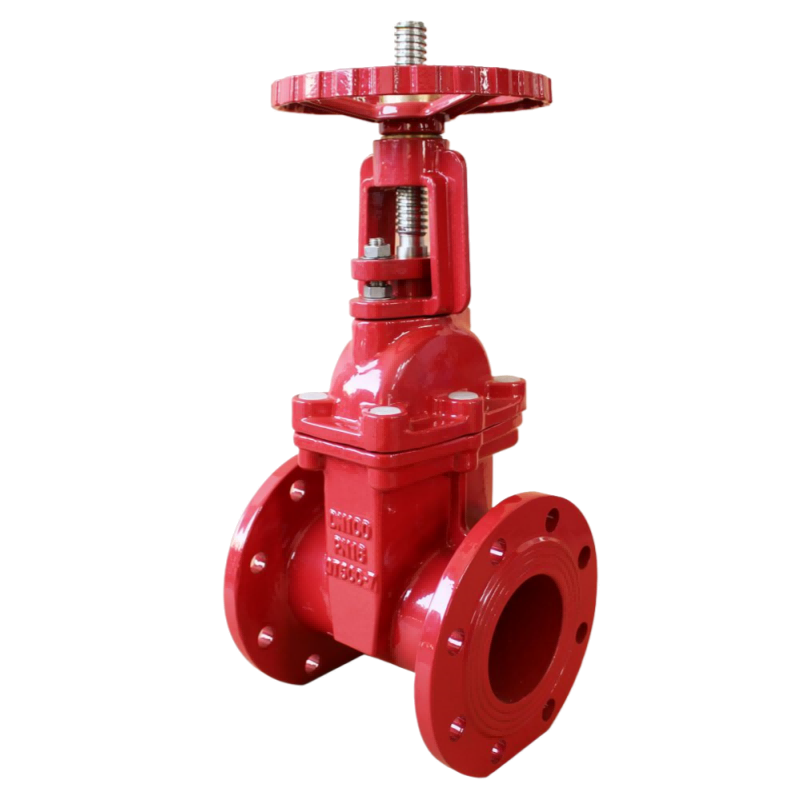

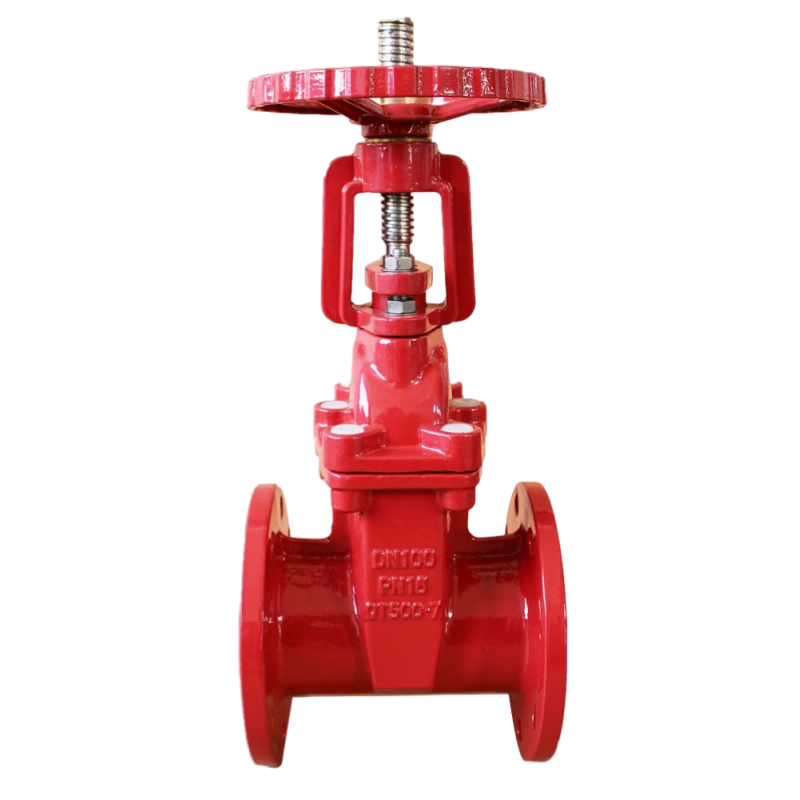

UL Flanged Resilient Seated OS&Y Gate Valve

Fire gate valves are indispensable control devices in fire water supply systems. Their main function is to fully open or fully close the water flow rather than regulate the flow rate.
UL Flanged End Resilient Seated NRS Gate Valve

It is a type of gate valve that is connected to the pipeline through a flange, and its valve stem only rotates during opening and closing without axial lifting.
UL Grooved End Resilient Seated NRS Gate Valve

Grooved Resilient Seated NRS Gate Valve is a cost-effective and space-saving shut-off valve designed for fast installation. Its combination of grooved ends and a non-rising stem makes it a practical choice for many commercial and industrial applications.

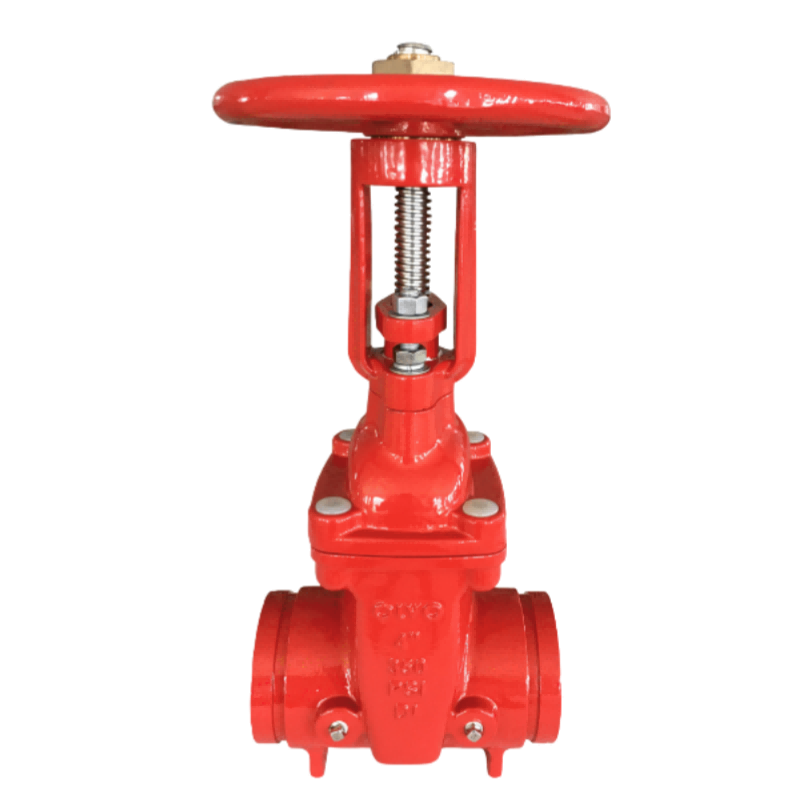

UL Grooved Resilient Seated OS&Y Gate Valve
