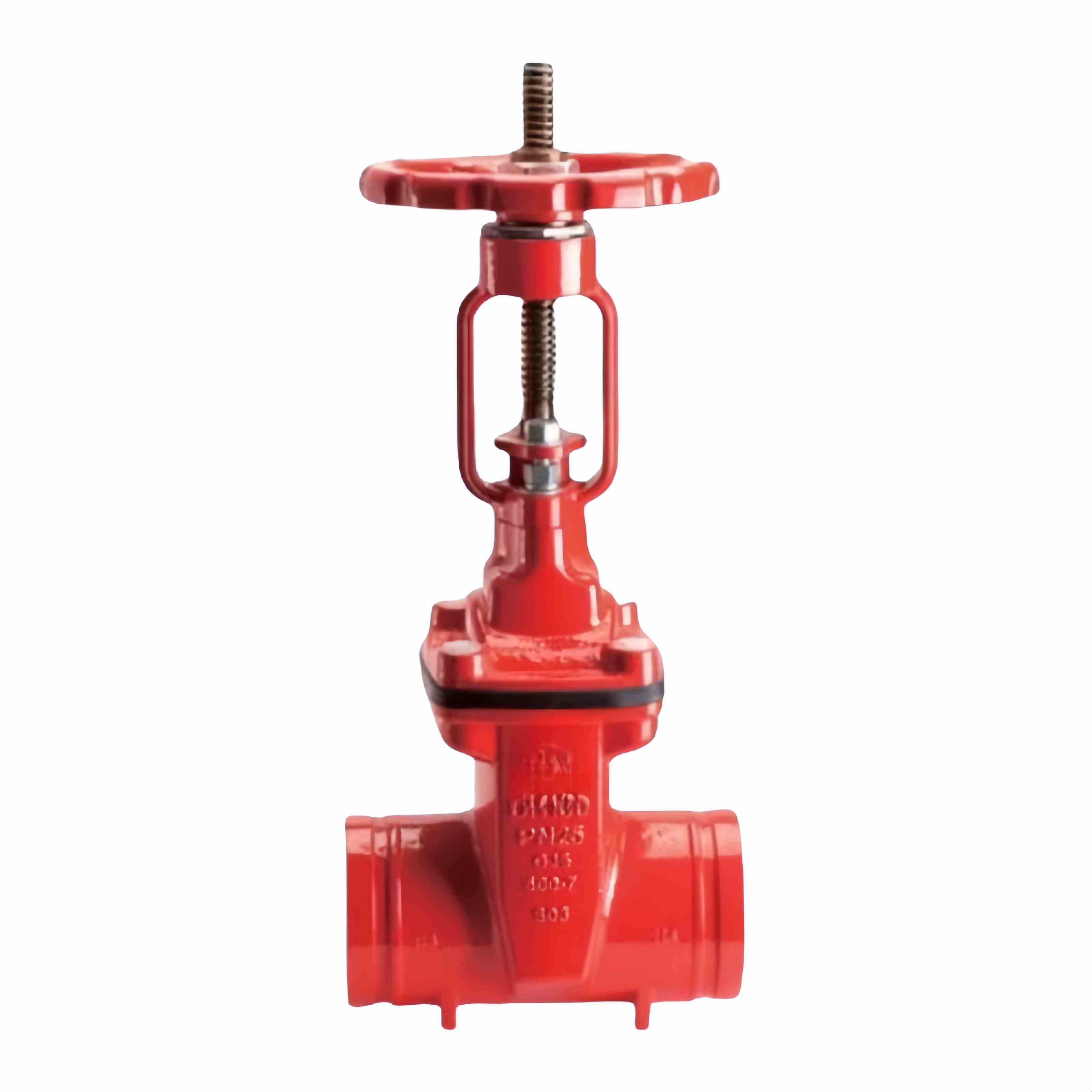

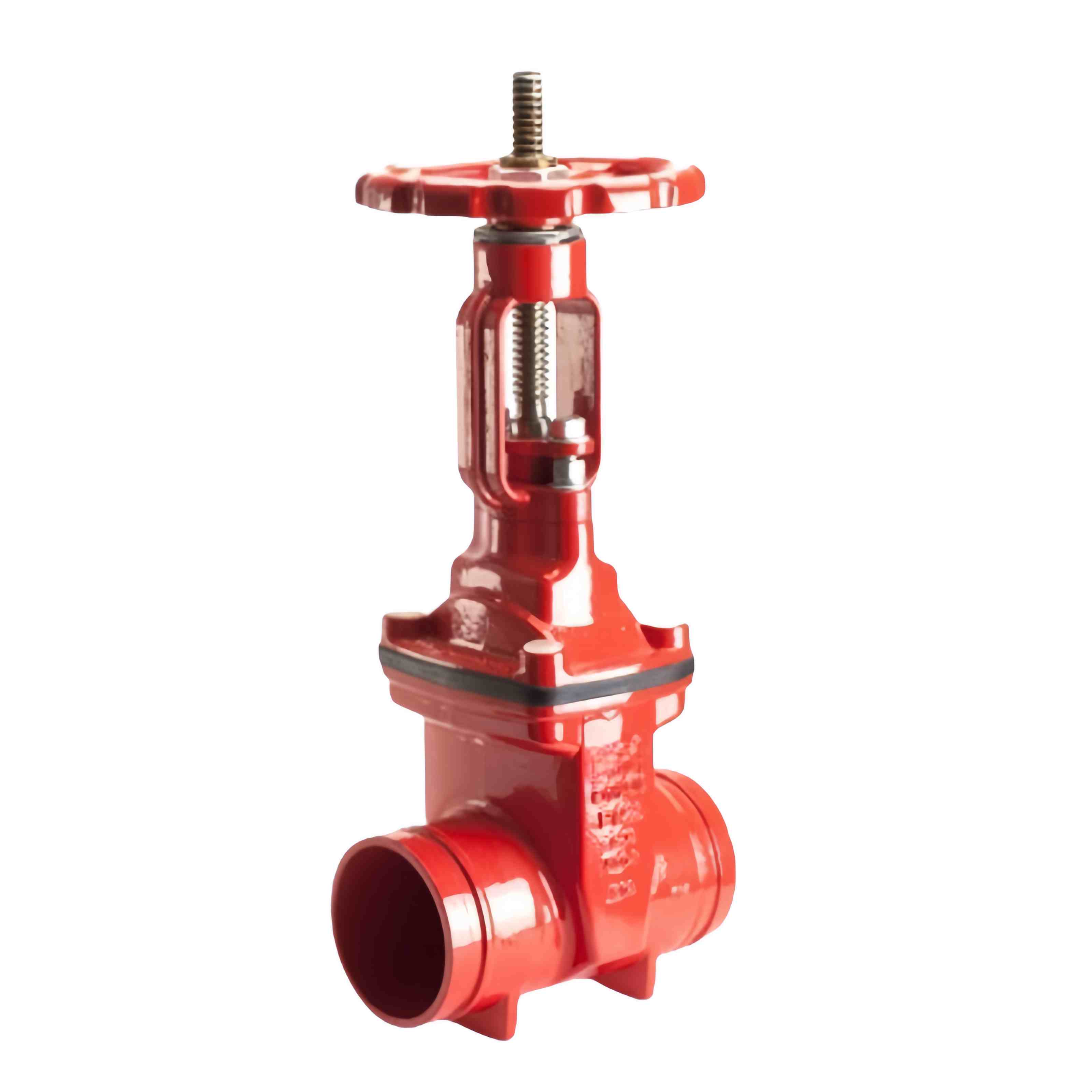

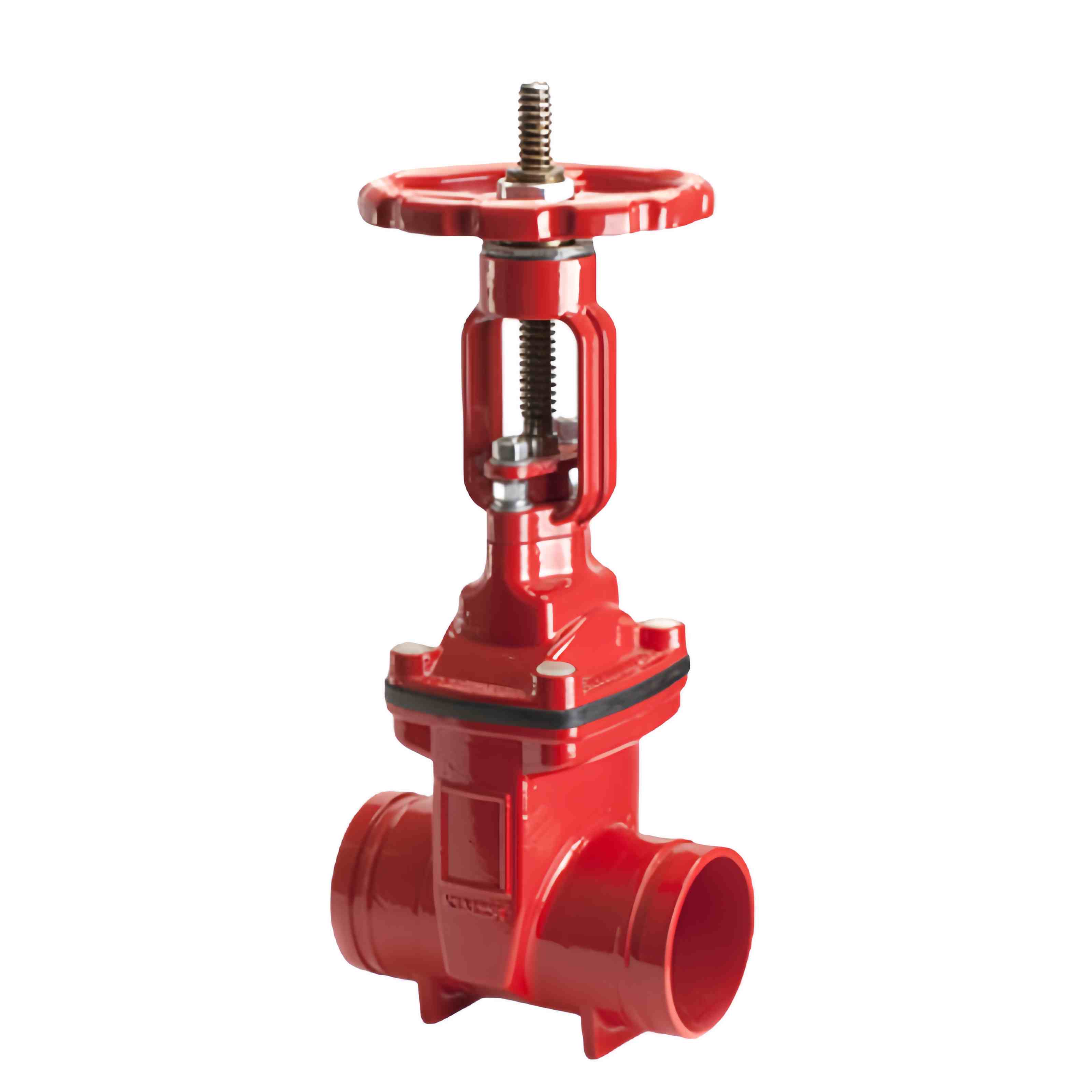

UL Grooved Resilient Seated OS&Y Gate Valve

Grooved Resilient Seated OS&Y Gate Valve combines the installation efficiency of a grooved connection with the operational safety and reliability of an OS&Y design.

Material :
Ductile Iron
Normal Diameter :
DN50 to DN200
Connection :
Grooved End
Working Pressure :
PN16 PN25
Type :
Gate Valve
Application :
Fire Sprinkler System etc
MOQ :
20 Sets
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

The end of the valve is equipped with prefabricated grooves and is connected through grooved pipe joints, rubber sealing rings and bolts. The gate plate of the valve is entirely covered with high-performance elastic materials (such as EPDM, NBR). Achieve bidirectional bubble-level sealing to ensure zero leakage. When the handwheel is turned to open the valve, the valve stem will rotate accordingly and rise steadily upwards. When closed, the valve stem rotates in the opposite direction and descends.

Features

• The operation status is clear at a glance: The lift-type valve stem design eliminates the risk of misjudgment of valve status and greatly enhances the safety of system operation.

• Outstanding sealing performance: The elastic valve seat ensures a tight closure over long-term use, maintaining system pressure and reducing the loss of water or energy resources.

• Minimalist installation and maintenance: The grooved connection method makes it the preferred choice for quick installation and system renovation projects.

• Durability and reliability: Combining the durability of elastic seals with the maintainability of exposed rod structures.

Product Parameter

Technical Data
Size	DN50-DN65-DN80-DN100-DN125-DN150-DN200
Body Material	Ductile Iron
Working Pressure	PN16 PN25
Temperature Range	0℃~80℃
Standard	UL

Q：What’s the MOQ for UL Flanged Non Rising Stem Gate Valve?

A：For standard sizes, our MOQ is usually 20 Sets . For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：Can OEM services be provided? For example, putting on our brand Logo?

A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
