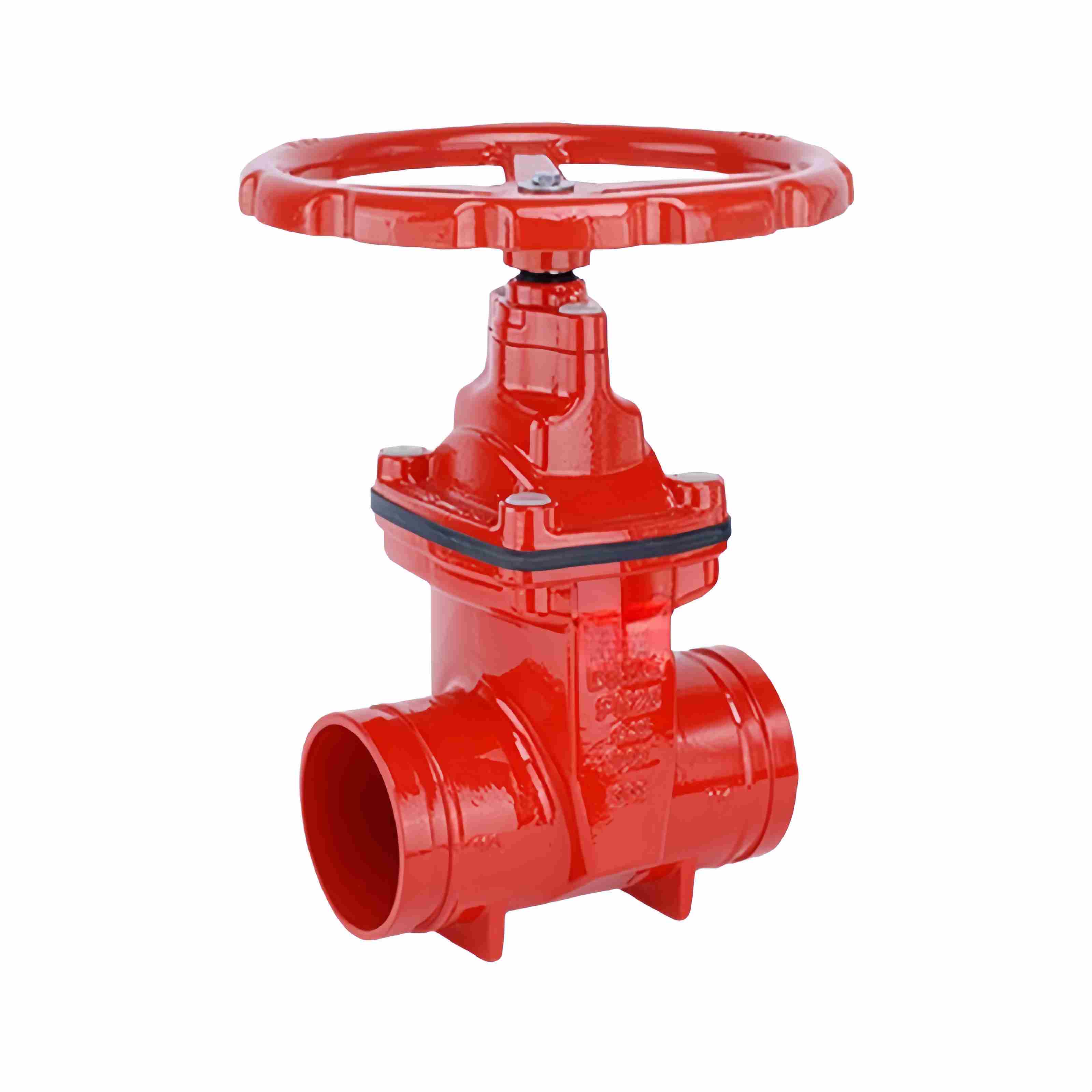

UL Grooved End Resilient Seated NRS Gate Valve

Grooved Resilient Seated NRS Gate Valve is a cost-effective and space-saving shut-off valve designed for fast installation. Its combination of grooved ends and a non-rising stem makes it a practical choice for many commercial and industrial applications.

Material :
Ductile Iron
Normal Diameter :
DN50 to DN200
Connection :
Grooved
Working Pressure :
PN16 PN25
Type :
Gate Valve
Application :
Fire sprinkler system etc
MOQ :
20 Sets
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

The grooved non-lift gate valve is a type of gate valve that uses grooved pipe joints for connection and adopts a non-lift valve stem (concealed stem) design. It integrates the installation convenience of grooved connections with the structural compactness of non-lift valve stems, making it an ideal choice for modern pipeline systems, especially in scenarios where space is limited and quick installation is required.

Features

Extremely Fast Installation: The grooved end connection is the primary advantage, drastically reducing installation time and cost compared to flanged or welded valves.
Space-Saving (Vertical): The NRS design means the valve does not get taller when opened, making it perfect for tight spaces with limited vertical clearance.
Bubble-Tight Seal: The resilient seat ensures zero leakage when closed.
Cost-Effective: Lower installed cost due to reduced labor and the elimination of need for welded or threaded fittings.

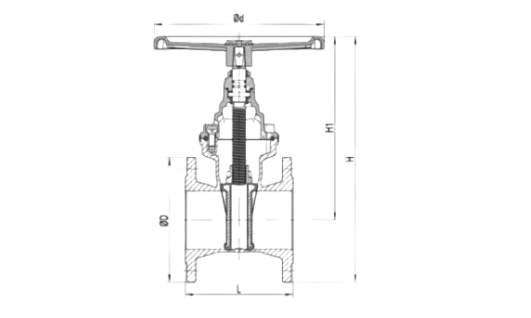

Product Parameter

Technial Data
Size	DN50-DN65-DN80-DN100-DN125-DN150-DN200
Body Material	Ductile Iron
Working Pressure	PN16 PN25
Temperature Range	0℃~80℃
Standard	UL

Q：What’s the MOQ for UL Grooved Non Rising Stem Gate Valve?

A：For standard sizes, our MOQ is usually 20 Sets . For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：Can OEM services be provided? For example, putting on our brand Logo?

A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.

Q：Why choose us？

A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!

One Stop Solution for fire hoses,sprinklers,nozzles,valves and pipe fittings!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

Tel.：86-18159244550 Mobil:18159244550

EMAIL:Jony@jyfire.com.cn

ADD:CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY
