Manufacturer Fire Sprinkler Head for Sale

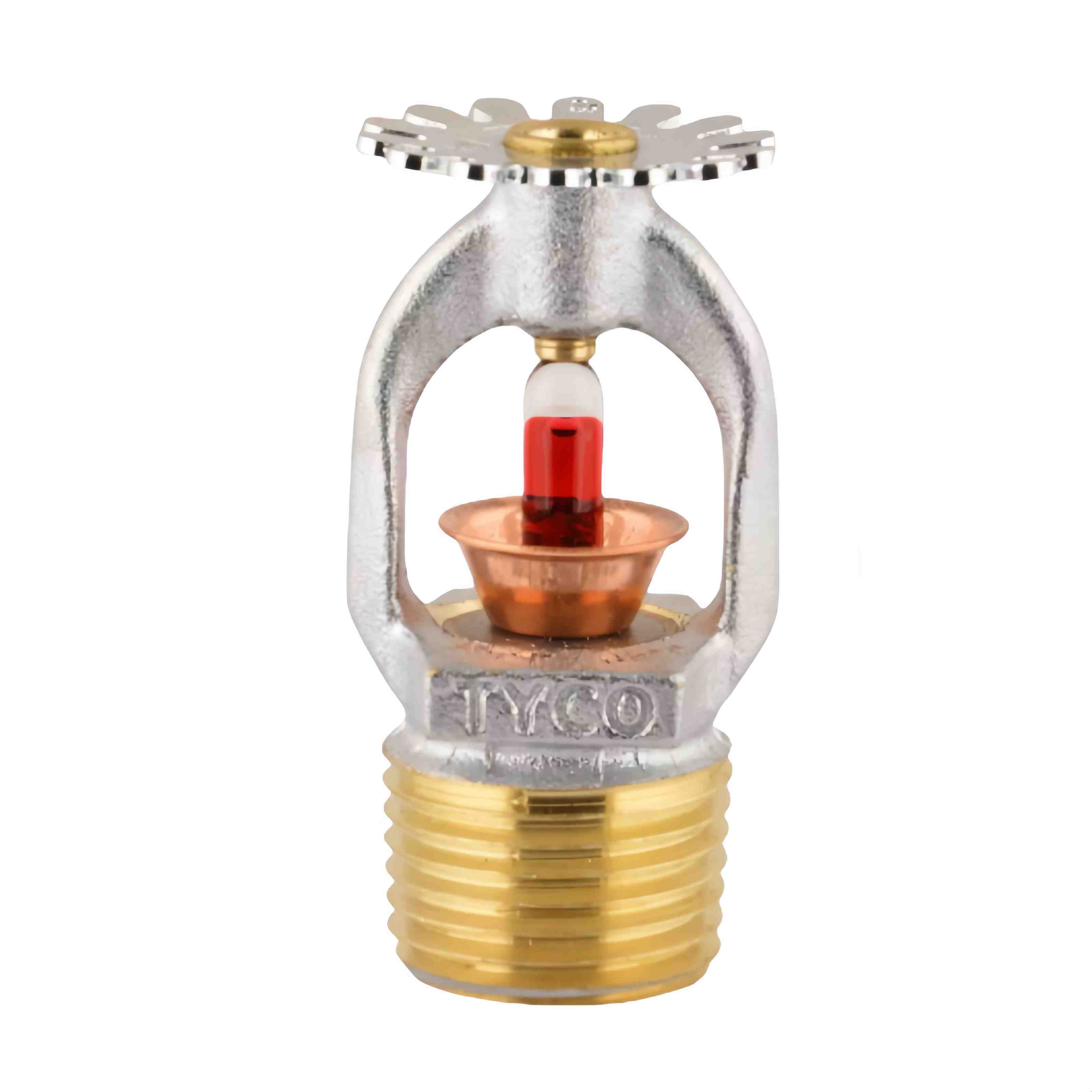

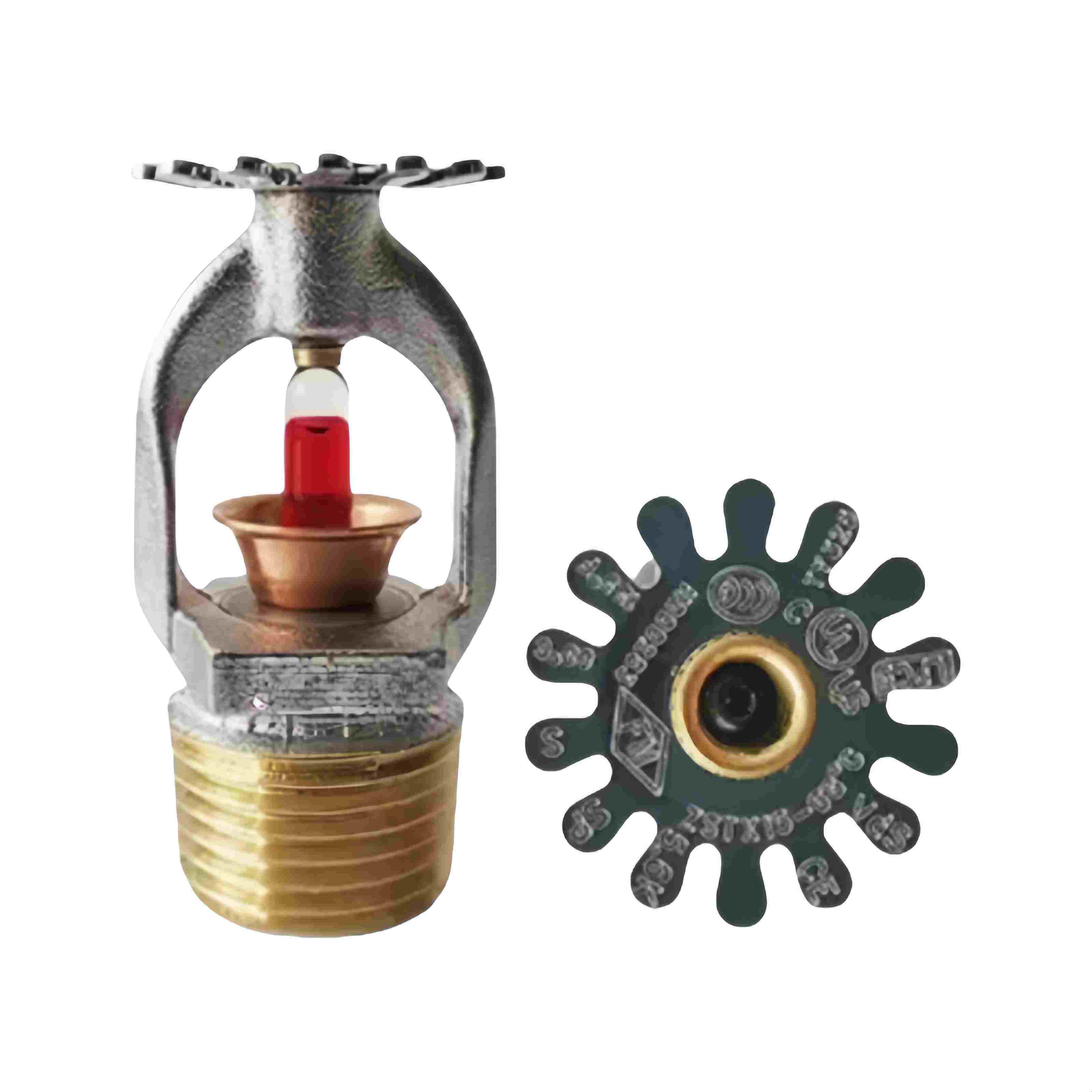

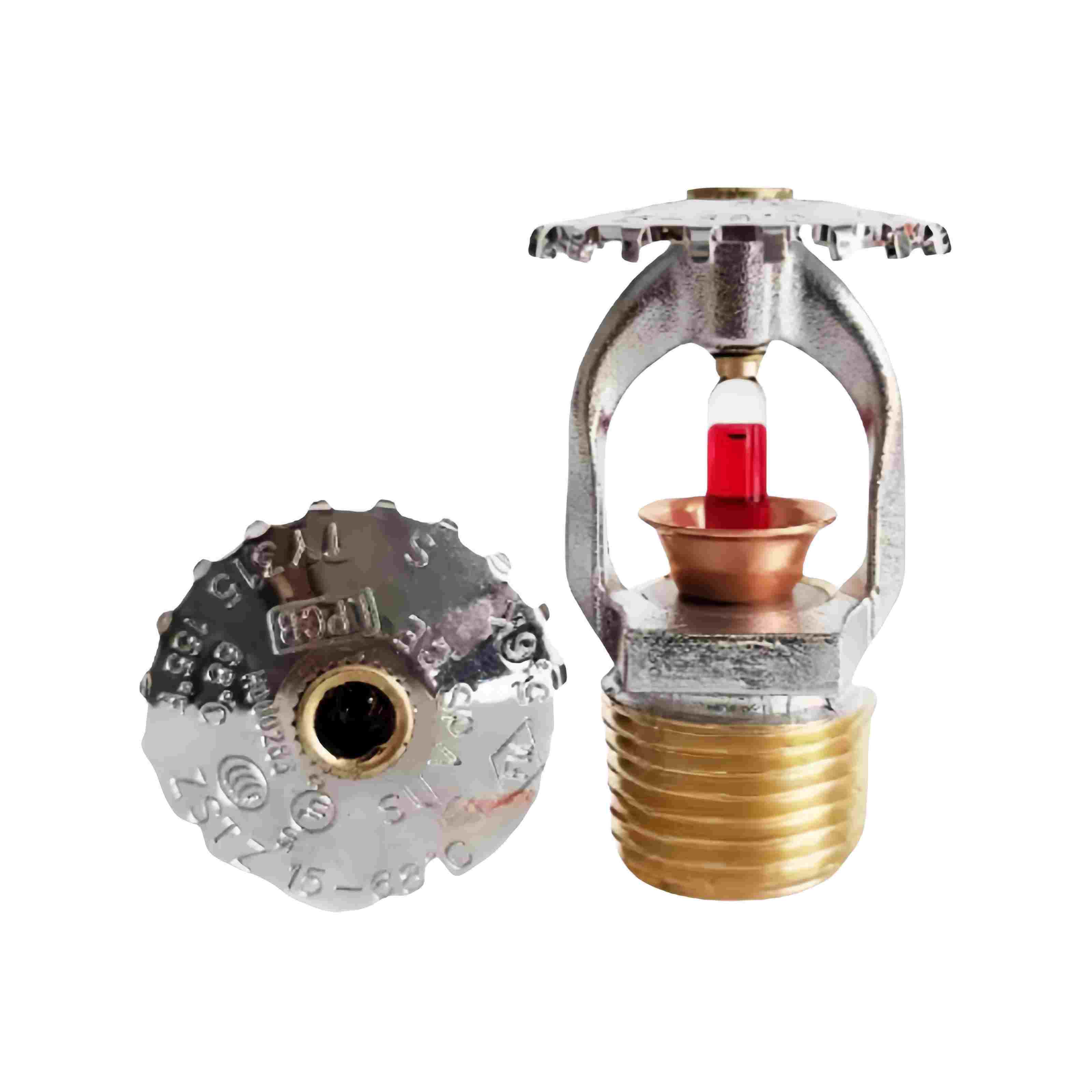

UL Standard Fire Fighting Sprinkler Head

UL Standard Fire Sprinkler Head is a crucial component of a fire protection system, designed to automatically control or extinguish a fire by discharging water directly onto the source once a specific temperature is reached.

Sprinkler Material :
Brass
Sprinkler Installation :

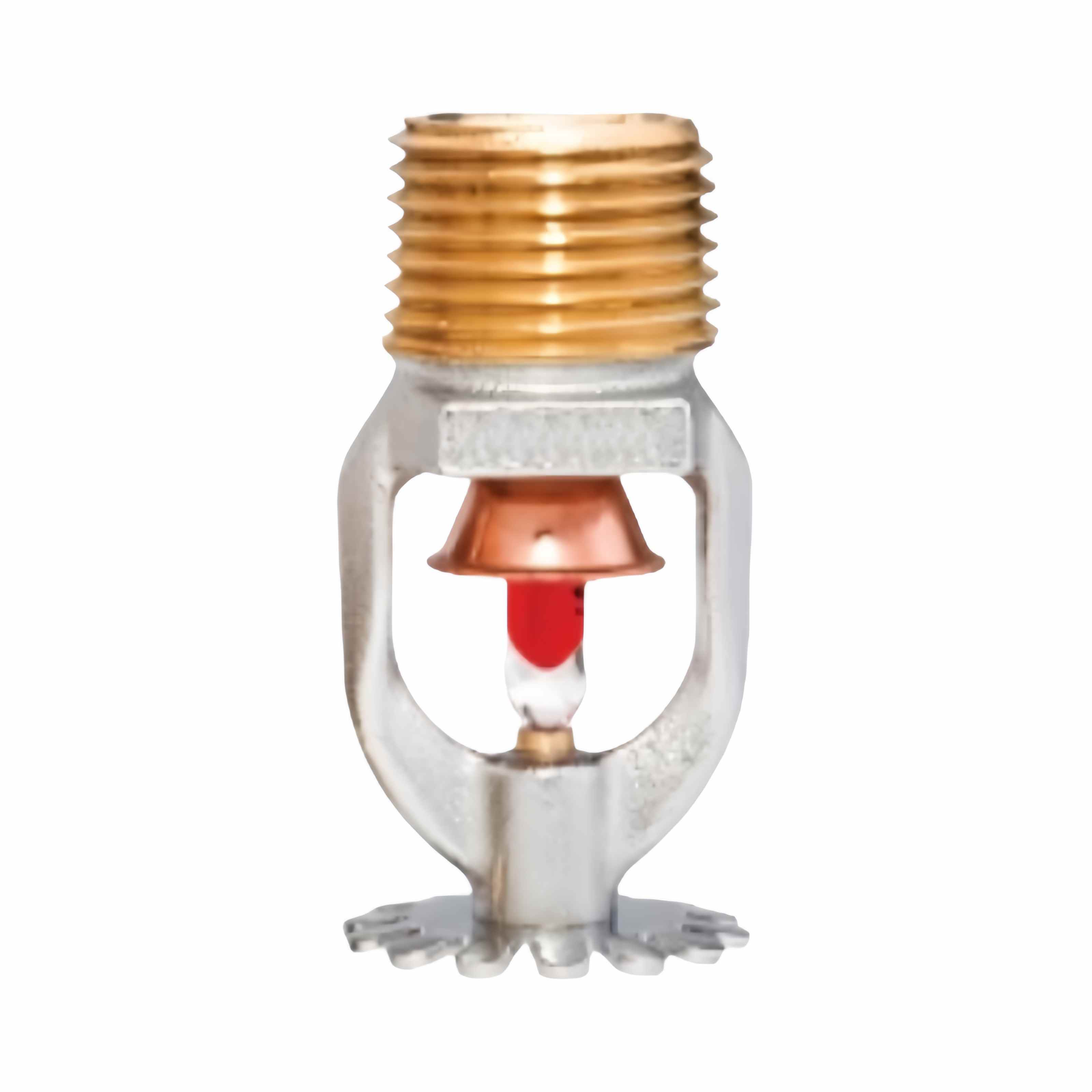

Pendent,Uright,Sidewall
Thread Size :
1/2 Inch
Temperature :
135℉,155℉,175℉,200℉,286℉,360℉
Glass Bulb Color :
Orange,Red,Yellow,Green,Blue
Surface Finishing :
Natural Brass
MOQ :
1000 Pieces
Delivery Time :
15~30 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Description

UL fire sprinkler heads sense the ambient temperature through thermal sensitive elements. When the preset operating temperature is reached, they automatically break or melt, thereby releasing the water flow. The water flow is evenly and effectively distributed to the surface of the burning object by the deflector. The entire process is purely mechanical and automated, requiring no external power supply or manual intervention.

The fire sprinklers are activated one by one. Only the nozzles (or those few) that have reached their rated temperature will operate. This avoids unnecessary water stain loss and insufficient water source pressure caused by all nozzles spraying water simultaneously. The nozzle is only sensitive to heat and has no response to smoke. It won't start just because someone smokes.

Features

• Fully automated operation

• Reliable thermal drive

• Highly efficient water spraying and distribution performance

• Quick response ability

• Economical and efficient fire extinguishing efficiency

Product Parameter

Installation Type	Pendent.Uright,Sidewall
Pipe Thread Connection	1/2 inch NPT (DN15)
K Factor	K5.6
Max. Working Pressure	175 psi
Temperature Range	135℉,155℉,175℉,200℉,286℉,360℉
Finish	Natural Brass

Q：What’s the MOQ for ul fire sprinkler?

A：For standard sizes, our MOQ is usually 1000 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.

One Stop Solution for fire hoses,sprinklers,nozzles,valves and pipe fittings!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

Tel.：86-18159244550 Mobil:18159244550

EMAIL:Jony@jyfire.com.cn

ADD:CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY
