UL Standard Fire Sprinkler Heads

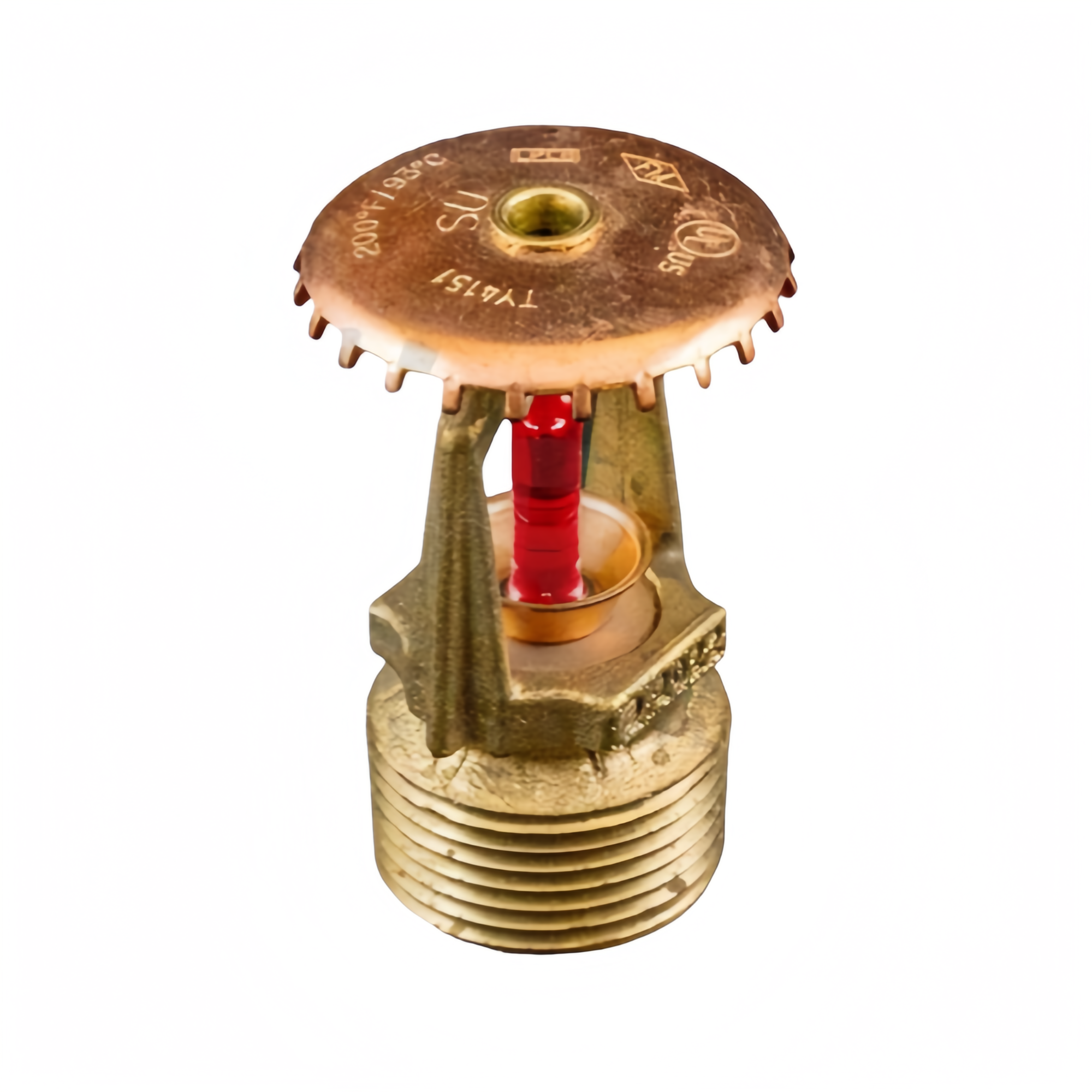

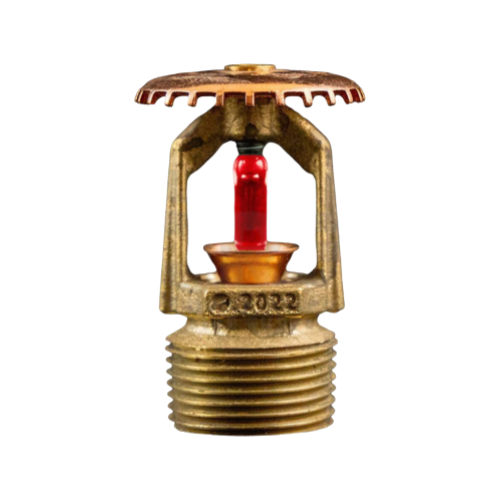

TY4151 is a vertical fire sprinkler head. Adopting the classic glass bulb temperature-sensing start-up principle, it is mainly applied to fire protection in commercial buildings and other places.

Sprinkler Material :
Brass，Copper
Sprinkler Installation :
Uright，Pendent
Thread Size :
1/2 Inch 3/4 Inch
Temperature :
155℉(68 ℃ )，175℉ (79 ℃ )，200℉(93 ℃ )
Glass Bulb Color :
Red，Yellow，Green
Surface Finishing :
Natural Brass
MOQ :
15~30 Days
Delivery Time :
1000 Pieces

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

Under normal circumstances, the glass bulb inside the nozzle will press against the seal, keeping the water sealed in the pipe network.

When a fire causes the ambient temperature to rise to the rated operating temperature (such as 68℃), the pressure generated by the thermal expansion of the liquid inside the heat-sensitive glass tube will exceed the tube's endurance limit, leading to the tube's rupture and thus activating the system.

After the system starts up, the pressurized water in the pipe network is forced to spray out from the nozzles and collide with the splash pan at high speed. The water flow is dispersed into fine and uniform water droplets, forming a complete water curtain that covers the designated protected area, thereby achieving efficient fire control and suppression.

Product Features

• High stability and strong anti-misoperation ability

• The technology is mature and highly reliable

• It has good economic performance and low maintenance costs

Product Parameter

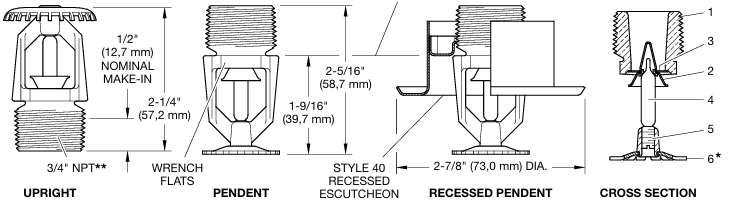

Model	TY4151 / TY4251
Diameter Size	1/2" 3/4"
Installation Type	Pendent，Uright
