A 200X Pressure Reducing Valve (PRV) is a hydraulically operated, diaphragm-actuated control valve designed to maintain a steady, pre-set downstream pressure regardless of fluctuations in the upstream (inlet) pressure or flow demand.
Material :
Ductile IronNormal Diameter :
DN50 to DN300Connection :
NonTemperature :
0℃~80℃Working Pressure :
1.0~1.6 MpaTesting Pressure :
1.5~2.4 MpaApplication :
Industry/Mining/Fire protectionMOQ :
10 SetsDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Products Description

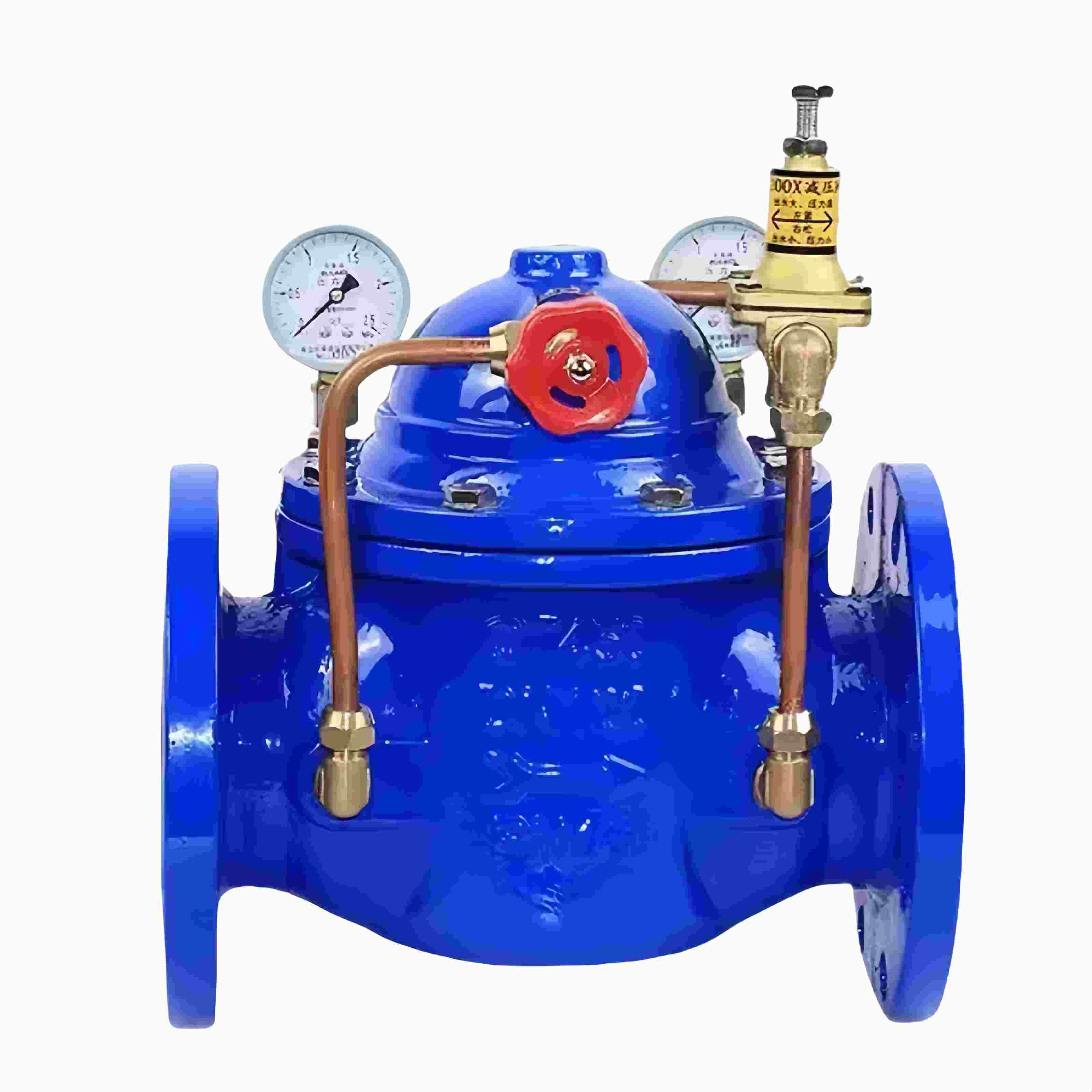

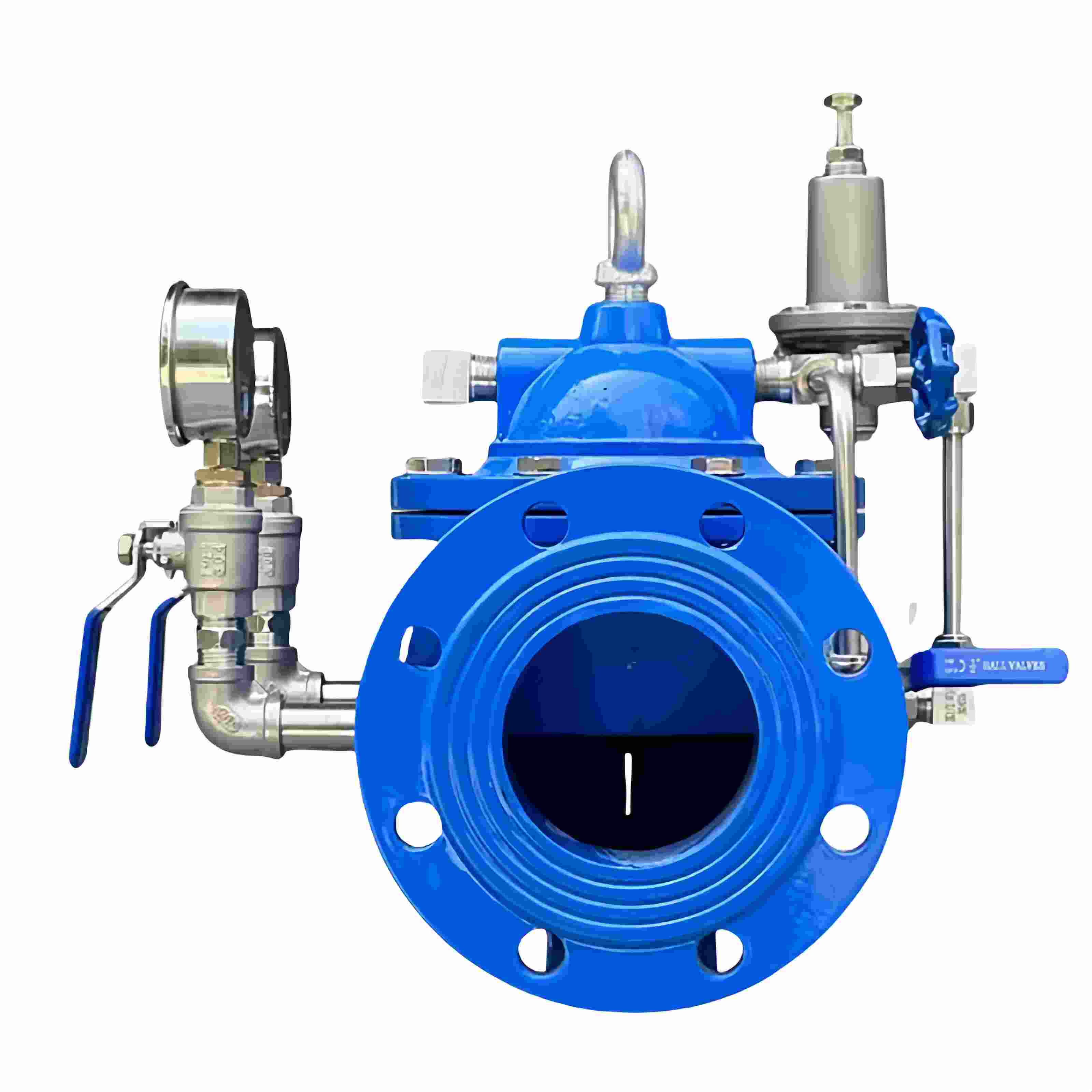

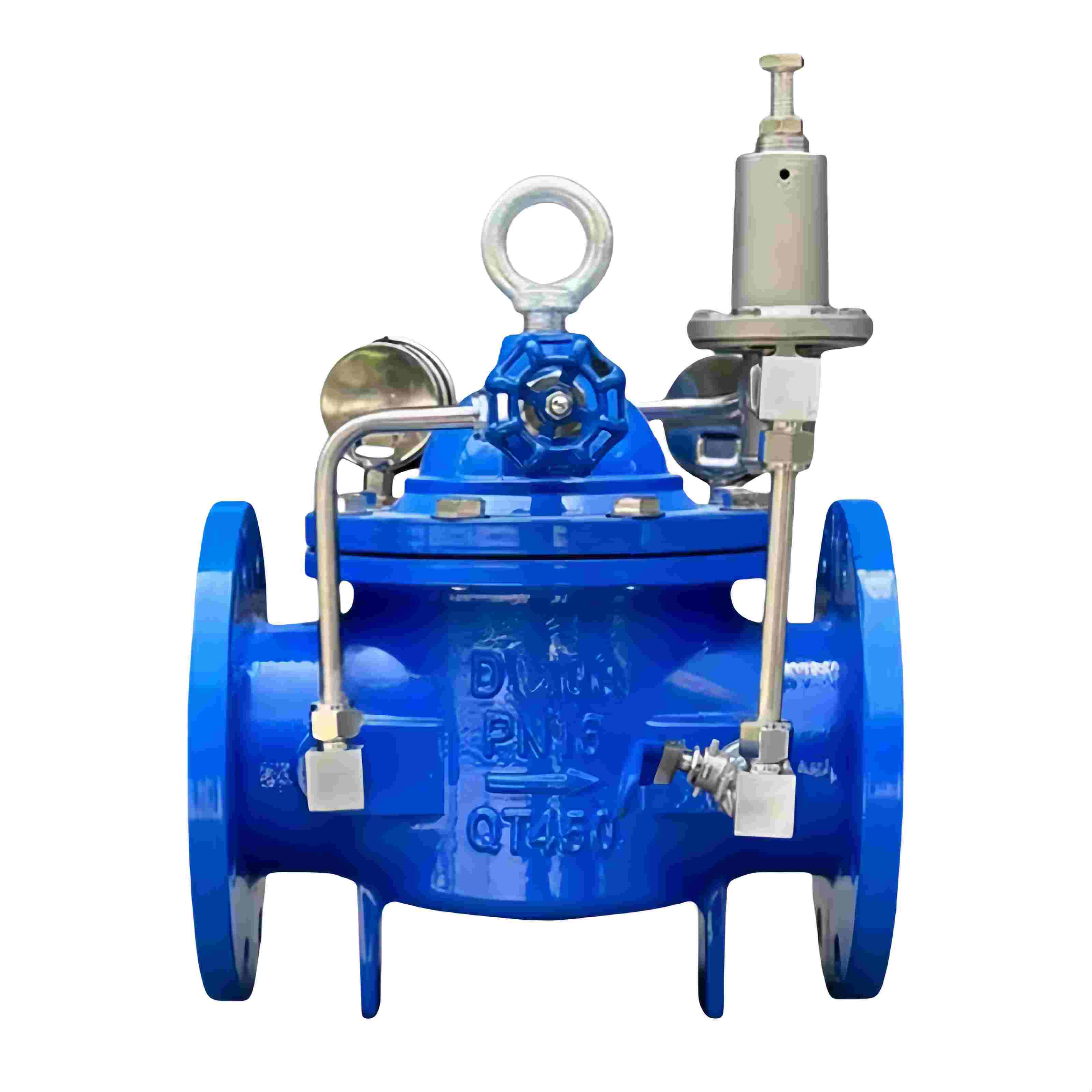

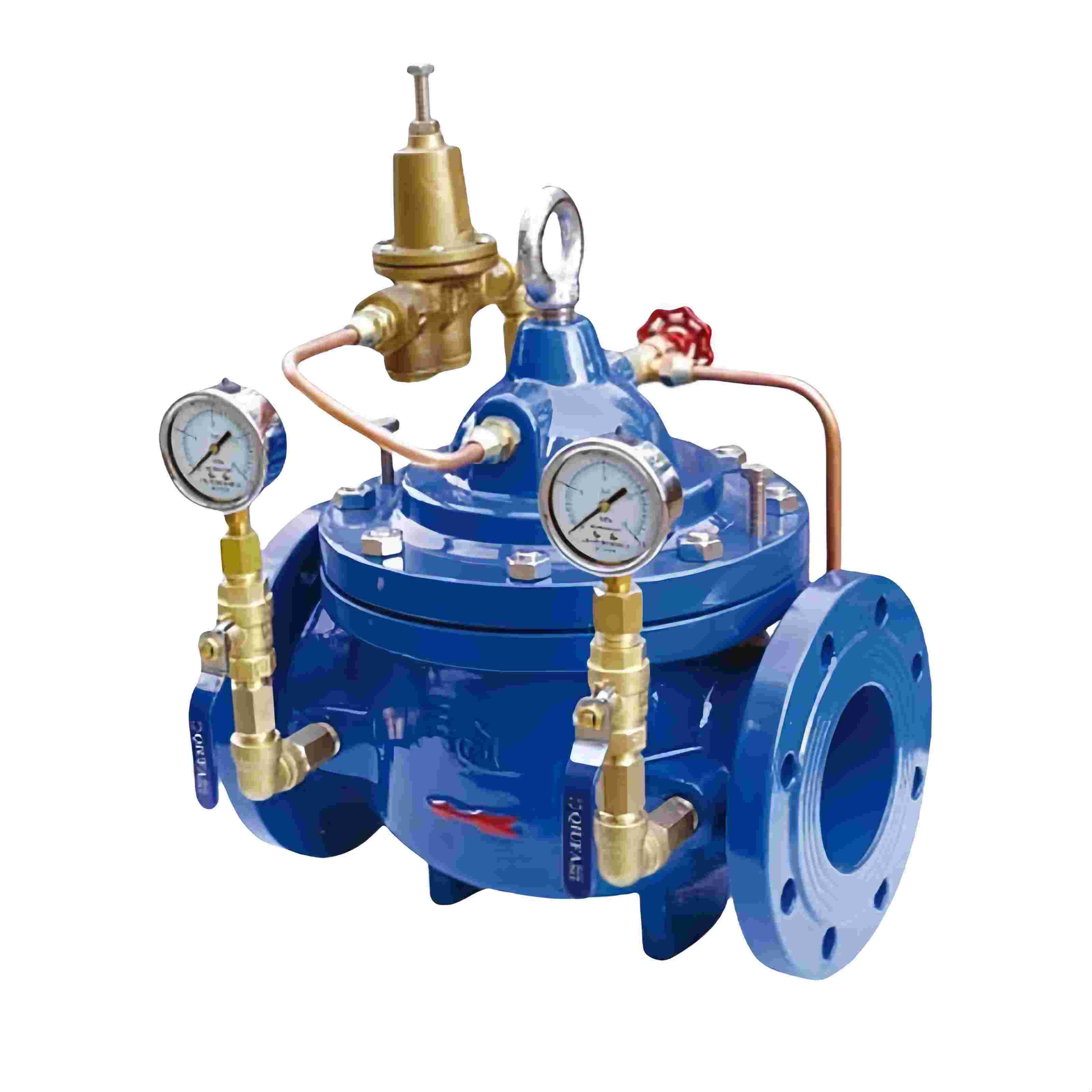

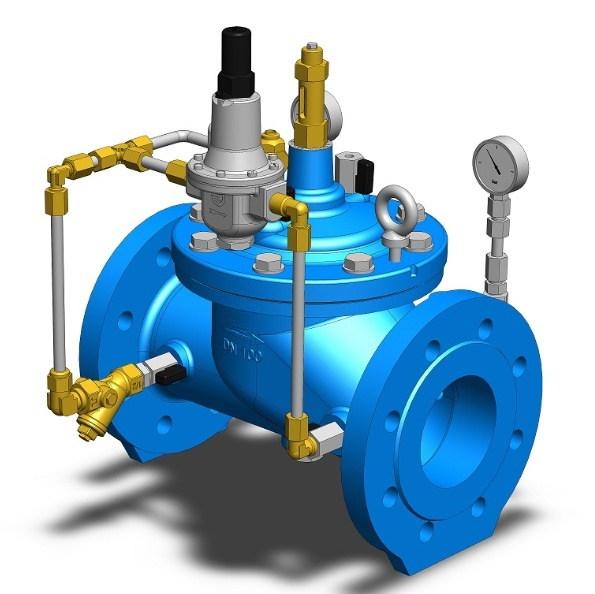

The adjustable pressure reducing valve is composed of a diaphragm main valve, an angle needle valve, a ball valve, a steel pipe, apressure gauge and a pressure reducing pilot valve, It divides the water flowing through it into upstream and downstream withdiferent pressures, and can supply water to the downstream according to the pressure set by the user (set value s7/8 sourcepressure), and the water supply pressure will not be decompressed due to the fluctuation of inlet pressure and the change of outletflow.
Its primary function is to protect downstream equipment from damage caused by excessive pressure and to maintain a constant, pre-set pressure for optimal system performance.
It works much like a pressure regulator on a scuba tank or a propane grill, but on a much larger scale for industrial and municipal water systems.
Features
• Accurate Control: The pilot-operated design provides stable and precise pressure regulation.
• Adjustability: The outlet pressure can be easily changed in the field without removing the valve from the line.
• Self-Acting: Requires no external power source; operates using the energy from the water system itself.
• Reliability: Simple, robust design with few moving parts leads to long service life.
• Versatility: Available in a wide range of sizes (e.g., 2" to 16") and materials for various applications.
Products Parameter
| Specification（DN） | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| Valve Length（mm） | 203 | 216 | 241 | 292 | 300 | 356 | 457 | 533 | 610 | |
| Shell Test Pressure | 1.5-2.4 Mpa | |||||||||
| Sealing Test Pressure | 1.1-1.76 Mpa | |||||||||
| Nominal Pressure | 1.0-1.6 Mpa | |||||||||
| Proper Temperature | 0-80℃ | |||||||||
| Applicable Media | Water and weak corrosive fludis | |||||||||
FAQ
Q：What’s the MOQ for your fire hose?
A：10 Set
Q：Can you accept sample order?
A：Yes，we accept samples with little and reasonable charge.But need customer pay sample fees and transport fees firest.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：How can I get my oeder？
A：We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder，all with tracking number.
Q：Why choose us？
A；With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
