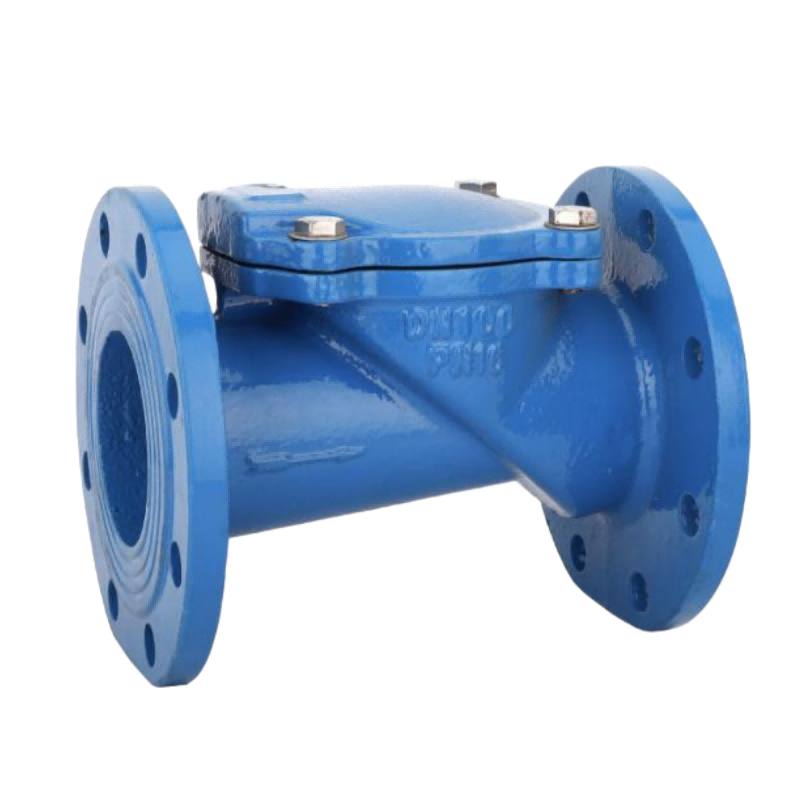

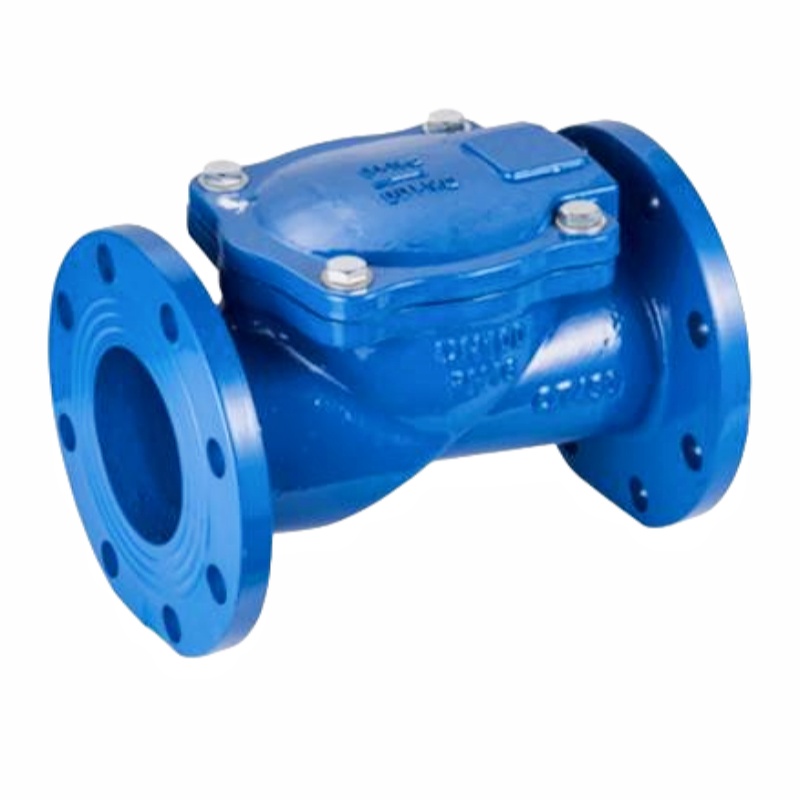

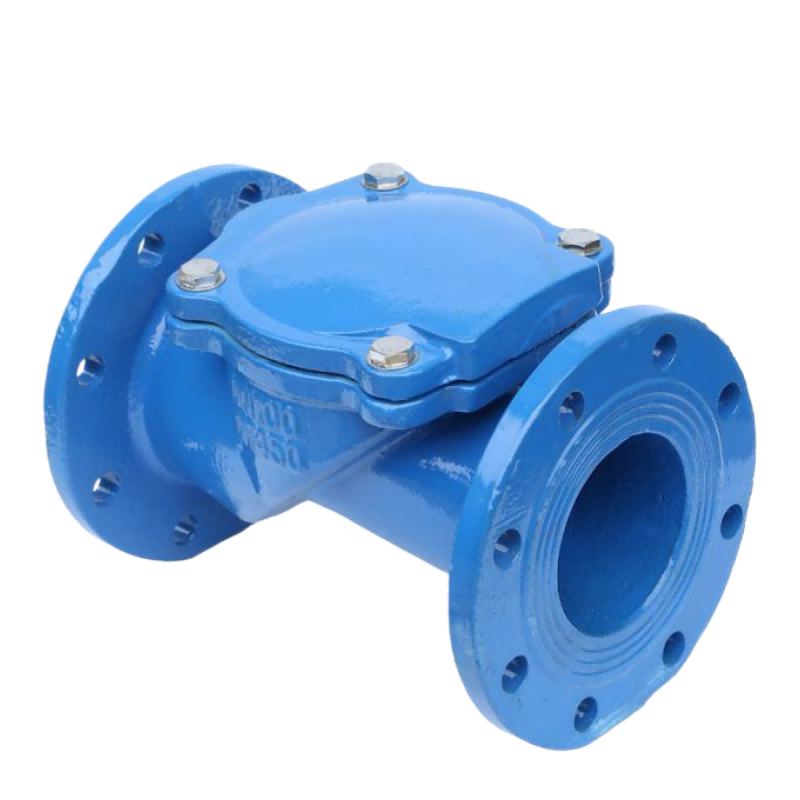

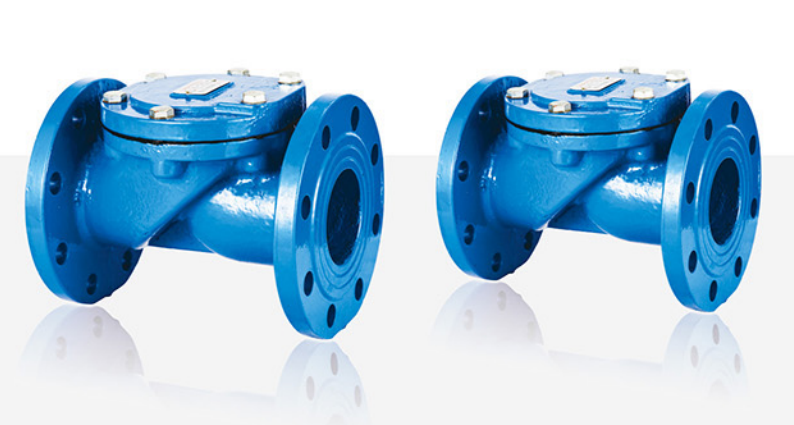

Rubber flap check valves are automatic valves specially designed for pipeline systems transporting liquids, slurries or gases.
Material :
Ductile IronNormal Diameter :
DN50 to DN300Connection :
Female ThreadTemperature :
0℃ to 80℃Working Pressure :
1.0~1.6 MpaTesting Pressure :
1.5~2.4MpaApplication :
Drainage system/Petroleum/Chemical industry etcMOQ :
10 SetDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Product Description
It is a check valve that uses a rubber-coated valve disc as the opening and closing part. One end of the valve disc is fixed to the valve body pin and can rotate freely (like a hinged door). When the medium flows in the forward direction, the fluid pressure pushes open the valve disc and the channel opens. When the flow stops or backflows occur, the valve disc rapidly closes under the influence of its own gravity, the backflow medium and back pressure, and adheres to the sealing surface of the valve seat to form a seal.
Its core mission is to allow the medium to flow in one direction and effectively prevent the backflow of the medium, thereby protecting the upstream equipment. Due to its simple structure, low cost and good sealing performance, it is widely used in water treatment, drainage, fire protection and mining fields.
Features
• The short closing time can reduce the water hammer pressure
• It is resistant to erosion, has good sealing performance and a simple product structure
• The structure is simple and maintenance is convenient
• Wide range of applicable media
Product Parameters
| Diameter（DN） | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Valve Length（mm） | 205 | 217 | 238 | 292 | 332 | 360 | 492 | 620 | 700 |
| Sheel Test Pressure | 1.5~2.4Mpa | ||||||||
| Seeling Test Pressure | 1.1~1.76Mpa | ||||||||
| Normal Pressure | 1.0~1.6Mpa | ||||||||
| Temperature | 0~80℃ | ||||||||
| Applicable Media | water, mud, particulate matter etc. | ||||||||
FAQ
Q：Why must it be installed horizontally?
A：The key to achieving the closing function is for the valve disc to fall back by its own gravity. If installed vertically, gravity cannot cause the valve disc to fall back, and the valve will fail.
Q：What’s the MOQ for your rubber flap check valve?
A：10 Sets.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
