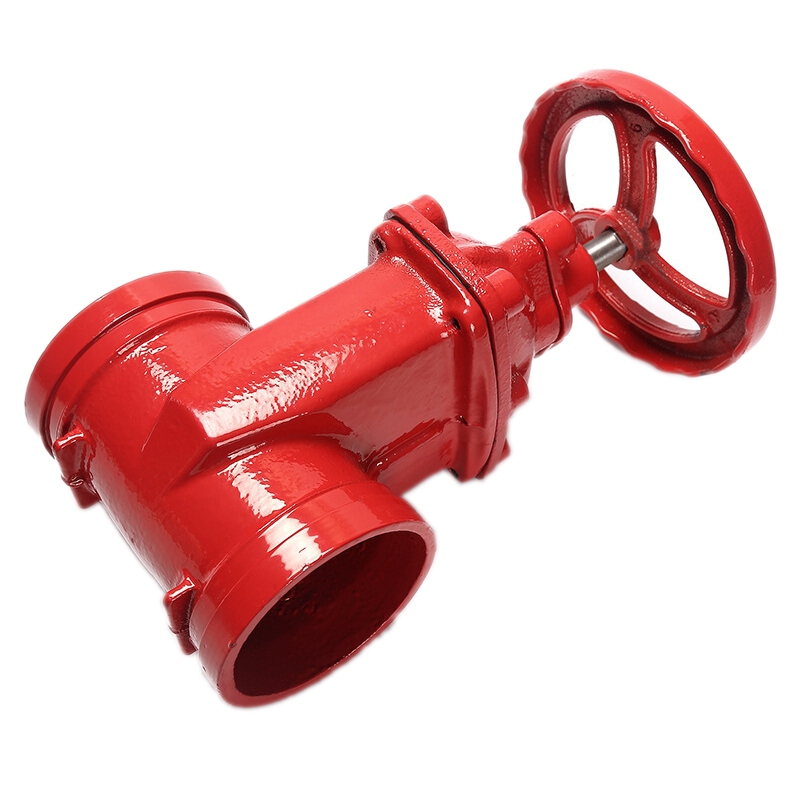

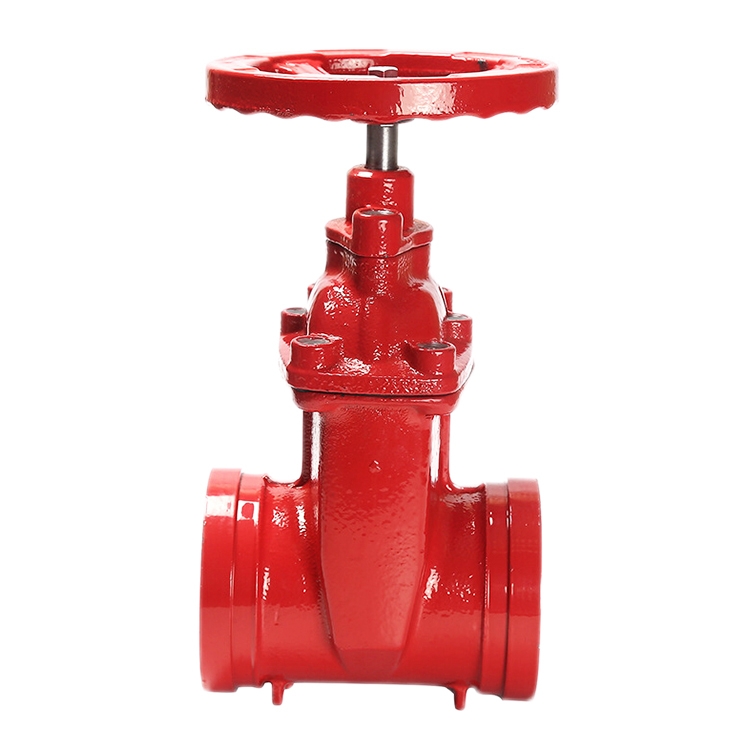

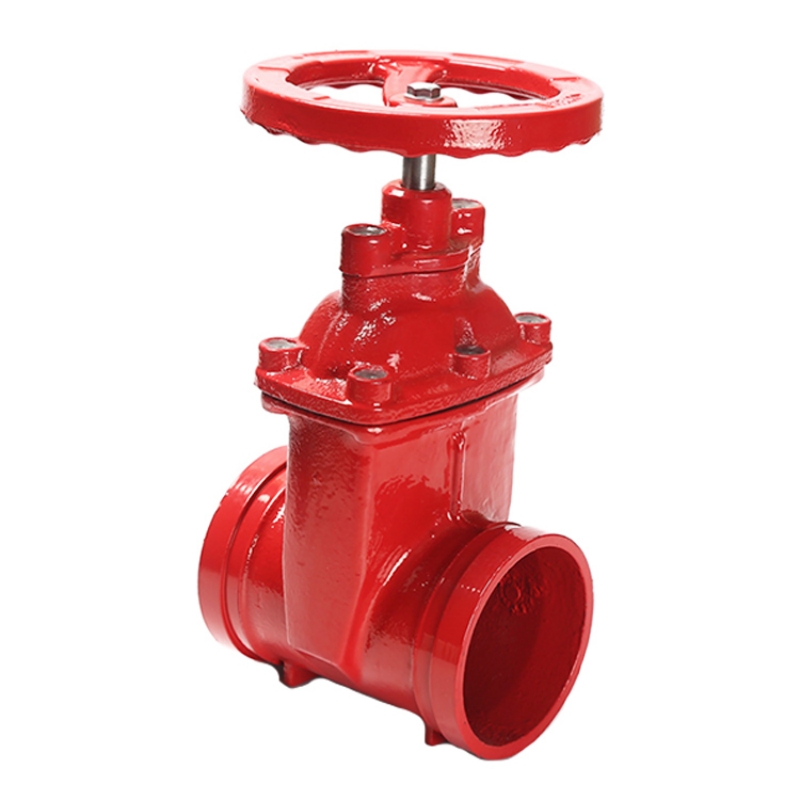

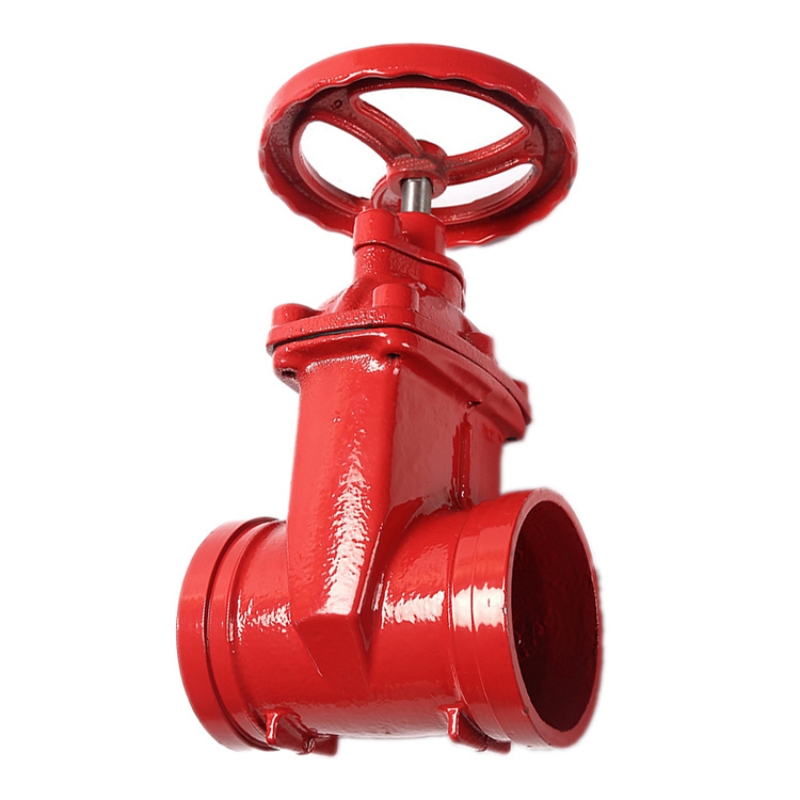

The grooved elastic valve seat non-rising stem gate valve is a featured product designed to meet the demands of limited space and quick installation.
Material :
Ductile IronNormal Diameter :
DN50 to DN300Connection :
GroovedTemperature :
-10℃ to 80℃Working Pressure :
PN10,PN16Testing Pressure :
2.4 MpaApplication :
Space-constrained pipeline systemMOQ :
10 SetsDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Product Description

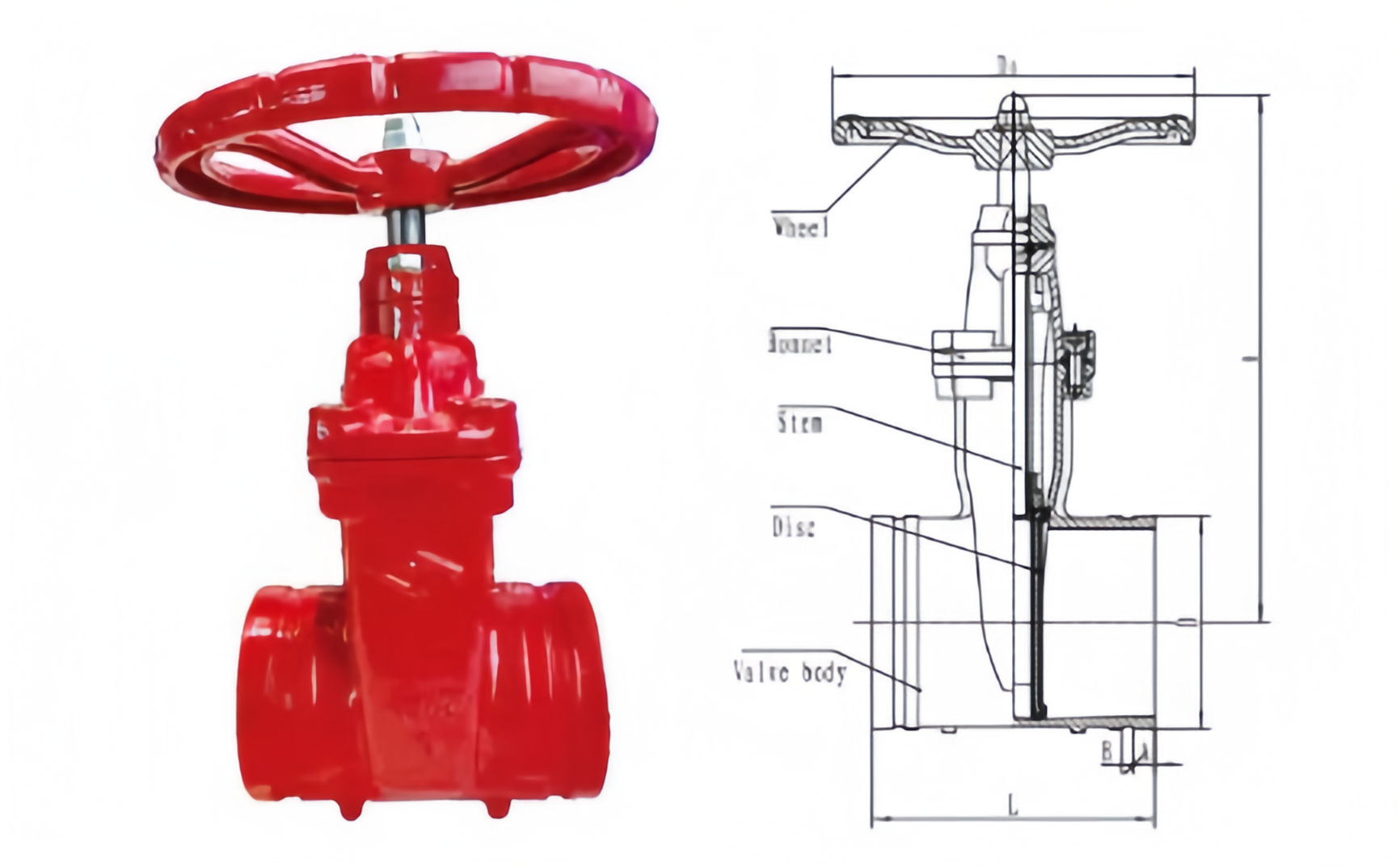

When the concealed stem gate valve is opened or closed, the handwheel and the valve stem only rotate and do not move up or down. The valve stem drives the gate plate to move up and down through the internal threads.
Attention：
When installation space is the primary consideration and the valve is not used in the most critical safety isolation points, choosing a concealed stem gate valve is an economical and efficient wise choice.
When status visibility, absolute reliability and ease of maintenance are the highest demands, especially on critical pipelines related to life safety, open stem gate valves must be given priority.
Features
• The installation space requirement is extremely low.
• The installation efficiency is extremely high.
• Outstanding sealing performance: bubble-level sealing with low flow resistance.
• Good economic performance: Easy to install, space-saving, and can effectively reduce the overall cost of the project.
Product Parameter
| Normal Diameter（DN） | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Nominal Pressure | PN10、PN16 | ||||||||
| Shell Strength | 1.5 Mpa、2.4 Mpa | ||||||||
| High Pressure Liqiud Sealing | 1.1 Mpa、1.76 Mpa | ||||||||
| Low Pressure Gas Sealing | 0.6 Mpa | ||||||||
| Medium Temperature | -10℃~80 ℃ | ||||||||
| Applicable Medium | Water etc. | ||||||||
FAQ
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What’s the MOQ for Flanged Non Rising Stem Gate Valve?
A：For standard sizes, our MOQ is usually 10 units. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order
