The gate valves are specially designed gate valves for fire protection pipeline systems, and their core function is to reliably connect or cut off water flow.
Material :
Ductile ironNormal Diameter :
DN50 to DN300Connection :
FlangedTemperature :
≤80℃Working Pressure :
1.6 MpaTesting Pressure :
6.4 MpaApplication :
Construction, petroleum, chemical engineeringMOQ :
10 SetsDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Products Description

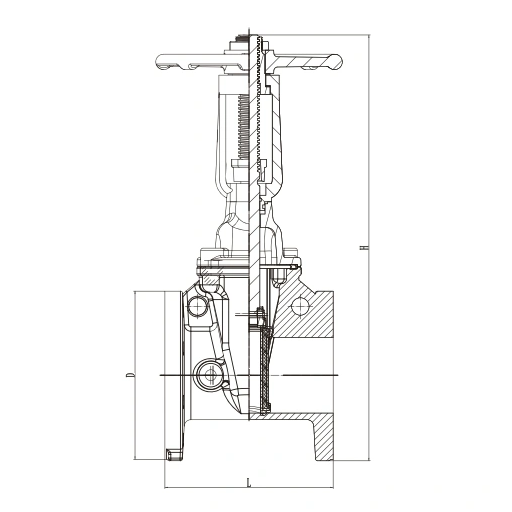

A fire gate valve is a type of valve that moves the gate plate (wedge-shaped or parallel) perpendicularly to the direction of water flow by rotating the handwheel, which drives the valve stem to rise and fall. When the gate is fully lifted, the passage is unobstructed and the water flow resistance is extremely small. When the gate plate fully drops, it tightly combines with the sealing surface of the valve seat, achieving complete cutting off of the water flow.

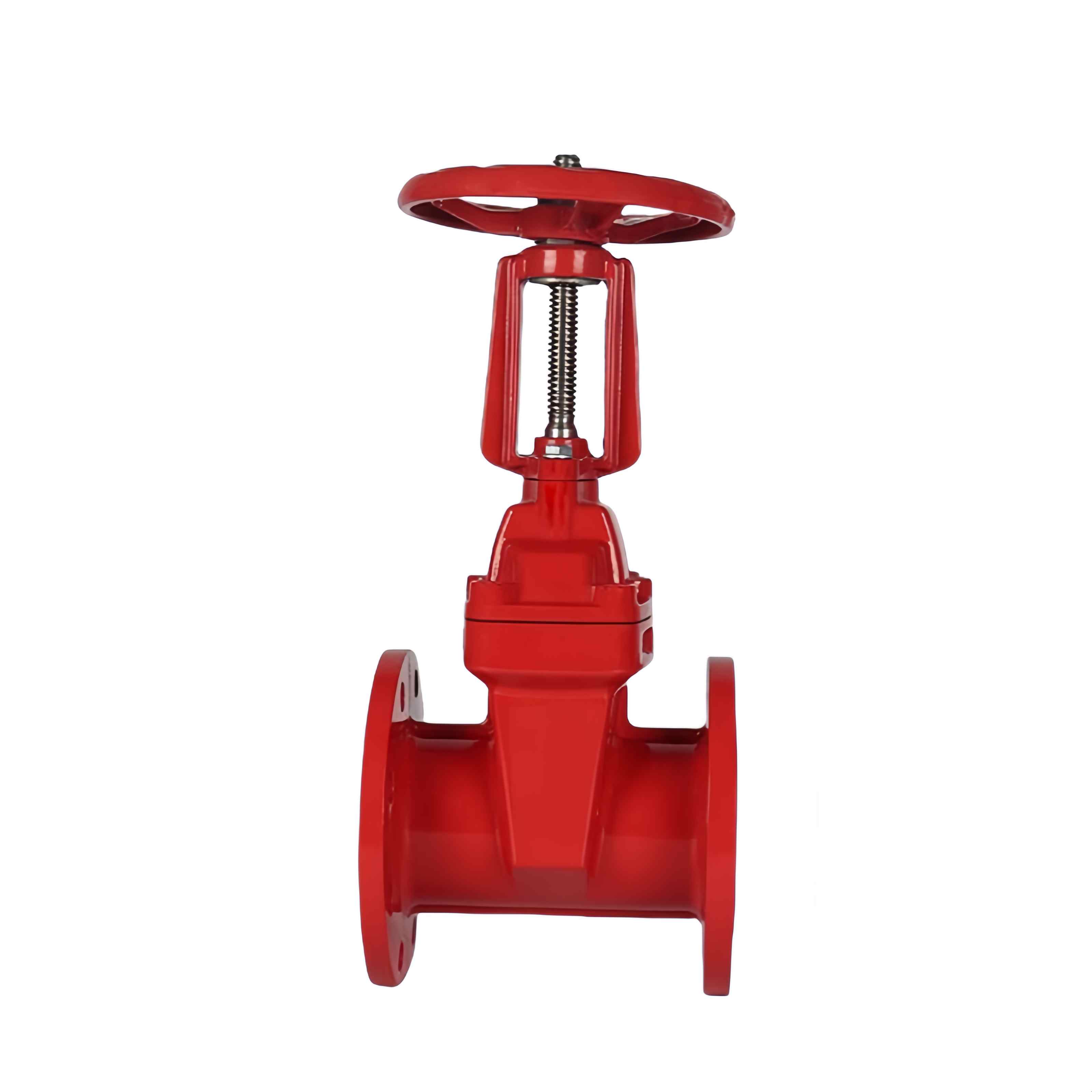

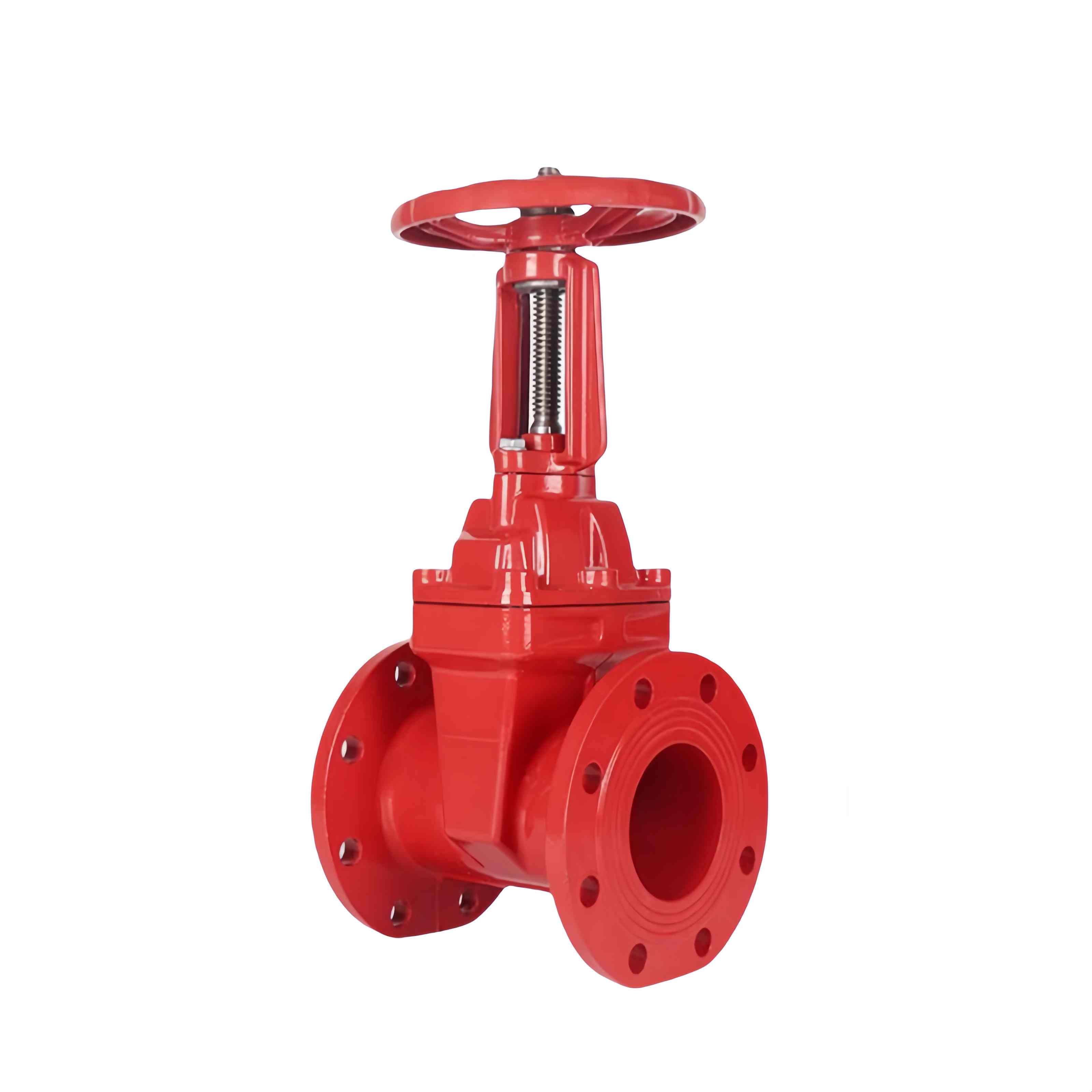

Rising stem gate valve: The valve stem nut is on the handwheel. When the handwheel is rotated, the valve stem moves up and down accordingly. The advantage is that it is convenient to quickly identify whether the valve is in the open state.

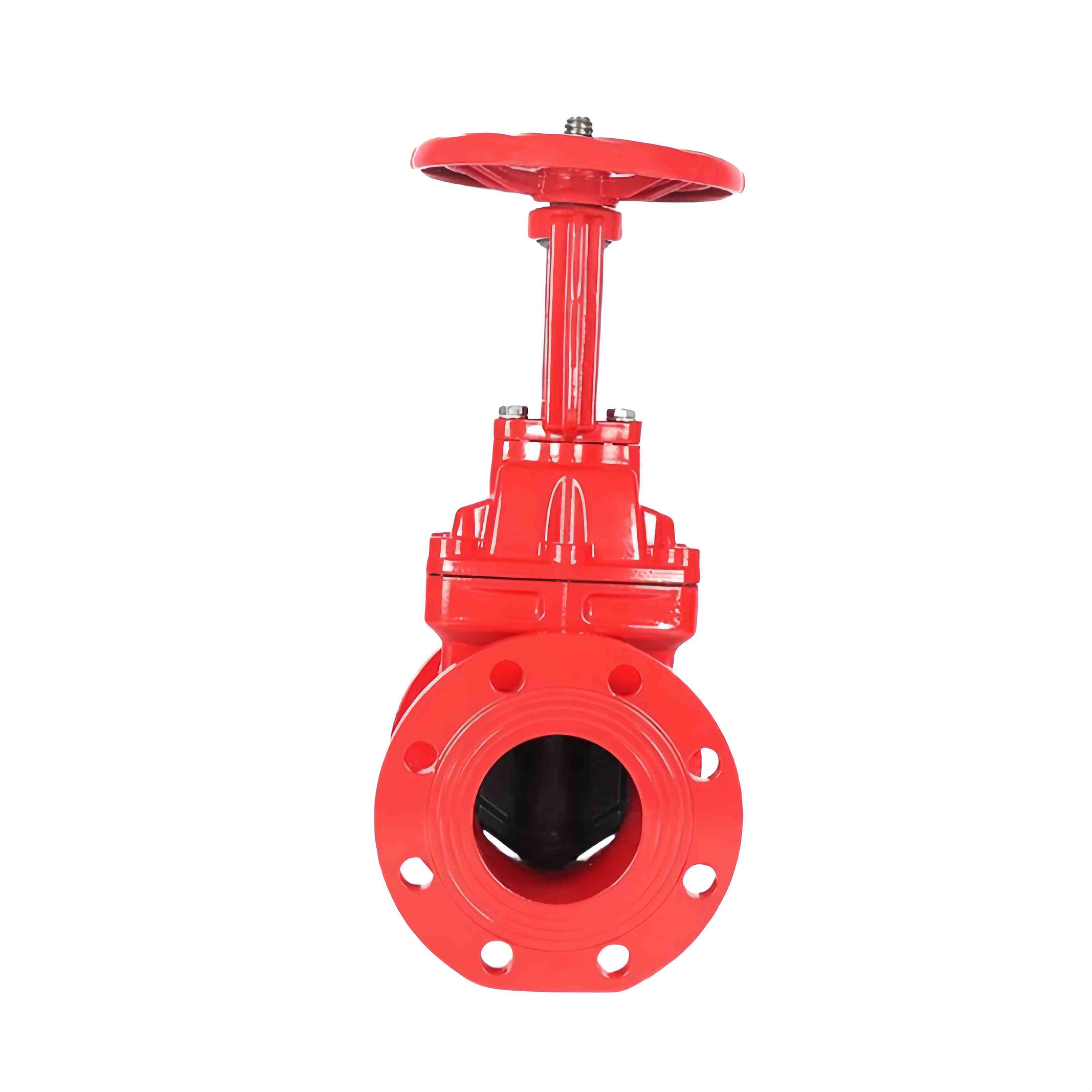

Concealed stem gate valve: The valve stem nut is inside the valve body. When the handwheel rotates, the valve stem only rotates without rising or falling, and the gate moves up and down inside the valve body. The advantage is that it has a small opening height and is suitable for occasions with limited installation space, but the opening and closing status cannot be visually determined.
Features
• Extremely low flow resistance: The fluid resistance is very small, which can ensure the water supply pressure and flow rate to the greatest extent.
• Reliable sealing: It adopts a metal hard seal or soft seal (such as rubber) structure, which can achieve excellent sealing in the closed state with minimal leakage.
• Easy operation: It can be opened and closed through the handwheel, and the opening and closing torque is relatively small.
• Bidirectional flow: Gate valves have no restrictions on the flow direction of the medium, and the medium can pass through in both directions
Products Parameter
| Normal Diameter | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Working Pressure | 1.6Mpa | ||||||||
| Testing Pressure | 6.4Mpa | ||||||||
| Applicable Medium | Water,Oil etc | ||||||||
| Medium Temperature | ≤80℃ | ||||||||
FAQ
Q：How to choose between rising stem gate valves and non-rising stem gate valves?
A：Rising Stem Gate Valve.Operators can visually determine whether the valve is in the open or closed state by the lifting position of the valve stem, avoiding safety risks caused by misjudgment of the state.
Q：What’s the MOQ for your fire gate valve?
A：10 Sets
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：How can I get my oeder？
A：We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder，all with tracking number.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
