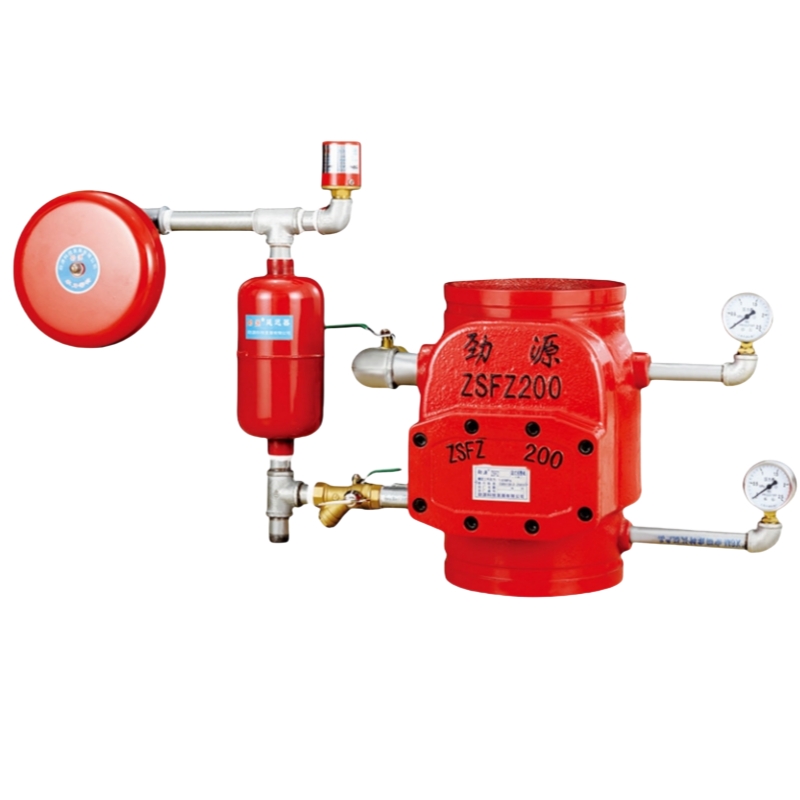

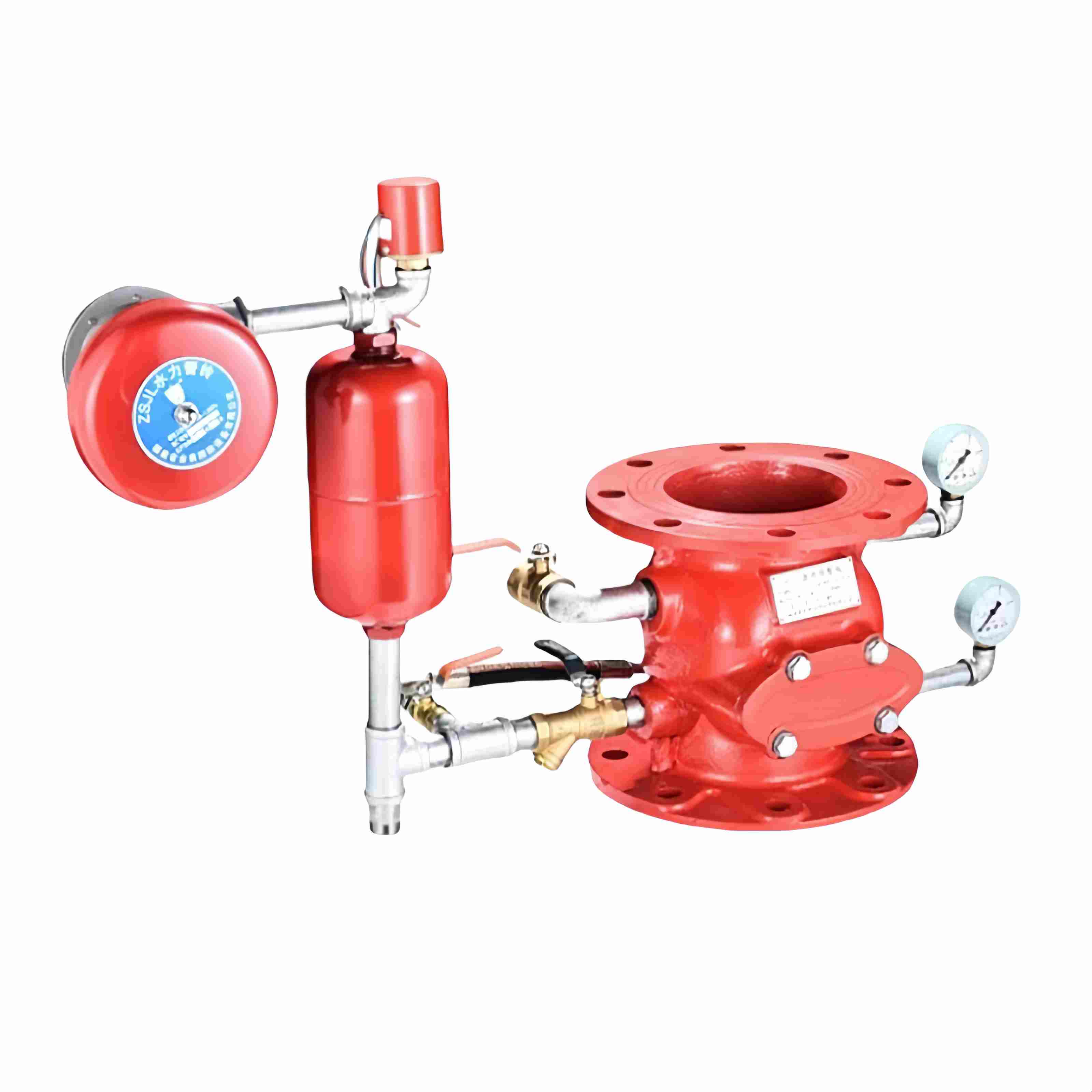

The alarm check valve is a water flow alarm device designed for vertical installation in the main supply to a wet pipe sprinkler system.
Ball Valve Material :
BrassBody Material :
Ductile IronNormal Diameter :
DN100 to DN250Working Pressure :
1.6 MpaType :
Wet Pipe Alarm VlaveColor :
RedApplication :
Warehouses / Hotels / Shopping Malls / Hospitals etcMOQ :
10 SetsDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Products Description
When a flow of water from the system equals or exceeds that of a single sprinkler, the valve is to actuate a fire alarm.
The wet fire alarm check valve is designed to allow water to flow into the fire sprinkler system when a pressure drop is detected. It contains a check valve mechanism that opens and allows water to enter the system when the in the fire sprinkler system drops below a certain set point. This typically occurs when a fire occurs and activates the sprinkler heads.
Its core functions are twofold:
Under normal conditions, it allows water to flow into the system network in one direction and prevents water from flowing back; In case of fire, it not only allows water to flow towards the sprinkler heads to extinguish the fire, but also automatically activates the hydraulic alarm bell and pressure switch to issue audible and visual alarms.
Features
• The fire extinguishing response is extremely fast
• Simple and reliable structure
• 100% effective alarm
• The daily maintenance of the system is simple and convenient
• Low investment cost and economic efficiency
Products Parameters
| Item Model | Normal Diameter | Normal Pressure | Parameter on connection | Flange External Diameter（mm） | ||||
| Flange Plate Screw Centre Distance | Bolt Hole | |||||||
| ZSFZ 100 | 100 | 1.6 Mpa | ∅180 | 8X∅18 | ∅220 | |||
| ZSFZ 125 | 125 | ∅180 | 8X∅18 | ∅250 | ||||
| ZSFZ 150 | 150 | ∅240 | 8X∅22 | ∅285 | ||||
| ZSFZ 200 | 200 | ∅295 | 12X∅22 | ∅340 | ||||
| ZSFZ 250 | 250 | ∅355 | 12X∅26 | ∅405 | ||||
FAQ
Q：Why doesn't the hydraulic alarm bell ring?
A：Possible causes include: The alarm pipeline control valve was mistakenly closed; The drain of the delay device is clogged. The impeller of the hydraulic alarm bell itself is clogged or damaged. The alarm channel filter is clogged.
Q：Why doesn't the pressure switch act?
A：In addition to the reasons mentioned above that prevent water from reaching, it could also be an electrical wiring fault of the pressure switch itself or a mechanical device being stuck.
Q：What’s the MOQ for your fire alarm valve?
A：10 Sets
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
