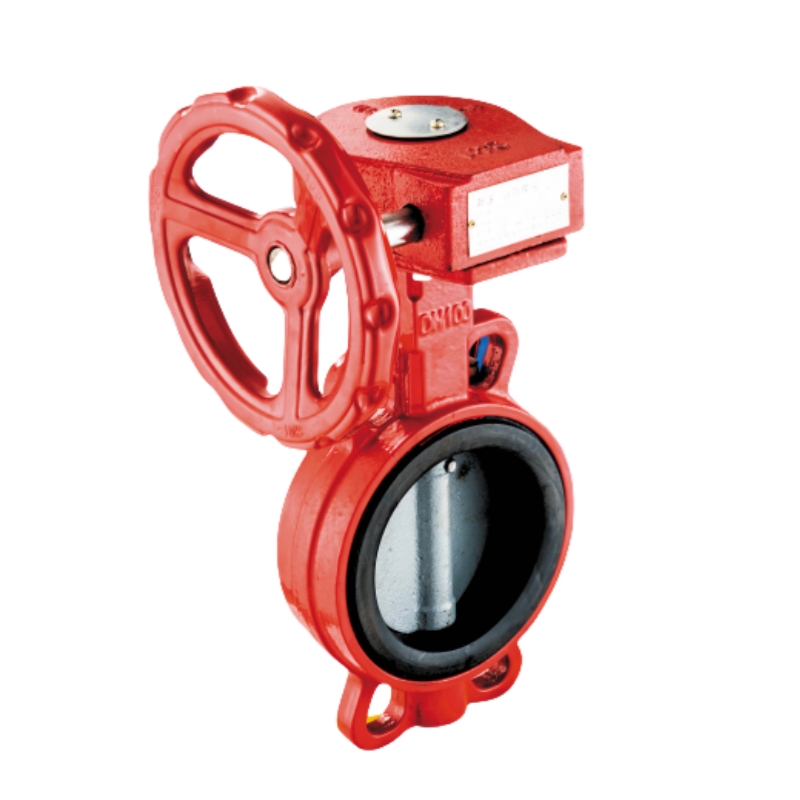

The turbine fire butterfly valve achieves the opening and closing of the butterfly plate through a set of turbine transmission devices.
Material :
Ductile ironNormal Diameter :
DN50 to DN300Connection :
Female ThreadTemperature :
0℃~80℃Working Pressure :
1.2Map 1.6MpaTesting Pressure :
2.4Mpa 6.4MpaApplication :
Firefighting/Gas/Petroleum/Chemical etcMOQ :
10 SetDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Products Description

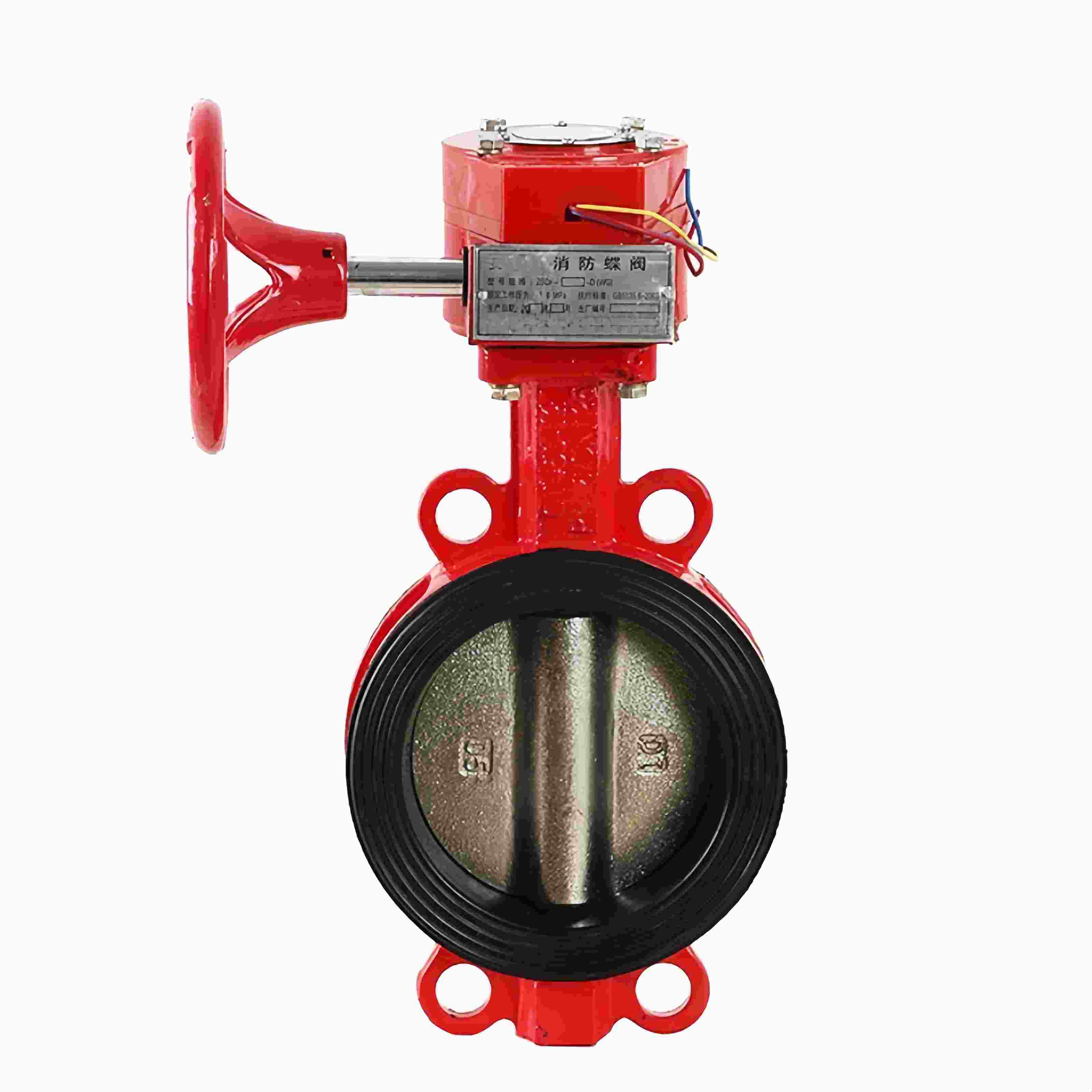

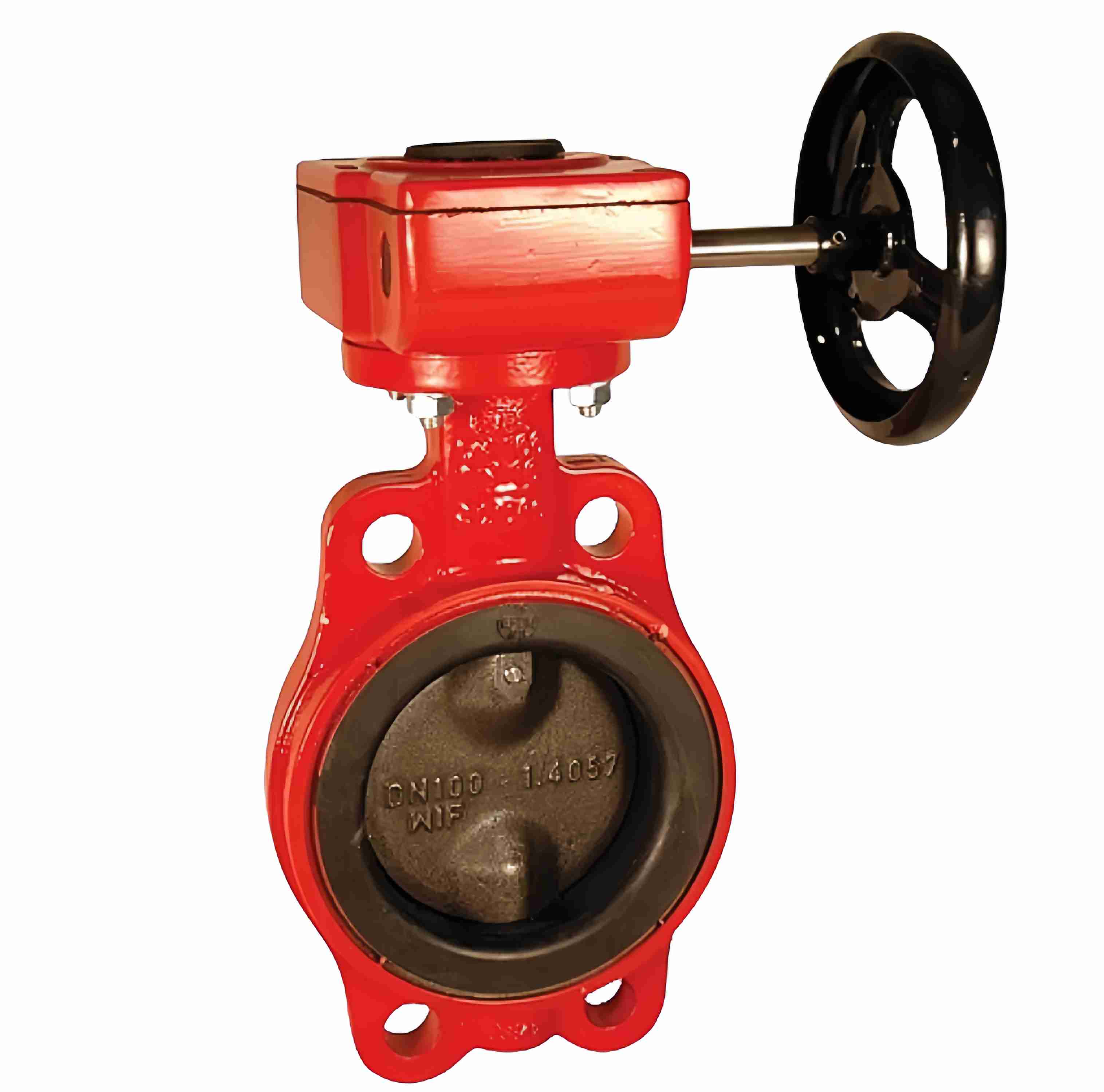

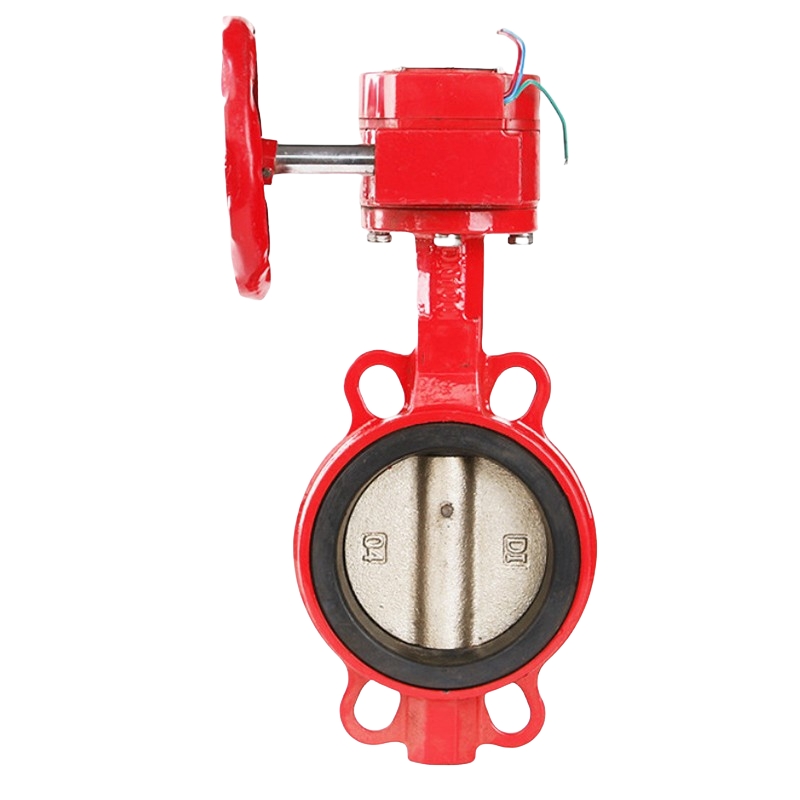

The turbine fire butterfly valve is a type of valve that uses a turbine worm gear transmission mechanism to operate the rotation of the valve stem, thereby driving the butterfly plate to open or close. By rotating the handwheel on the turbine box, the worm is driven to drive the turbine, thereby driving the valve stem and butterfly plate to rotate. This is a deceleration and torque-increasing mechanism that can generate a huge output torque with a relatively small input force.
Worm gear wafer butterfly valve is a type of valve that is commonly used to control the flow of fluids in various industries such as water treatment, HVAC, and industrial processes. It is designed with a disc that rotates on a central axis to regulate the fluid flow.
Advantages and Features
• Effortless operation: Operating large-diameter valves has become extremely easy and can be accomplished by one person, which is almost impossible for handle-type butterfly valves.
• Self-locking function: Worm gear transmission has a natural reverse self-locking characteristic.
• Electrical accessories that can be installed: The turbine box has a stable structure and sufficient space, allowing for the convenient installation of limit switches and magnetic lock devices
• Flow regulation performance: The opening degree can be precisely controlled by the number of handwheel rims to achieve a certain degree of flow regulation.
• Durable and reliable: The turbine is of a fully sealed structure, filled with grease, which can effectively prevent water, dust and corrosion, adapt to harsh environments and has a long service life.

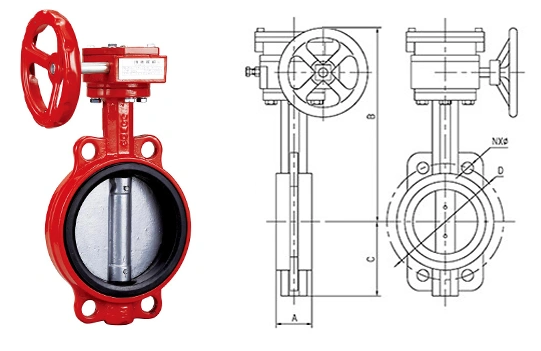

Products Parameter
| Normal Diameter | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Working Pressure | 1.6Mpa | ||||||||
| Testing Pressure | 6.4Mpa | ||||||||
| Applicable Medium | water,steam，oil etc | ||||||||
| Temperature | ≤80℃ | ||||||||
| Transfer Method | Handle,Worm gear | ||||||||
FAQ
Q：How to choose between worm gear fire butterfly valves and handle fire butterfly valves?
A：For branch pipes with a diameter of DN150 or less that do not require remote signal functions, economical and lightweight handle butterfly valves can be selected. For diameters larger than DN150, key nodes of main pipelines, and locations that require signal feedback or remote control, turbine butterfly valves must be selected.
Q：Can it be used to regulate the flow rate like a gate valve?
A：Sure, but be careful. Turbine butterfly valves are more suitable for fine regulation than handle butterfly valves. However, it should be noted that if used for a long time at the middle opening, the high-speed water flow may erode the edge of the butterfly plate and the valve seat, which may affect the sealing performance when it is fully closed.
Q：What’s the MOQ for your fire butterfly valve?
A：10 sets
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
