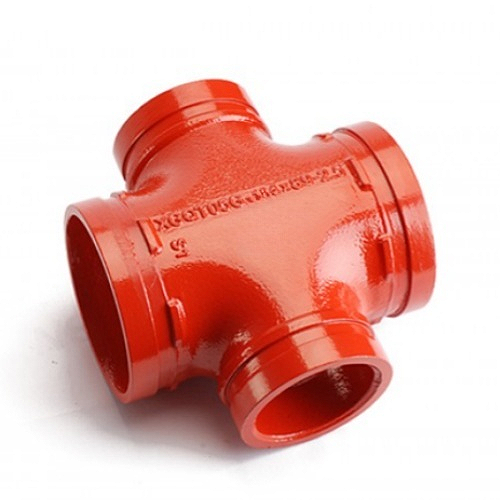

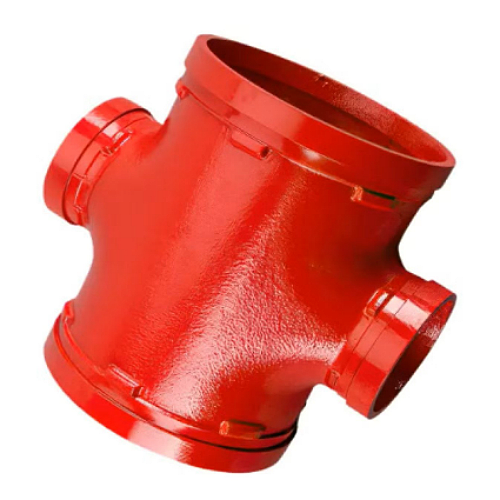

UL FM Grooved Reducing Cross

Grooved Reducing Cross is an efficient solution to the problem of "multi-directional intersections" in pipeline systems. Its value lies in transforming complex customized connections into a reliable, standard and easy-to-install prefabricated component.

Material :
Ductile Iron
Normal Diameter :
DN100xDN25 to DN150xDN80
Working Pressure :
300PSI
Color :
Red
Certificate :
UL FM
Fitting Type :
Reducing Cross
Surface :
Red Painting
MOQ :
300 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

Grooved Reducing Cross (grooved reducing cross) is a standard pipe fitting for grooved piping systems. Its core function is to simultaneously connect branch pipes of different diameters in three different directions at one node of the main pipe.

Essentially, it is an integrally cast "crossroads", making complex multi-directional and reduced-path connections standardized and efficient.The difference from the Equal Cross lies in the combination of interface sizes, which is specially designed for diverting/merging of different diameters.

Product Features

• Simplify complex node design: It can replace the combination of multiple pipe fittings and integrate complex connections into a standard module.

• Enhance system reliability: Compared with on-site splicing of pipe fittings, it reduces potential leakage points and makes the connection more stable. Its internal flow channels have been designed to help optimize the distribution of water flow.

• The installation is extremely fast, facilitating the disassembly and maintenance of the system in the later stage. Moreover, there is no open flame during the installation process, making it safer.

Product Parameter

Nominal Size（mm）	Pipe O.D（mm)	Dimensions L(mm/in)	Working Pressure（PSI/MPA）
100x25	114.3x33.7	102/4.01	300PSI / 2.07Mpa
100x32	114.3x42.4	102/4.01
100x40	114.3x48.3	102/4.01
100x50	114.3x60.3	102/4.01
100x65	114.3x76.1	102/4.01
100x80	114.3x88.9	102/4.01
125x32	139.7x42.4	124/4.88
125x50	139.7x60.3	124/4.88
125x65	139.7x76.1	124/4.88
125x80	139.7x88.9	124/4.88
150x25	165.1x33.7	140/5.5
150x32	165.1x42.4	140/5.5
150x40	165.1x48.3	140/5.5
150x50	165.1x60.3	140/5.5
150x65	165.1x76.1	140/5.5
150x80	165.1x88.9	140/5.5

Q：What's the difference from Grooved Equal Cross?

A：The four interfaces of Grooved Equal Cross are exactly the same size and are used to connect four equal-diameter pipes. Among the four interfaces of Grooved Reducing Cross, there are at least two different sizes for connecting pipes of different diameters.

Q：What’s the MOQ for Grooved Reducing Cross?

A：For standard sizes, our MOQ is usually 300 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
