UL FM Grooved Equal Cross

Grooved Equal Cross is a fundamental component for achieving standard four-way connections in piping systems.If the branch pipe diameters are different, Grooved Reducing Cross should be selected.

Material :
Ductile Iron
Normal Diameter :
DN25 to DN300
Working Pressure :
300PSI
Color :
Red
Certificate :
UL,FM
Fitting Type :
Equal Cross
Surface :
Red Painting
MOQ :
300 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

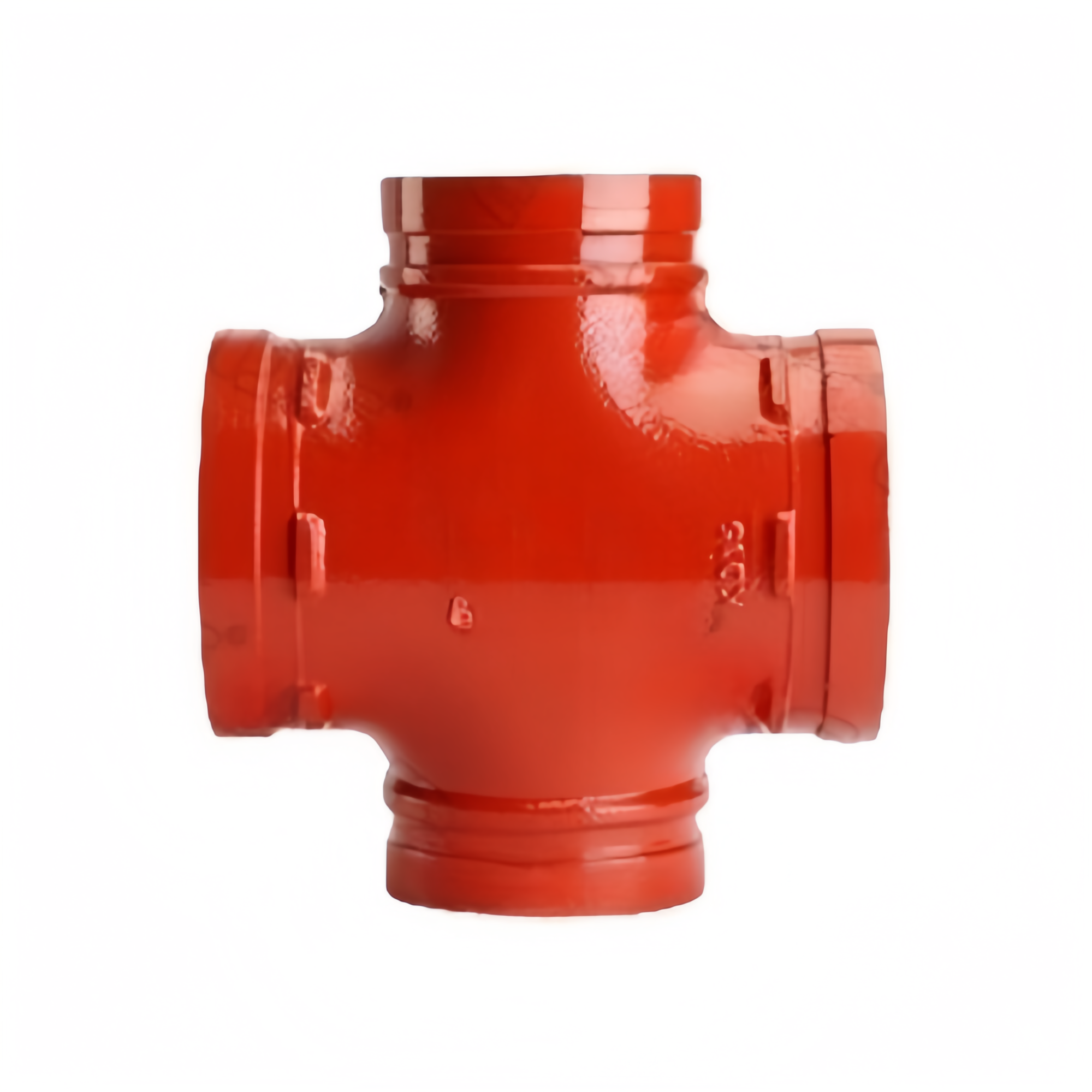

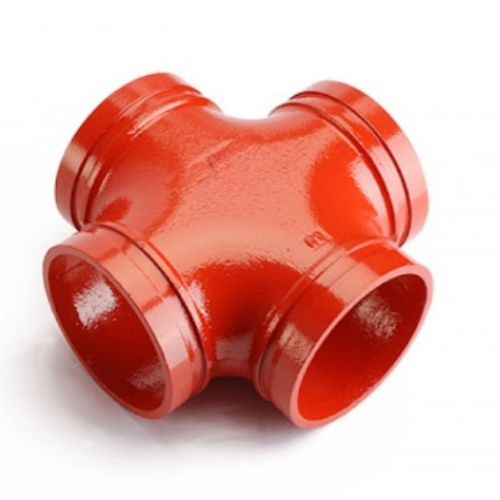

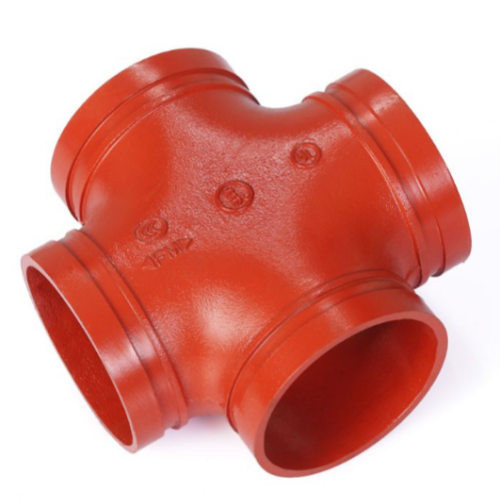

Grooved Equal Cross is a standard grooved pipe four-way with four outlets of exactly the same size, used to connect three branches or pipe conversions simultaneously on the main pipe.

Its core function is to create a four-way connection point in the piping system to distribute or converge the fluid. Unlike the Grooved Mechanical Tee (which requires drilling holes for installation on the main pipe), it is itself an independent component that needs to be installed at the pipe intersection and is used to handle connections in all four directions at once.

Product Features

• High connection efficiency: It can solve connection problems at one time, and future maintenance of any branch will not affect the operation of the other three directions, which fully demonstrates its modular advantage.

• Presupposition: Unlike "mechanical tees", its position must be precisely determined during the design stage and cannot be used for temporarily adding branch pipes later.

Product Parameter

Nominal Size（in）	Pipe O.D（mm）	Dimensions L（mm/in ）	Working Pressure（PSI/MPA）
1"	33.7	57/2.24	300PSI/2.07Mpa
1-1/4"	42.4	60/2.36
1-1/2"	48.3	60/2.36
2"	60.3	70/2.75
2-1/2"	73.0	76/3.00
2-1/2"	76.1	76/3.00
3"	88.9	86/3.39
4"	108.0	102/4.02
4"	114.3	102/4.02
5"	133	124/4.88
5"	139.7	124/4.88
5"	141.3	124/4.88
6"	159	140/5.50
6"	165.1	140/5.50
6"	168.3	140/5.50
8"	219.1	173/6.81
10"	273.0	215/8.46
12"	323.9	245/9.65

Q：What's the difference from Grooved Reducing Cross?

A：The four interfaces of Grooved Equal Cross are exactly the same size and are used to connect four equal-diameter pipes. Among the four interfaces of Grooved Reducing Cross, there are at least two different sizes for connecting pipes of different diameters.

Q：What’s the MOQ for Grooved Equal Cross?

A：For standard sizes, our MOQ is usually 300 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
