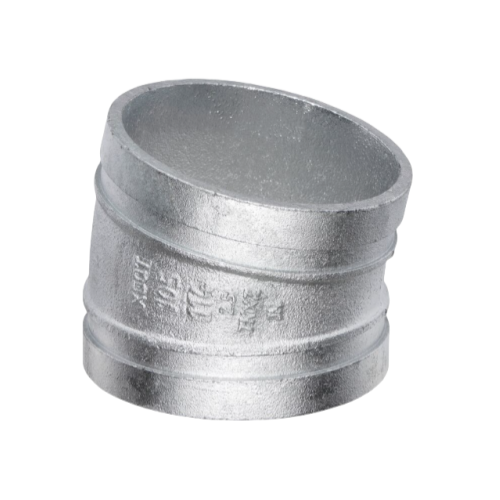

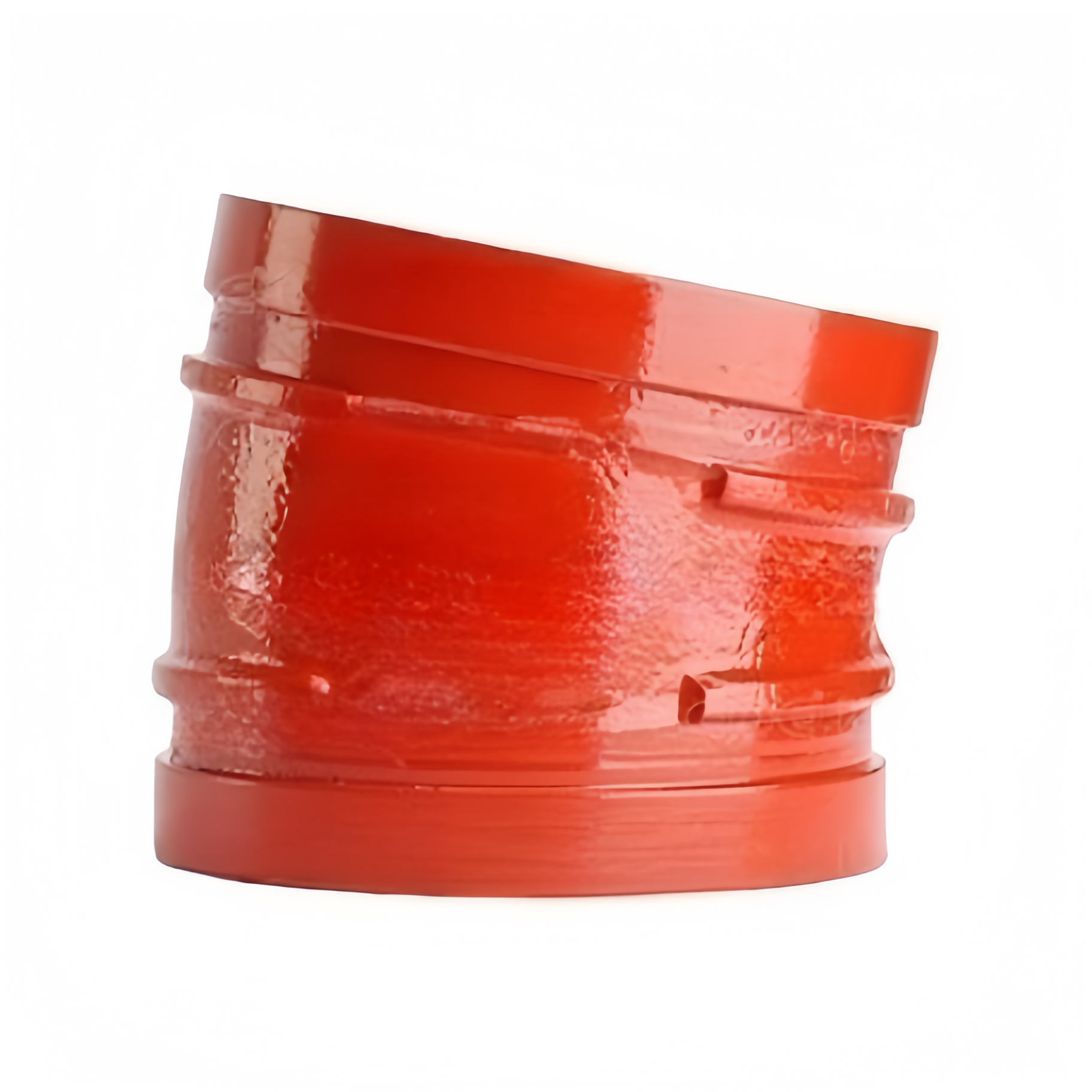

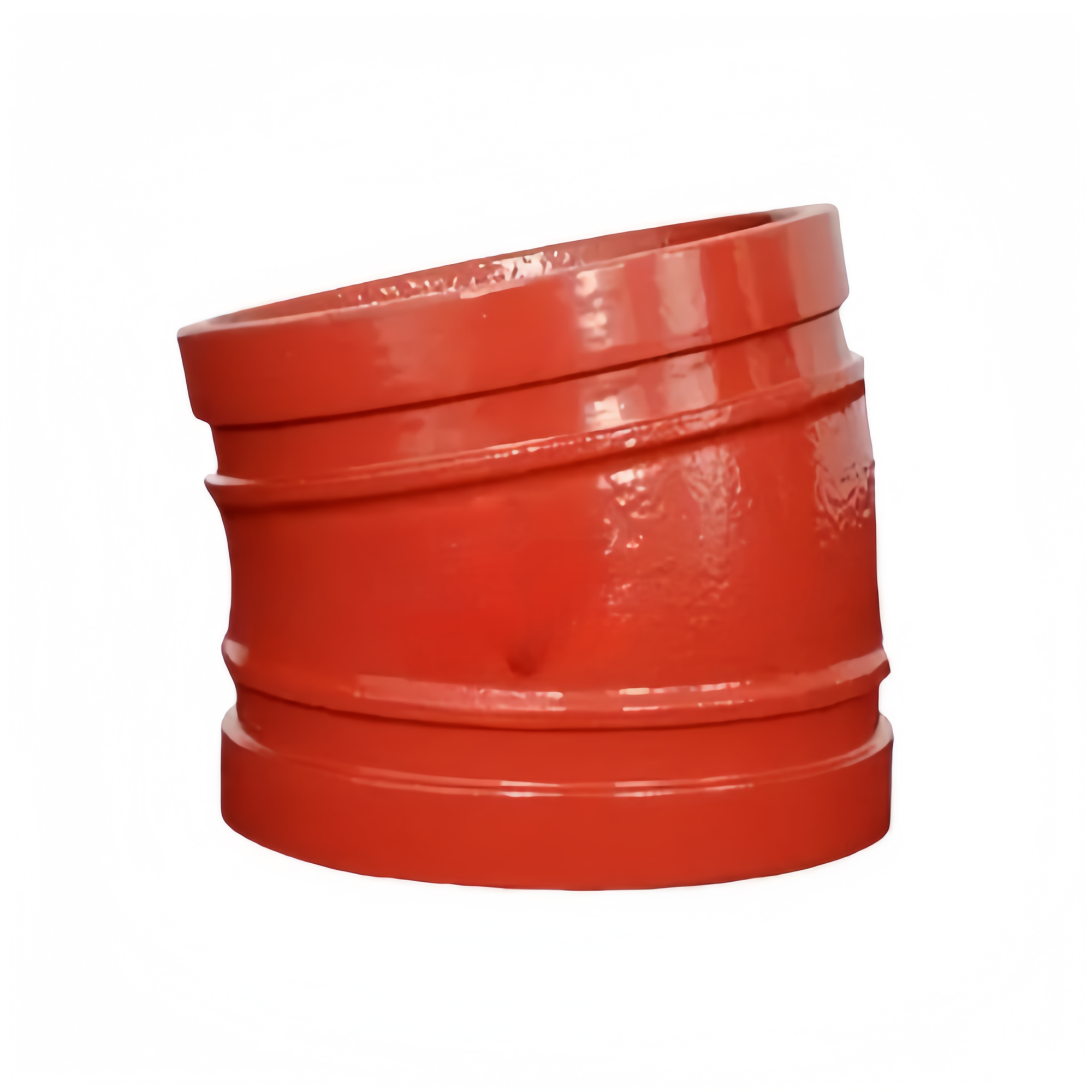

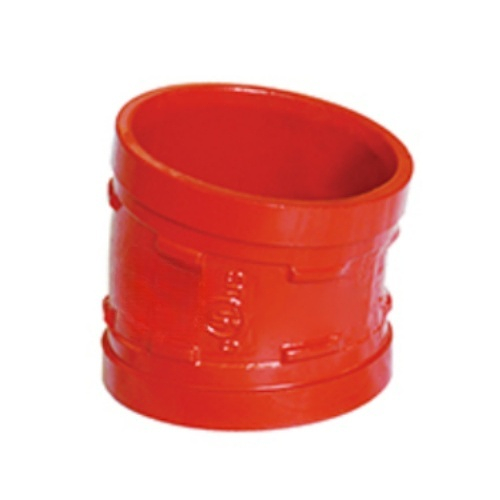

UL FM Grooved 11.25° Elow

The 11.25° grooved elbow is not a common component for daily use, but a specialized part for achieving the highest hydraulic efficiency, the lowest noise and precise spatial adaptation in pipeline systems.

Material :
Ductile Iron
Normal Diameter :
DN50 to DN200
Working Pressure :
300 PSI
Color :
Red
Certificate :
UL,FM
Fitting Type :
Elbow
Surface :
Red Painting
MOQ :
500 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

The grooved 11.25° elbow is a real standard product, mainly used in situations where there are extremely high precision requirements for pipeline layout and fluid performance.

It features minimal pressure drop and turbulence, making it suitable for applications that require extreme optimization of hydraulic performance and precise layout in complex Spaces.

Product Features

• It has extremely excellent hydraulic performance (with the least pressure drop and noise).

• Quick installation.

• The system has strong adaptability.

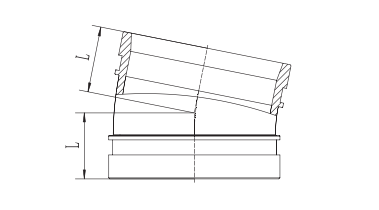

Product Parameter

Nominal Size	DN50-DN65-DN80-DN100-DN125-DN150-DN200
Working Pressure	300PSI / 2.07Mpa
Material	Ductile Iron
Color	Red
Surface Finish	Red Painting
Fitting Type	Elbow

Q：What’s the MOQ for 11.25° Elbow?

A：For standard sizes, our MOQ is usually 200 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
