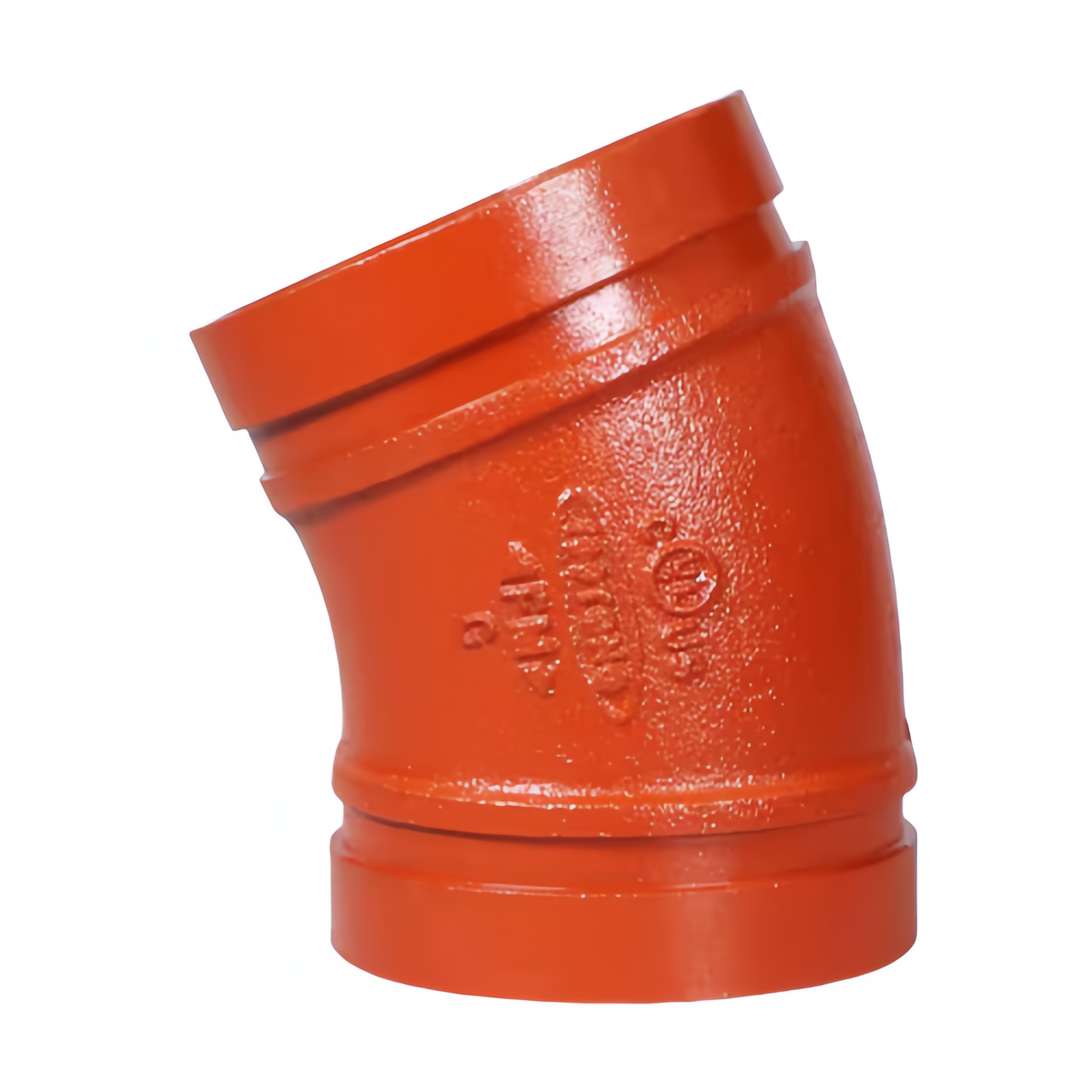

UL FM Grooved 22.5° Elbow

The 22.5° elbow is mainly used for precise and minor directional fine-tuning, or to replace multiple elbow combinations in complex pipe network layouts to achieve specific angles.

Material :
Ductile Iron
Normal Diameter :
DN32 to DN200
Working Pressure :
300 PSI
Color :
Red
Certificate :
UL,FM
Fitting Type :
Elbow
Surface :
Red Painting
MOQ :
500 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

If you need a steering scheme with a smaller Angle and a smoother turn, and can accept permanent connection methods such as welding, a 22.5° elbow is an ideal choice.

If you are selecting a type for a fire or commercial piping system based on grooved connections, the standard 45° and 90° grooved elbows available on the market remain more mainstream and accessible options. Unless there are specific design requirements, 22.5° grooved elbows are rarely used.

Product Features

Provide specific small-angle steering to meet the requirements of precise layout and hydraulic optimization.

Permanent connections such as welding, bonding, and hot melting.

It is usually a specific component in a customized and fixed pipeline design.

Product Parameter

Nominal Size	DN32-DN40-DN50-DN65-DN80-DN100-DN150-DN200
Working Pressure	300 PSI
Material	Ductile Iron
Surface	Red Painting

Q：What’s the MOQ for 22.5° Elbow ?

A：For standard sizes, our MOQ is usually 500 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.

One Stop Solution for fire hoses,sprinklers,nozzles,valves and pipe fittings!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

Tel.：86-18159244550 Mobil:18159244550

EMAIL:Jony@jyfire.com.cn

ADD：CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY
