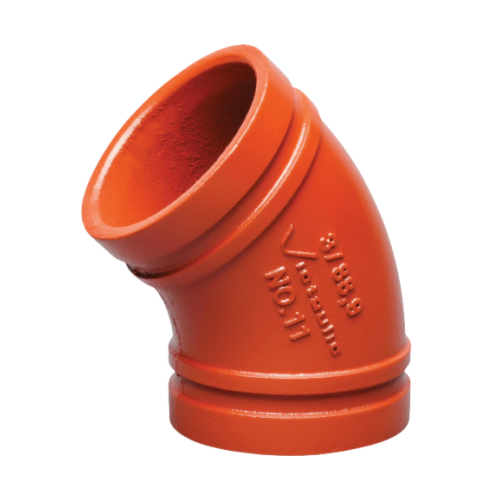

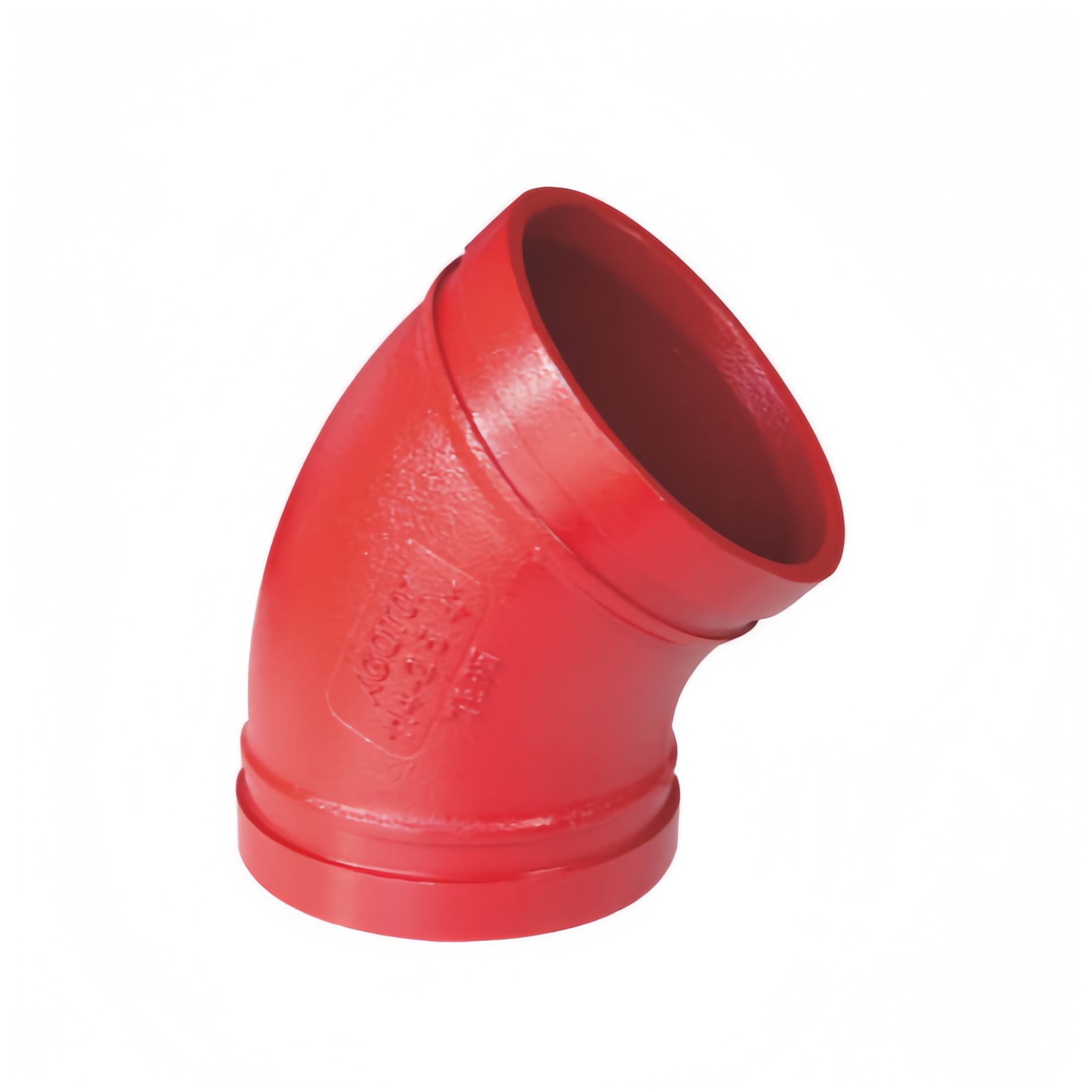

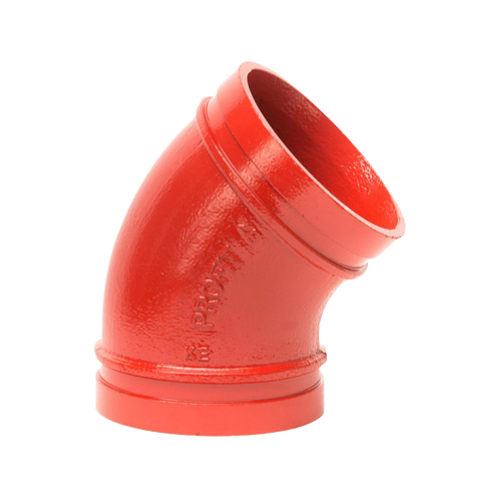

Grooved 45° Elbow (grooved 45° elbow) is a standard connector used to change the direction of pipes by 45 degrees.
Material :
Ductile IronNormal Diameter :
DN25 to DN300Working Pressure :
300PSIColor :
RedCertificate :
UL,FMFitting Type :
ElbowSurface :

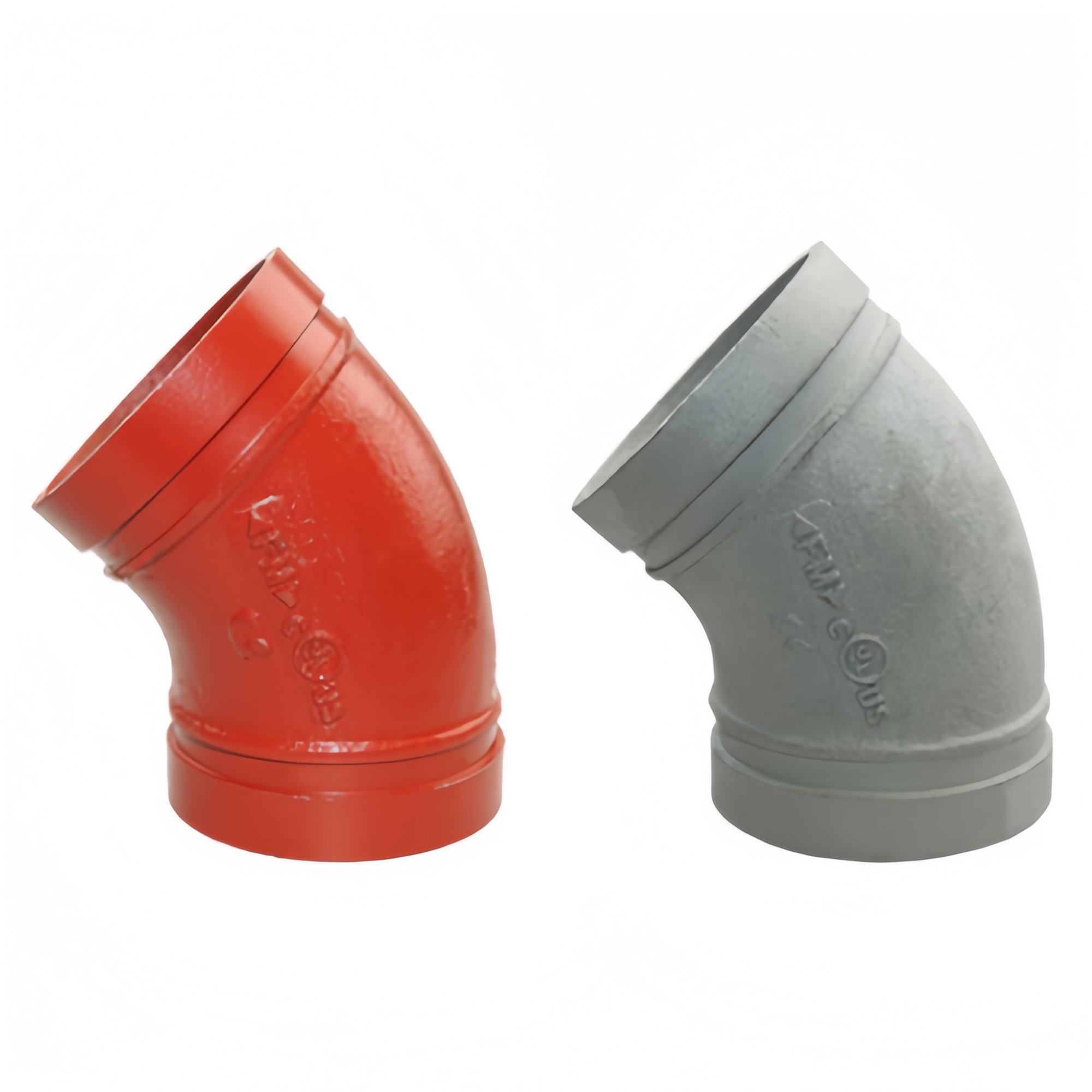

Red PaintingMOQ :
200 PiecesDelivery Time :
15~45 DaysEmail : jony@jyfire.com.cn
Product Introduction
Grooved 45° Elbow is the core pipe fitting for achieving a 45-degree smooth turn in pipeline systems, and it has better hydraulic performance than 90° elbow. Its core function is to optimize the pipeline layout and reduce the system pressure drop by changing the flow direction while ensuring reliable sealing.
Its inner wall is cast into an exact 45° arc-shaped flow channel. When fluid enters, the flow channel wall will gently force the fluid to change direction.
Both ends of the elbow are pre-cast with annular grooves, and the connection is achieved through the grooved pipe clamp and rubber sealing ring.
Product Features
Less fluid resistance: The 45° gentle bend can effectively reduce turbulence and pressure loss, optimizing system efficiency.
Quick installation: Groove connection does not require welding, thread processing or open flame, significantly saving time and labor costs.
Flexible and detachable: The connection is detachable, facilitating future system maintenance, renovation and expansion.
Flexible layout: The 45° Angle provides a better solution for pipes to bypass obstacles and achieve a compact layout.
Product Parameter

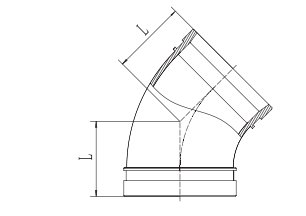

| Nominal Size（mm/in） | Pipe O.D（mm） | Dimensions L（mm/in） | Working Pressure |
| 25 / 1 | 33.7 | 44/1.73 | 300PSI / 2.07MPA |
| 32 / 1-1/4 | 42.4 | 44/1.73 | |
| 40 / 1-1/2 | 48.3 | 44/1.73 | |
| 50 / 2 | 60.3 | 51/2.01 | |
| 65 / 2-1/2 | 73.0 | 57/2.24 | |
| 65 / 2-1/2 | 76.1 | 57/2.24 | |
| 80 / 3 | 88.9 | 64/2.52 | |
| 100 / 4 | 108 | 76/3 | |
| 100 / 4 | 114.3 | 76/3 | |
| 125 / 5 | 133 | 83/3.27 | |
| 125 / 5 | 139.7 | 83/3.27 | |
| 125 / 5 | 141.3 | 83/3.27 | |
| 150 / 6 | 159 | 89/3.5 | |
| 150 / 6 | 165.1 | 89/3.5 | |
| 150 / 6 | 168.3 | 89/3.5 | |
| 200 / 8 | 219.1 | 108/4.25 | |
| 250 / 10 | 273.0 | 121/2.76 | |
| 300 / 12 | 323.9 | 133/5.24 |
FAQ
Q: What is the main difference between it and a 90° elbow? How should I choose?
A: 45° elbow: It offers smoother steering, less fluid resistance (pressure drop) and noise, which can optimize system efficiency, but it takes up relatively more space. 90° elbow: More compact steering, suitable for sharp turns in narrow Spaces, but with greater pressure drop.
When the hydraulic efficiency of the system is pursued and a longer layout is allowed, 45° is selected. When space is limited and a compact right-angle turn is required, select 90°.
Q：What’s the MOQ for 45° Elbow ?
A：For standard sizes, our MOQ is usually 200 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
