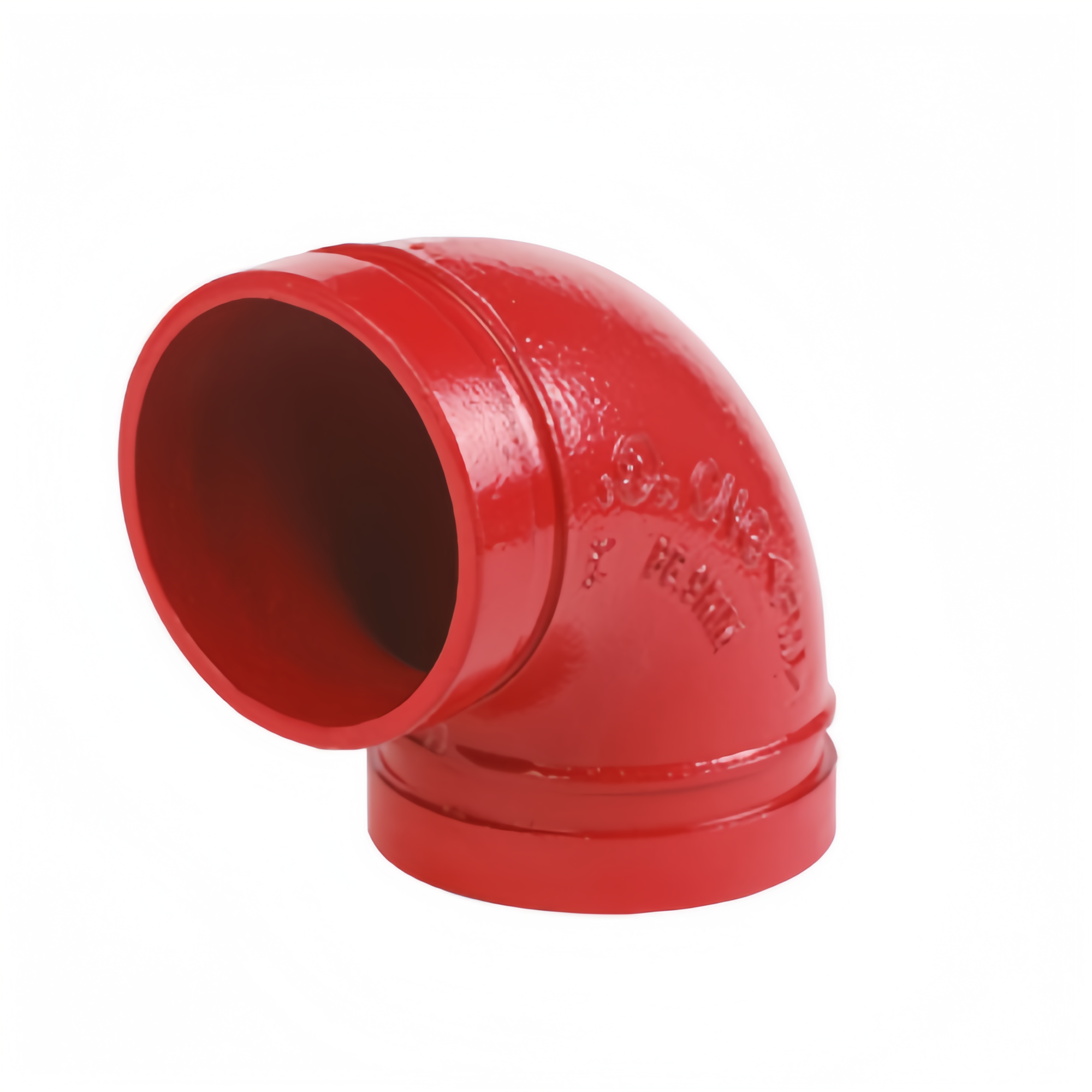

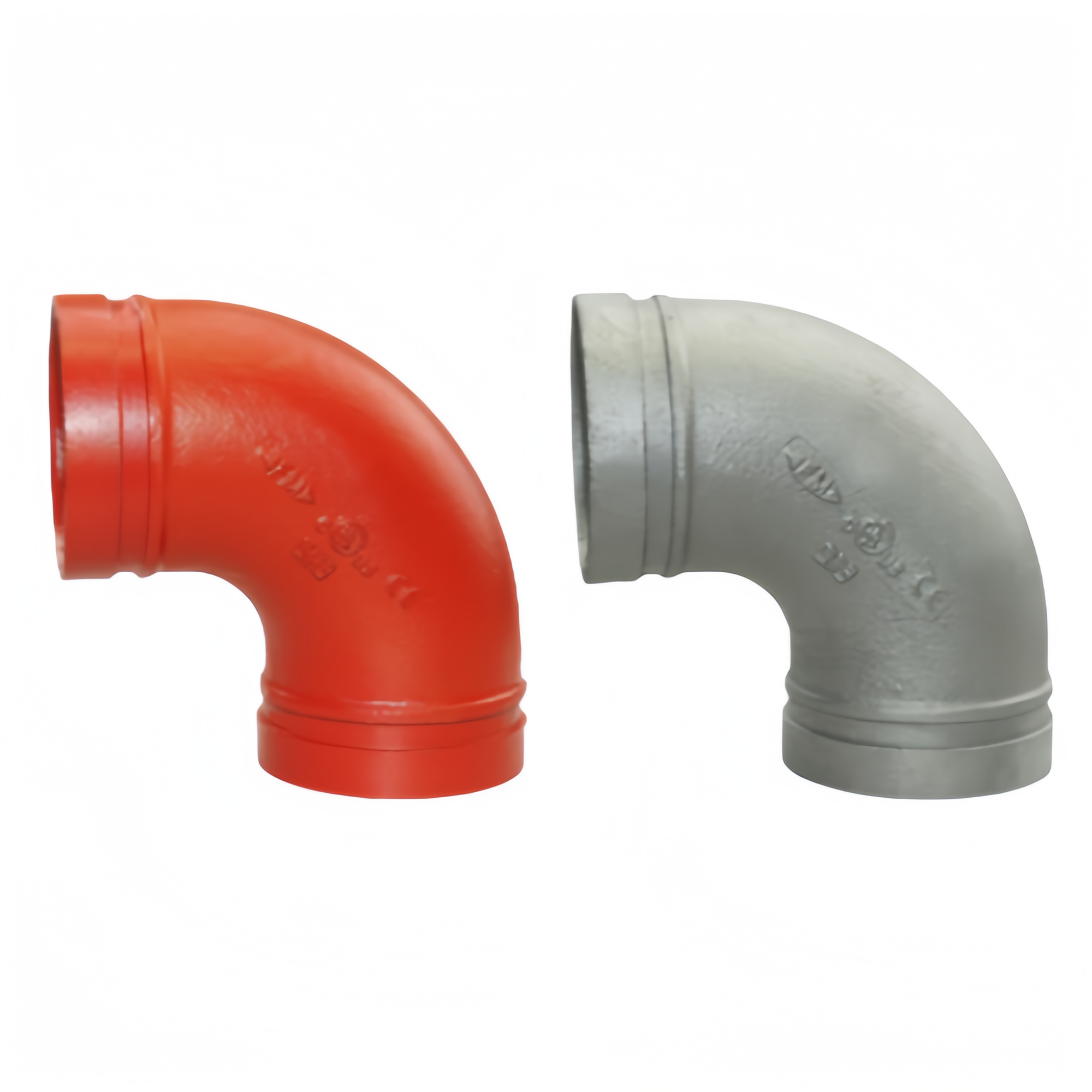

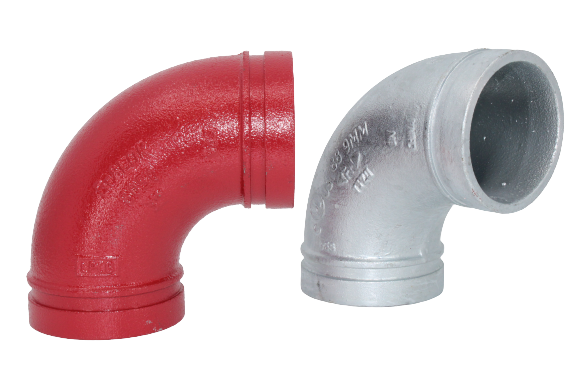

UL FM Grooved End 90 Degree Elbow

Grooved 90° Elbow (grooved 90-degree elbow) is a standard pipe fitting with grooves at both ends, used to change the direction of the pipe to a right Angle.

Material :
Ductile Iron
Normal Diameter :
DN25 to DN 300
Working Pressure :
300PSI
Color :
Red
Certificate :
UL,FM
Fitting Type :
Elbow
Surface :
Red Painting
MOQ :
200 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

Grooved 90° Elbow is a specific type of pipe fitting used in grooved piping systems to change the direction of flow by 90 degrees. It is a fundamental component in modern mechanical, fire protection, and industrial piping.

It guides the fluid to turn through its 90-degree curved shape. Its interior usually adopts a full-flow design and smooth curves to reduce fluid resistance.

Product Features

Fast Installation: Drastically faster than welding or threading. Installation requires only a wrench or impact tool.

Flexibility & Accommodation of Movement: The gasket allows for slight angular deflection and absorbs vibration, thermal expansion/contraction, and minor seismic movement.

Safety: No hot work permits required (vs. welding), reducing fire risk on site.

Ease of Modification & Reusability: Systems can be easily disassembled and components reused for changes or repairs.

Reduced Labor Costs: The speed of installation translates to significant labor savings.

Product Parameter

Nominal Size（mm/in）	Pipe O.D（mm）	Dimensions L（mm/in）	Working Pressure
25 / 1	33.7	57/2.24	300 PSI / 2.07MPA
32 / 1-1/4	42.4	60/2.36
40 / 1-1/2	48.3	60/2.36
50 / 2	60.3	70/2.75
65 / 2-1/2	73.0	76/3
65 / 2-1/2	76.1	76/3
80 / 3	88.9	86/3.39
100 / 4	108	102/4.02
100 / 4	114.3	102/4.02
125 / 5	133	124/4.88
125 / 5	139.7	124/4.88
125 / 5	141.3	124/4.88
150 / 6	159	140/5.5
150 / 6	165.1	140/5.5
150 / 6	168.3	140/5.5
200 / 8	219.1	173/6.81
250 / 10	273.0	215/8.46
300 / 12	323.9	245/9.65

Q: What are the main differences between it and welded elbows and threaded elbows?

A: The core difference lies in the connection method. Welded and threaded elbows are permanent connections, and their installation is complex and non-disassemblable. Grooved elbows are mechanically connected, using pipe clamps and washers. They are quick to install and fully detachable, facilitating system maintenance and renovation.

Q：What’s the MOQ for 90° Elbow ?

A：For standard sizes, our MOQ is usually 200 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
