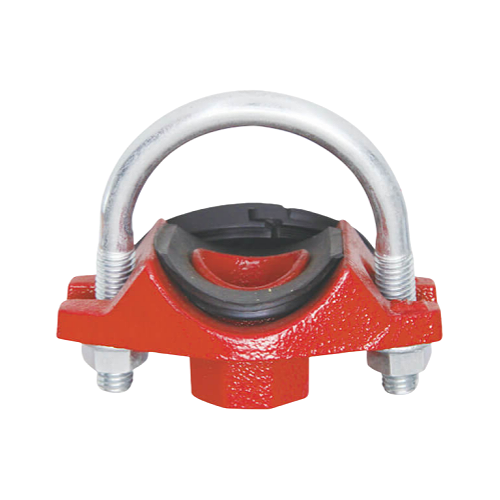

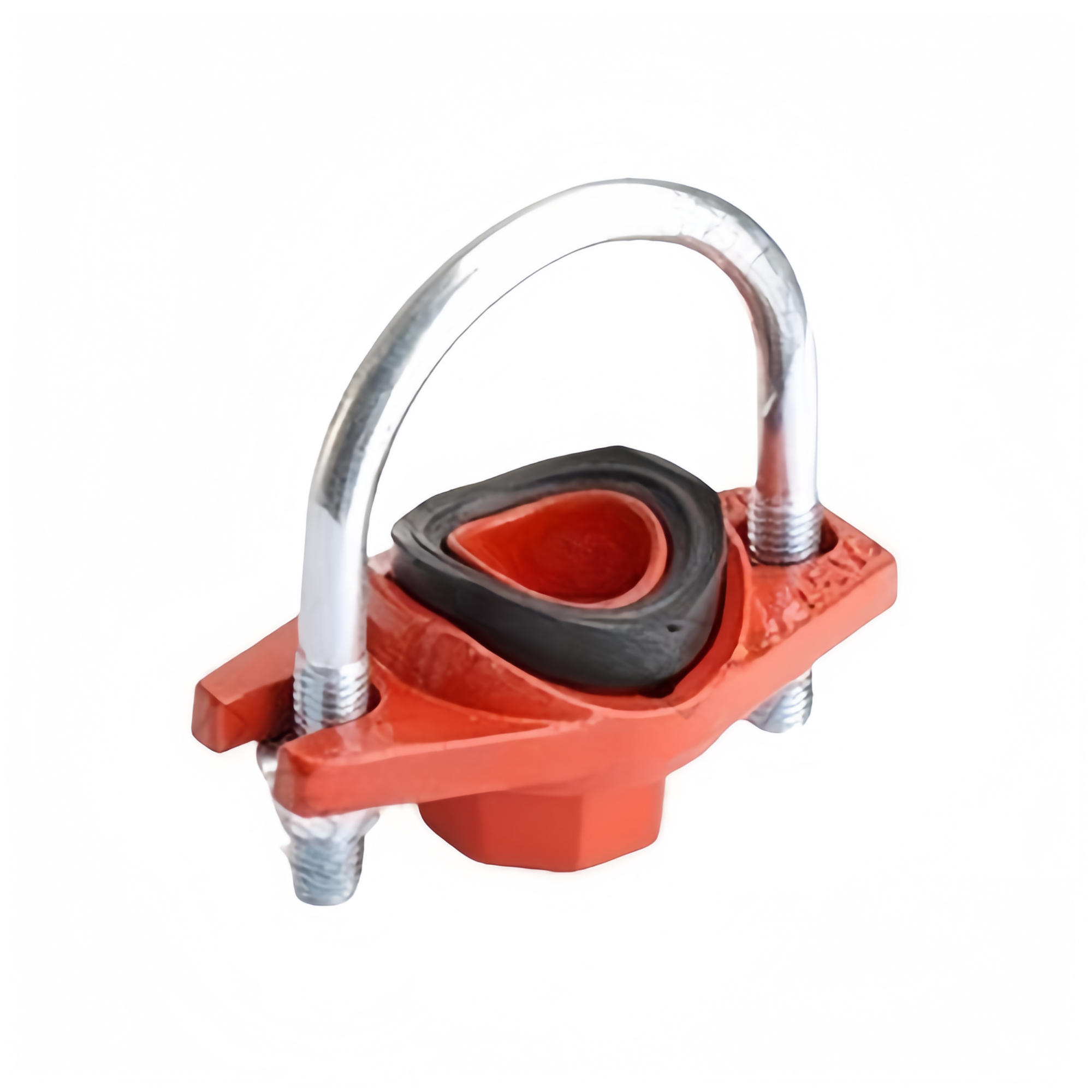

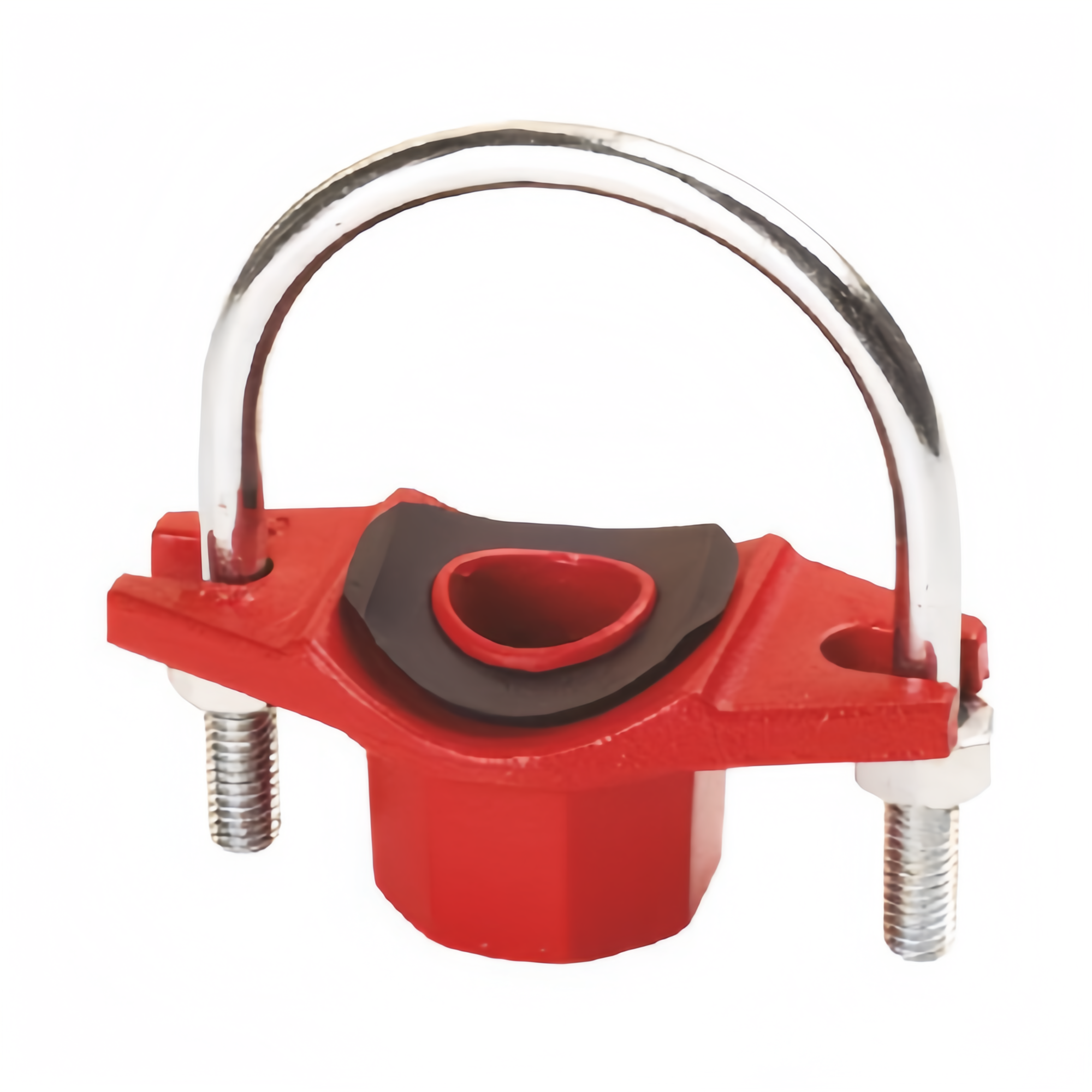

UL FM U-Bolt Mechanical Tee

U-Bolt Mechanical Tee is a special pipe fitting used for quickly opening branches on existing main pipelines. It achieves mechanical fastening through U-bolts without cutting the main pipeline and is highly suitable for small-diameter connections in narrow Spaces.

Material :
Ductile Iron
Normal Diameter :
DN25 to DN80
Working Pressure :
300PSI
Certificate :
UL,FM
Application :
Fire protection/piping system renovation etc.
MOQ :
200 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

U-Bolt Mechanical Tee mainly works by self-sealing with mechanical force and pressure:

Drill a hole of specified size (commonly 30mm) on the main pipe. Put the EPDM sealing gasket onto the hole. Wrap the U-shaped clamp with the branch pipe around the main pipe and secure it with U-bolts and nuts. When tightened, the pressure-responsive gasket is compressed to form a seal.

Product Features

• No welding or cutting of the main pipe is required. It can be installed under pressure and the operation can be completed within 30 minutes.

• Compact structure, specially designed for narrow Spaces.

• Cost savings: Significantly reduce labor, downtime, and material costs associated with traditional welding/cutting

Product Parameter

Nominal Size	Pipe O.D(mm)	Working Pressure	Hole Dia	Dimensions（mm）			U-Bolt Size
Nominal Size	Pipe O.D(mm)	Working Pressure	Hole Dia	A	B	H	U-Bolt Size
1" x 1/2"	33.7x21.3	300PSI/2.07MPA	24mm/0.94 in	89	58	45	M10 x 65
1-1/4" x 1/2"	42.4x21.3		30mm/1.18 in	89	58	49	M10 x 75
1-1/4" x 3/4"	42.4x26.9		30mm/1.18 in	89	58	49	M10 x 75
1-1/4“ x 1"	42.4x33.7		30mm/1.18 in	89	58	49	M10 x 75
1-1/2" x 1/2"	48.3x21.3		30mm/1.18 in	89	58	52	M10 x 75
1-1/2" x 3/4"	48.3x26.9		30mm/1.18 in	89	58	52	M10 x 75
1-1/2" x 1"	48.3x33.7		30mm/1.18 in	89	58	52	M10 x 75
2" x 1/2"	60.3x21.3		30mm/1.18 in	89	58	58	M10 x 92
2" x 3/4"	60.3x26.9		30mm/1.18 in	89	58	58	M10 x 92
2" x 1"	60.3x33.7		30mm/1.18 in	89	58	58	M10 x 92
2" x 1-1/4"	60.3x42.4		45mm/1.75 in	89	58	58	M10 x 92
2-1/2" x 1/2"	73.0x21.3		30mm/1.18 in	109	58	68	M10 x 105
2-1/2" x 1-3/4"	73.0x26.9		30mm/1.18 in	109	58	68	M10 x 105
3" x 1"	88.9x33.7		38mm/1.5 in	146	74	80	M12 x 110

Q：What’s the MOQ for U-Bolt Mechanical Tee?

A：For standard sizes, our MOQ is usually 200 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
