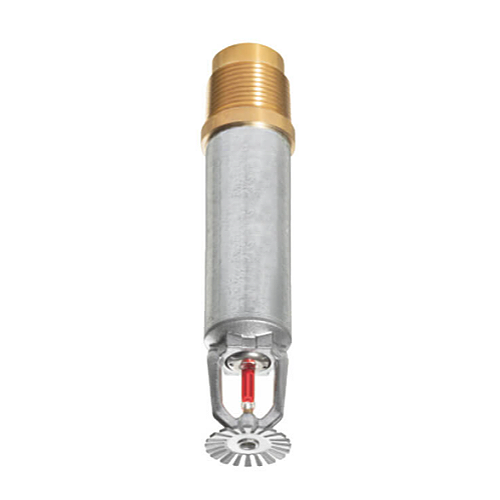

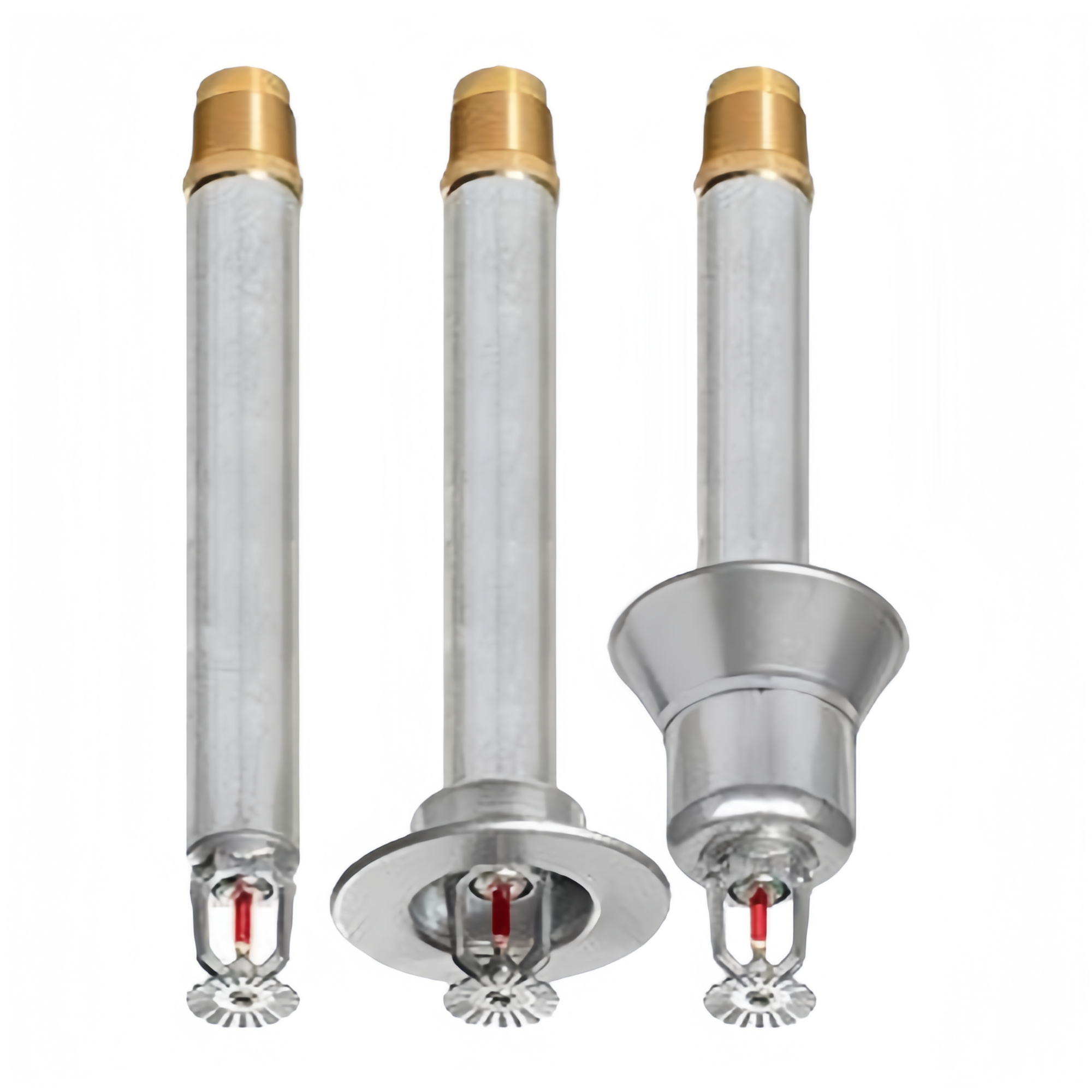

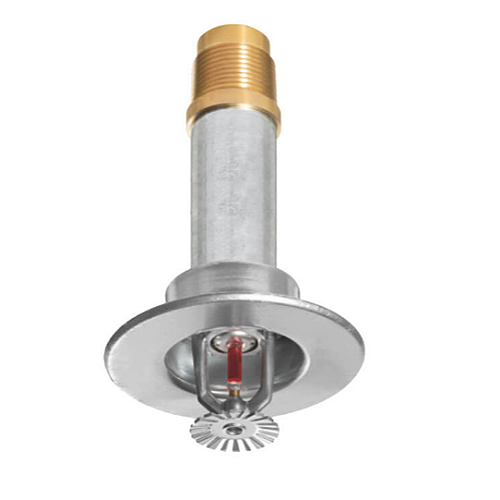

UL dry sprinkler heads, through their unique dry drooping design and mechanical transmission opening mechanism, solve the problem of pipeline anti-freezing in low-temperature environments and are key special application components in fire protection systems.
Sprinkler Material :
BrassSprinkler Installation :
Pendent，Horizontal SidewallThread Size :
3/4 Inch, 1 InchTemperature :
155℉(68 ℃ )，175℉ (79 ℃ )，200℉(93 ℃ )Glass Bulb Color :
Red，Yellow，GreenSurface Finishing :
Natural BrassMOQ :
500 PiecesDelivery Time :
15~45 DaysEmail : jony@jyfire.com.cn
Product Introduction
Standby State: When there is no fire, the sealed pipe plug at the inlet of the short pipe remains securely closed due to the operation of the transmission mechanism. This effectively prevents the pressurized water within the pipe from flowing into the short pipe located beneath the nozzle.
Fire trigger: In the event of a fire, the rising temperatures cause the glass bulb temperature-sensing element within the nozzle to shatter.
Mechanical Transmission: Once the glass bulb shatters, the transmission mechanism that it once supported—comprising components such as transmission tubes and compression springs—is set free. The force exerted by the spring then propels the transmission mechanism, ultimately leading to the opening of the sealed pipe plug.
Sprinkler fire extinguishing: After the pipe plug is opened, pressurized water can enter the short pipe and eventually be evenly sprayed out through the splash pan of the nozzle to achieve fire extinguishing.
Dry sprinkler heads are primarily utilized in dry automatic sprinkler fire suppression systems and pre-action automatic sprinkler systems. In environments where the ambient temperature may drop below 4°C, these heads play a crucial role in preventing the water within the pipes from freezing, thereby ensuring the reliability and effectiveness of the fire protection system even in cold conditions.
Product Features
• Perfect anti-freezing solution: Isolate the temperature-sensing element (glass bulb) from the water source through an extension pipe to ensure that the pipeline system is in the heating zone.
• Local application, flexible and economical.
• Reliable performance and quick response: As a professional product, its thermal sensitive components respond promptly. Once activated, it can effectively release water flow to extinguish fires
• The short drooping pipe of a common nozzle can accumulate water during operation, risking high-temperature vaporization or low-temperature freezing. Dry nozzles prevent water accumulation in the pipe before operation.
Product Parameter
| Model | TY4255（Pendent）/ TY4366（Horizontal Sidewall） |
| Max. Working Pressure | 175 PSI |
| Temperature Rating | 155°F (68°C) 175°F (79°C) 200°F (93°C) |
| Sprinkler Thread Size | 3/4 Inch 1 Inch |
| Order Length | 3/4 " to 48" |
FAQ
Q：What’s the MOQ for ul dry fire sprinkler?
A：For standard sizes, our MOQ is usually 500 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
