UL Standard & Quick Response Concealed Fire Sprinkler

Concealed fire sprinkler heads not only enhance the aesthetic appeal of buildings but also play a vital role in fire protection. A key distinction in understanding their performance lies between "standard response" and "fast response" types.

Sprinkler Material :
Brass
Sprinkler Installation :
Pendent
Thread Size :
1/2 Inch
Temperature :
155℉（68℃） 200℉（93℃）
Glass Bulb Color :
Red,Yellow,Green
Surface Finishing :
Natural Brass
MOQ :
1000 Pieces
Delivery Time :
15~45 Days

Email : jony@jyfire.com.cn

Inquiry now Chat Now!

Product Introduction

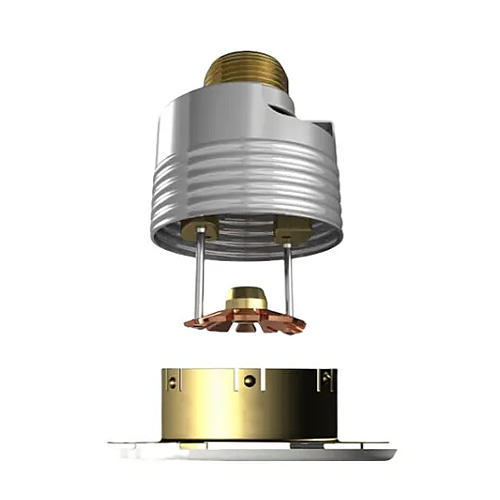

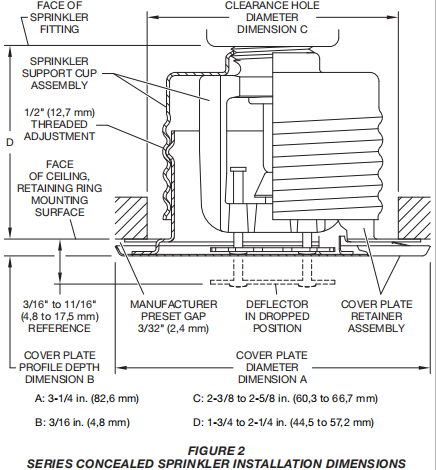

The nozzle body is entirely concealed above the ceiling, leaving only the edge of the sleeve level with the ceiling surface. A decorative cover plate is positioned at the sleeve's opening, harmonizing in color and texture with the ceiling to ensure total visual integration. As with all wet fire protection systems, the pipes that connect the sprinkler bodies are perpetually filled with pressurized water, standing ready to respond at a moment's notice.

When a fire breaks out indoors, the heat generated by the high-temperature smoke and flames will accumulate beneath the ceiling. The fusible alloy solder between the decorative cover plate and the sleeve melts at its specific melting point temperature (typically 135°F / 57°C or 165°F / 74°C, etc.). After the solder melts, the decorative cover plate, which has lost its adhesive force, will automatically fall down under the effect of Earth's gravity, exposing the nozzle body and the splash tray hidden above the ceiling.

The thermal-sensitive component of the nozzle, typically a glass bulb, is exposed to hot air and absorbs heat rapidly. As the temperature rises, the liquid within the glass bulb expands, leading to a potential rupture; if the component is made of a fusible alloy, it will simply melt and detach. This rupture or disconnection of the thermal-sensitive element results in the loss of support for the seal (the water valve disc) that it previously maintained. Consequently, the pressurized water within the pipe bursts through the compromised seal and sprays out from the nozzle. The resulting water flow strikes the splash pan, where it is evenly distributed into specific droplet formations, effectively covering the ground within the designated protected area and thus achieving fire suppression or control.

Product Features

• Aesthetics: The greatest advantage is that it does not affect the interior decoration design style.

• Protect the nozzle: Avoid accidental impact or damage to the nozzle in daily use.

The concealed sprinkler heads operate on a clever principle that seamlessly merges aesthetic appeal with fire-fighting capabilities. Their functionality is based on a two-stage triggering mechanism: first, the cover plate drops, followed by the shattering of a glass bubble. This design ensures dependable activation at critical moments, offering a safe and visually appealing fire protection solution for contemporary architecture.

Product Parameter

Model	TY3531 / TY3551
Temperature Rating	A .155°F (68°C) Sprinkler with139°F (59°C) Cover Plate
Temperature Rating	B. 200°F (93°C) Sprinkler with 165°F (74°C) Cover Plate
K-Factor	K 5.6（K 80）
Size	1/2 Inch
Glass Bulb	3mm 5mm

Q：What’s the MOQ for ul fire sprinkler?

A：For standard sizes, our MOQ is usually 1000 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.

One Stop Solution for fire hoses,sprinklers,nozzles,valves and pipe fittings!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

Tel.：86-18159244550 Mobil:18159244550

EMAIL:Jony@jyfire.com.cn

ADD:CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY
