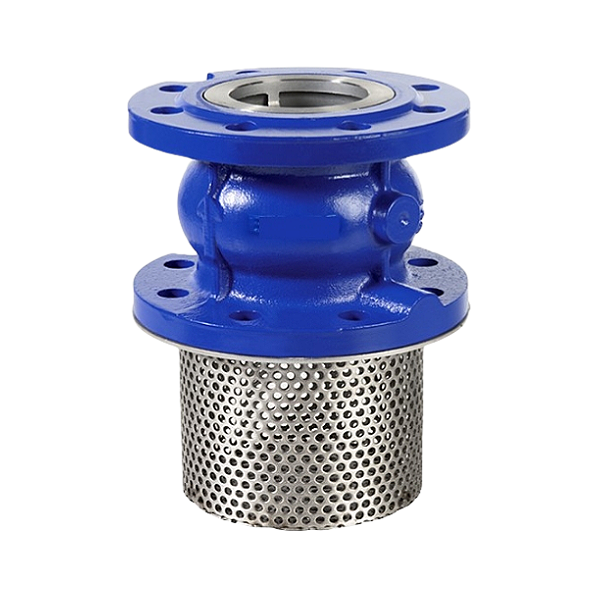

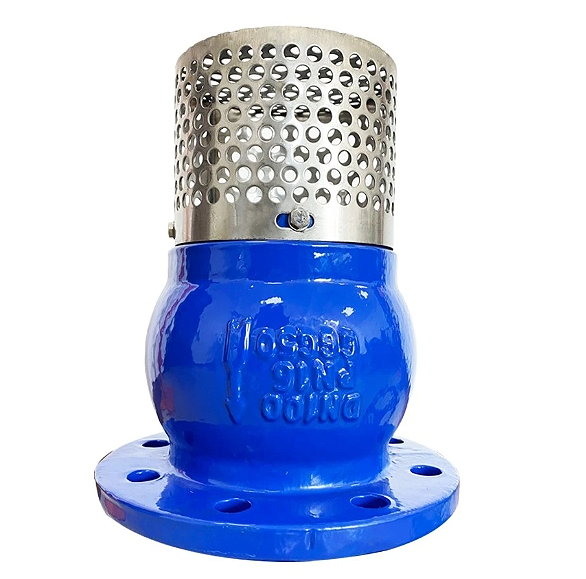

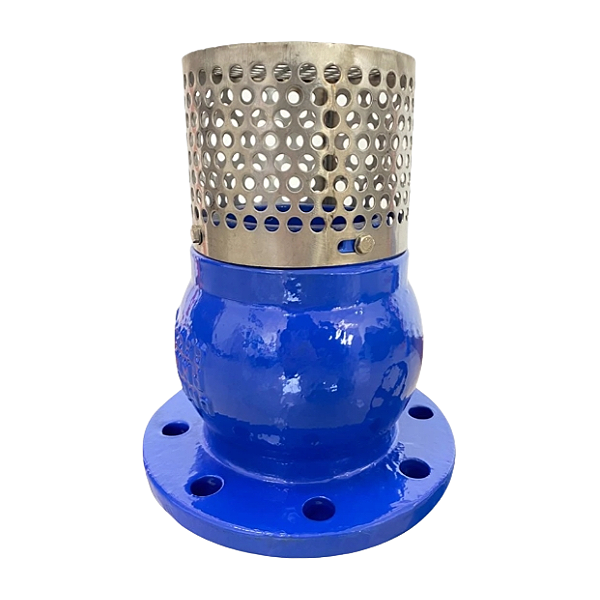

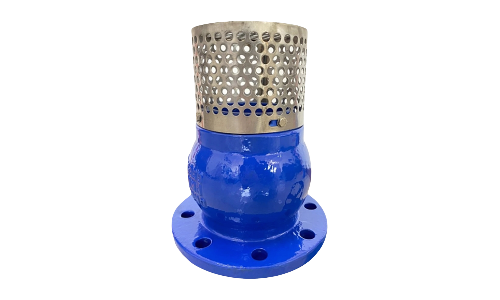

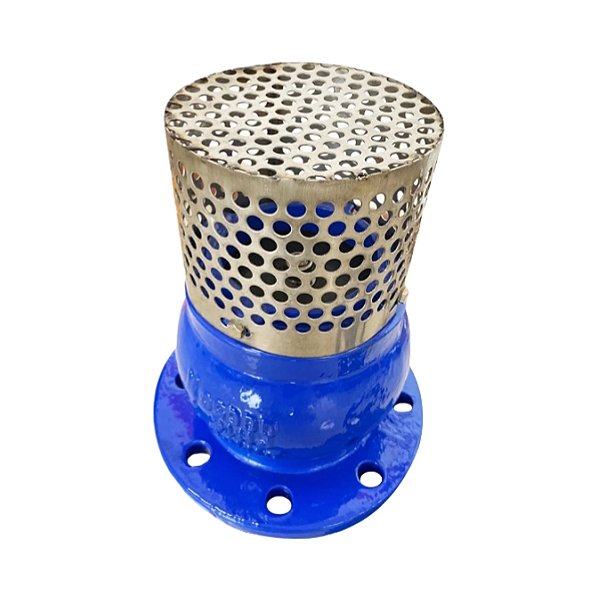

Flanged foot check valves, often also known as bottom valves, are a special type of check valve specifically installed at the end of the suction pipe of a water pump.
Material :
Cast IronNormal Diameter :
DN50 to DN200Connection :
Flange EndWorking Pressure :
1.0 Mpa 1.6 MpaType :
Foot ValveApplication :
Irrigation system , Industrial water etcMOQ :
20 PiecesDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Product Description
It integrates the check valve function and the filter screen function. Its core mission is to ensure that the water pump can be smoothly primed and drawn before starting, and to prevent the backflow of liquid when the water pump stops. It is an indispensable key device on the suction side of the water pump.
Foot valve is a composite valve that combines two functions. Inside it, there is a one-way valve disc (such as butterfly type, ball type or hinge type), which only allows the medium to flow from bottom to top (from the water source to the water pump), and automatically closes in the opposite direction. The lower end of the valve body is equipped with a filter screen, which is used to prevent solid impurities in the water source (such as sand, aquatic plants, and debris) from entering the pump, thus avoiding damage to the impeller and the pump body.
Features
• Keep the pump cavity full
• Protect the water pump
• Reduce the risk of cavitation
• Save time and manpower
• Sturdy structure
Product Parameter
| Diameter Size | DN50-DN65-DN80-DN100-DN125-DN150-DN200 |
| Connection | Flange End |
| Working Pressure | 1.0 Mpa 1.6 Mpa |
| Valve Type | Foot Check Valve |
| Red | Red Blue |
FAQ
Q：What’s the MOQ for foot valve？
A：For standard sizes, our MOQ is usually 20 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
