The flange swing check valve is a fundamental, robust, and widely used component for preventing backflow in piping systems. Its flanged ends make it ideal for bolted, permanent installations in medium to large pipe sizes where flow is consistent and the risk of water hammer is understood and managed.
Material :
Ductile ironNormal Diameter :
DN50 to DN150Connection :
FlangeWorking Pressure :
1.6Mpa 2.4MpaType :
Swing Check ValveApplication :
Oil & Gas,Power Generation,Chemical Processing etcMOQ :
50 PiecesDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Product Description

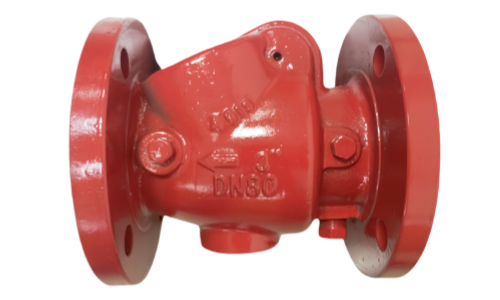

A Flange Swing Check Valve is a type of check valve (non-return valve) designed to allow fluid (liquid or gas) to flow through it in only one direction. The "swing" refers to the disc, which swings on a hinge or trunnion to open and close. The "flange" refers to the method of connection: it has flanged ends that bolt directly to matching flanges in a piping system.
Its primary purpose is to prevent backflow, which can damage equipment (like pumps and compressors), cause water hammer, or contaminate upstream media.
The flange swing check valve is a fundamental, robust, and widely used component for preventing backflow in piping systems. Its flanged ends make it ideal for bolted, permanent installations in medium to large pipe sizes where flow is consistent and the risk of water hammer is understood and managed.
Features
• Low Pressure Drop: The full-port design offers minimal resistance to flow when fully open.
• Simple Design: Few moving parts make them reliable and easy to maintain.
• Automatic Operation: Requires no external power or operator intervention.
• Suitable for Large Lines: Often used in large diameter piping systems.
Product Parameter
| Flanged Swing Check Valve Material & Parameter | |
| Body | Ductile Iron |
| Disc | SS304+EPDM |
| Seat Ring | Bronz as ASTM B62 C83600 / SS304 |
| Hinge Pin | AISI 420 |
| Disc | Ductile iron+EPDM（5"-12"） |
| Plug | Galvanized malleable iron/SS steel |
| Working Pressure | 1.6 Mpa 2.4 Mpa |
FAQ
Q：What’s the MOQ for flange swing check valve？
A：For standard sizes, our MOQ is usually 50 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
