Its core mission is to filter and remove solid particle impurities such as rust, sand, and pipe debris from fluid media like water, steam, oil, and gas, thereby protecting downstream precision equipment from damage or blockage.
Material :
Ductile iron,Normal Diameter :
DN50 to DN300Connection :
FlangedWorking Pressure :
2.4 MpaType :
Y StrainerApplication :
Fire Protection System etc.MOQ :
50 PiecesDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Product Description

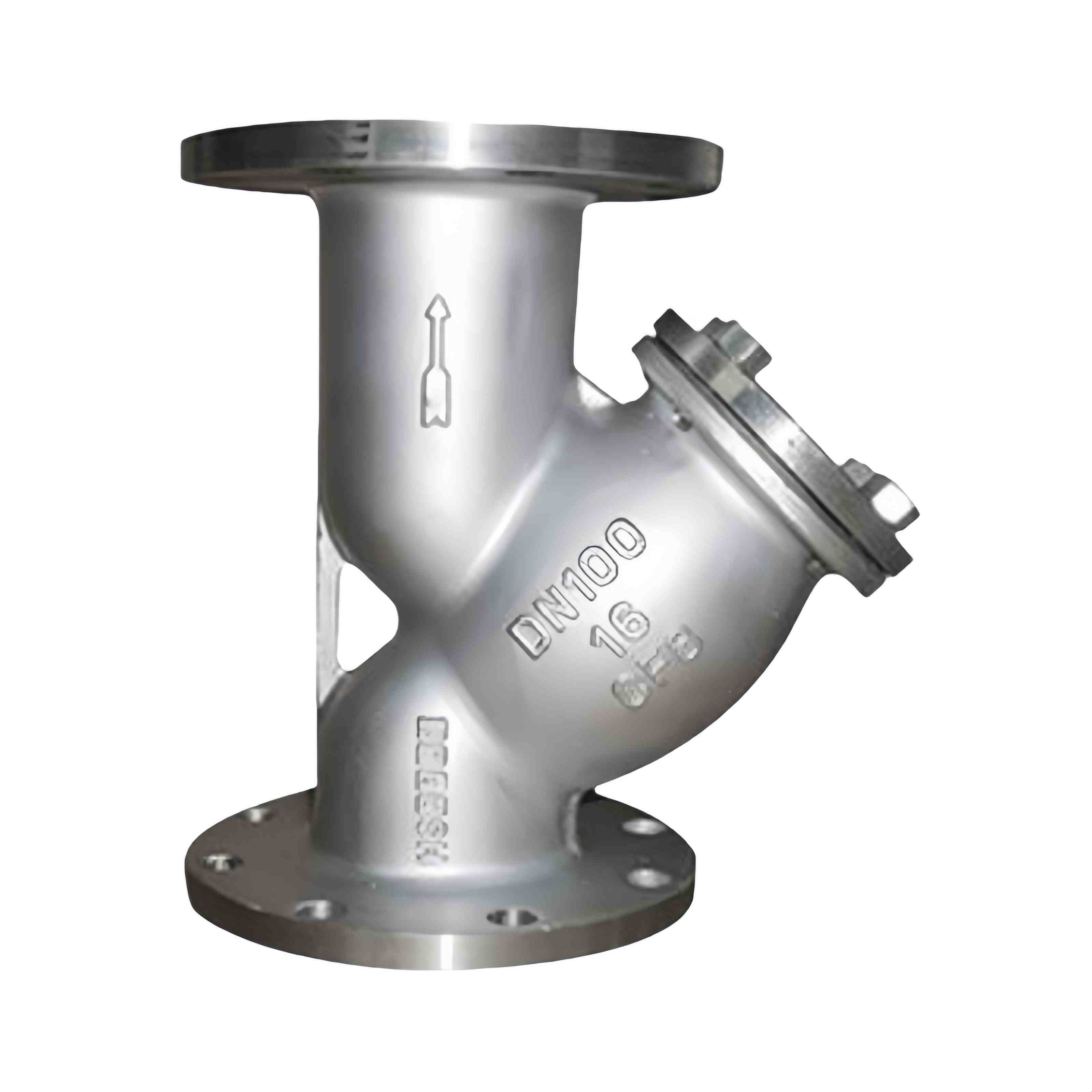

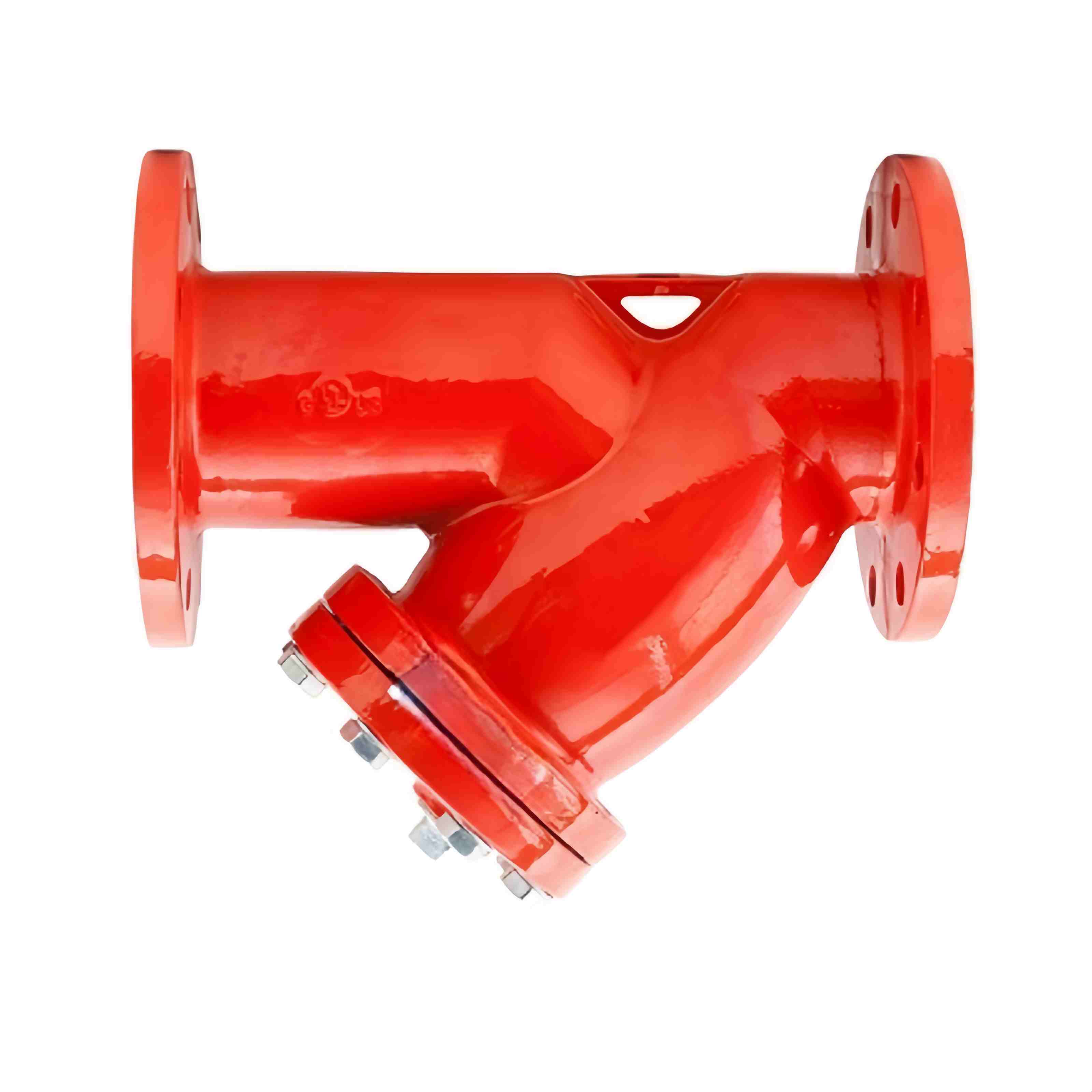

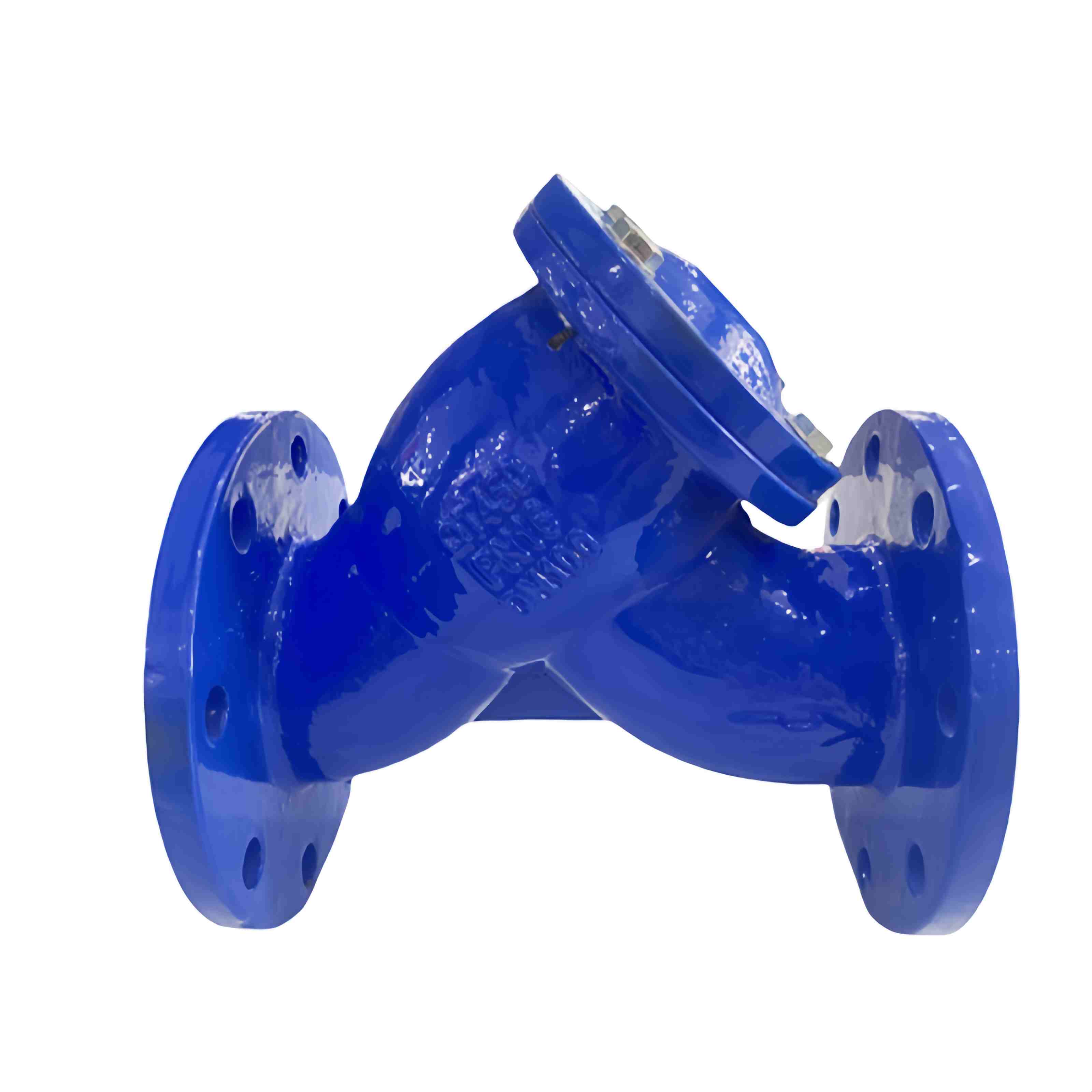

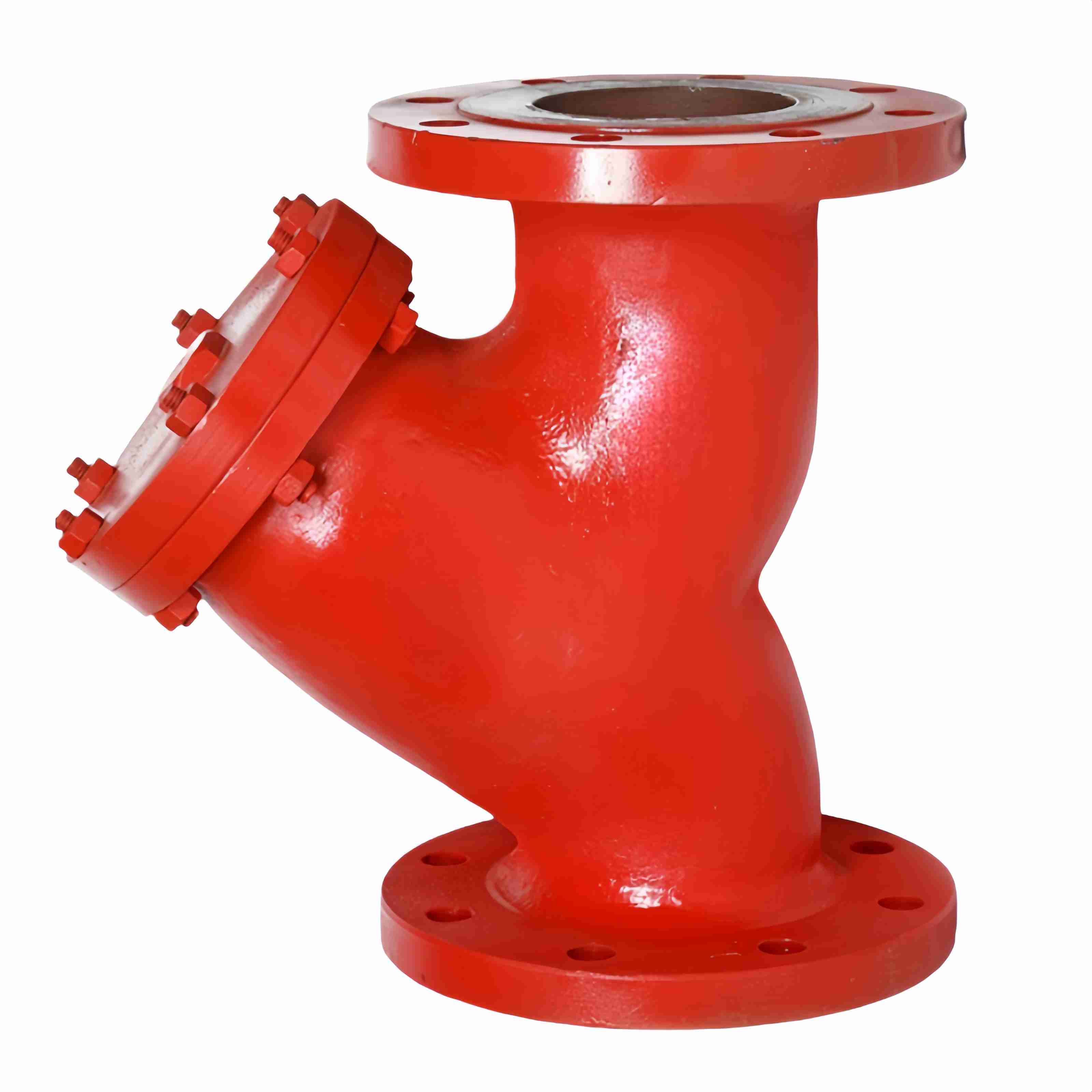

A Flanged Y Strainer is a mechanical device used to remove and capture solid debris (like scale, rust, sediment, and other particles) from flowing liquids in a pipeline. Its purpose is to protect downstream equipment—such as pumps, valves, meters, traps, and nozzles—from damage, clogging, or reduced efficiency caused by this debris.
The "Y" describes its shape, which resembles the letter Y, allowing for a more compact design and efficient straining area. The "Flanged" refers to its connection type: it has flanged ends that bolt directly to matching flanges in the piping system.

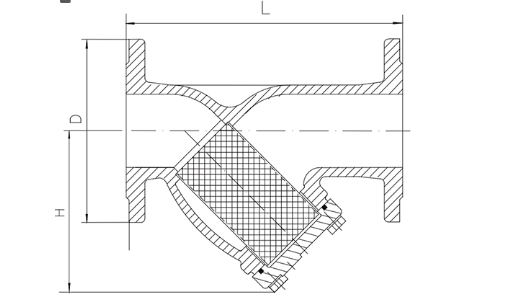

The working principle lies in that the fluid enters the filter from the inlet and flows through the filter screen. Impurities larger than the mesh size are intercepted on the inner wall of the filter screen. Clean fluid passes through the filter screen, flows out from the outlet, and continues to flow towards equipment such as valves, pumps, instruments, and heat exchangers. With use, impurities gradually accumulate, and it is necessary to open the plug regularly for drainage and cleaning.
Features
• Simple structure and low pressure drop
• No need to stop the machine for sewage discharge
• Convenient for maintenance and cleaning
• Widely applied
• Economical and durable
Company Project
| Body Material | Ductile iron,Carbon Steel |
| Diameter Size | DN50-DN100-DN125-DN150-DN200-DN250-DN300 |
| Medium Temperature | ＜225 ℃ |
| Applicable Medium | Water,oil gas etc |
FAQ
Q：What’s the MOQ for flange y strainer?
A：For standard sizes, our MOQ is usually 50 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
