Its purpose remains the same: to protect sensitive and expensive downstream equipment—such as pumps, control valves, spray nozzles, and meters—from damage, clogging, and wear caused by pipeline scale, rust, weld slag, and other particulates.
Material :
Ductile iron,Carbon ironNormal Diameter :
DN50 to DN300Connection :
GroovedWorking Pressure :
2.4 MpaType :
Y StrainerApplication :
Industrial,Fire protection system etc.MOQ :
50 PiecesDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Product Description

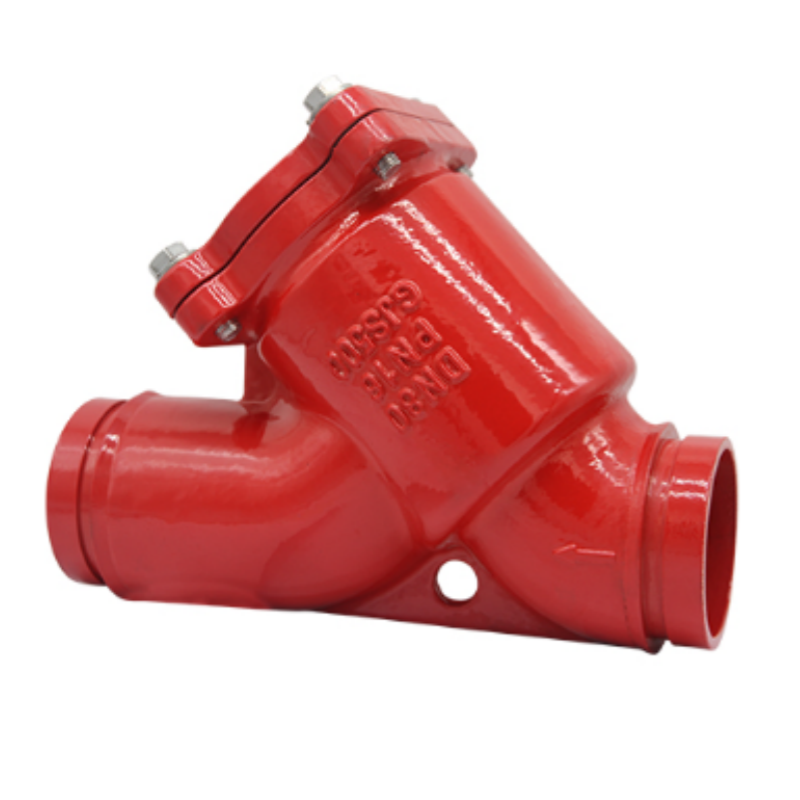

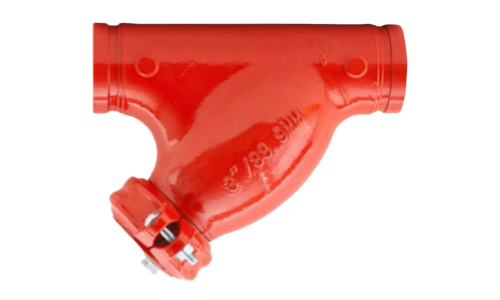

A Grooved Y Strainer is a device designed to remove solid debris from flowing liquids, functionally identical to a flanged Y strainer. The key difference is its connection method: it features grooved ends that accept mechanical couplings instead of traditional bolted flanges.
It uses "Grooved Coupling" for connection, which is a fast mechanical connection method that does not require welding or thread processing. When installing, use rubber sealing rings and clamps to tightly lock the two pipe ends with grooves together. This connection method is easy to install, shock-resistant, and allows for a certain degree of pipe end deflection. It is very suitable for fire protection, water supply and drainage systems, etc.
Its shell is in a slanted "Y" shape. This design can provide the maximum filtration area in a limited space, and the resistance when the fluid passes through is small, resulting in low pressure loss.
Features
• Rapid Installation & Disassembly: The biggest advantage. Installation is significantly faster than bolting flanges.
• Lower Installed Cost: Reduced labor time dramatically lowers the total cost of installation.
• Flexibility & Maintenance: Allows for easy removal for system modifications, inspection, or replacement without welding or cutting pipe.
• Safety: No hot work (welding) or torquing large flange bolts is required.
• Vibration Dampening: The rubber gasket in the coupling absorbs pipe vibration and reduces noise transmission.
• System Alignment: Couplings can accommodate minor misalignment and pipe deflection.
Product Parameter
| Grooved Y Strainer Main Parts Material & Parameter | ||
| Material | Bolt | Carbon Steel |
| Gasket | Rubber | |
| Drain plug | Carbon Steel,Stainless Steel | |
| Valve Cover | Ductile iron, Carbon steel | |
| Sealing Ring | Rubber | |
| Nut | Carbon Steel | |
| Filter | Stainless Steel | |
| Body | Ductile iron,Carbon steel | |
| Size | DN50-DN100-DN125-DN150-DN200-DN250-DN300 | |
| Mediun Temperature | 0~80 ℃ | |
| Applicable Medium | Water,oil gas etc. | |
FAQ
Q：What’s the MOQ for grooved Y strainer?
A：For standard sizes, our MOQ is usually 50 Set. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
