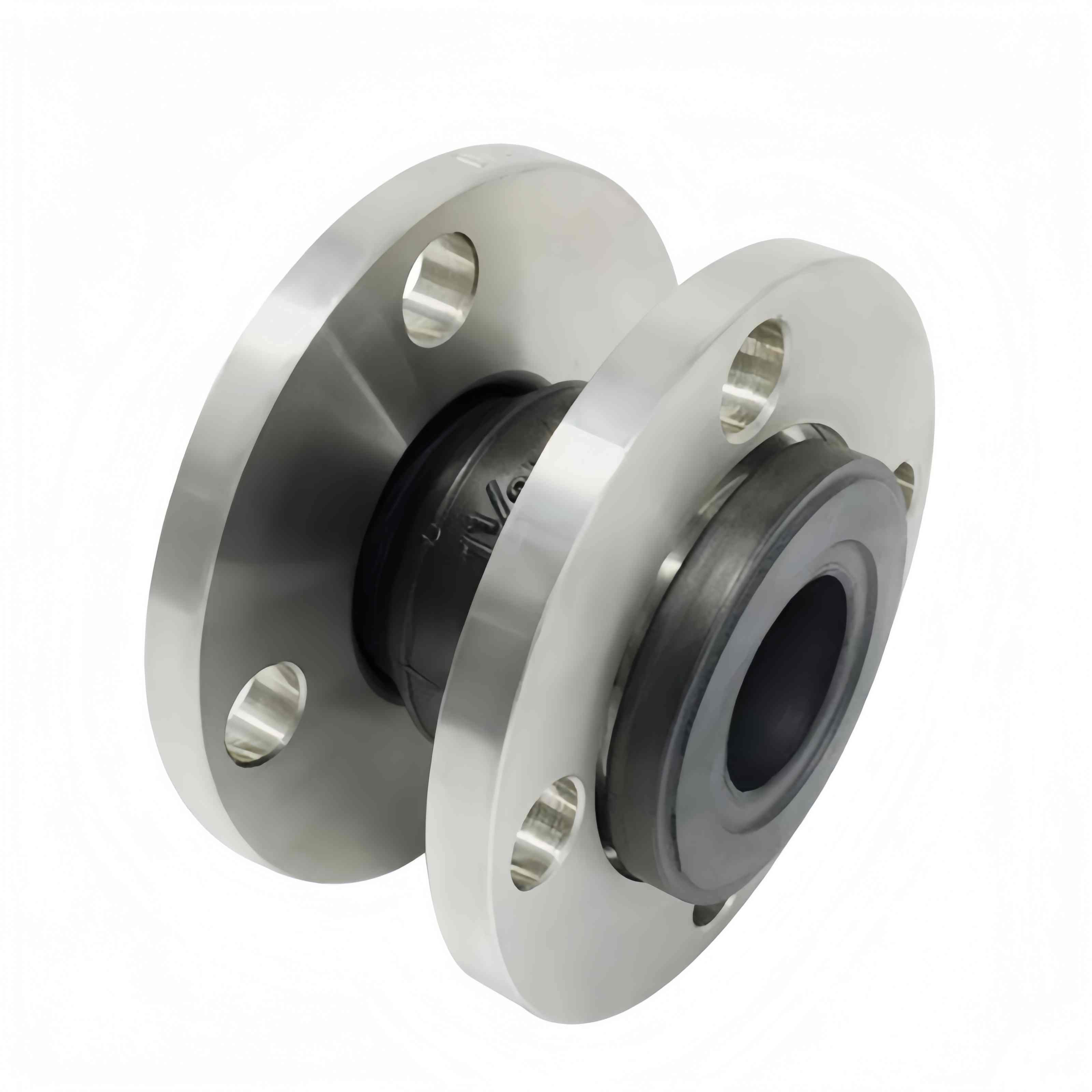

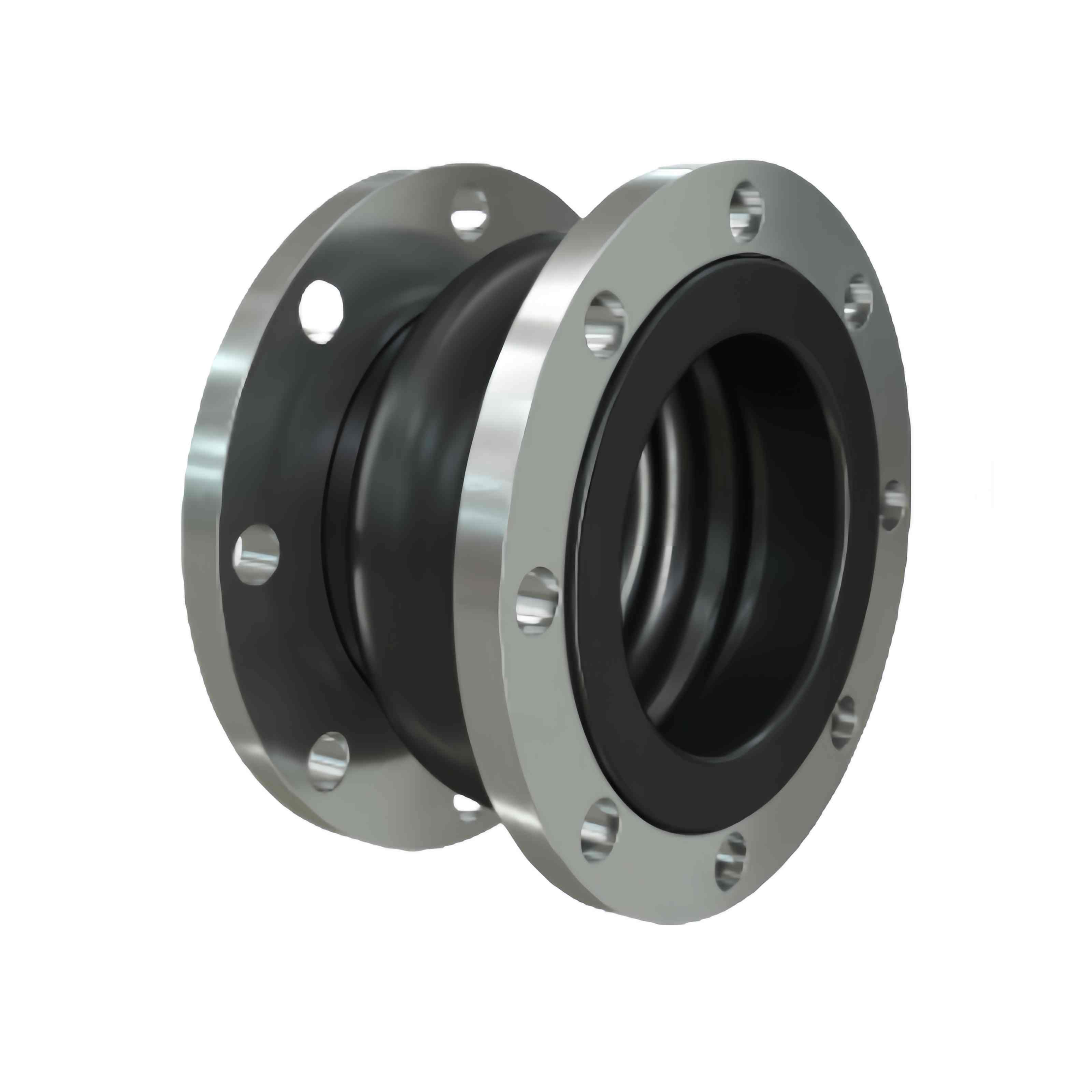

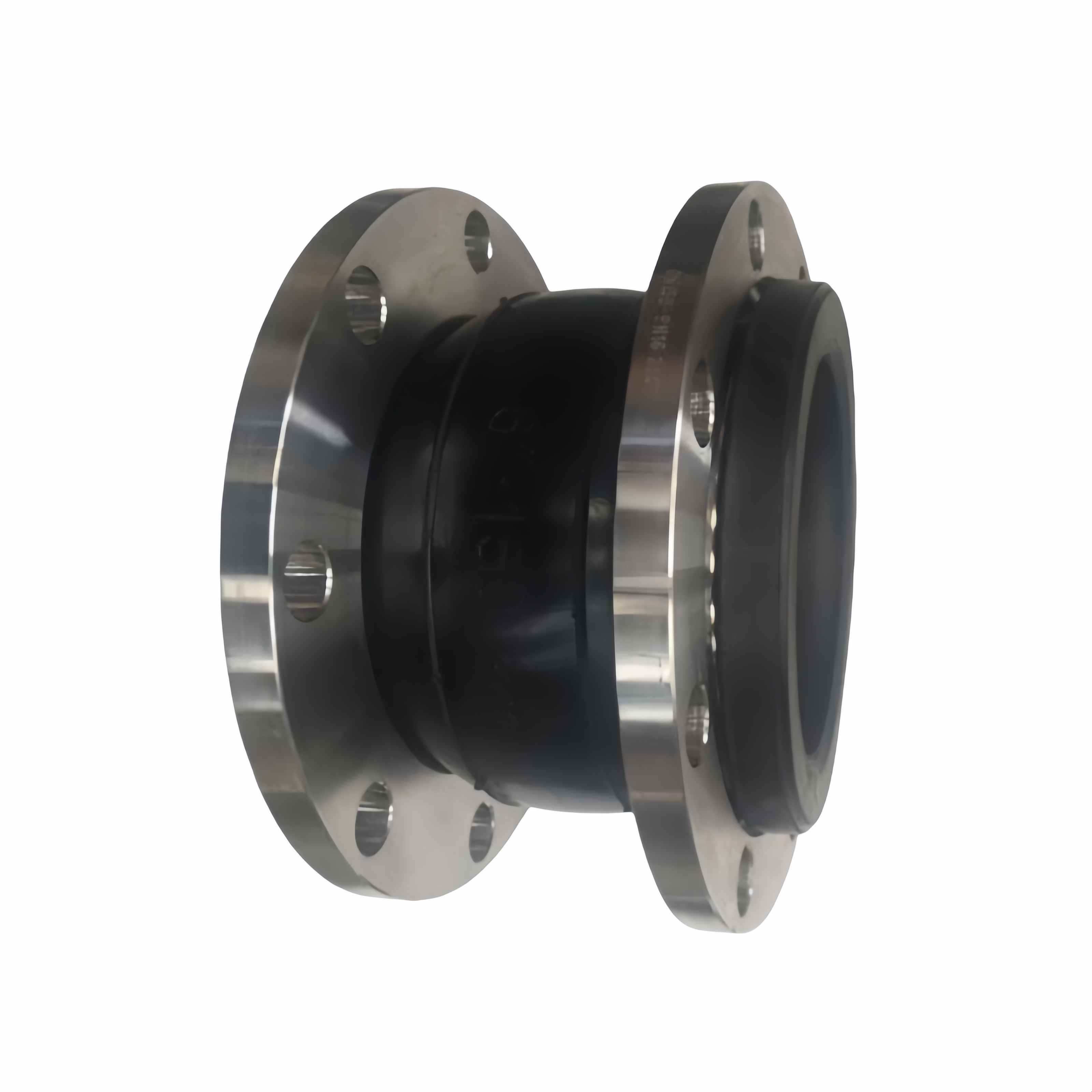

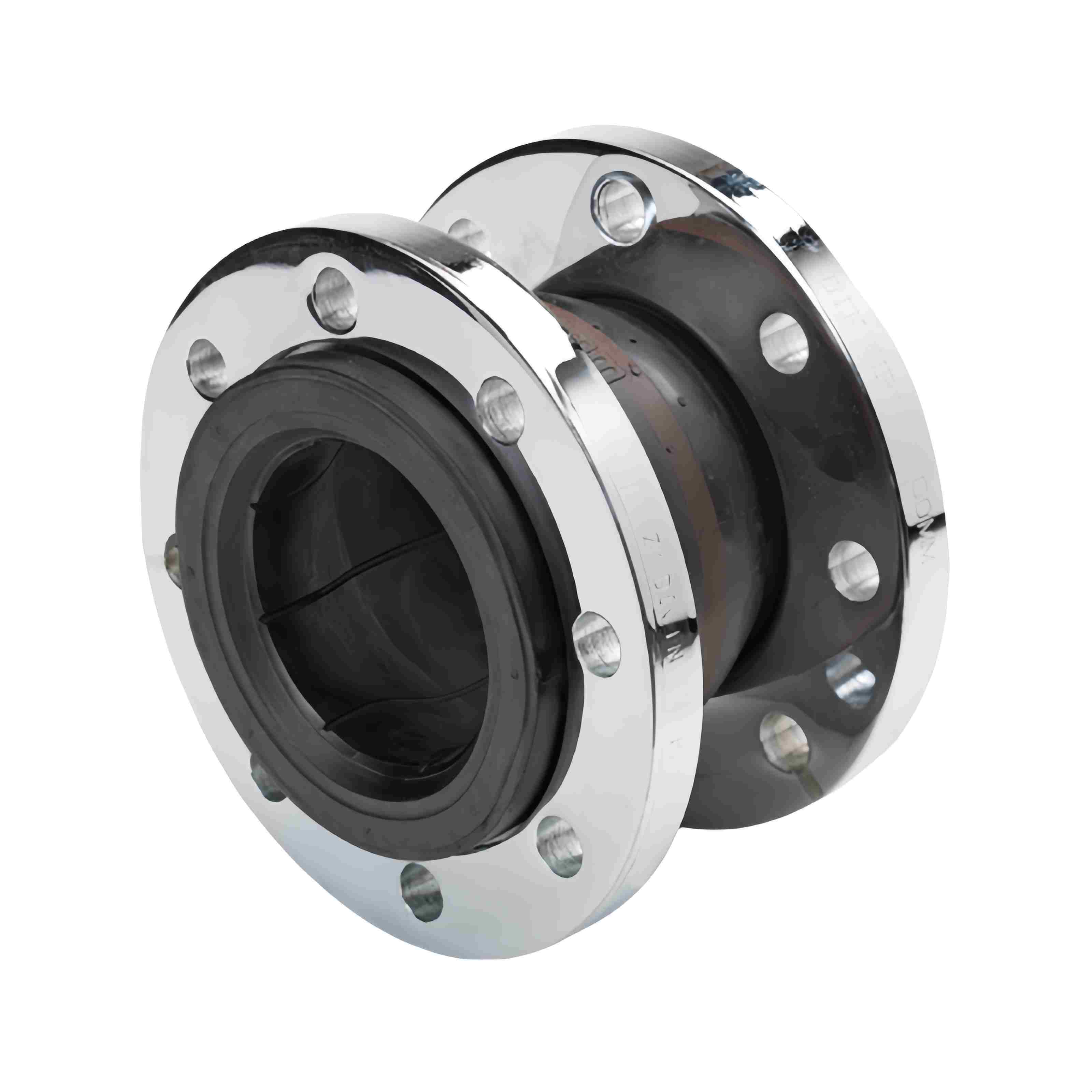

It is a flexible connection element used in pipeline systems. It is composed of an elastic rubber body and embedded metal flanges or threads. With its outstanding compensation, vibration reduction and noise reduction capabilities, it has become an indispensable key component in modern pipeline engineering.
Material :
Mid Steel & RubberNormal Diameter :
DN50 to DN600Connection :
FlangeWorking Pressure :
1.6 MpaType :
Rubber JointApplication :
Industrial pipeline,Firefighting system etc.MOQ :
50 PiecesDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Product Description

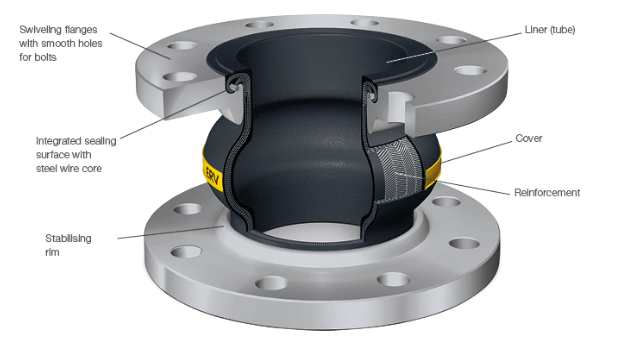

Rubber Flexible Joint is a flexible connector designed for piping systems, constructed from elastomeric materials (rubber) and fabric cord or metal reinforcement. Its primary function is to absorb movement (thermal expansion, vibration, shock) and compensate for misalignment in a pipeline, while also dampening noise.
They are distinct from metal expansion joints, as they utilize the inherent flexibility and damping properties of rubber.
The Rubber Flexible Joint is an indispensable component for managing the dynamic forces within a piping system. Its primary role is to protect expensive equipment like pumps and valves from the damaging effects of vibration, movement, and shock. While it has limitations in pressure and temperature, its advantages in vibration isolation, noise reduction, and cost-effectiveness make it a fundamental product in commercial, industrial, and municipal piping systems.
Features
• Excellent Vibration Isolation: Superior to most metal joints.
• Compensates Multi-Directional Movement: Handles axial, lateral, and angular movement in a single unit.
• Excellent Sound Dampening: Reduces noise transmission.
• Electrically Isolates: Prevents galvanic corrosion between dissimilar metals in the piping system.
• Low Maintenance: No moving parts to wear out.
Product Parameter
| Material | Flange | Stainless Steel |
| Reinforcing Wire | Mid Steel | |
| Tube | Synthetic Rubber | |
| Cover | Synthetic Rubber | |
| Reinforcing Fabric | Synthetic Fiber | |
| Size | 1-1/2" ~ 12" | 14" ~ 24" |
| Working Pressure | up to 214 psi | up to 114 psi |
FAQ
Q：What’s the MOQ for rubber flexible joint ?
A：For standard sizes, our MOQ is usually 50 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
