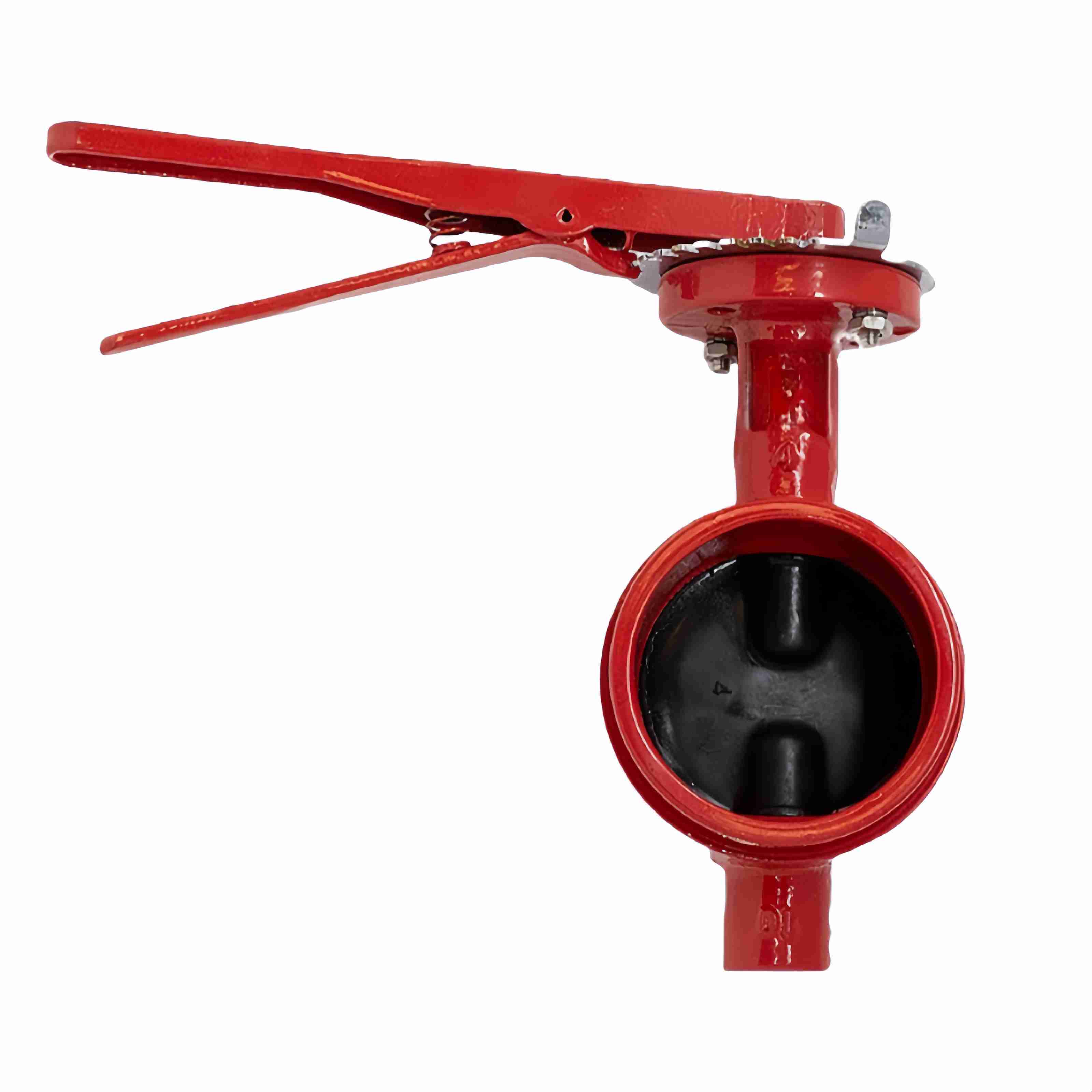

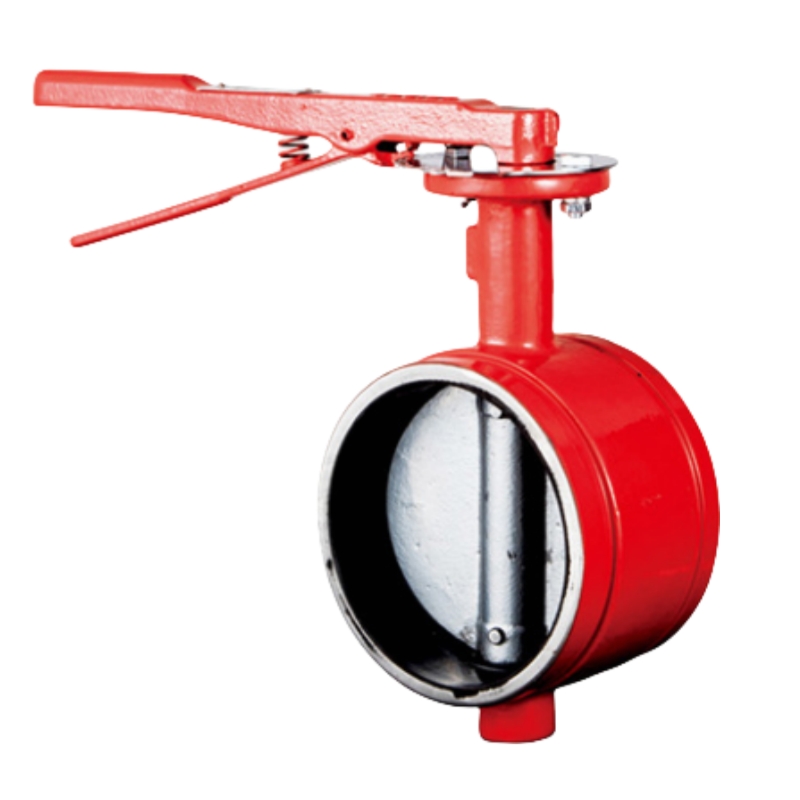

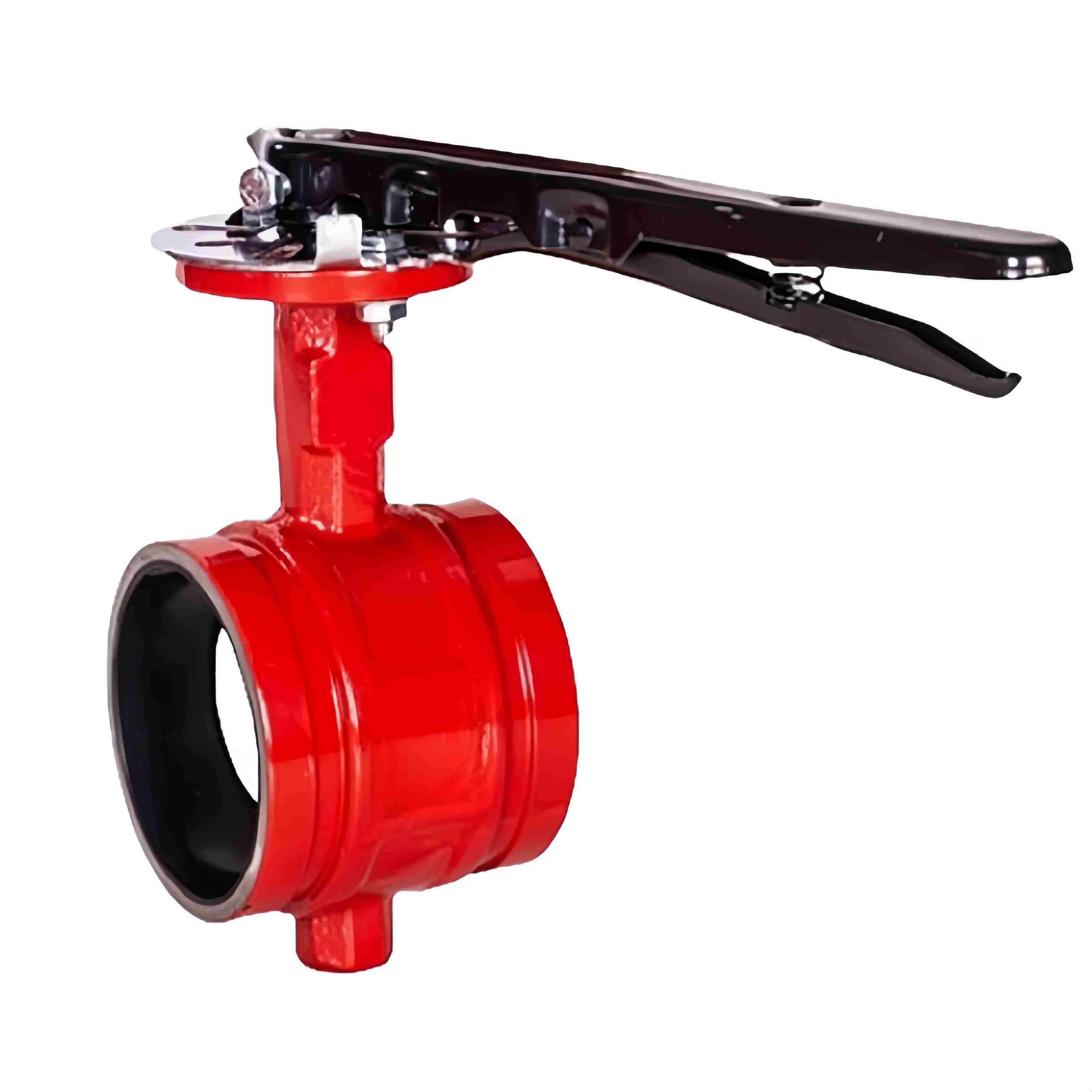

The grooved handle butterfly valve is a type of valve that directly drives the butterfly plate to rotate 90° by rotating the handle and is connected by grooved clamps. It perfectly combines the convenience of butterfly valves with the installation efficiency of grooved connections, making it the preferred device for frequent and rapid manual operations in environments with limited space.
Material :
Ductile IronNormal Diameter :
DN50 to DN300Connection :
Grooved EndTemperature :
-10℃~80 ℃Working Pressure :
PN10 PN16Testing Pressure :
4.8 MpaApplication :
Oil,Chemical Factory etcMOQ :
10 SetDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Product Description
Butterfly valves are designed to be lightweight and compact, making them easy to install and operate. With just a simple quarter-turn of the valve, operators can easily open or close the valve, allowing for precise control over the flow of oil. This is especially important in refining processes, where precise control is critical to ensure the quality and consistency of the final product.
The two ends of the valve body are precisely processed to form standard annular grooves, and it is quickly connected to the pipeline through rigid clamps. It adopts an intuitive lever-type handle, which is directly installed on the valve stem to achieve rapid opening and closing at 90°. The flow channel is controlled by the rotation of the disc-shaped butterfly plate, featuring a compact structure and low flow resistance
Features
• Unparalleled installation efficiency: The installation process requires no welding, no flange connection, and no threading.
• Quick and easy operation: Just 90° rotation is needed to complete full opening or full closing. The speed is fast, and the handle operation is very effortless and intuitive, with clear status indication.
• Compact structure and light weight: The wafer-type butterfly valve is already designed to be very lightweight. Combined with the grooved connection, it requires the least installation space among similar valves.
• Easy maintenance: In case of a malfunction, the valve can be replaced simply by loosening the clamp, with extremely low maintenance costs.
Economical: Considering its relatively low product cost and extremely high installation efficiency, its total cost of ownership is very low.
Product Parameters
| Material | Body | Ductile Iron |
| Sealing Ring | Rubber | |
| Butterfly Rod | Ductile Iron、Stainless Steel | |
| Stem | Stainless Steel | |
| Size | DN50-DN65-DN80-DN100-DN125-DN150-DN200-DN250 | |
| Norminal Pressure | PN10 PN16 | |
| Testing Pressure | 4.8 Mpa | |
| Medium Temperature | -10℃~80℃ | |
| Applicable Medium | Fresh water etc | |
FAQ
Q：What’s the MOQ for grooved fire butterfly valve?
A：For standard sizes, our MOQ is usually 10 units. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
