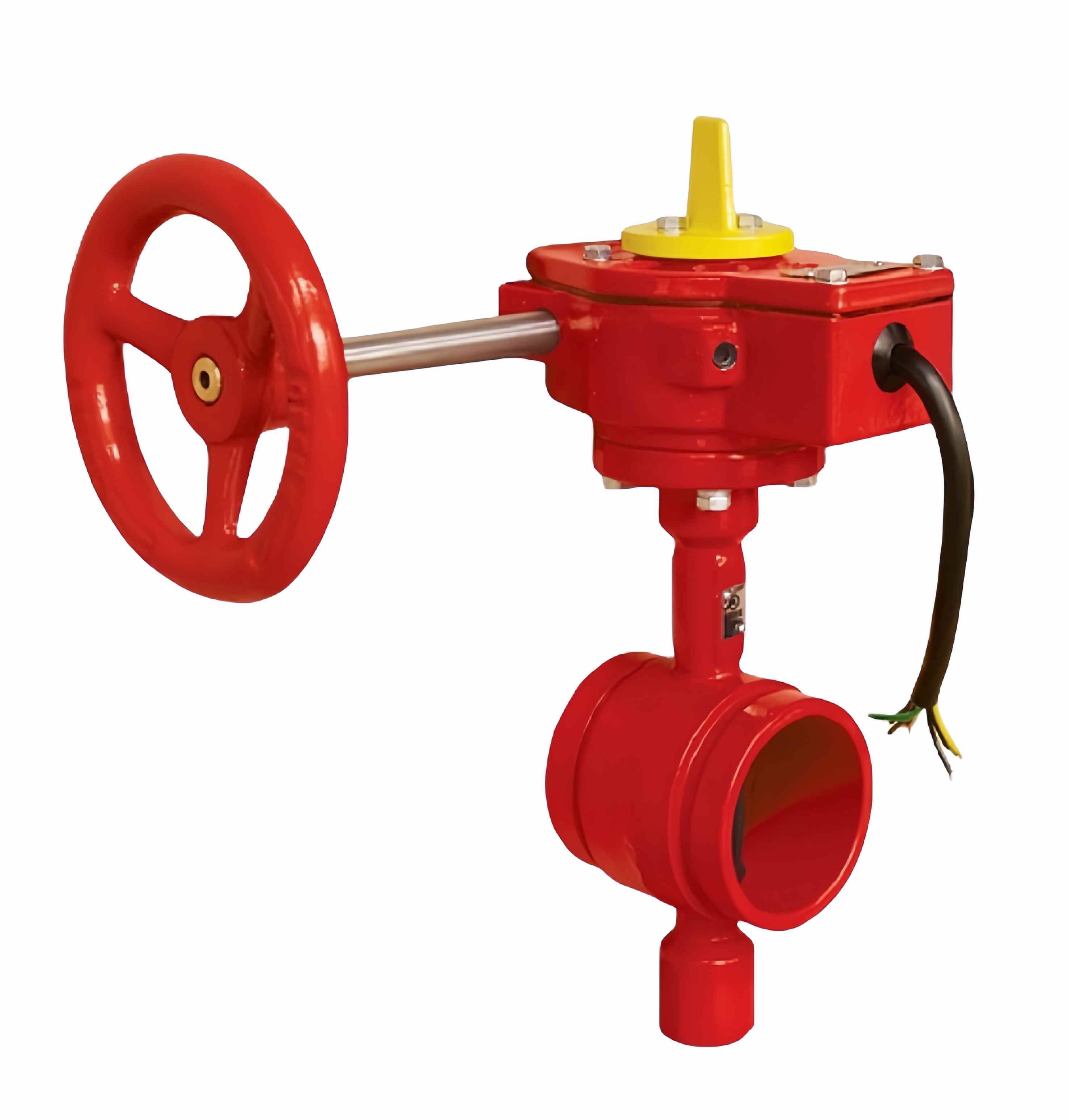

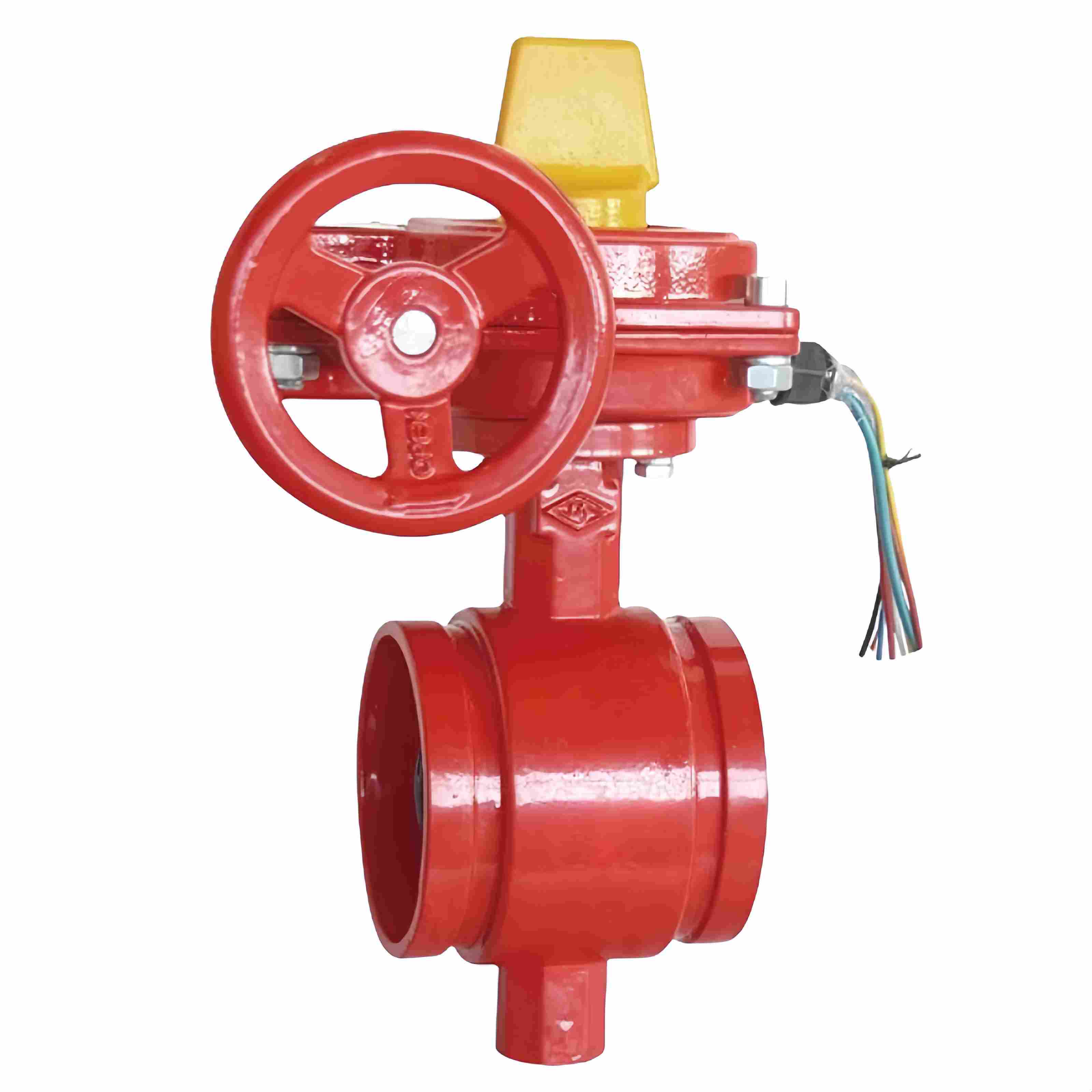

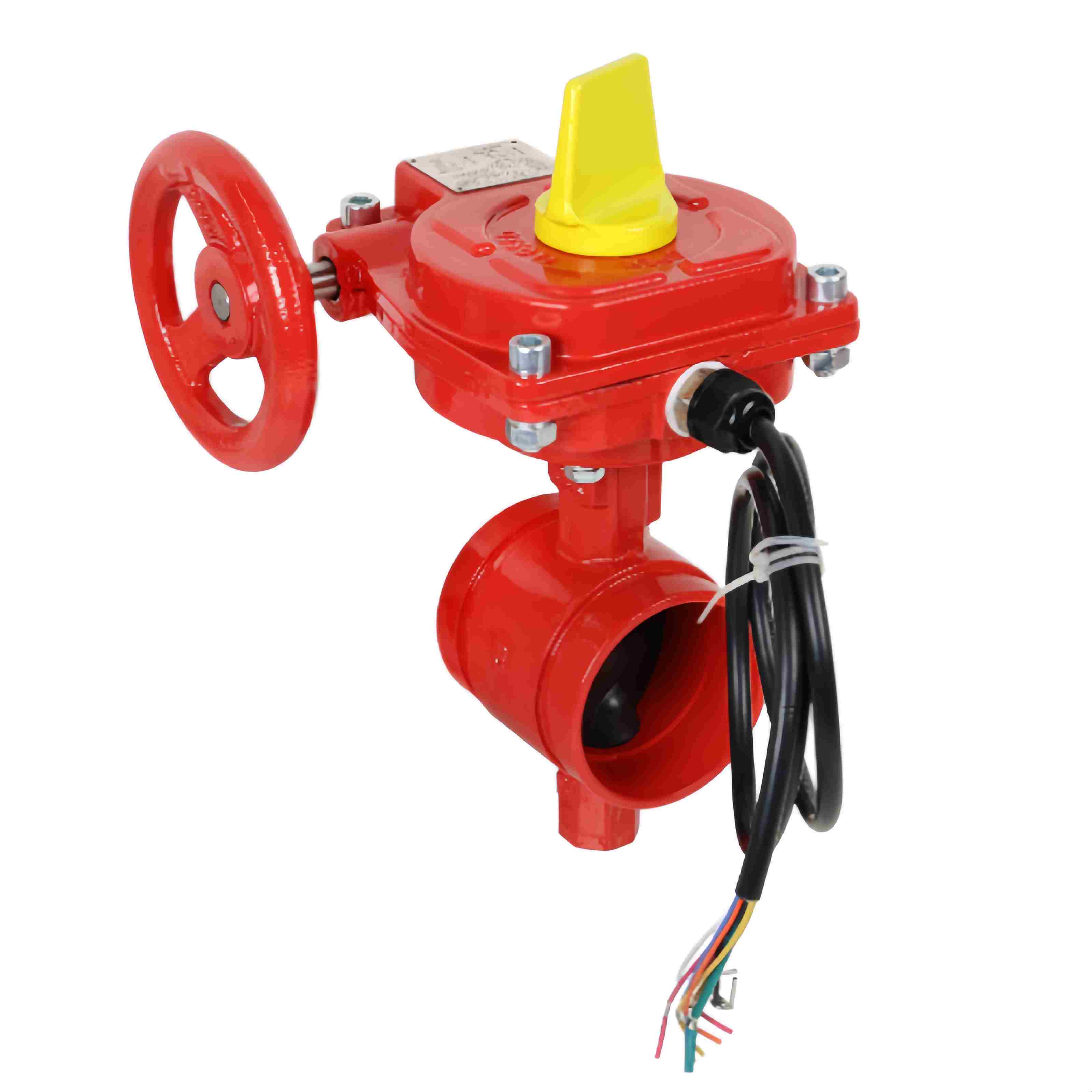

Grooved Butterfly Valve with Tamper Switch is a critical security device integrating mechanical control and electronic monitoring.
Material :
Ductile IronNormal Diameter :
DN50 to DN250Connection :
Grooved EndTemperature :
-10 ℃~80 ℃Working Pressure :
PN10 PN16Testing Pressure :
4.8 MpaApplication :
Oil Factory, Chemical Factory etc.MOQ :
10 SetsDelivery Time :
15~30 DaysEmail : jony@jyfire.com.cn
Product Description
Butterfly Valves, or fire butterfly valves, are an important component of fire protection systems. They use a disc-shaped butterfly plate as a closing piece, which rotates around the valve shaft to open and close. Fire butterfly valves have the advantages of simple structure, small size, light weight, and easy operation.
The two ends of the valve body are connected by high-strength grooved type. This design achieves rapid connection of pipes through rubber sealing rings and metal pipe clamps, featuring significant advantages such as easy installation, good seismic performance, and allowing for a small amount of pipe displacement, greatly enhancing construction and maintenance efficiency.
Features
• Dual function: It is both a useful pipe shut-off and a reliable status monitor.
• Quick installation: The grooved connection method significantly saves installation time and labor costs.
• Remote monitoring: Achieve 7x24-hour uninterrupted centralized monitoring without the need for frequent on-site inspections by humans.
• Precise positioning: Alarm information can be precisely located to specific valves, significantly reducing the time for troubleshooting.
• High reliability: Mechanical trigger, simple structure, stable and reliable.
Product Parameter
| Material | Body | Ductile Iron |
| Sealing Ring | Rubber | |
| Butterfly Rod | Ductile Iron、Stainless Steel | |
| Stem | Stainless Steel | |
| Size | DN50-DN65-DN80-DN100-DN125-DN150-DN200-DN250 | |
| Norminal Pressure | PN10、PN16 | |
| Testing Pressure | 4.8 Mpa | |
| Medium Temperature | -10℃~80℃ | |
| Applicable Medium | Fresh Water etc | |
FAQ
Q：What’s the MOQ for Flanged Non Rising Stem Gate Valve?
A：For standard sizes, our MOQ is usually 10 units. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
